| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PDKJ |
| Certification: | ISO CE SGS |
| Model Number: | DN25T |
| Minimum Order Quantity: | 1 unit |
| Price: | USD4500-6500 |
| Packaging Details: | Wooden case or iron box |
| Delivery Time: | 7-25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 set per month |
| Voltage: | 380/220V | Usage: | Spot Welding |
|---|---|---|---|
| Warranty: | 1 Year | Machine Type: | Auto Repair Tools Semi-automatic |
| Max. Welding Thickness: | 2mm | ||
| High Light: | Desktop AC Spot Welding Machine,AC Spot Welding Machine Precision Workpieces,60HZ table spot welder |
||

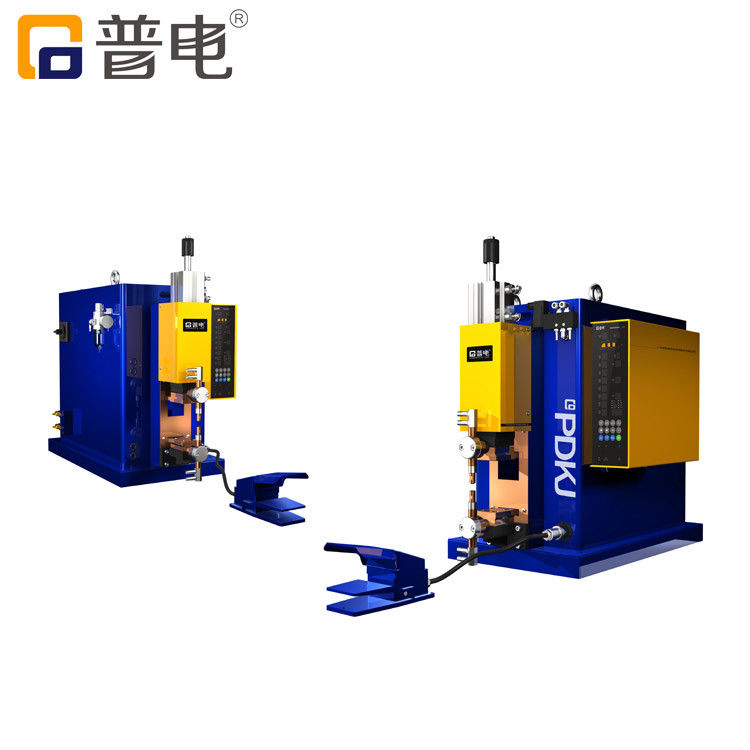

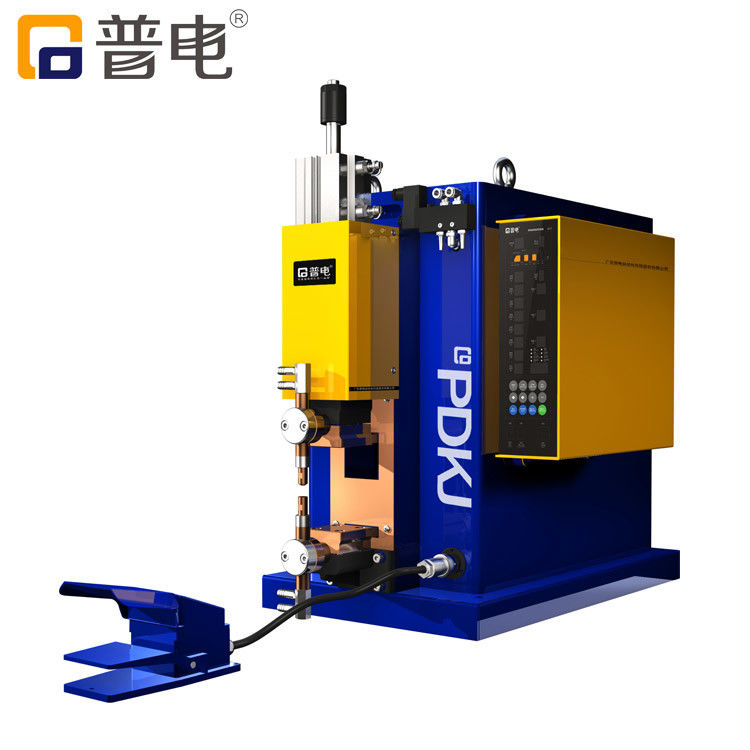

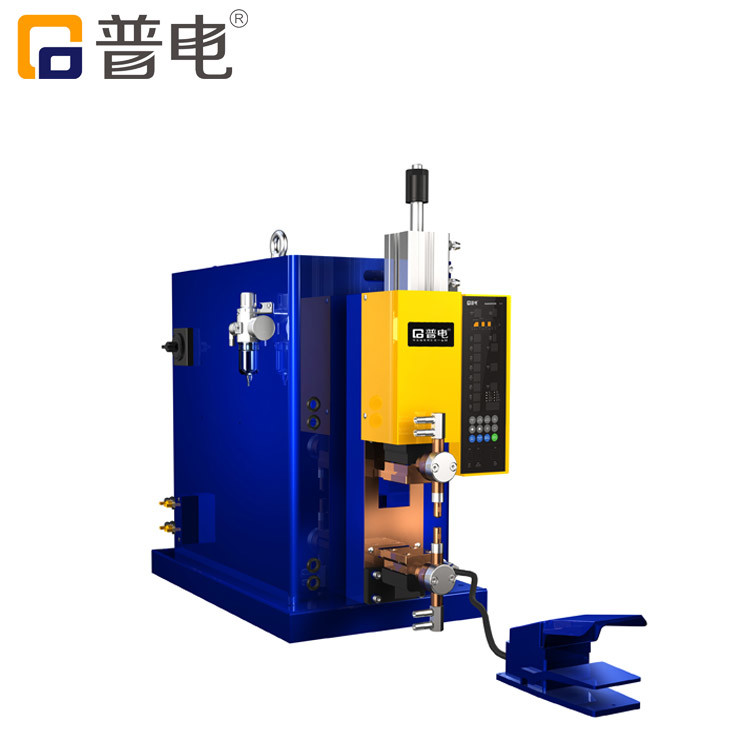

Desktop AC Spot Welding Machine For Welding Precision Workpieces Such As Electronics,Medical Device And Instrument
Desk AC precision spot welder
Features: desktop structure design, space saving, small current, more precise control, economical.
It is especially suitable for the welding of switch, copper wire connector, terminal wire, silver contact, chip inductor, coil, fuse and hardware. It is widely used in the welding of precision components such as electronics, electrical appliances, medical equipment and instruments.
Specifications
| Parameter | DN-25T |
| Rated capacity | 25KVA |
| Power Supply | 2φ380V |
| Rated frequency | 50/60HZ |
| Max. short-circuit current | 15000A |
| Load duration rate | 20% |
| Arm extension size | 120 mm x115mm |
| Max pressure | 750N |
| Electrode stroke | 50mm |
| Cooling water flow | 4L/min |
| Weight | 130kg |
| Dimensions | 800*500*765mm |
Product Characteristics:
■ Direct-type Pressure Mechanism:
The guide part adopts new structure with good mobility
■ High Strength Body Structure
Good rigidity, prevent electrode head from sliding under pressure
■Table Design Structure, Good Looking:
Especially suitable for high-precision work pieces and assembly line production
■ Safe and High-performance Pneumatic System
Pressure speed can be adjusted.
■ Water-saving& Water-circulating Cooling System:
Equipped with quick water-cooled connector,convenient to replace water-cooled electrode or fixture.
■ Equipped with a New Generation of Microcomputer Controller:
Accurate and stable current, excellent performance
Application
Desktop AC precision spot welding machine is suitable for welding electrical switches, wire terminals, hardware, bimetallic pieces and precision workpieces. It is widely used in the welding of precision components such as electronics, electrical appliances, medical devices and instruments.
