Crank Arm MFDC Spot Welding Machine CCC Table Spot Welder 3mm Sheet Metal

Basic Information
Place of Origin: CHINA
Brand Name: PDKJ
Certification: ISO CE SGS
Model Number: DB170-W
Minimum Order Quantity: 1 unit
Price: USD 35000-45000 per unit
Packaging Details: Wooden case or iron box
Delivery Time: 15-25 days
Payment Terms: L/C, T/T
Supply Ability: 50 set per month
Detail Information
Key Highlight: Big Platform And Table Sport Welding Application: Big Sheet Metal Plate Spot Welding
Condition: Brand New Service Life: More Than 10 Years
Standard: CE ISO CCC Warranty: 1 Year
Welding Capacity: 3.0+3.0mm
High Light:

MFDC Spot Welding Machine 3mm


Crank Arm MFDC Spot Welding Machine


CCC table spot welder

Product Description

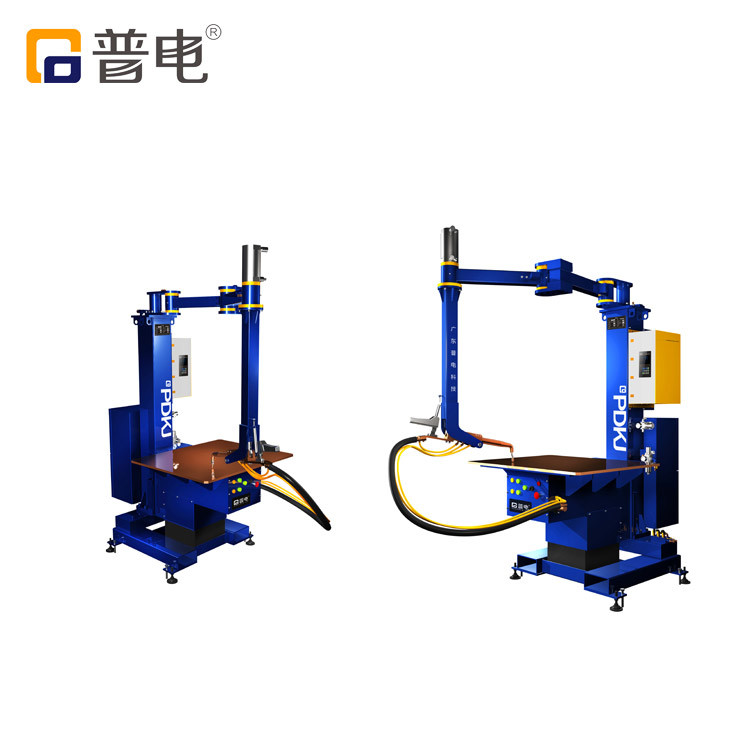

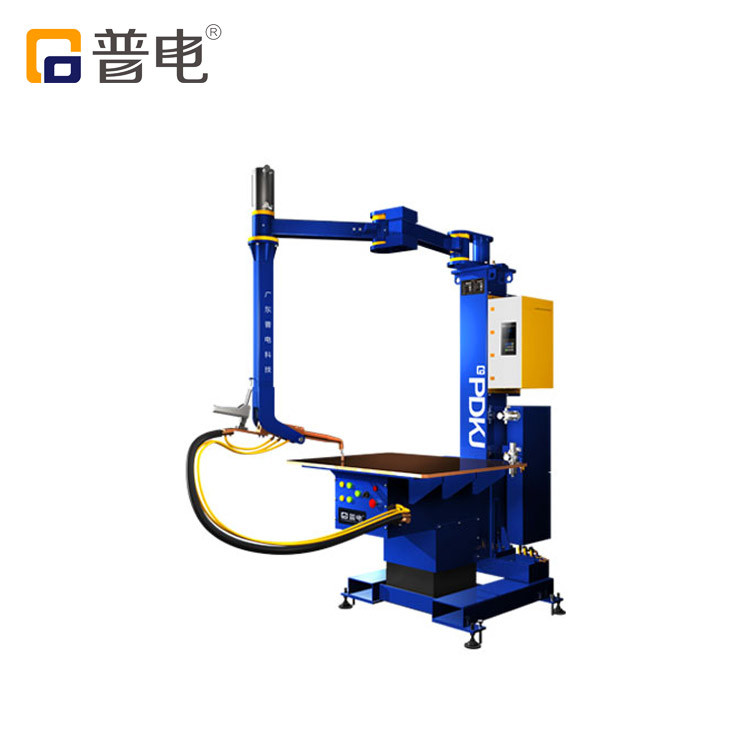

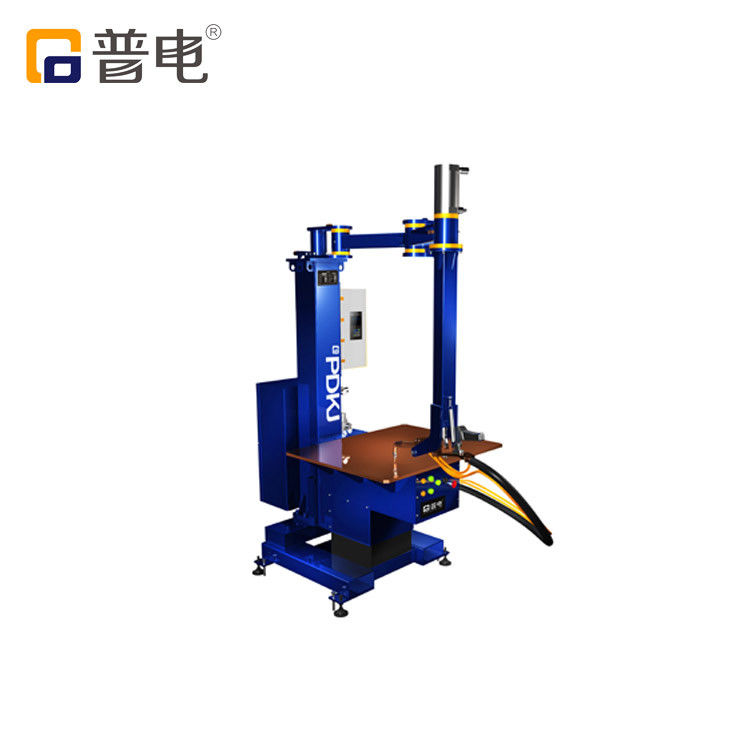

MF DC Crank-Arm Multipoint Sheet Metal Table Spot Welding Machine big Platform type

MF DC Crank-Arm Multipoint Sheet Metal Table Spot Welding Machine


The down electrode is a worktable,the work piece can be placed directly on the table.The surface under welding point is smooth or no welding point,no deformation and no need to polish again.It can be realized the traceless welding and he follow-up treatment processes can be saved, it enhances the efficiency of production and also improve the operating environment. No noise and dust pollution. Welding arm is multi-articulation arm structure which can easily reach evey work point .

Table spot welder is available as H-Gun with horizontal movement, V-Gun with vertical movement and a combination of H-Gun and V-Gun for customer’s needs. Table sizes come standard at (800 mm x 1000 mm) or (1000 mm x 1500 mm). Special orders for custom tables can be customized  by requirment




Parameter DB-170W
Rated capacity 170KVA
Power Supply 3φ380V
Rated frequency 1000HZ
Type of welding gun Horizontal welding gun
Torch length 390mm
Max. short-circuit current 22000A
Load duration rate 20%
Electrode pressure 2000N
Weld ability / mild steel 3.0+3.0mm
Welding ability / aluminum plate 2.0+2.0mm
Air pressure 0.6Mpa
Weight 760kg
Dimensions 1550×1000×2329mm
Table size


(table size can be customized according to user requirements)


Product Characteristics:

■The converse welding power supply of intermediate frequency is adopted,which can effectively reduce the consumption of electric energy,welding spatter. The welding quality will be stable and reliable.

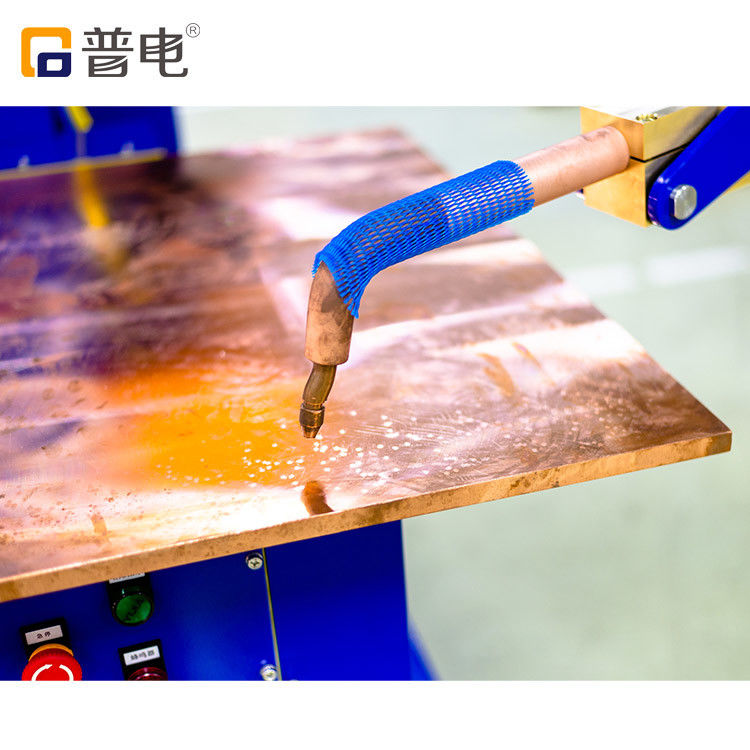

■The welding torch can be designed as horizontal or vertical structure, which is easy to reach into the depth of the box for welding,meeting the welding requirements of different directions.

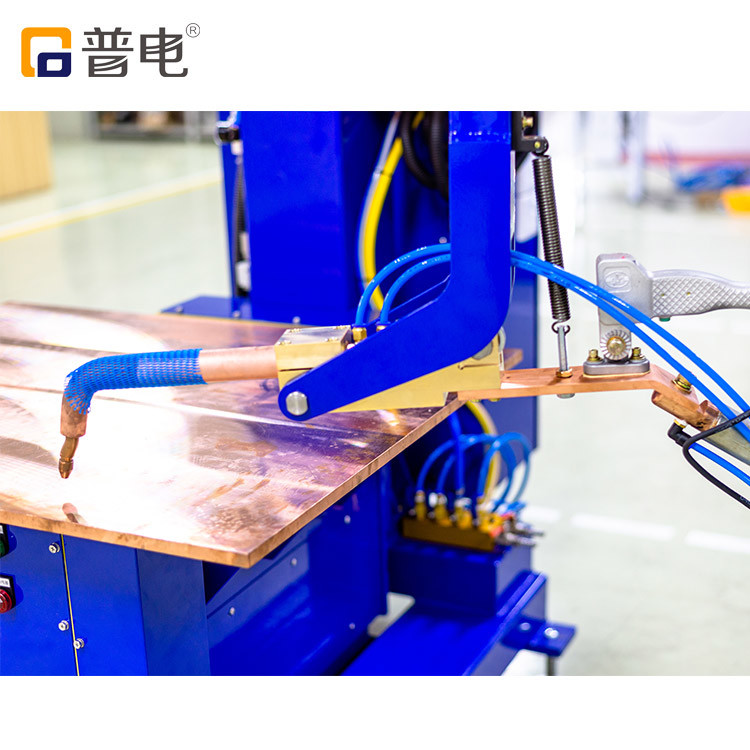

■The welding arm has multi-joint structure, the unique parallel joint structure makes the operation flexible, and the range of welding is larger, which can reach each point on the worktable conveniently.

■ The external surface of solder joints is smooth without solder joints and deformation, there is no need to polish treatment and no dust in the secondary processing. That not only the subsequent processing procedure is saved to improve the work efficiency, and also improves the operation environment, there will be no noise and no dust.
■ Pneumatic pressurization can reduce the labor intensity and obtain the constant spot welding pressure to make sure the welding spot is even. When you are welding some materials like iron cabinet,platform , the external surface will have no welding pits,which improves the welding quality.

■There is a horizontal worktable under the lower electrode , the work piece can be directly placed on the worktable surface.It is easy to operate and use even if you have no special skills or any experience.
■It can make your equipment management convenient, improve the welding quality, improve work efficiency, reduce labor intensity, improve work environment.



Welding of metal plates, especially good for welding of computer cases, electric control cabinet, office cabinet and automobile metal plates.


Crank Arm MFDC Spot Welding Machine CCC Table Spot Welder 3mm Sheet Metal 0


Crank Arm MFDC Spot Welding Machine CCC Table Spot Welder 3mm Sheet Metal 1



After Sale Service


1. All of our machines warranty for more than one year.

2. Our technician can offer free training in our workshop, welcome to visit our factory.

3. Our technicians can offer online training and service directly to you

4. Our technicians can go to site and offering service or training, but need us to share or bear all charges.
