25KVA DBT 80 Table Stainless Steel Spot Welder Traceless Medical Devices

Basic Information
Place of Origin: CHINA
Brand Name: PDKJ
Certification: ISO CE SGS
Model Number: DBT80
Minimum Order Quantity: 1 unit
Price: USD 4500-5500
Packaging Details: Wooden case or iron box
Delivery Time: 7-25 days
Payment Terms: L/C, T/T
Supply Ability: 200 set per month
Detail Information
Condition: New Voltage: 380V,Single Phase 50/60Hz,2 Phase,50H
Rated Duty Cycle: 20% Power(w): 25KVA
Color: Can Be Customized Function: SOLDERING,spot Welding
Application: Welding Of All Kinds Of Pan Handle/ear
High Light:

Traceless Stainless Steel Spot Welder


25KVA Stainless Steel Spot Welder


DBT 80 table spot welder

Product Description

Desktop Seamless Medium Frequency Inverter Welding Machine Stainless Steel Spot Welder

Desk AC precision spot welding machine


Product highlights: desktop structure design, space saving, small current, more precise control, economical





Parameter DN-25T
Rated capacity 25KVA
Power Supply 2φ380V
Rated frequency 50/60HZ
Max. short-circuit current 15000A
Load duration rate 20%
Arm extension size 120 mm x115mm
Max pressure 750N
Electrode stroke 50mm
Cooling water flow 4L/min
Weight 130kg
Dimensions 800*500*765mm


Product Characteristics:


Direct-type Pressure Mechanism:

The guide part adopts new structure with good mobility

High Strength Body Structure

Good rigidity, prevent electrode head from sliding under pressure

Table Design Structure, Good Looking:

Especially suitable for high-precision work pieces and assembly line production

Safe and High-performance Pneumatic System

Pressure speed can be adjusted.

Water-saving& Water-circulating Cooling System:

Equipped with quick water-cooled connector,convenient to replace water-cooled electrode or fixture.

Equipped with a New Generation of Microcomputer Controller:

Accurate and stable current, excellent performance



Desktop AC precision spot welding machine is suitable for welding electrical switches, wire terminals, hardware, bimetallic pieces and precision workpieces. It is widely used in the welding of precision components such as electronics, electrical appliances, medical devices and instruments.

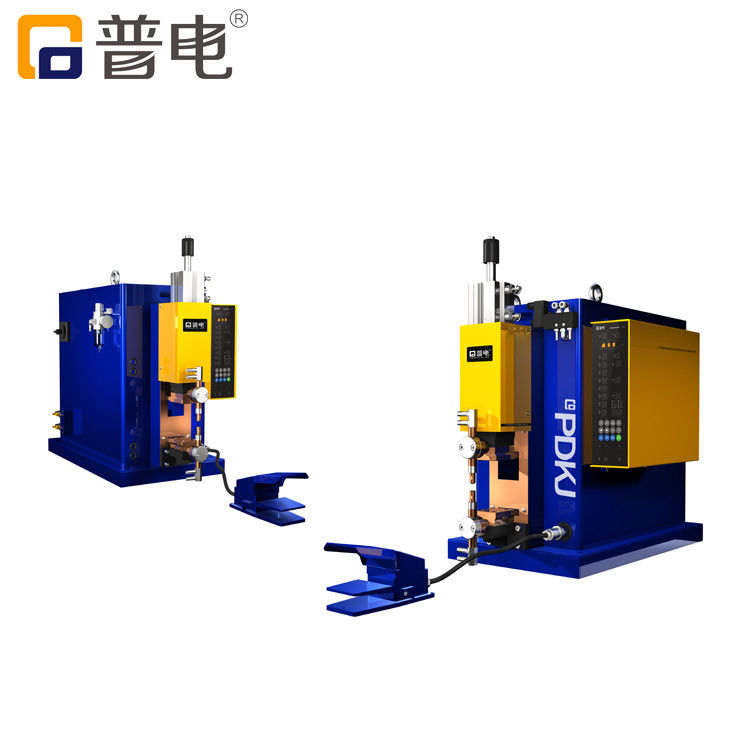

25KVA DBT 80 Table Stainless Steel Spot Welder Traceless Medical Devices 0

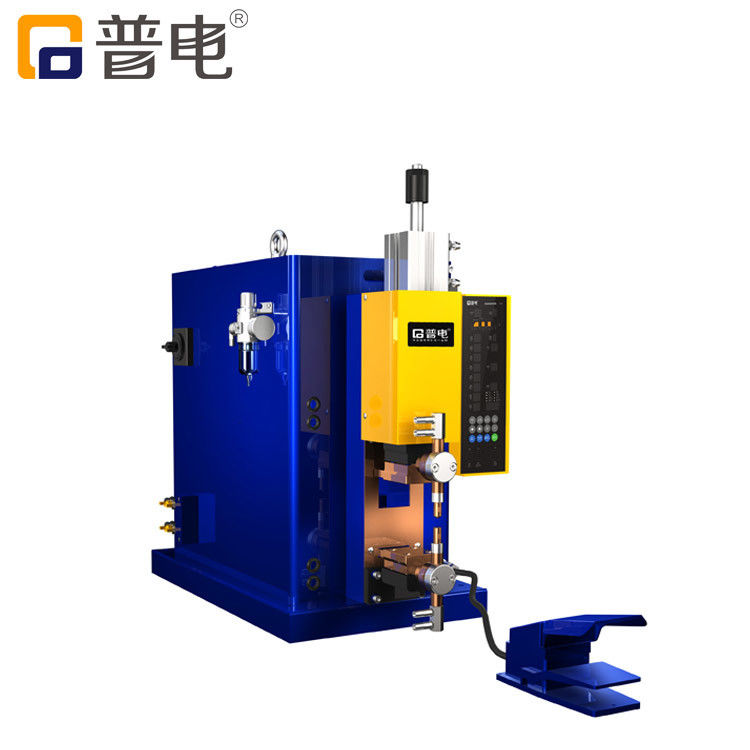

25KVA DBT 80 Table Stainless Steel Spot Welder Traceless Medical Devices 1



1. When can you arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,but customized machines may be more than 25 days.

2.Do you inspect the finished products?

Yes, Each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

5.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

6.Can you put my brand name (logo) on this Spot Welder?
Yes,we can . In order to explore the market better and provide more convenient services to global customers.

7.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.

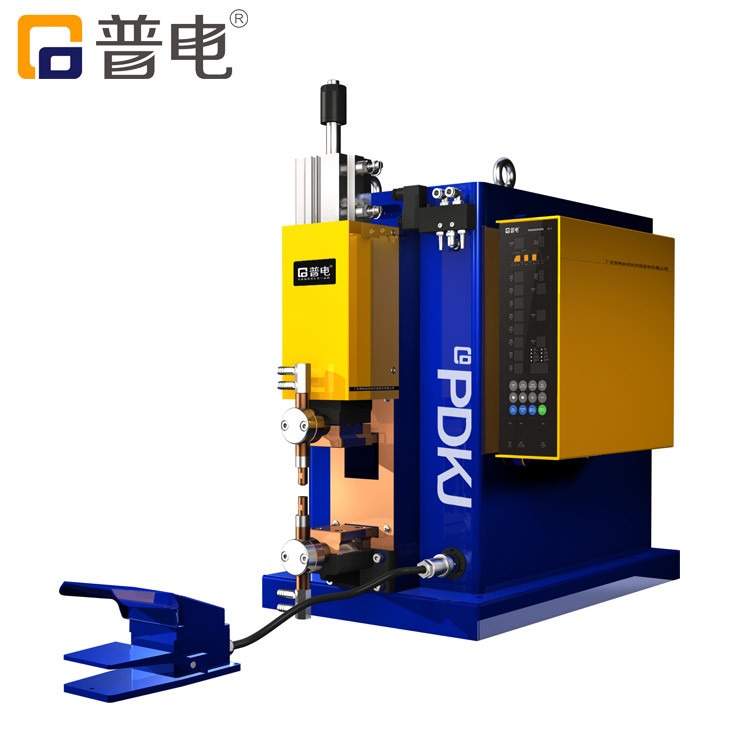

25KVA DBT 80 Table Stainless Steel Spot Welder Traceless Medical Devices 2
