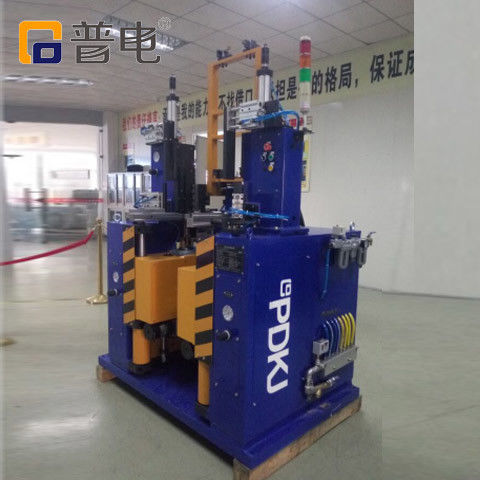

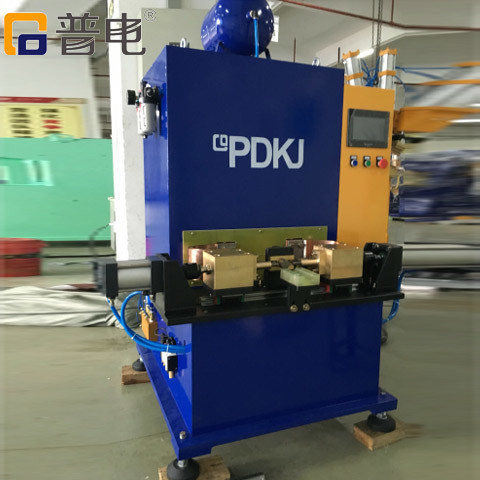

DBT280 240KVAPLC Inverter Spot Welder PLC For Auto Parts Industry

Basic Information
Place of Origin: CHINA
Brand Name: PDKJ
Certification: ISO CE SGS
Model Number: DBT280
Minimum Order Quantity: 1 unit
Price: USD 45000-65000 per unit
Packaging Details: Woonen case or iron box
Delivery Time: 7-25 days
Payment Terms: L/C, T/T
Supply Ability: 100 set per month
Detail Information
Key Selling Point: High Power And High Safety Level Place Of Origin: Dongguan China
Converter Frequency: 1000HZ Duty Cycle Rate: 20%
Application: Auto Parts Industry Welding Method: Resistance Welding
Control Style: PLC Intelligent Control
High Light:

DBT 280 Inverter Spot Welding Machine


PLC inverter spot welder


240KVA inverter spot welder

Product Description

80-450KVA Pneumatic Spot Welding Machine and Projection Welding Machine In Auto Parts Industry

High power medium frequency inverter DC spot (Projection)welding machine


Product highlights: balanced three-phase power input, small impact of DC output on user power grid, energy saving, stable current, high welding quality.

MF DC Inverter Spot Welder is a set of advanced welding equipment. The welding transformer is in small size but the outout energy is large. Three-phase AC will be converted into DC after being rectified. Then the DC will be converted into medium frequency 1000HZ square wave to be connected to primary welding transformer through the inverter circuit which is composed of IGBT. The MF square wave will become small pulse DC to the electrode for welding work piece through the depressurization and recitifying process in the welding transformer. The Inverter will adjust the duty ratio of IGBT through the feedback of secondary current so as to achieve constant current of the welding process.


Product parameters


Parameter DTB-240 DTB-280 DTB-340 DTB-450
Rated capacity 240KVA 240KVA 340KVA 450KVA
Power Supply 3φ380V 3φ380V 3φ380V 3φ380V

Max.short-circuit current

50KA 65KA 80KA 100KA

Duty Cycle rate

20% 20% 20% 20%
Control mode Initial gradation constant current

Inverter frequency

1000HZ 1000HZ 1000HZ 1000HZ
Arm extension size 500×350mm 500×350mm 500×350mm 500×350mm

Max. Work pressure

12000N 12000N 12000N 12000N

Electrode stroke

100mm 100mm 100mm 100mm

Cooling water flow

14L/min 14L/min 16L/min 20L/min

Weld ability / aluminum plate

3.0+3.0mm 3.5+3.5mm 4.0+4.0mm 5.0+5.0mm

Weld ability / carbon steel

4.0+4.0mm 4.5+4.5mm 5.0+5.0mm 6.0+6.0mm

Electrode arm size

φ74x195mm φ74x195mm φ74x195mm φ74x195mm

Electrode holder size

φ31.6×250mm φ31.6×250mm φ31.6×250mm φ31.6×250mm

Electrode head size

φ20x60mm φ20x60mm φ20x60mm φ20x60mm
Weight 750kg 820kg 900kg 980kg
Dimensions 1205*870*2140mm 1205*870*2140mm 1205*870*2140mm 1205*870*2140mm


Product Characteristics


■ High-quality and high-efficiency welding capacity High-quality and high-efficiency welding capacity, power factor up to 98%, three phase input load balance.The impact on the consumer grid is greatly reduced.
■ The output current is DC, the current is smooth, and the inductive reactance is zero, the working frequency is 1000hz, the time control precision is 1ms.
■ The fuselage adopts the mechanical structure design of high quality steel plate, the overall beauty, good rigidity, which ensures the realization of the stable welding quality.
■ Integrated electrode and voltage mechanism, short air circuit, compact structure, quick response, convenient installation and maintenance
■ The secondary circuit adopts high quality conductive material,which greatly reduces the circuit impedance.
■ The reversing valve of the cylinder adopts the famous brand imported from abroad, which has the advantages of quick response,large flow,long life and high speed dotting.
■ The standard components adopts international famous brand, so that the overall quality of the welder can reach the first-class level.



Widely applied to welding battery ,lighting electric resource automobile.medical apparatus and instruments,photoelectric communication, micro motor as well as requested chip inductor with high temperature enamed round wire/extra fine wire minimum size can be 0.02mm), wire rope,metal wire,nickle cup, can cutting wire and welding ,CCFL filed ,fuse,lamp filament.

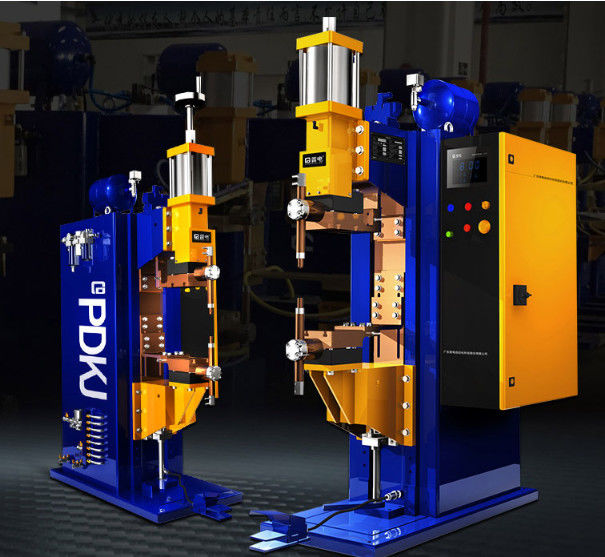

DBT280 240KVAPLC Inverter Spot Welder PLC For Auto Parts Industry 0




1. PDKJ is the leading brand in resistance welding industry in China for 15 years; Factory direct sale,high quality and  competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement.

3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory          Certification. Most of our machines enjoy more than 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always willing to be your technical      consultant.

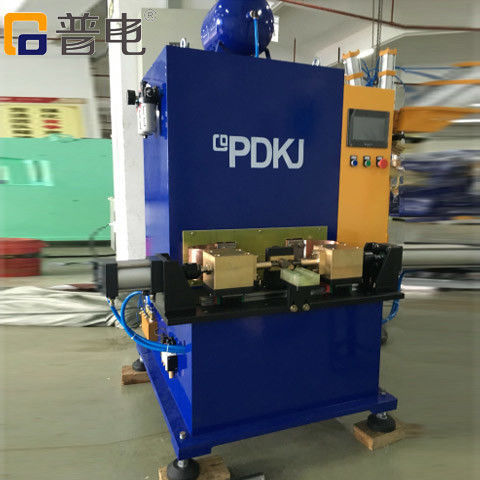

DBT280 240KVAPLC Inverter Spot Welder PLC For Auto Parts Industry 1
