| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PDKJ |
| Certification: | ISO CE SGS |
| Model Number: | DRT1000 |
| Minimum Order Quantity: | 1 unit |
| Price: | USD 12500-15000 per unit |
| Packaging Details: | Wooden case or iron box |
| Delivery Time: | 15-25 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 set per month |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 2 Years |
|---|---|---|---|
| Color: | Customized Color | Name: | Automatic Welding Robot |
| Machine Type: | Robot Welding Station | Product Name: | Low Cost Industrial Robot Robotic Welding Collaborative Robot Arm |
| Payload: | 8KG | Number Of Axes: | 2-6 |
| High Light: | Robotic Automatic Laser Welding Machine,6 AXIS Automatic Laser Welding Machine,PDKJ automatic mig welder |
||
Robot integrated optical fiber laser welding workstation , with CE/CCC/ISO certificate
Description:

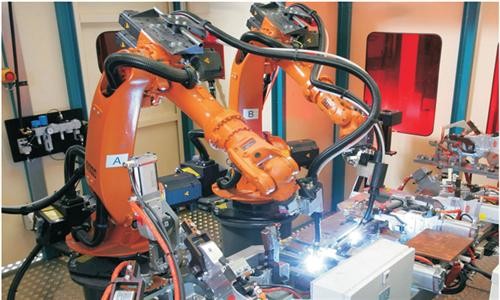

On demand customization Two station robot laser welding workstation: 6-axis robot, laser and fixed workbench are integrated. Laser type: optical fiber continuous laser Power: 1000w-3000w Usage: suitable for all kinds of large sheet metal parts and complex parts Automatic welding, seam welding and penetration welding.
Specification
| FD-V6 | |||
| Model | PDV6 | ||
| Number of axes | 6 | ||
| Maximum movable weight | 6kg | ||
| Position repetition accuracy | ± 0.08mm | ||
| Driving capacity | 2600W | ||
| Range of motion | Basic axis | J1 | ±170°(±50°) |
| J2 | -155°~ +90° | ||
| J3 | -170°~ +190° | ||
| Arm axis | J4 | ±180° | |
| J5 | -50°~ +230° | ||
| J6 | ±360° | ||
| Maximum speed | Basic axis | J1 | 3.66fad/s(210°/s){3.32rad/s(190°/s)} |
| J2 | 3.66fad/s(210°/s) | ||
| J3 | 3.66fad/s(210°/s) | ||
| Arm axis | J4 | 7.33fad/s(420°/s) | |
| J5 | 7.33fad/s(420°/s) | ||
| J6 | 10.82fad/s(620°/s) | ||
| Load capacity | Allowable torque | J4 | 11.8N.m |
| J5 | 9.8N.m | ||
| J6 | 5.9N.m | ||
| Allowable moment of inertia | J4 | 0.30kg.㎡ | |
| J5 | 0.25kg.㎡ | ||
| J6 | 0.06kg.㎡ | ||
| Cross section area of robot action range | 3.14㎡×340° | ||
| Perimeter temperature and humidity | 0-45°, 20-80% RH (non condensing) | ||
| Body weight | 144kg | ||
| Loading capacity of the third axis | 10kg | ||
| Installation method | Ground, side hanging and hoisting | ||
| Color | Arm: Orange or White / base: Blue | ||
Features:
1.Use the imported industrial robot, high positioning accuracy, large processing range, six axis robot, can achieve 3D processing;
2.Imported fiber laser source, good light spot quality, stable output power, high quality welding effect;
3.Robot laser welding has good adaptability to welding material, size and shape;
4.Operate the robot through handhold terminal, even in harsh working conditions can achieve efficient operation;
5.PDV6 series can achieve automatic control and remote welding, welding machine core components are basically maintenance-free;
6.Non-contact weld tracking system is optional to detect and correct weld deviation in real time to ensure qualified weld;
7.It's applicable to a wide range of welding materials: stainless steel, carbon steel, galvanized plate, aluminum alloy plate and other metal materials.
The robot can optimize the speed according to the actual load so as to shorten the operation cycle time.
1. The robot can detect self moving and loading condition according to the built-in service information system so as to provide optimized service requirement. Longer continuous working period.
2. Embedded controller can control 6-8 axis. The operating rate could reach 500MIPS with high speed motion control fieldbus. Be able to achieve continuous trajectory teaching and on-line teaching. Equipped with remote control and diagnostic function.
3. Overall consideration of the external force such as gravity, centrifugal force, etc, in the process of robot movement, use adaptive identification control technology to improve dynamic performance of the robot
FAQ
1. What information should I provide so you can recommend the suitable robot for me?
Answer: Please provide the detailed drawings of the product, including the material, thickness, welding position, dimensions of product, etc.
2. Can you provide customized service for our product?
Answer: Yes. We will provide you the professional robotic welding system solutions according to your specific product. Only you need to send us your detailed product drawings and welding requirement, then we will come out with the customized technical proposal for you.
3. What does the whole welding robot system include?

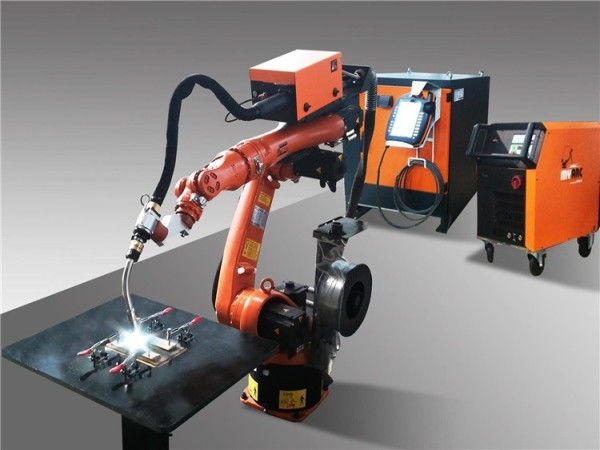

Answer: The whole welding robot system includes the robot arm, controller, welding power source, positioners (one-axis or two axis), fixtures, welding gun cleaner, safety fence, etc.
4. What's the warranty period and delivery time?
Answer: Warranty period is 12 months. While the delivery time would be within 30 days after receiving your deposit.
5. Can you send engineer to our country for setting up the machine?
Answer: Yes. We will send engineer to your country to help installation and commissioning, and training. Any problems, we can also provide online service.
6. I want to know the welding quality for our product, what should I do?
Answer: You can send your samples to our factory to do test welding. After testing welding, we will send the welding video and pictures to you for reference. Also we will send the samples back to you for verification.
