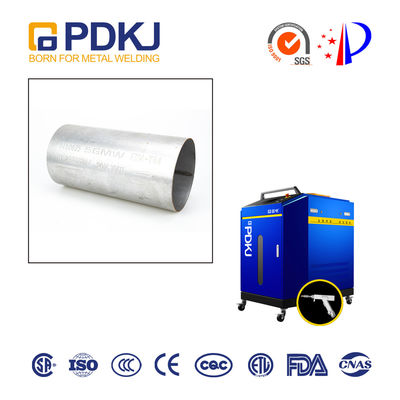

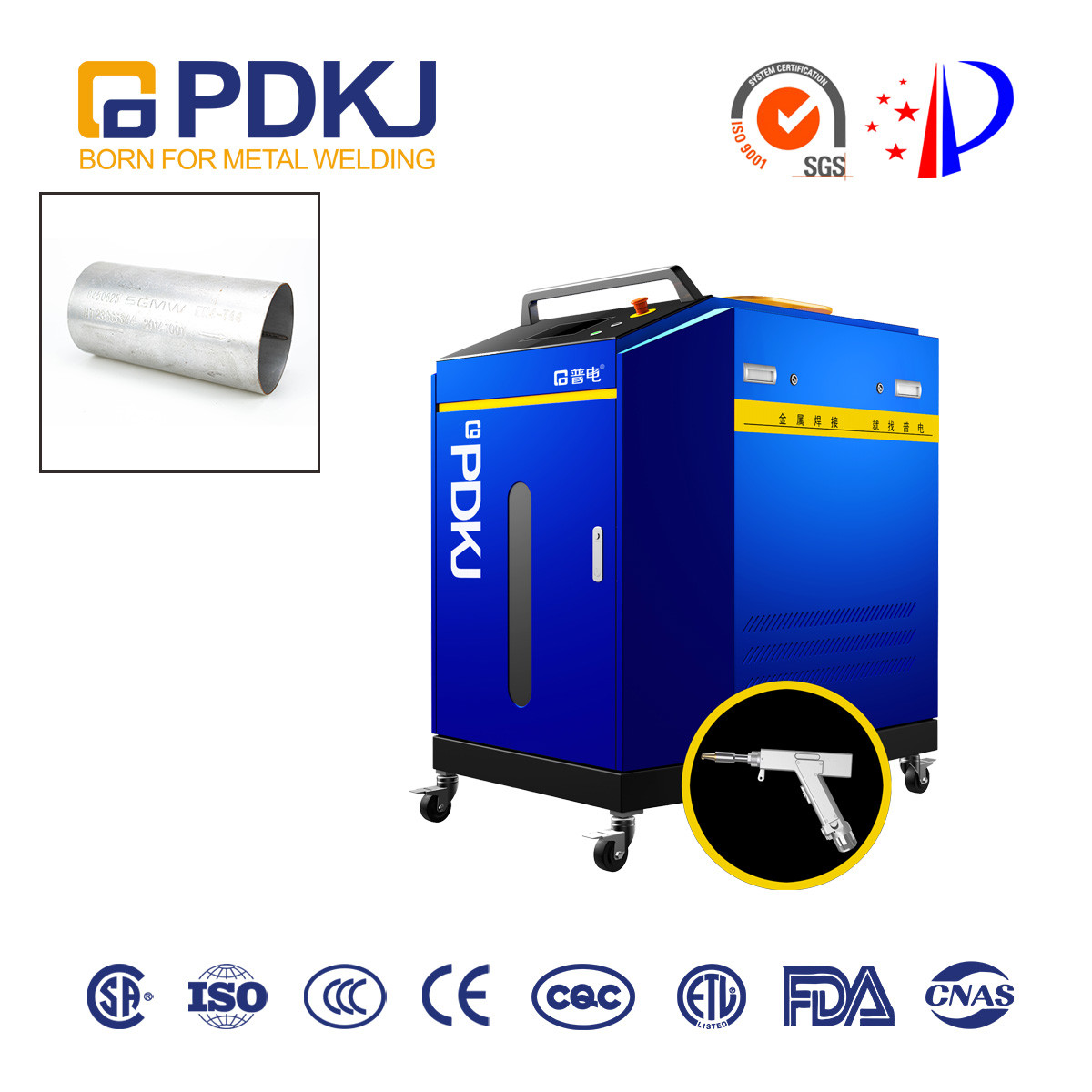

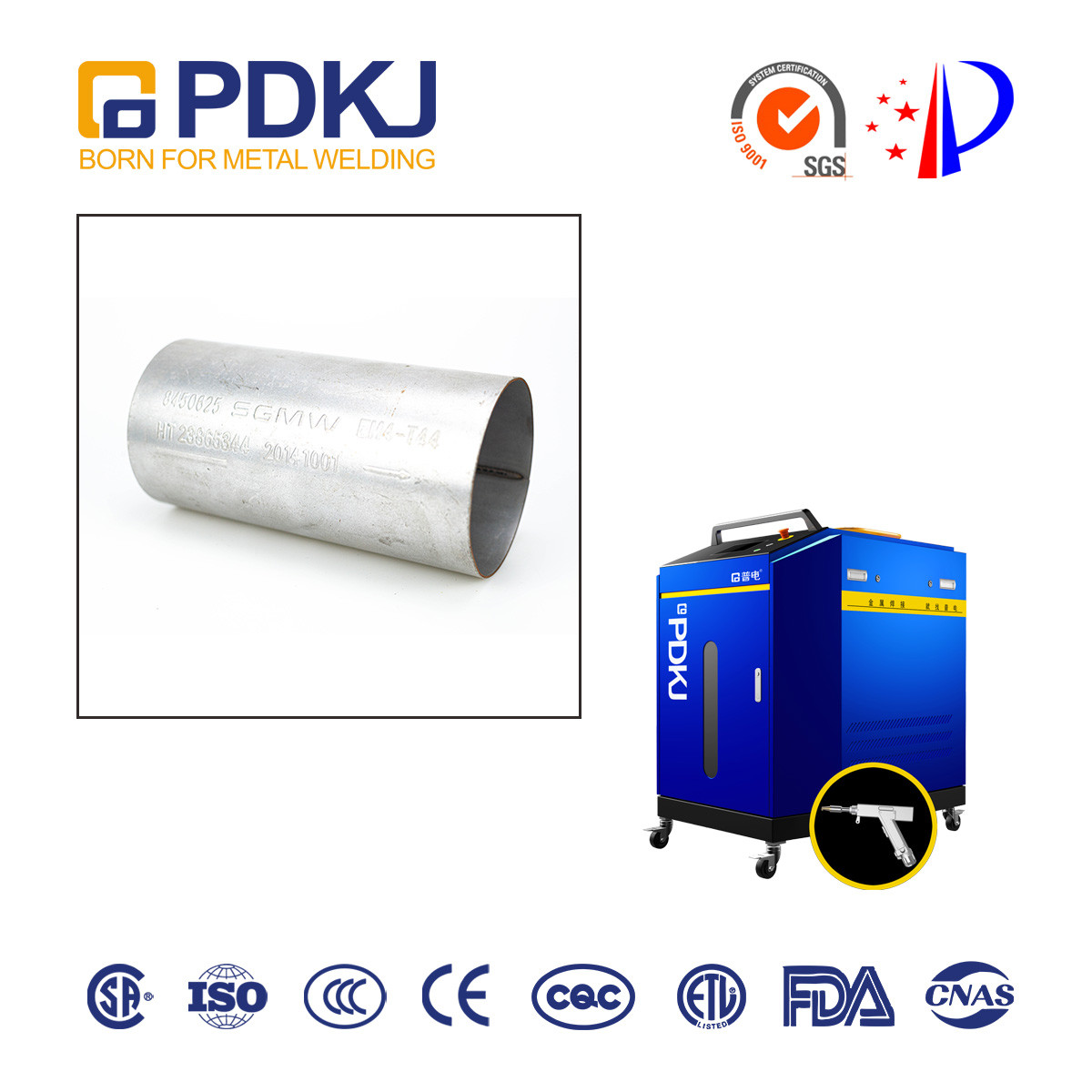

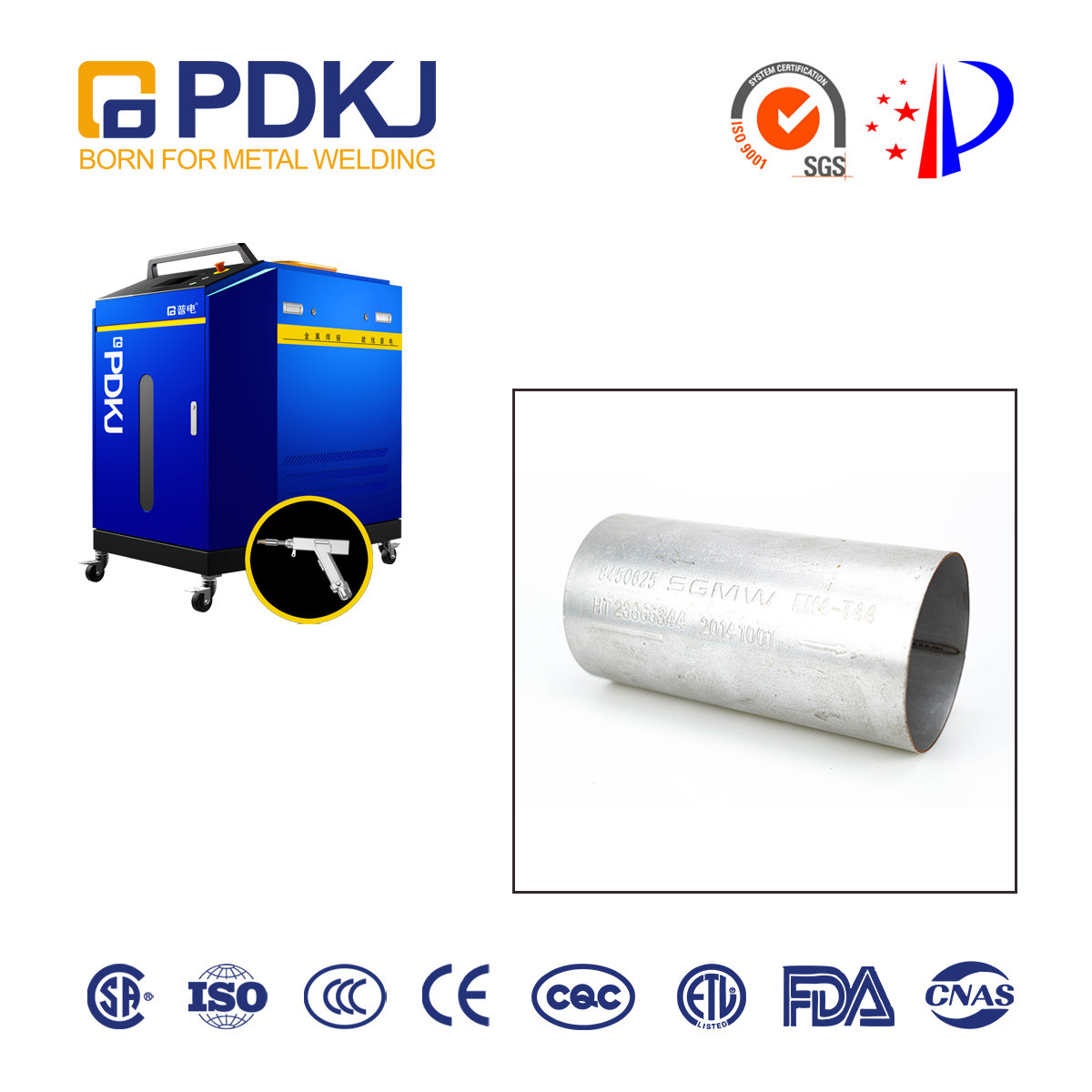

1000W Infrared Handheld Laser Welding Machine For SS Annular Cylinder

Basic Information
Place of Origin: CHINA
Brand Name: PDKJ
Certification: ISO CE SGS
Model Number: 1000W
Minimum Order Quantity: 1
Price: USD 15000-35000 per unit
Packaging Details: Wooden case or iron box
Delivery Time: 15-25 days
Payment Terms: L/C, T/T
Supply Ability: 500 set per month
Detail Information
Material: Stainless Steel Application: Car,Kitchenware, Sheet Metal, Furniture, Elevator
Condition: Brand New Service Life: More Than 10 Years
Standard: CE ISO CCC
High Light:

1000W Handheld Laser Welding Machine


infrared Handheld Laser Welding Machine


1kw infrared laser welder

Product Description

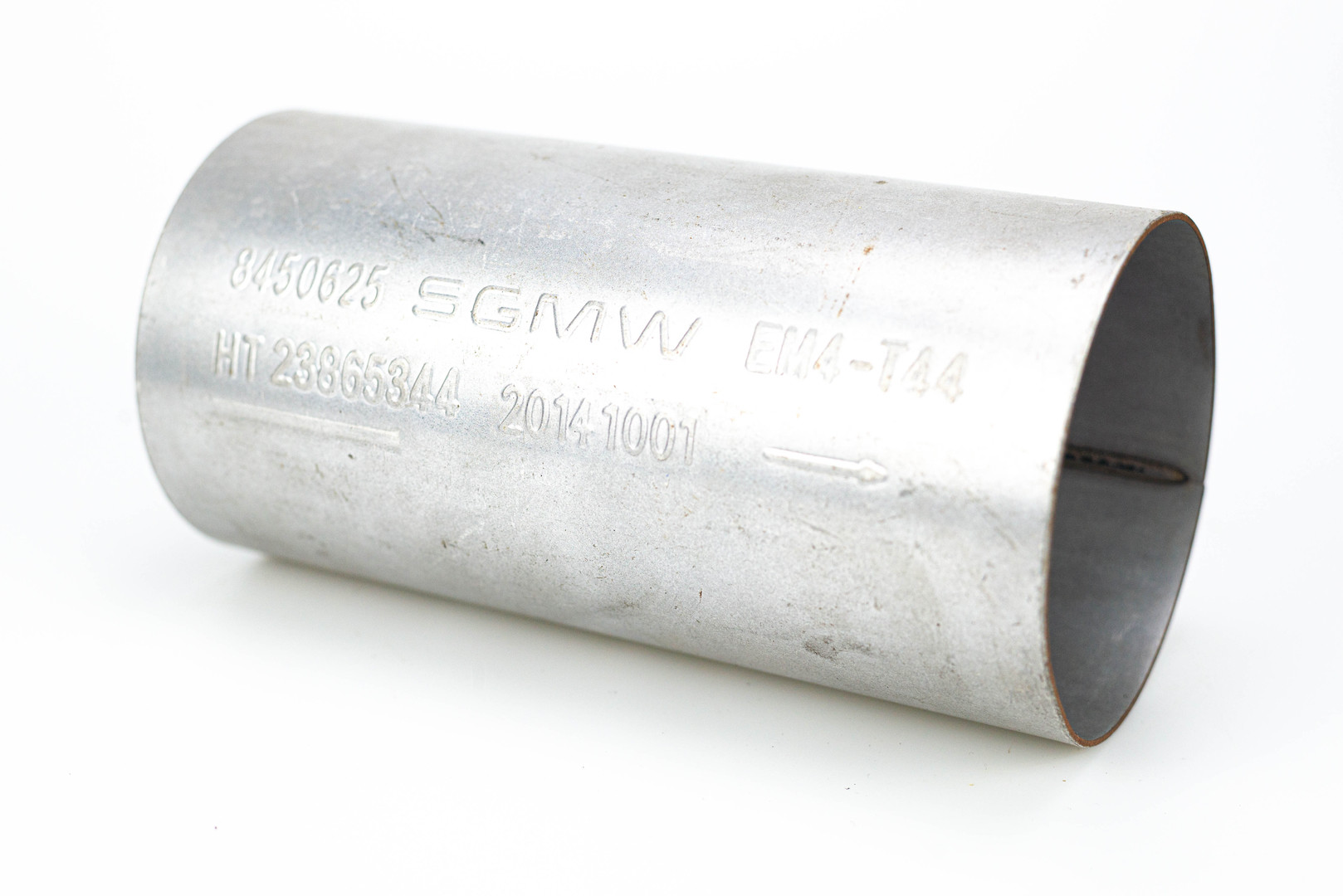

Handheld Laser Welding Machine For Stainless Steel Annular Cylinder

Constant temperature refrigerator

High efficiency compressor, water pump, overtemperature alarm, flow protection

Laser control system

The 8-inch touch screen can adjust the laser control mode and laser power in real time, which is convenient and practical


Handheld laser welding machine


High precision positioning, fast speed, small heat affected area, no pollution, beautiful weld, flat, no porosity, no need to deal with after welding.

1. One-piece design, one complete machine;

2. Fiber export, laser head can be competent for multi-dimensional arbitrary space processing application;

3. Be competent for harsh working environment, with high tolerance for voltage fluctuation, dust, shock and temperature;

4.It can easily weld stainless steel, aluminum alloy and other high-hardness alloy materials;





Project Parameter
Equipment name Hand held continuous laser welding machine
Fiber line length Standard configuration 10m (customized length up to 15m)
control model TTL level/ GUI
Cooling system Water cool/All in one constant temperature
Working environment temperature range 15-35°C
Recommended welding thickness 0.1-5mm
Consumables Protective lenses



Project conventional argon arc welding laser welding PDKJ handheld optical fiber welding
heat input to workpiece very high low low
subsequent processing grinding no or little grinding is needed no or little grinding is needed
welding speed General more than 2 times of argon arc welding more than 2 times of argon arc welding
applicable materials stainless steel / carbon steel / galvanized sheet / aluminum alloy / copper stainless steel / carbon steel / galvanized sheet / aluminum alloy / copper stainless steel / carbon steel / galvanized sheet / aluminum alloy / copper
consumables multiple less less
operation difficulty complex General Simple
operator safety unsafe Security Security
impact of environmental protection not environmentally friendly environmental protection environmental protection
welding fault tolerance OK General OK
hold hands and head no no Yes
The brightness of light spot is adjustable none none Yes
welding quality poor General very good

Applicaton recommendation :


Parameter name 1000W 1500W 2000W
Input power 220V 220V 380V
Automatic wire feeding Yes Yes Yes
bonding strength with base metal General OK very good
Welding gun model A/B/C Optional A/B/C Optional A/B/C Optional
Laser wavelength 1064nm 1064nm 1064nm
Overall power 2000W 2500W 3000W
welding interval requirements <0.5mm <0.5mm <0.5mm
Aiming and positioning infrared infrared infrared
Welding capacity / carbon steel 0.2-3MM 0.2-4MM 0.2-5MM
Welding capacity / stainless steel 0.2-3MM 0.2-4MM 0.2-5MM
Welding capacity / galvanized sheet 0.2-2.5MM 0.2-3MM 0.2-4MM
Welding speed 0-12MM/S 0-12MM/S 0-12MM/S
Weight 260KG 280KG 300KG
Overall dimension 1000*720*1300MM 1000*720*1300MM 1000*720*1300MM



The welding speed is 2-10 times faster than traditional welding speed ,and one machine can save at least two welders a year.
Simple operation, no operating license ,master can also weld beautiful products.
Smooth and beautiful weld seam, reduce the follow-up grinding process,save time and cost.
welding work piece has no distortion,no welding .scar,and very strong
It is suitable for welding stainless steel plate, aluminum alloy plate,iron plate,galvanized plate, carbon steel and other metal
materials.It can replace the traditional argon arc welding, electric arc welding and other processes.


1000W Infrared Handheld Laser Welding Machine For SS Annular Cylinder 0

Serial number name Specifications quantity Company remarks
1 Laser welding host Integrated one set Standard configuration
2 CW fiber laser 1000W one platform Standard configuration
3 cooling-water machine constant temperature one platform Standard configuration
4 Laser control system Touch screen one set Standard configuration
5 Double pendulum multifunctional handheld welding gun T-type one individual Standard configuration
6 Double drive multifunctional wire feeder 0.8-1.6mm one platform Standard configuration
7 Stainless steel welding wire 1mm one disc Standard configuration
8 IO robot connection supporting control system PDKJ-PW353 one disc Standard configuration
1. Who are we?
We are based in Dongguan, China, start from 2006,Oversea sell to North America(20.00%),Southeast Asia(20.00%),Mid East(20.00%),Domestic Market(20.00%),South America(10.00%),Northern Europe(10.00%). There are about 11-50 professional Engineers in our office.

2. Why should you buy from us not from other suppliers?
In order to meet the special requirements of customers for products, PDKJ is willing to customize personalized products for you, so that customers can understand the professional services brought by sophisticated equipment.
