Intermediate-Frequency Inverse Dc Spot Welding Machine For Illuminating Lamp Pole

Basic Information
Place of Origin: CHINA
Brand Name: PDKJ
Certification: ISO CE SGS
Model Number: DTB-80
Minimum Order Quantity: 1 unit
Price: USD 8500-12500
Packaging Details: Woonen case or iron box
Delivery Time: 7-25 days
Payment Terms: L/C, T/T
Supply Ability: 100 set per month
Detail Information
Welding Style: Resistance Welding Usage: Spot Welding ;projection Welding
Control Model: PLC Control Applicable Industries: Building Material; Sheet Metal
After-sales Service: Field Installation; Site Commissioning And Training Welding Thickness: <2 Mm

Product Description

Medium Frequency DC Welding Machine , Spot Welding Machine projection welding machine with CE/CCC/ISO certificate
Description:
Product highlights: energy saving, power saving, high efficiency, low operating cost, high welding quality.
Product overview: the Medium frequency inverter DC spot ( projection ) welding machine converts the power frequency (50 Hz) AC to the intermediate frequency (1000 Hz) DC output, the time resolution is higher than the power frequency, the control accuracy is also improved, and the output current is not affected by the secondary output circuit change, the thermal efficiency is higher, the output power is great, and the welding quality is better. Compared with the traditional power frequency welding machine, inverse medium frequency DC welding will be highly efficient and energy-saving, which is a technological revolution breakthrough in the field of resistance welding.


 Welding material: iron
Material thickness: < 2mm
Related product name: spot welder
Industry: Electronic and electrical appliance manufacturing industry
Process recommendation: spot welding


Specifications




parameter DTB-80
Rated capacity 80KVA
Input power three φ 380V
Maximum short circuit current 25KA
Load duration 20%
control mode Primary / secondary constant current
Inverter frequency 1000HZ
Maximum pressure 6000N
Electrode stroke 60mm
Cooling water flow 12L/min
Welding capacity / aluminum plate 2.0+2.0mm
Welding capacity / carbon steel 2.5+2.5mm
Arm extension size five hundred × 250mm
Electrode arm size ¢59 × 173mm
Electrode holder size ¢24.6 × 180 mm
Electrode head size ¢16 × 50 mm
weight 350kg
Overall dimension 1100×700×1730mm

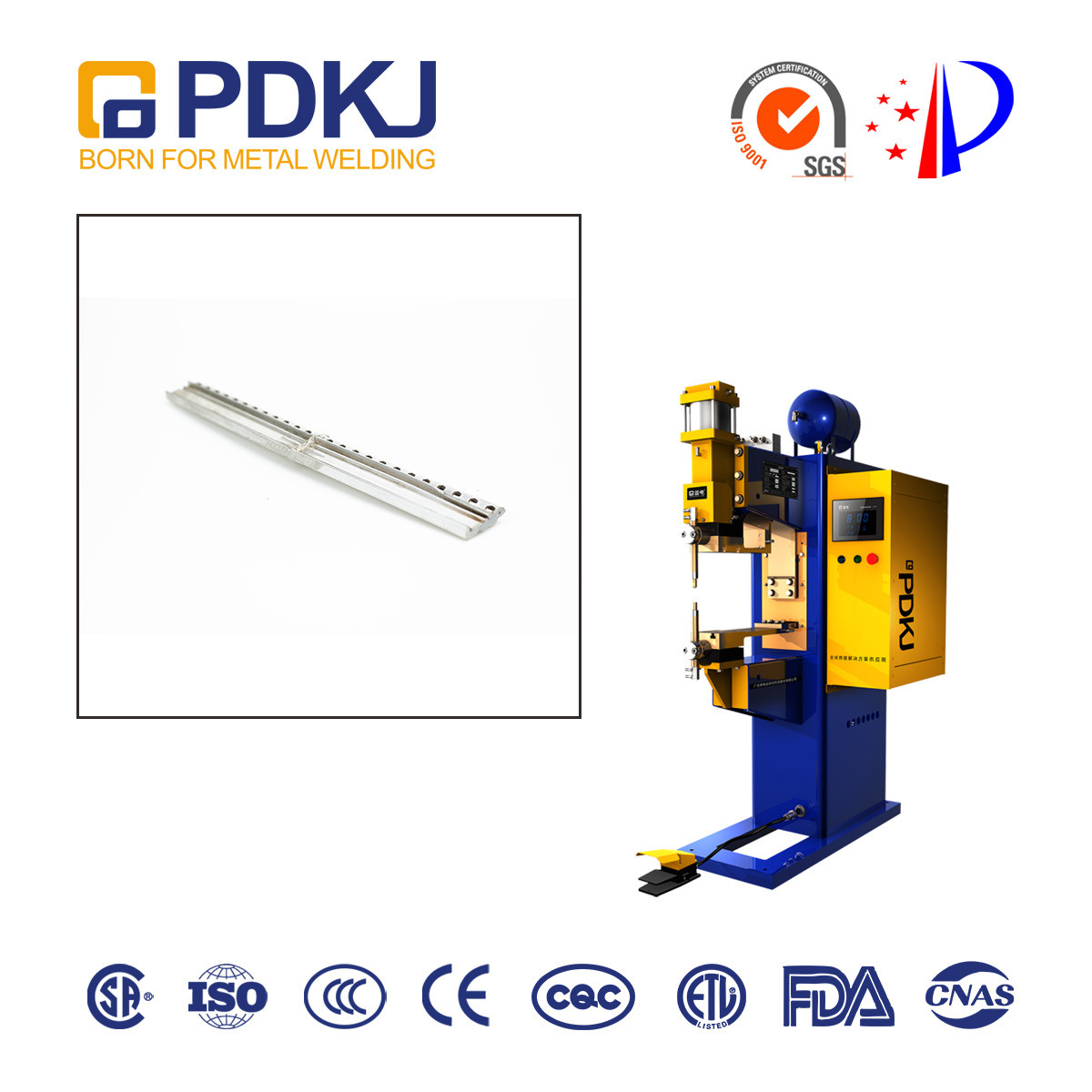

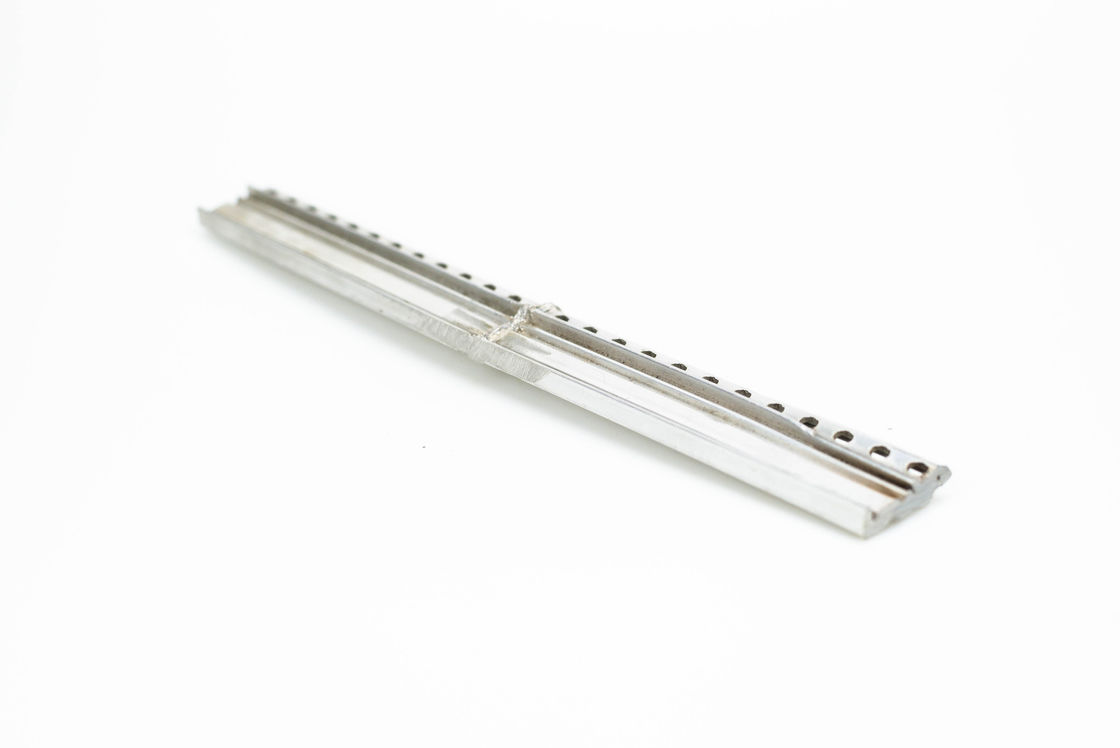

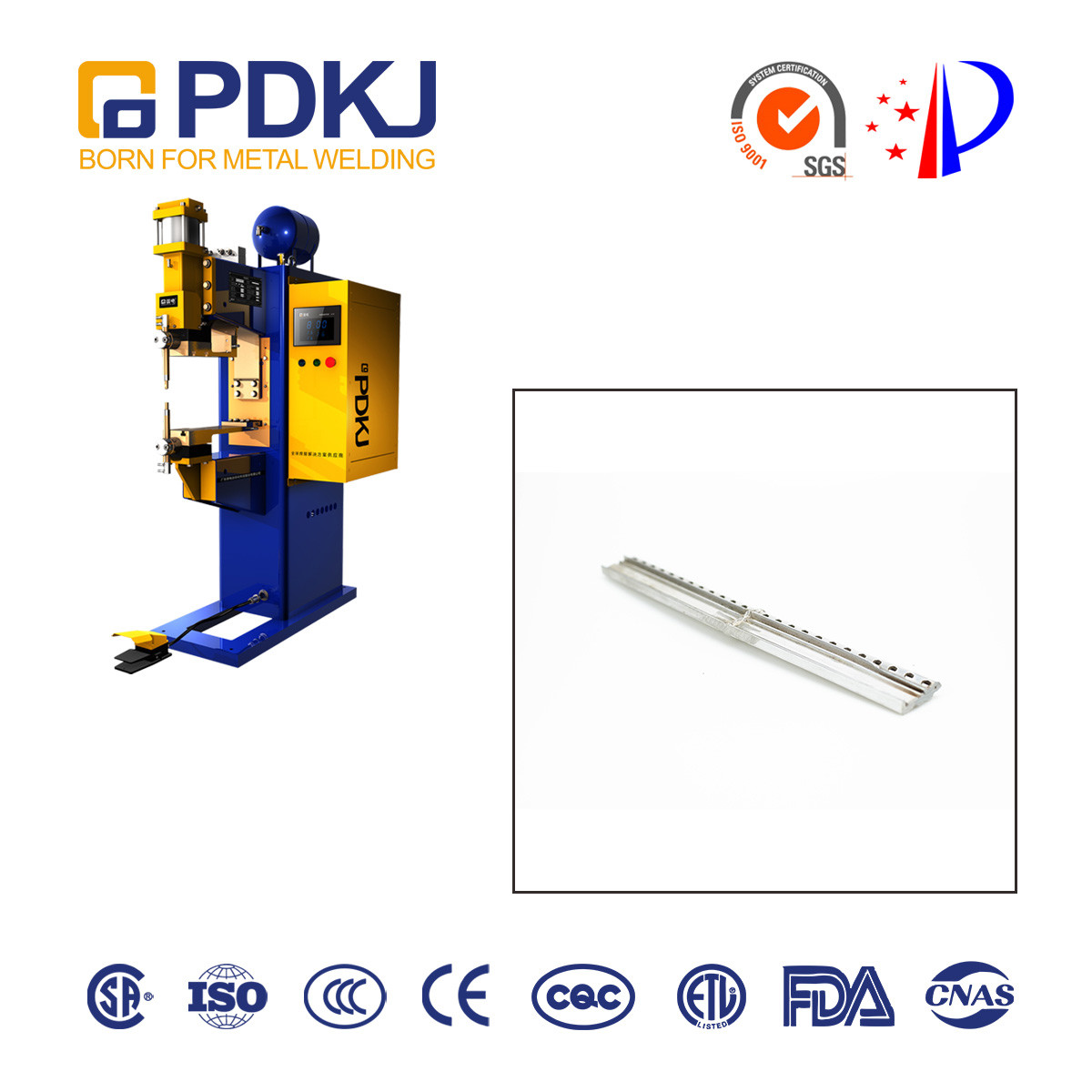

Intermediate-Frequency Inverse Dc Spot Welding Machine For Illuminating Lamp Pole 0Intermediate-Frequency Inverse Dc Spot Welding Machine For Illuminating Lamp Pole 1Intermediate-Frequency Inverse Dc Spot Welding Machine For Illuminating Lamp Pole 2
Feature

1. Energy Saving: Compare with using low frequency, it can help to reduce the consumption of electric energy. The transformer of the same weight could output more energy. It can also be conveniently used with the large automatic welding clamp.

2. In a semi-automatic machine, one medium frequency transformer can replace many low frequency transformers which can help to reduce the parallel connection in secondary circuit.

3. To make the power supply unit load balance: MF inverter projection welder adopts the three-phase sources which can store energy.

4. More adaptable to the fluctuation of power grid and voltage drop: a part of the energy has been stored by inverter and been supplied to load. It replaces the way of power supply to load directly from the power grid.

5. More precise and fast control of current: Compare with low frequency system, it is able to analyze more parameters in a more precise way.

6. More reliable process: For most of the applied resistance welding metals, to use DC to weld will help to achieve better effect.

7. The technology of MF system is more traditional and reliable which can prevent the damage results from the breakdown of silicon controlled.

8. Reduce operation cost, including saving the energy of each spot welding and reducing the cycle of welding.

Application
Especially suitable for aluminum, copper, galvanized sheet, carbon steel, nickel, tungsten and other metal materials and high temperature enameled wire, flexible connection, inductance coil welding. It is widely used in the welding of metal products in the fields of automobile and auto parts manufacturing, new energy power battery, photoelectric communication, electric light source, compressor, hardware, furniture, kitchenware, etc. The product has passed the patent certification of China Intellectual Property Office, China CCC certification and export CE certification

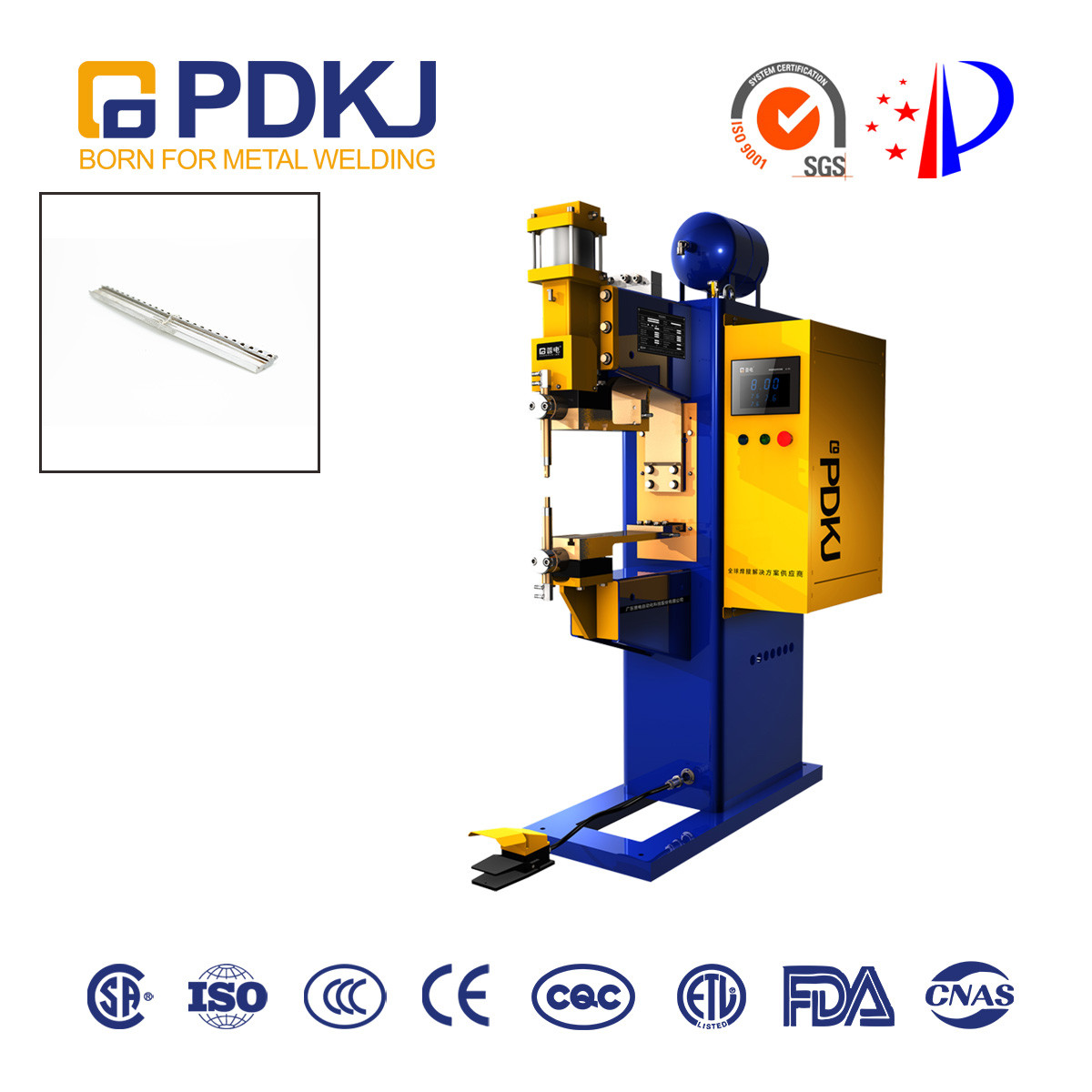

Intermediate-Frequency Inverse Dc Spot Welding Machine For Illuminating Lamp Pole 3
FAQ

1. Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
2. Are you a factory?
Yes, We are a factory, all machine is made by ourselves and we can provide customize service according to your requirement.
3. What does your factory produce?
We produce and export all kinds of automatic welding machine and robots and relative parts. We can design machines according to your requirements.
4. How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
