1000HZ Inverter Spot Welding Machine 380V

Basic Information
Place of Origin: CHINA
Brand Name: PDKJ
Certification: ISO CE SGS
Model Number: DTB-280
Minimum Order Quantity: 1 unit
Price: USD 9250-
Packaging Details: Woonen case or iron box
Delivery Time: 7-25 days
Payment Terms: L/C, T/T
Supply Ability: 100 set per month
Detail Information
Welding Style: Resistance Welding Usage: Spot Welding ;projection Welding
Key Selling Points: High Safety Level Applicable Industries: Building Material; Machinery Repair; Sheet Metal
After-sales Service: Field Installation; Site Commissioning And Training Rated Capacity: 280KVA
High Light:

1000HZ Inverter Spot Welding Machine

,

Inverter Spot Welding Machine 380V

,

1000HZ Inverter Spot Welder


Product Description

High-power Intermediate-frequency Inverse DC Spot (Projection) Welding Machine for Nut projection welding

High-power Intermediate-frequency Inverse DC Spot (Projection) Welding Machine , Spot Welding Machine projection welding machine with CE/CCC/ISO certificate
Description:
It is especially suitable for the welding of aluminum, copper, galvanized sheet, carbon steel, nickel, tungsten and other metal materials, high temperature enamelled wire, soft connection and inductance coil. It is widely used in the welding of metal products in the fields of automobile and auto parts manufacturing, new energy power battery, photoelectric communication, electric light source, compressor, hardware, furniture, Kitchenware and so on.



Product selling points: balanced three-phase power input, small impact of DC output on user's power grid, power saving, energy saving, stable current and high welding quality.



Welding material: iron
Material thickness: <2mm
Associated product name: mash welder
Industry: Transportation equipment industry
Process recommendation: Projection welding

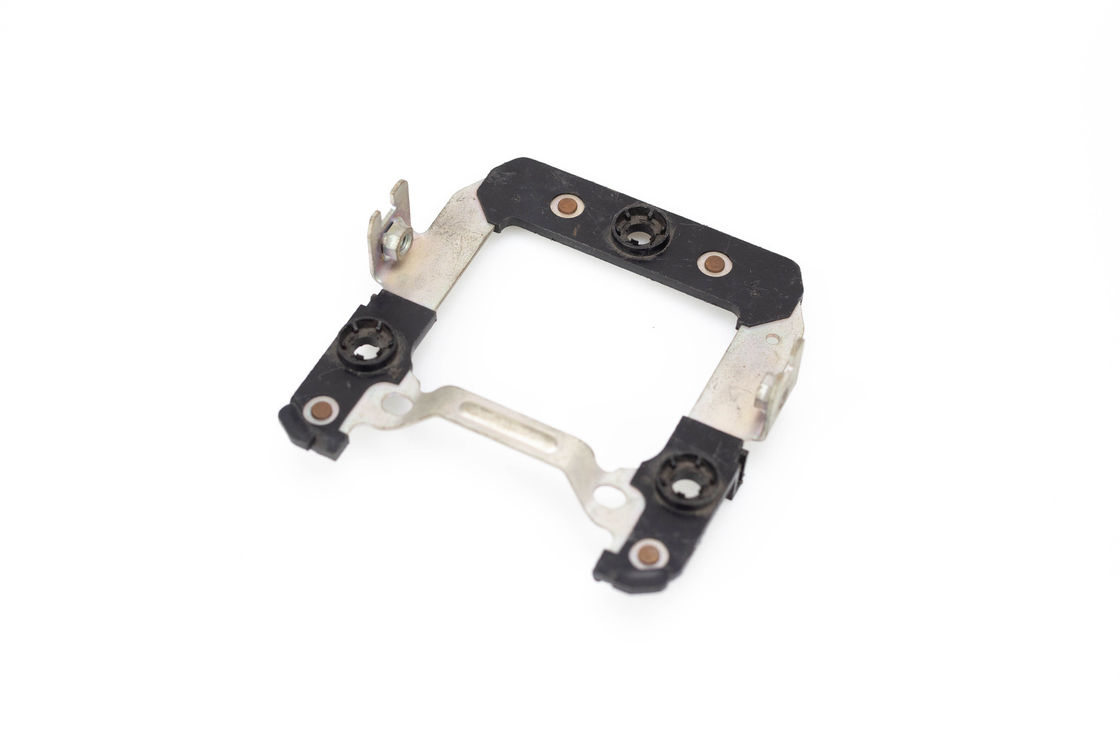

1000HZ Inverter Spot Welding Machine 380V 0


Specifications






parameter DTB-280
Rated capacity 240KVA
Input power three φ 380V
short-circuit current 65KA
Load duration 20%
control mode Primary / secondary constant current
Inverter frequency 1000HZ
Arm extension size five hundred × 350mm
press 12000N
Electrode stroke 100mm
Cooling water flow 14L/min
Welding capacity / aluminum plate 3.5+3.5mm
Electrode arm size φ 74x195mm
Electrode holder size φ thirty-one point six × 250mm
Electrode head size φ 20x60mm
weight 820kg

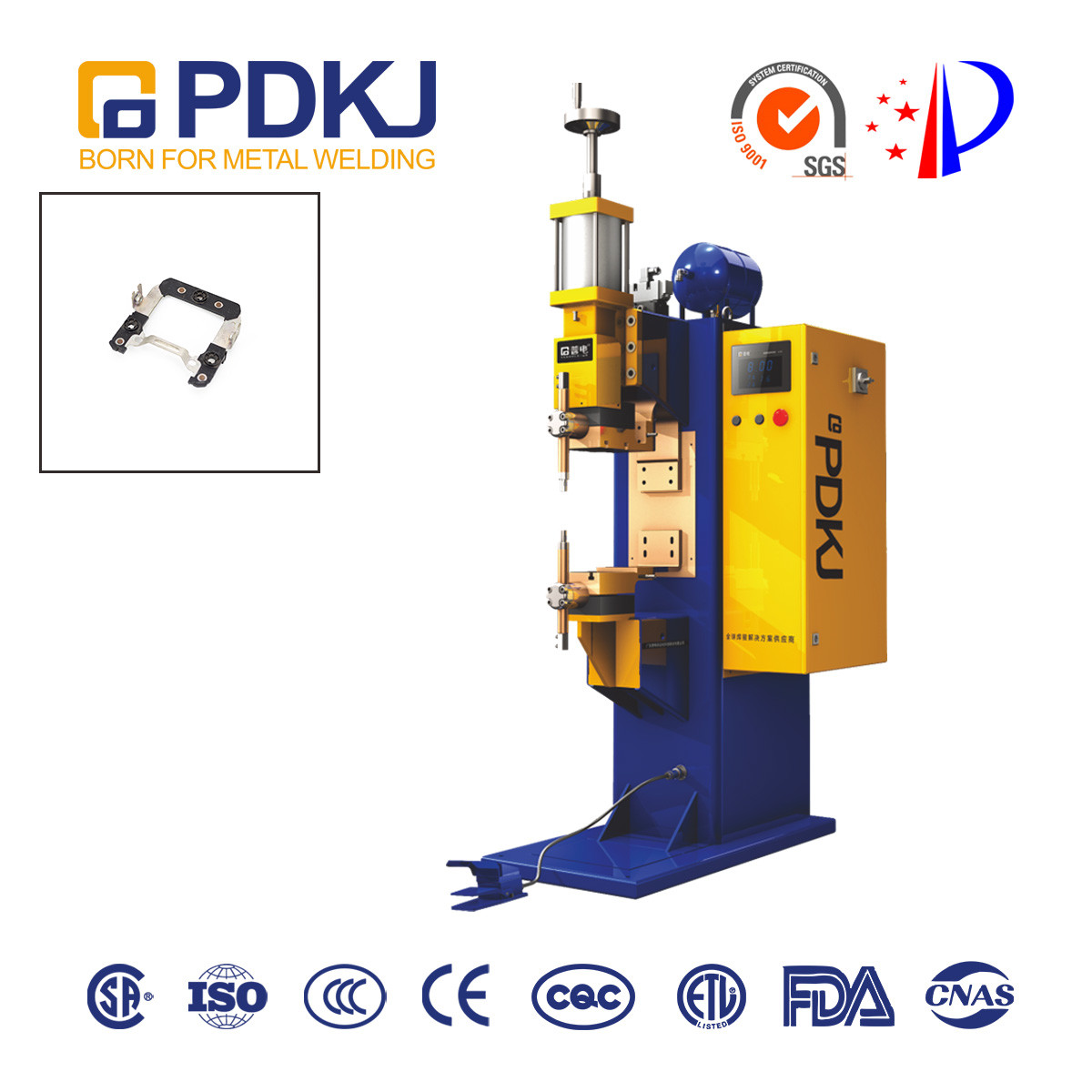

1000HZ Inverter Spot Welding Machine 380V 1
Feature




01.The rapid response control of current improves the quality of solder joints.



02.For the same welding workpiece, the welding time is short, the power is saved, the welding stability zone is increased, and the electrode life is increased.



03.It is suitable for welding aluminum, galvanized sheet, high tension steel, carbon steel and other metal materials with good welding effect.



04.It is suitable for spot welding and projection welding of plates, plates and projection welding nuts and studs.



05.The welding quality is stable and firm, with large penetration and less spatter.



06.During AC output control, the half wave time is adjustable and 2-50ms is programmable.



07.Programmable multiple sets of welding specifications.

08.Three stage heating process: preheating, welding and tempering, in which the increasing and decreasing sections can be customized in the welding section.

09.Programmable pressure control, 10 pressure segments can be defined.



10.Programmable output I / O port: programmable 3-segment output, which can better adapt to PLC, robot, etc.



11.During unipolar output control, that is, in the process of one welding cycle, the polarity of current remains unchanged, and the polarity of two adjacent welding cycles alternates.

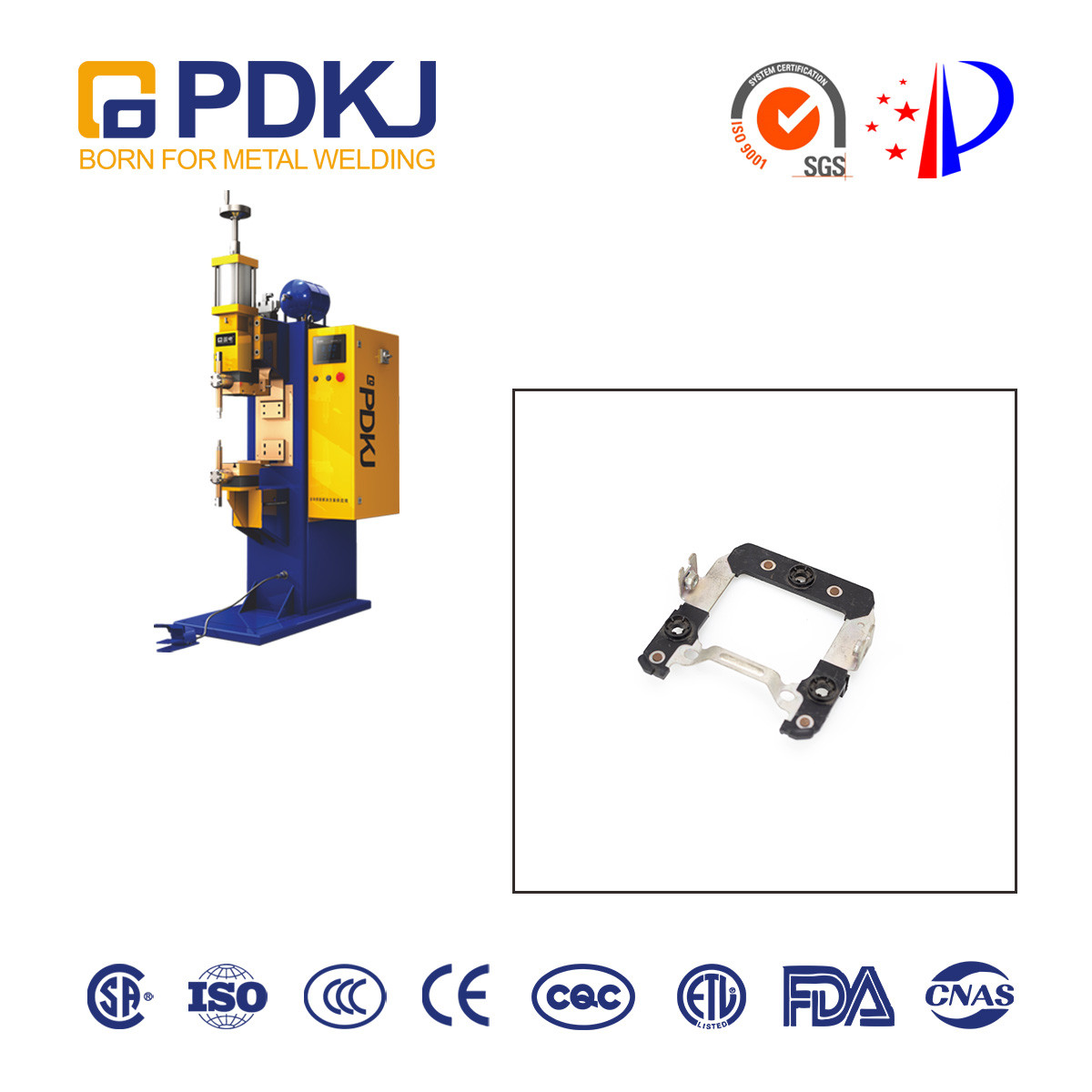

1000HZ Inverter Spot Welding Machine 380V 2

Application
Especially suitable for aluminum, copper, galvanized sheet, carbon steel, nickel, tungsten and other metal materials and high temperature enameled wire, flexible connection, inductance coil welding. It is widely used in the welding of metal products in the fields of automobile and auto parts manufacturing, new energy power battery, photoelectric communication, electric light source, compressor, hardware, furniture, kitchenware, etc. The product has passed the patent certification of China Intellectual Property Office, China CCC certification and export CE certification

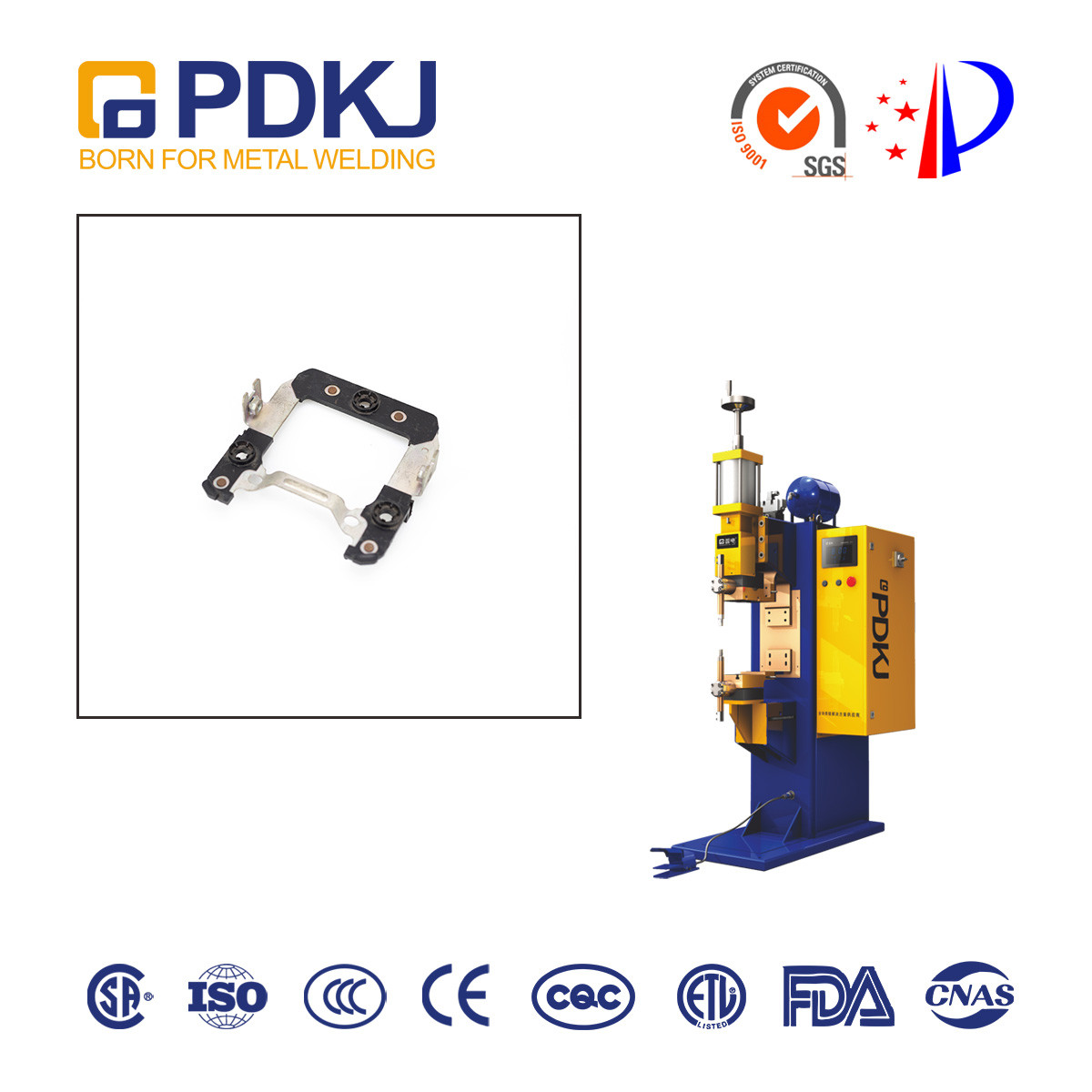

1000HZ Inverter Spot Welding Machine 380V 3
FAQ
1. When can you arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days. We always ship by air and sea in the mean time.
2. Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
3. Are you a factory?
Yes, We are a factory, all machine is made by ourselves and we can provide customize service according to your requirement.
4. How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

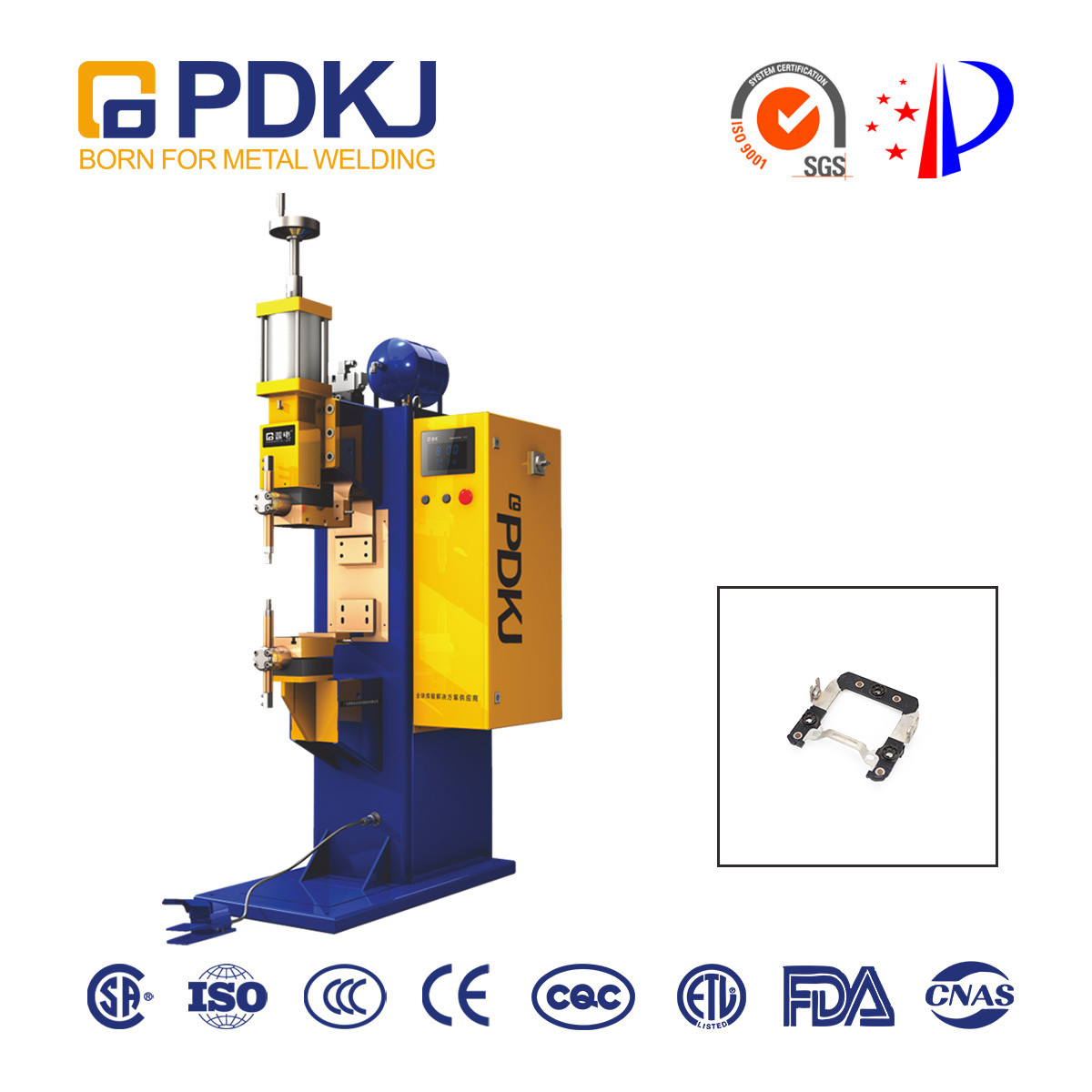

1000HZ Inverter Spot Welding Machine 380V 4
