DB 170 Table Top Spot Welder 380V

Basic Information
Place of Origin: CHINA
Brand Name: PDKJ
Certification: ISO CE SGS
Model Number: DB170W
Minimum Order Quantity: 1 unit
Price: USD 45000-48000
Packaging Details: Woonen case or iron box
Delivery Time: 7-25 days
Payment Terms: L/C, T/T
Supply Ability: 100 set per month
Detail Information
Welding Style: Resistance Welding Usage: Spot Welding
Key Selling Points: Quick,Seamless Applicable Industries: Building Material; Machinery Repair; Sheet Metal
After-sales Service: Field Installation; Site Commissioning And Training Welding Thickness: 3.0+3.0mm
High Light:

DB 170 table top spot welder


170KVA table top spot welder


380V table spot welder

Product Description

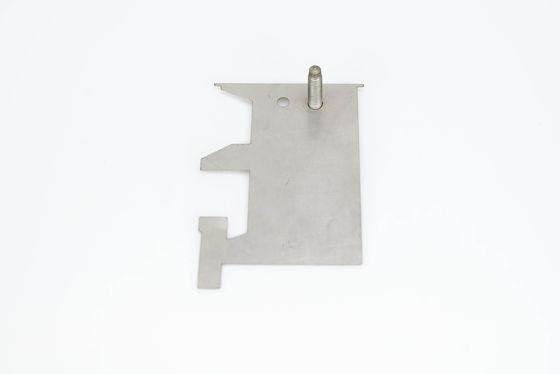

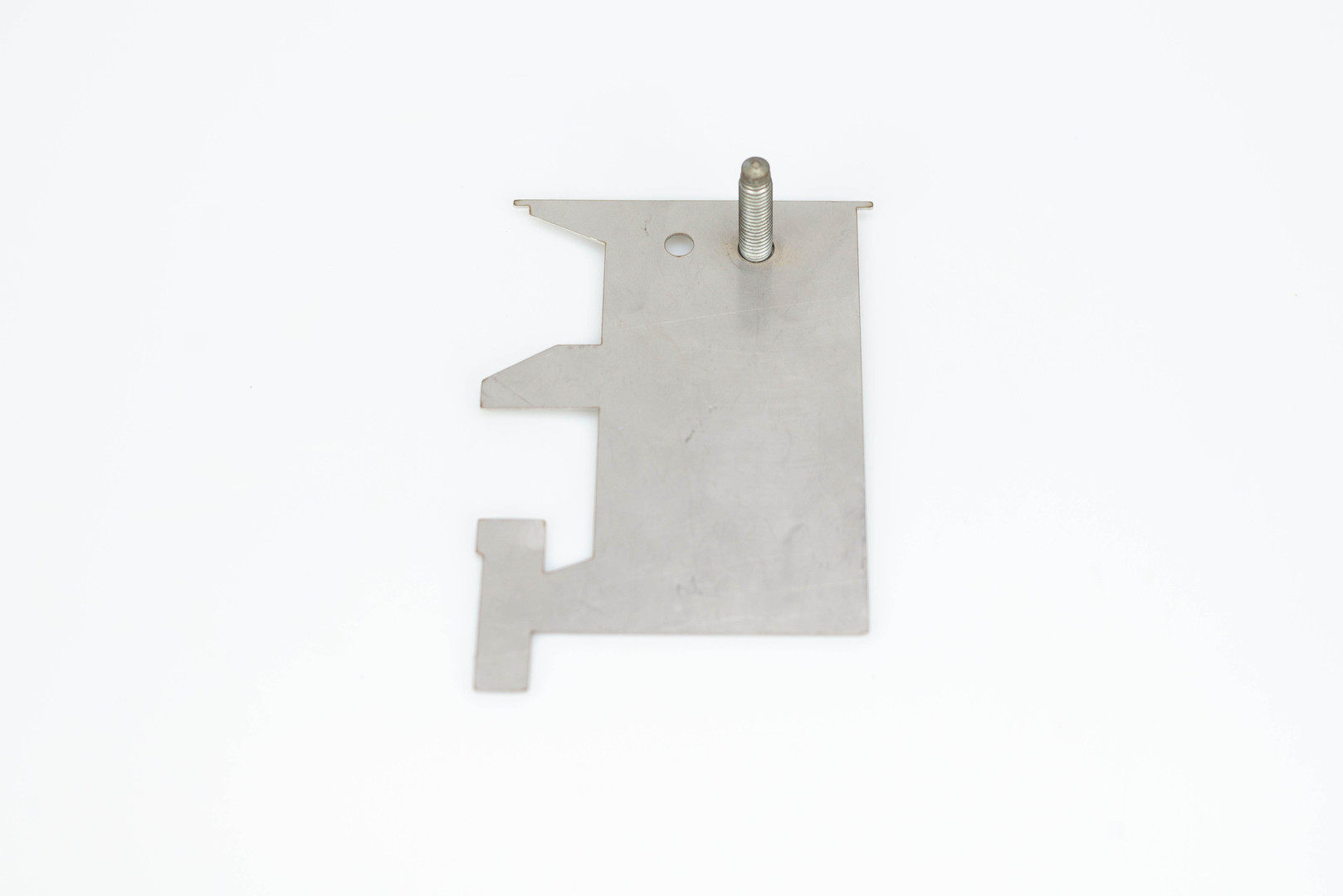

Platform Type Intermediate-Frequency Inverter Seamless Spot Welding Machine For Welding Of Stainless Steel Screw Fitting

Platform Type Intermediate-frequency Inverter Seamless Spot Welding Machine , Spot Welding Machine projection welding machine with CE/CCC/ISO certificate

The product has passed the patent certification of China Intellectual Property Office, obtained China CCC certification and export CE certification. It is mainly used in the welding of metal large workpiece products in sheet metal industry, chassis and cabinet, elevator industry, metal door plate, hardware household appliances and other industries. It is applicable to the welding of metal materials such as aluminum, galvanized sheet, stainless steel and low carbon steel, with good performance and high welding quality.

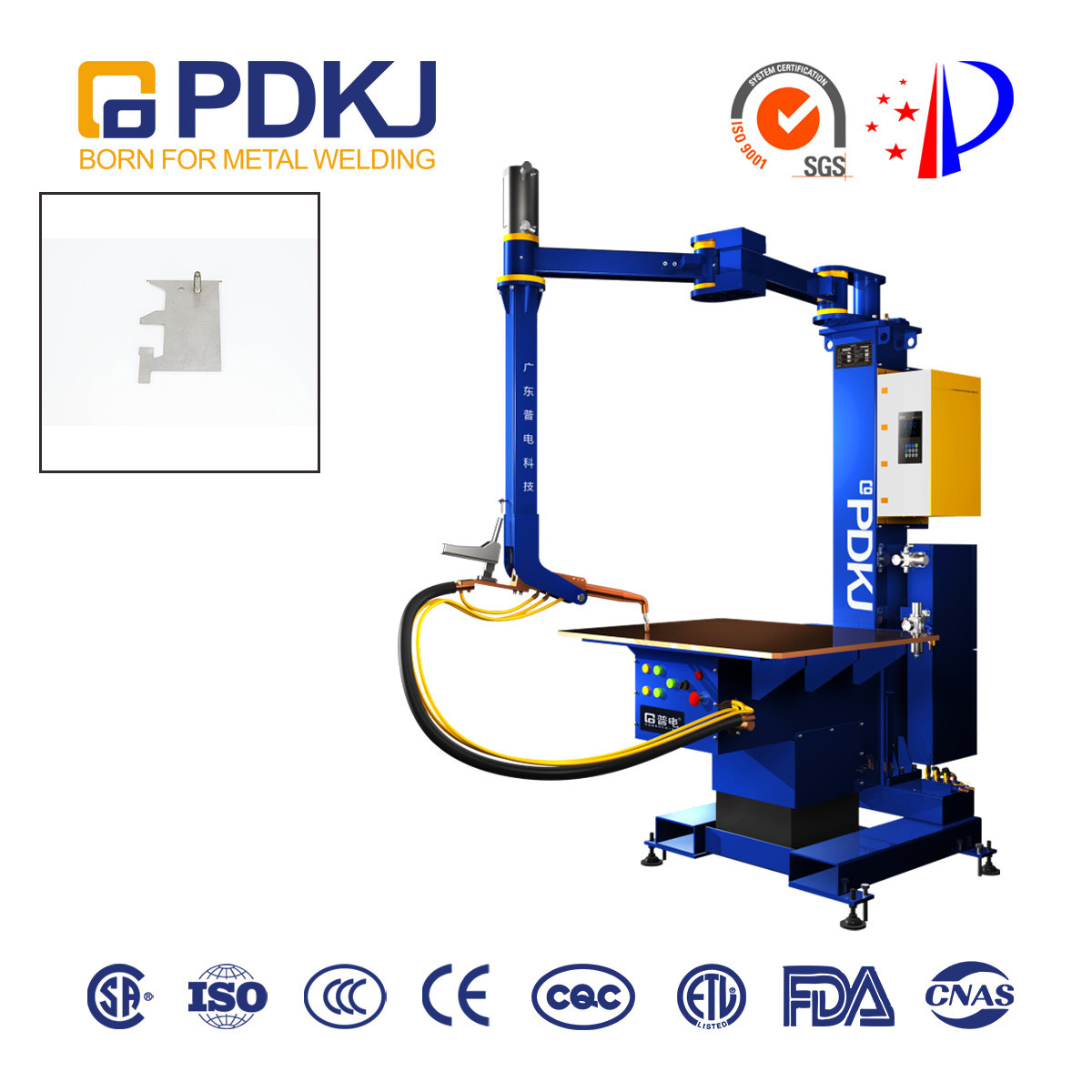

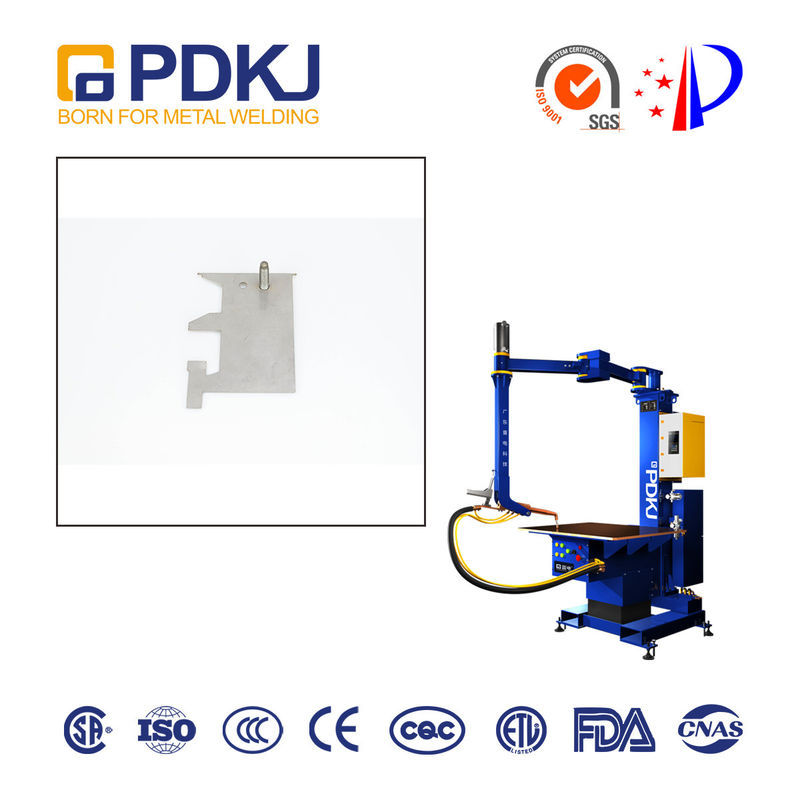

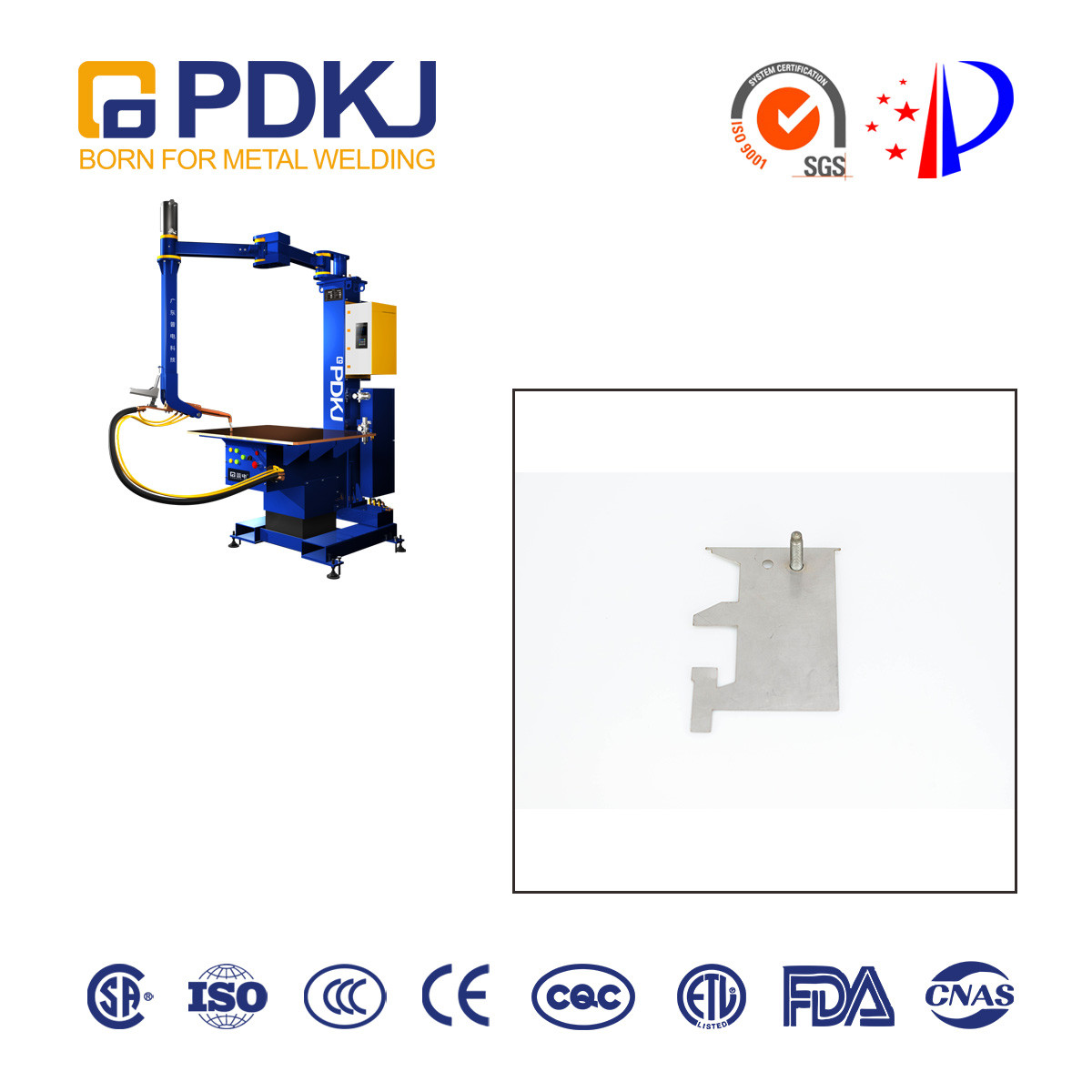

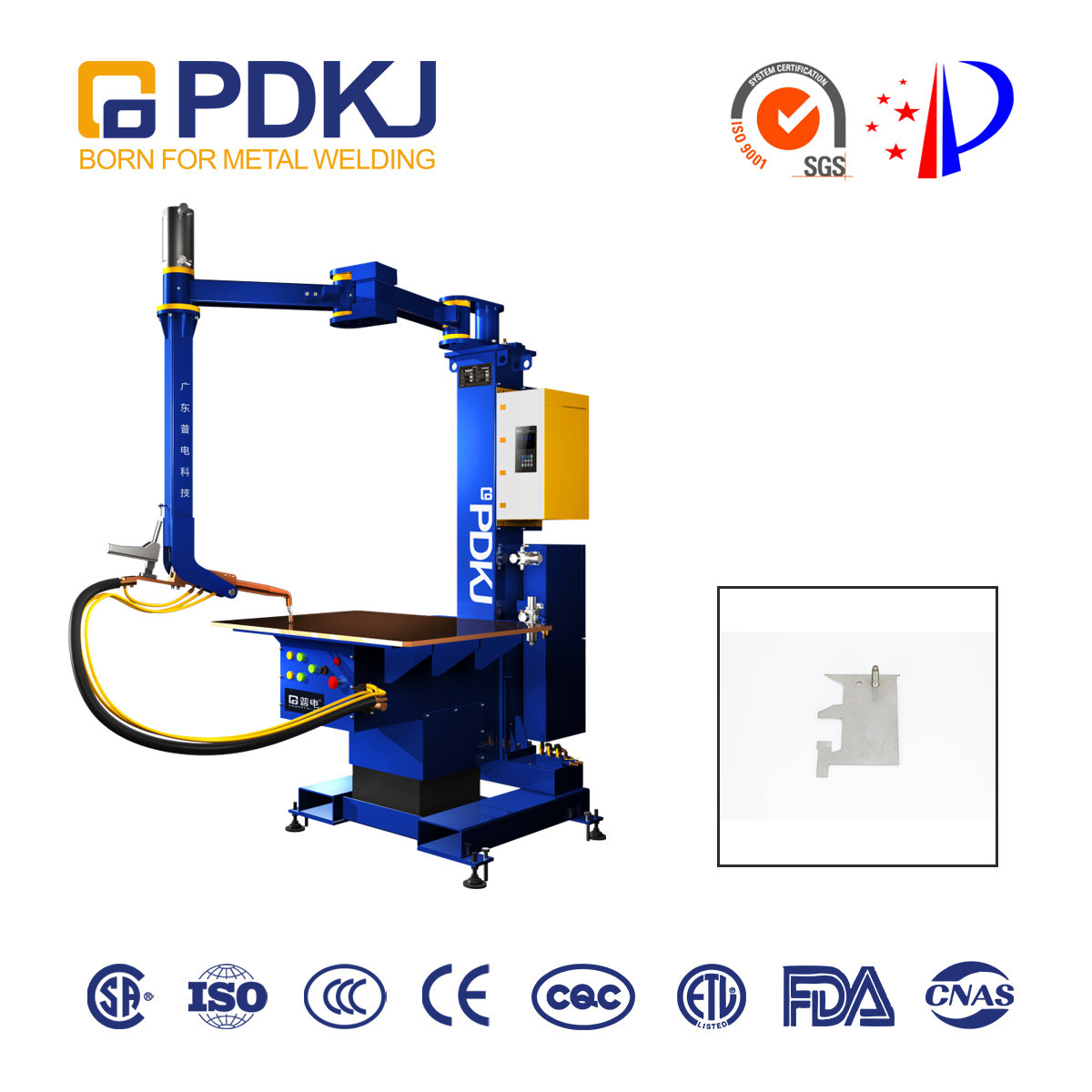

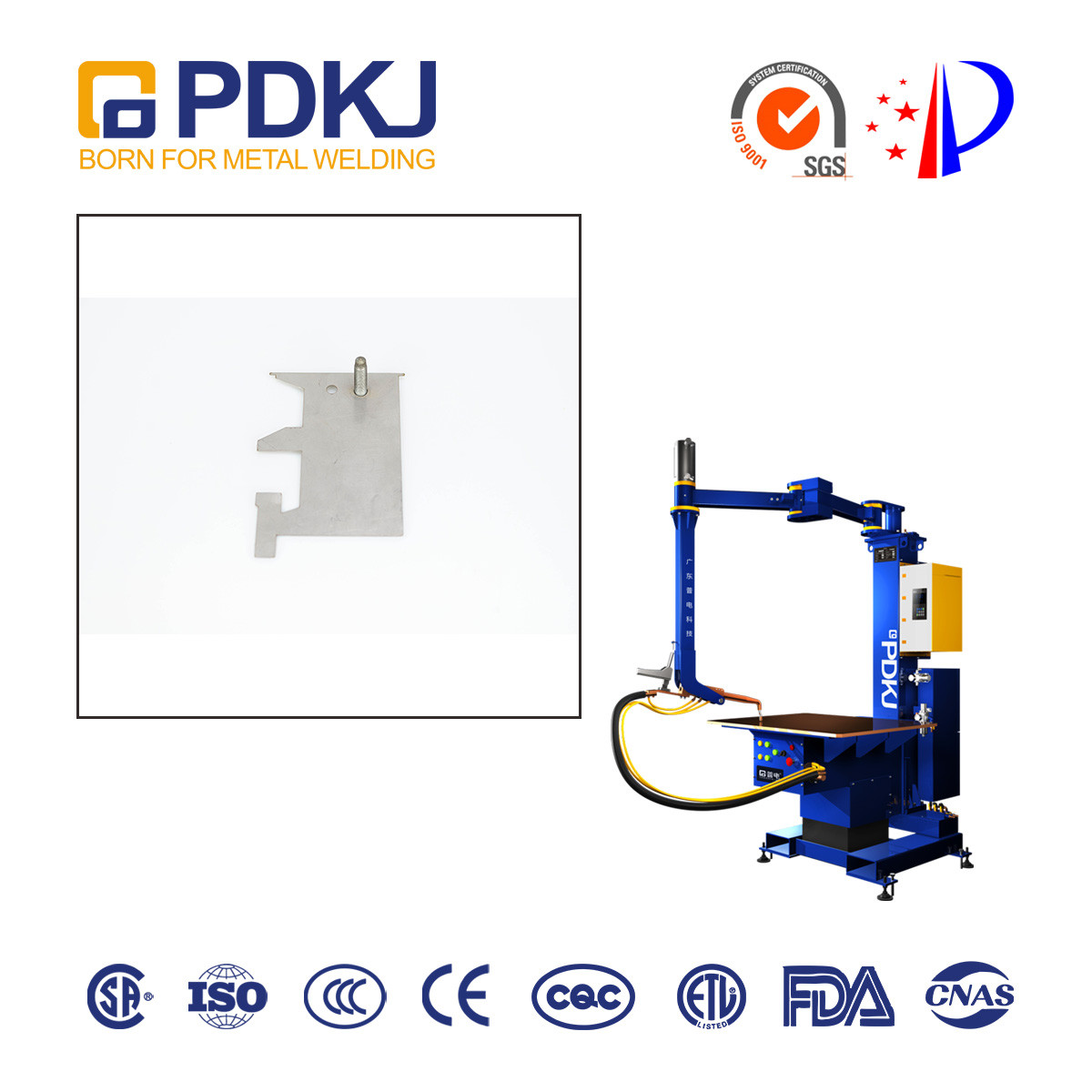

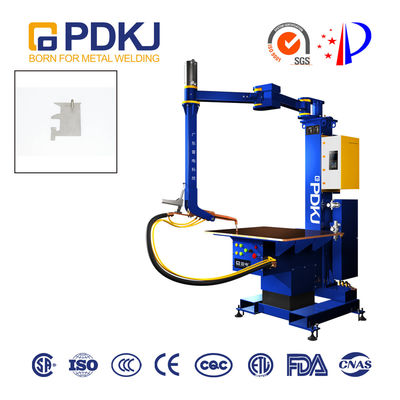

Large platform, convenient for supporting, taking and placing workpieces; Multi joint flexible welding arm to meet the welding of products in different directions; Small impression on the back of the welding spot and high quality of the welding surface, eliminating the grinding process; Necessary for welding large metal workpieces.


Welding material: Carbon steel / stainless steel
Material thickness: <1mm
Associated product name: mash welder
Industry: Transportation equipment industry
Process recommendation: Projection welding

DB 170 Table Top Spot Welder 380V 0





parameter DB-170W
Rated capacity 170KVA
Input power 3φ380V
Rated frequency 1000HZ
Welding gun type Horizontal welding gun
Torch length 390mm
short-circuit current 22000A
Welding capacity / mild steel 3.0+3.0mm
Welding capacity / aluminum plate 2.0+2.0mm
air pressure 0.6Mpa
weight 760kg
Overall dimension 1550×1000×2329mm
Table size 1000×800mm(table size can be customized according to user requirements)

DB 170 Table Top Spot Welder 380V 1

01.The medium frequency inverter welding power supply is adopted to effectively reduce power consumption and welding spatter, and the welding quality is stable and reliable.

02.The welding gun can be designed as a horizontal or vertical structure, which is easy to extend to the depth of the box for welding to meet the welding requirements in different directions.

03.The welding arm is a multi joint arm structure. The unique parallel joint structure makes the operation flexible and the welding range larger, which can easily reach each welding spot on the workbench.

04.The lower electrode is a forged chromium zirconium copper horizontal worktable. The workpiece can be directly placed on the worktable. It is simple to operate and easy to use. It can be easily operated without special skills or experience.

05.The output current is DC, the current is smooth, and the inductive reactance is zero.

06.The wide welding platform can realize electric lifting, which is convenient for taking and placing workpieces.

07.The outer surface of the solder joint is smooth without solder joint, deformation, grinding treatment and secondary processing dust. This not only saves the subsequent treatment process, improves the production efficiency, but also improves the working environment (no noise and dust pollution).

 DB 170 Table Top Spot Welder 380V 2

Especially suitable for aluminum, copper, galvanized sheet, carbon steel, nickel, tungsten and other metal materials and high temperature enameled wire, flexible connection, inductance coil welding. It is widely used in the welding of metal products in the fields of automobile and auto parts manufacturing, new energy power battery, photoelectric communication, electric light source, compressor, hardware, furniture, kitchenware, etc. The product has passed the patent certification of China Intellectual Property Office, China CCC certification and export CE certification

DB 170 Table Top Spot Welder 380V 3
1. When can you arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days. We always ship by air and sea in the mean time.
2. Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
3. What’ your warranty and after-sales?
We offer 1 year warranty, various forms of online instruction and the spare parts. Professional engineers will solve problem, if necessary.
4. How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
