Laser Source Brand: | Raycus | Application: | Metal Welding |
---|---|---|---|
Key Selling Points: | Easy Operation And High Accuracy | Cooling Chiller: | Dual Chiller For Laser Source And Welding Head |
Applicable Material: | Stainless Steel;Carbon Steel;Galvanized Sheet;Aluminum Plate | Low Running Cost: | 1-2kw/h |
High Light: | 10m stainless steel laser welding machine,1064nm Handheld Laser Welding Machine,TIG stainless steel laser welding machine |

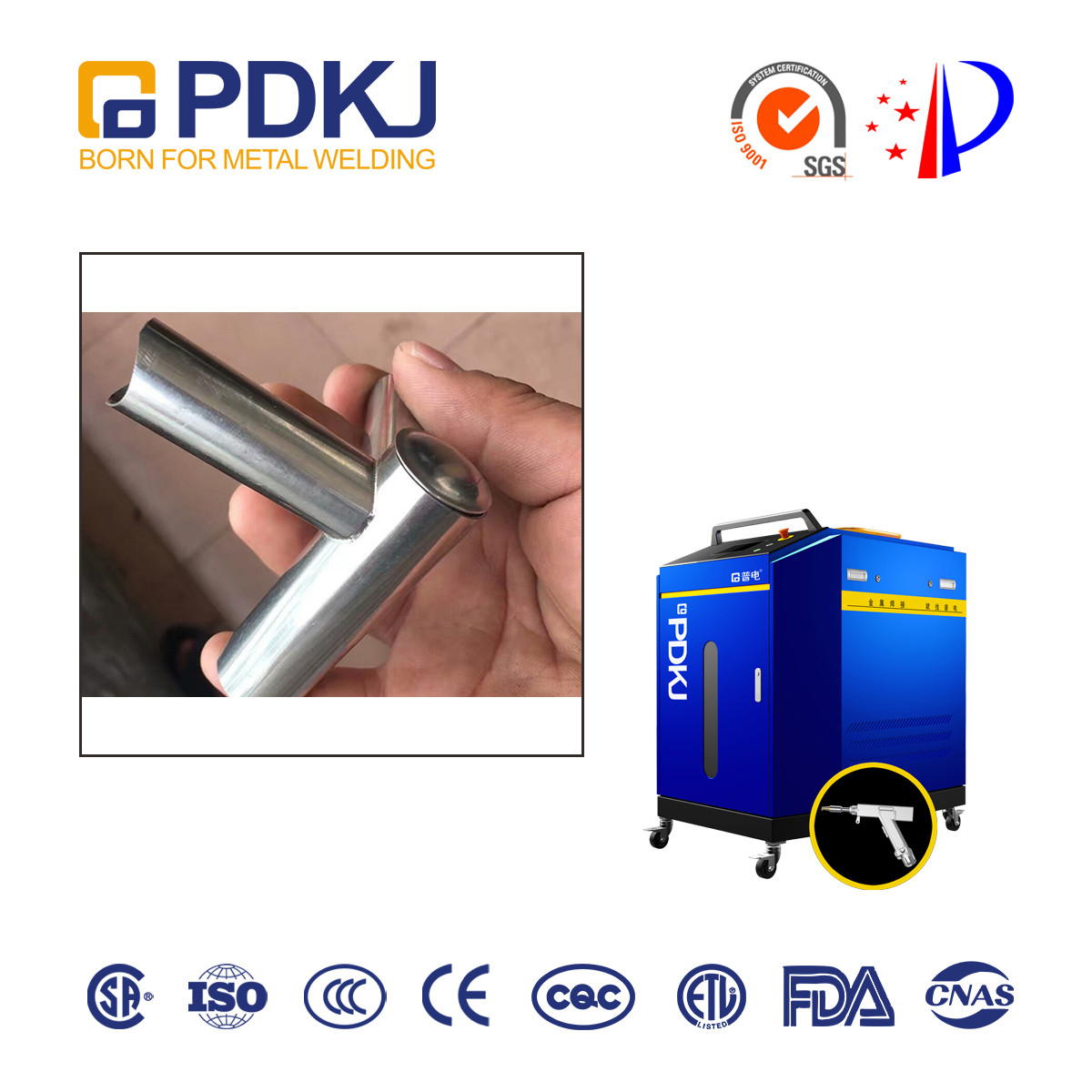

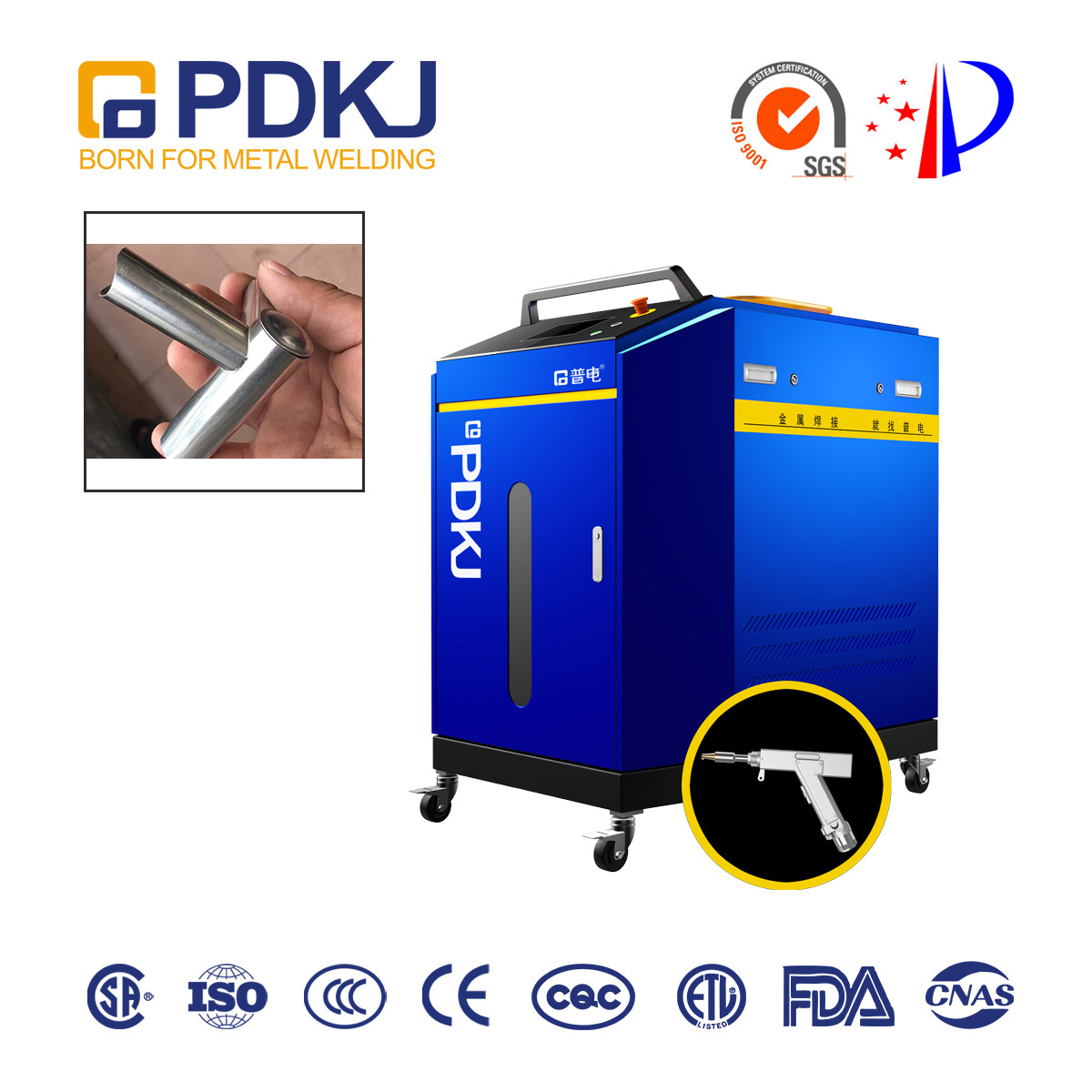

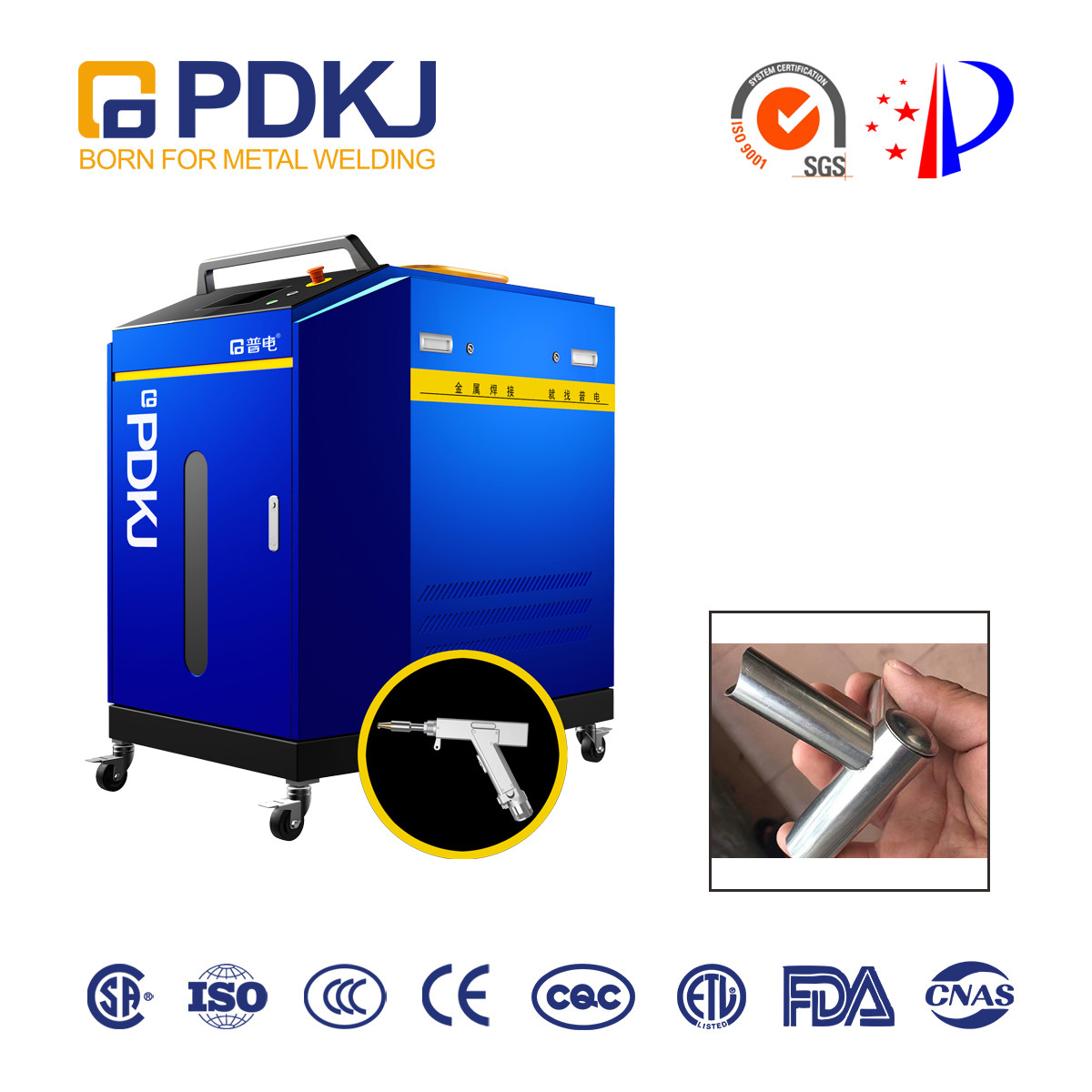

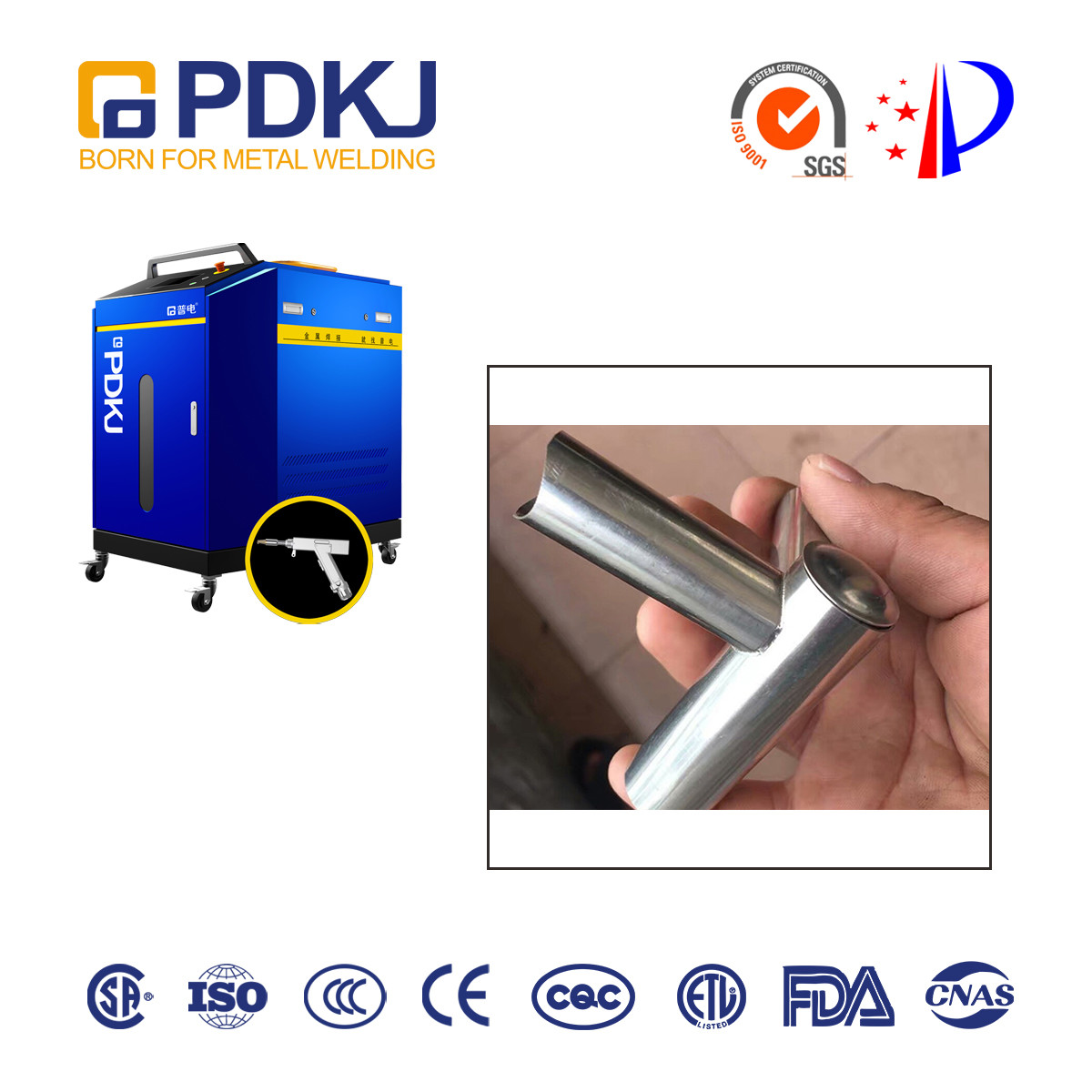

Handheld Laser Welding Machine Stainless Steel Ladle
Fiber laser
High photoelectric conversion efficiency, good beam quality, suitable for flexible processing and maintenance free
Optical fiber handheld welding gun
QBH interface mode, simple structure, air blowing function and safety protection function
Handheld laser welding machine
The hand-held continuous laser welding machine is an integrated structural design, adopts the latest generation of laser generator, and integrates double drive automatic wire feeding The system is equipped with double swing welding joint independently developed by our company. Flexible and convenient welding, good beam quality and less deformation of welding body, The weld is smooth and beautiful with high reliability. Flexible transmission non-contact hanging welding is applied to the parts that are difficult to be accessed by ordinary argon arc welding gun Connect. It is suitable for spot welding and full welding of complex and irregular inner and outer corners and joints of various metal frame structural parts and sheet metal parts, The utility model has the advantages of simple operation, beautiful weld and fast welding speed. Applicable to aluminum alloy plate, stainless steel plate, iron plate and galvanized steel plate The welding of plate and other metal materials can perfectly replace the traditional argon arc welding, electric arc welding and other processes.
01.The welding speed is 2-3 times faster than the traditional welding speed. It can help you save at least two welders a year
02.It is easy to operate without welding license, and the novice can weld beautiful products
03.The welding seam is smooth and beautiful, which reduces the subsequent grinding process and saves time and cost
04.Safer and more environmentally friendly
05.The self-developed swing welding head makes up for the disadvantage of small laser spot, expands the tolerance range and weld width of the workpiece, and achieves good weld forming effect.

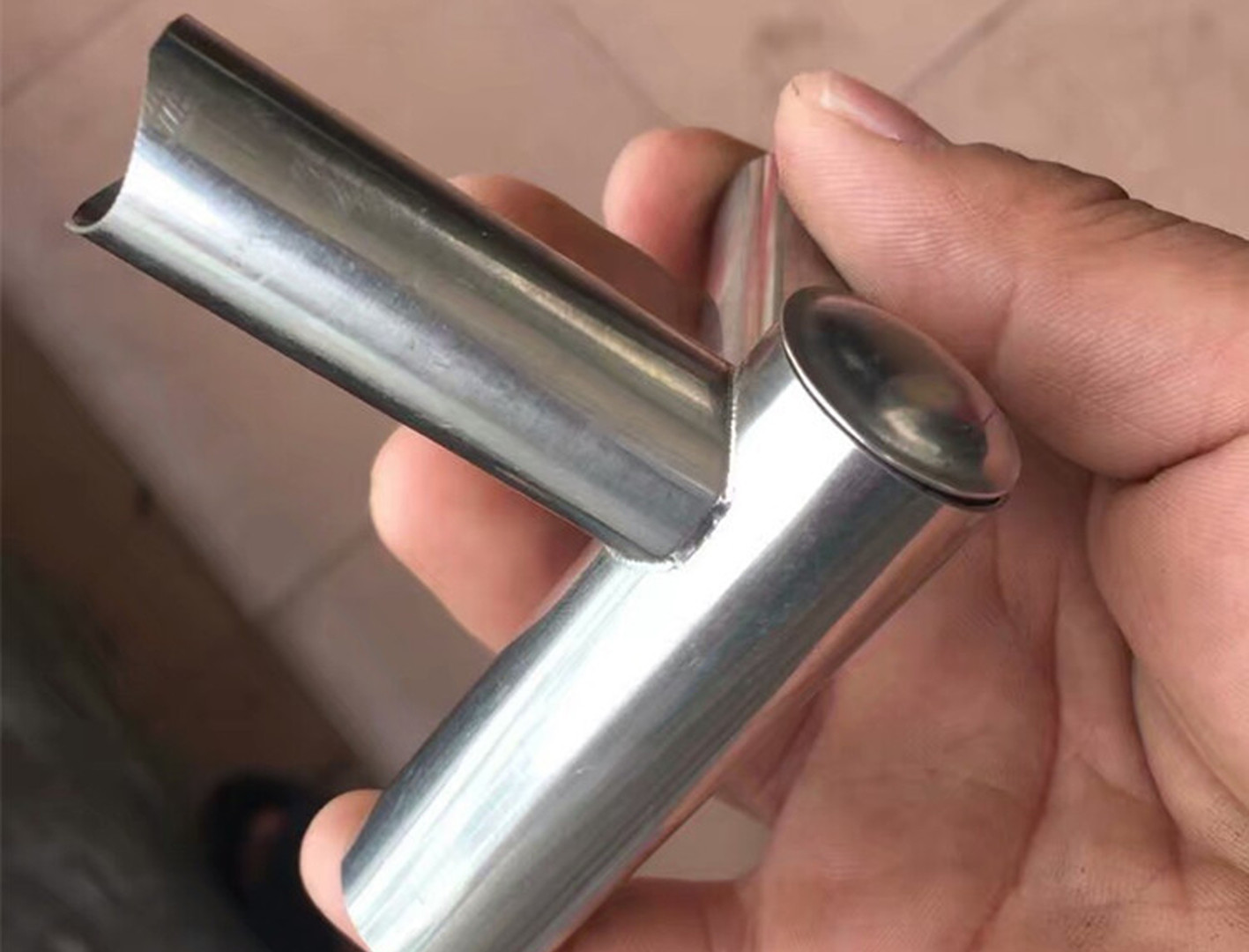

Welding material: carbon steel/stainless steel
Material thickness: < 3mm
Associated product name: part
Industry: Electronic and electrical appliance manufacturing industry
Process recommendation: laser welding
Specifications:
Project | Parameter |
Equipment name | Hand held continuous laser welding machine |
Fiber line length | Standard configuration 10m (customized length up to 15m) |
control model | TTL level/ GUI |
Cooling system | Water cool/All in one constant temperature |
Working environment temperature range | 15-35°C |
Recommended welding thickness | 0.1-5mm |
Consumables | Protective lenses |
Comparision:
Project | conventional argon arc welding | laser welding | PDKJ handheld optical fiber welding |
heat input to workpiece | very high | low | low |
deformation and undercut of workpiece | Large | small | small |
subsequent processing | grinding | no or little grinding is needed | no or little grinding is needed |
welding speed | General | more than 2 times of argon arc welding | more than 2 times of argon arc welding |
applicable materials | stainless steel / carbon steel / galvanized sheet / aluminum alloy / copper | stainless steel / carbon steel / galvanized sheet / aluminum alloy / copper | stainless steel / carbon steel / galvanized sheet / aluminum alloy / copper |
consumables | multiple | less | less |
operator safety | unsafe | Security | Security |
impact of environmental protection | not environmentally friendly | environmental protection | environmental protection |
welding fault tolerance | OK | General | OK |
hold hands and head | no | no | Yes |
The brightness of light spot is adjustable | none | none | Yes |
welding quality | poor | General | very good |
Applicaton recommendation :
Parameter name | 1000W |
Input power | 220V |
Automatic wire feeding | Yes |
bonding strength with base metal | General |
Welding gun model | A/B/C Optional |
Laser wavelength | 1064nm |
Overall power | 2000W |
welding interval requirements | <0.5mm |
Aiming and positioning | infrared |
Robot automatic welding interface | Yes |
Welding capacity / aluminum | 0.2-2MM |
Welding capacity / stainless steel | 0.2-3MM |
Welding capacity / galvanized sheet | 0.2-2.5MM |
Welding speed | 0-12MM/S |
Weight | 260KG |
Application:
Advantage: Easy to use, beautiful welded seam, fast welding speed
Suitable for welding stainless steel plate, aluminum alloy plate, carbon steel, galvanized plate and other metal materials; Widely used in cabinets, kitchens, stairs, elevators, racks, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel home and other industries
Serial number | name | Specifications | quantity | Company | remarks |
1 | Laser welding host | Integrated | one | set | Standard configuration |
2 | CW fiber laser | 1000W | one | platform | Standard configuration |
3 | cooling-water machine | constant temperature | one | platform | Standard configuration |
4 | Laser control system | Touch screen | one | set | Standard configuration |
5 | Double pendulum multifunctional handheld welding gun | T-type | one | individual | Standard configuration |
6 | Double drive multifunctional wire feeder | 0.8-1.6mm | one | platform | Standard configuration |
7 | Stainless steel welding wire | 1mm | one | disc | Standard configuration |
8 | IO robot connection supporting control system | PDKJ-PW353 | one | disc | Standard configuration |
Main components | Configuration description |
Fiber laser | High photoelectric conversion efficiency, good beam quality, suitable for flexible processing and maintenance free |
Constant temperature refrigerator | High efficiency compressor, water pump, overtemperature alarm, flow protection |
Laser control system | The 8-inch touch screen can adjust the laser control mode and laser power in real time, which is convenient and practical |
Optical fiber handheld welding gun | QBH interface mode, simple structure, air blowing function and safety protection function |
Double pendulum multifunctional handheld welding gun | It is suitable for T-type welding, spot welding, tailor welding, lap welding, butt welding, seam welding, fillet welding, overlap welding, etc |
IO robot connection supporting control system | Realize seamless connection with robot automatic welding system |
