SGS Handheld Laser Welding Machine 220V Dual Chiller Portable Welder

Basic Information
Place of Origin: CHINA
Brand Name: PDKJ
Certification: CE ISO SGS
Model Number: 1000W
Minimum Order Quantity: 1 unit
Price: USD 15000-35000 per unit
Packaging Details: Wooden Case
Delivery Time: 6-26 days
Supply Ability: 100 unit per month
Detail Information
Laser Source Brand: Raycus Welding Speed: 0-120mm/s
Key Selling Points: High Accuracy, Portable Laser Power: AV220V(1500W)
Cooling Chiller: Dual Chiller For Laser Source And Welding Head Applicable Material: Carbon Steel, Galvanized Sheet, Etc.
High Light:

SGS Handheld Laser Welding Machine


Handheld Laser Welding Machine 220V


Dual chiller portable laser welder

Product Description

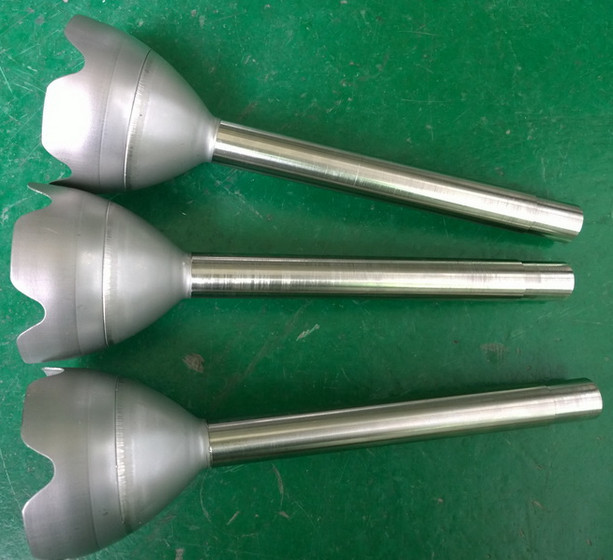

Handheld Laser Welding Machine For Stainless Steel Annular Cylinder

Handheld laser welding machine



The handheld laser welding machine adopts the latest generation of laser generator, with dual-drive automatic wire feeding function, which can carry out continuous welding operations. The operation is convenient and fast when welding. It is very safe to operate this kind of welding machine. Using this welder, inexperienced people without welding license can also weld beautiful welding products. The welding speed is pretty fast, up to 120mm/s, which is 2-3 times compared to traditional welding machine, which saves a lot of time for workers. At the same time, the welding quality is very high, cost investment decreases with the reduction of the grinding process. The working environment temperature range of the welding machine is 15-35°C, which can adapt to welding machine tasks in different temperature environments. A wide range of welding materials can be used to weld aluminum alloy plates, stainless steel plates, iron plates and other metal materials. Specifically, it can weld stainless steel door handles, stainless steel pipes, aluminum alloy pipes, etc., which can well replace traditional argon arc welding, arc welding and other processes.


01. Low material consumption

02.Long service life

03.Robust welding

04.Environment friendly

05.Material thickness: < 5mm

06.Welding material: aluminum/aluminum alloy




Project Parameter
Production name Hand held laser welding machine
Fiber line length Standard configuration 10m (customized length up to 15m)
control model TTL level/ GUI
Cooling system Water cool/All in one constant temperature
Recommended welding thickness 0.1-5mm
consumable material Protective lenses




Serial number name Specifications quantity Company remarks
1 Laser welding host Integrated one set

Standard configuration

2 CW fiber laser 1000W one platform
3 cooling-water machine constant temperature one platform
4 Laser control system Touch screen one set
5 Double pendulum multifunctional handheld welding gun T-type one individual
6 Double drive multifunctional wire feeder 0.8-1.6mm one platform
7 Stainless steel welding wire 1mm one disc
8 IO robot connection supporting control system PDKJ-PW353 one disc
9 Packing list   one book enclosure
10 warranty card   one book enclosure
11 certificate   one book enclosure


SGS Handheld Laser Welding Machine 220V Dual Chiller Portable Welder 0SGS Handheld Laser Welding Machine 220V Dual Chiller Portable Welder 1



1. Who are we?
We are based in Dongguan, China, start from 2006,Oversea sell to North America(20.00%),Southeast Asia(20.00%),Mid East(20.00%),Domestic Market(20.00%),South America(10.00%),Northern Europe(10.00%). There are about 11-50 professional Engineers in our office.

2. Why should you buy from us not from other suppliers?
In order to meet the special requirements of customers for products, PDKJ is willing to customize personalized products for you, so that customers can understand the professional services brought by sophisticated equipment.
