PDKJ DN 25T AC Resistance Spot Welding Machine 50mm Electrode Stroke

Basic Information
Place of Origin: CHINA
Brand Name: PDKJ
Certification: CE ISO SGS
Model Number: DN-25T
Minimum Order Quantity: 1 unit
Price: 4604-5410 USD
Packaging Details: Wooden Case
Delivery Time: 5-25 days
Supply Ability: 100 set per month
Detail Information
Welding Style: Resistance Welding Usage: Spot Welding
Key Selling Points: Quick,Seamless Applicable Industries: Building Material; Machinery Repair; Sheet Metal
After-sales Service: Field Installation; Site Commissioning And Training Welding Thickness: 1.0+1.0mm
High Light:

PDKJ Resistance Spot Welding Machine


Resistance Spot Welding Machine 50mm


dn 25t AC Spot Welder

Product Description

Desktop Intermediate-Frequency Inverse DC Spot Welding Machine For Hardware

Desktop AC Precision Spot Welding Machine , Spot Welding Machine projection welding machine with CE/CCC/ISO certificate
Desktop medium frequency inverter spot welder is suitable for welding fine workpieces such as electrical switches, purple copper wire joints, terminal wires, silver contacts, chip inductors, coils, fuses and hardware. It is widely used in the welding of precision components such as electronics, electrical appliances, medical devices, instruments and meters.
Welding material: Copper
Material thickness: < 3 mm
Associated product name: Instrument list
Industry: Electronic precision manufacturing industry
Process recommendation: spot welding

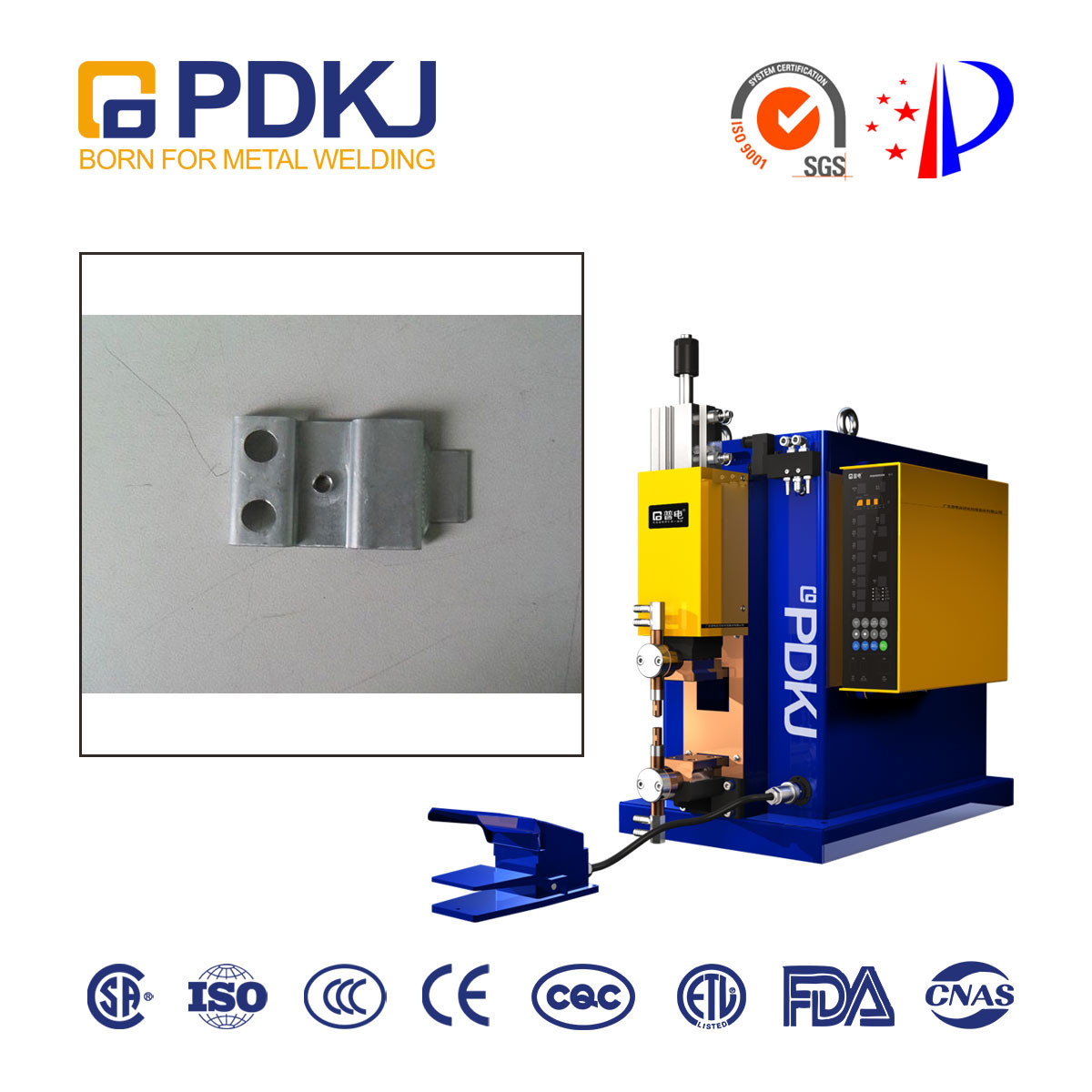

PDKJ DN 25T AC Resistance Spot Welding Machine 50mm Electrode Stroke 0

parameter DN-25T
Input power two φ 380V
Rated frequency 50/60HZ
short-circuit current 15000A
Load duration 20%
Arm extension size 120 mm x115mm
Electrode stroke 50mm
Cooling water flow 4L/min
weight 130kg
Overall dimension 800*500*765mm

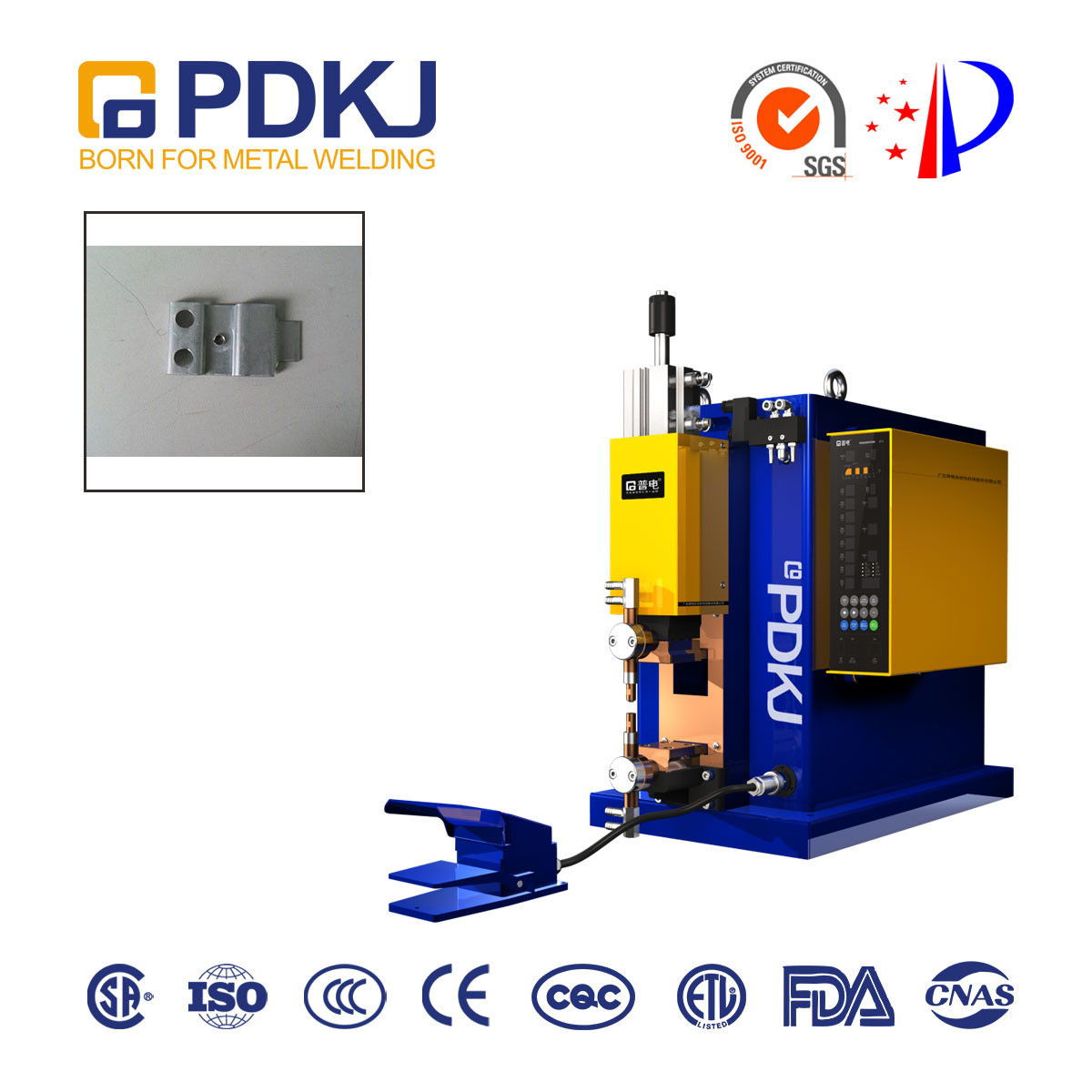

PDKJ DN 25T AC Resistance Spot Welding Machine 50mm Electrode Stroke 1
01.Desktop structure,Desktop structure, beautiful and generous It is especially suitable for fine workpiece welding and assembly line installation and production
02.Safe and high performance,Safe and high performance pneumatic system The pressurization speed can be adjusted at will.
03.water cooling system,Water saving circulating water cooling system Equipped with quick water-cooling connector to facilitate the replacement of water-cooling electrode or fixture.
04.Equipped with a new generation of microcomputer controller,Accurate and stable current and good performance

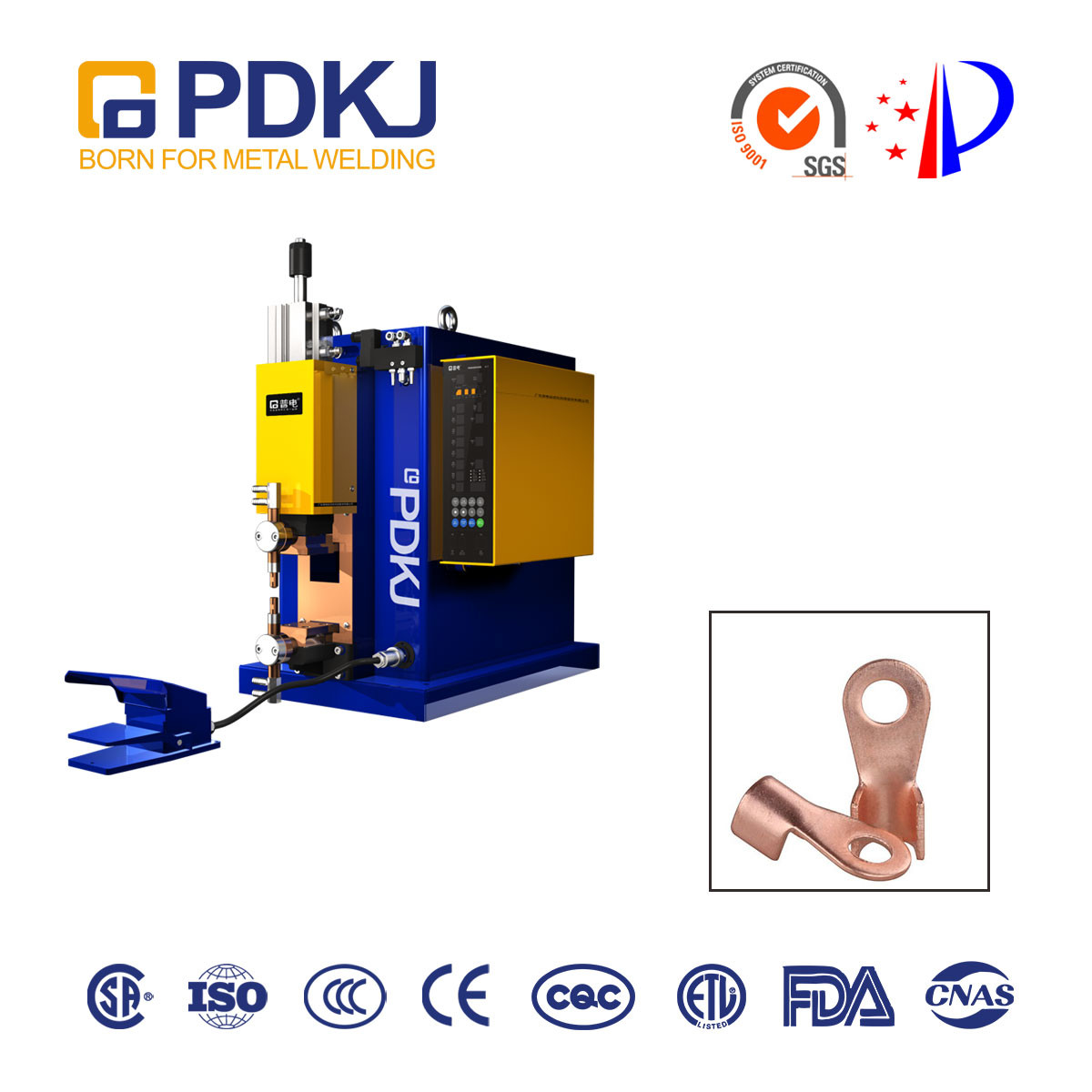

PDKJ DN 25T AC Resistance Spot Welding Machine 50mm Electrode Stroke 2
Especially suitable for aluminum, copper, galvanized sheet, carbon steel, nickel, tungsten and other metal materials and high temperature enameled wire, flexible connection, inductance coil welding. It is widely used in the welding of metal products in the fields of automobile and auto parts manufacturing, new energy power battery, photoelectric communication, electric light source, compressor, hardware, furniture, kitchenware, etc. The product has passed the patent certification of China Intellectual Property Office, China CCC certification and export CE certification

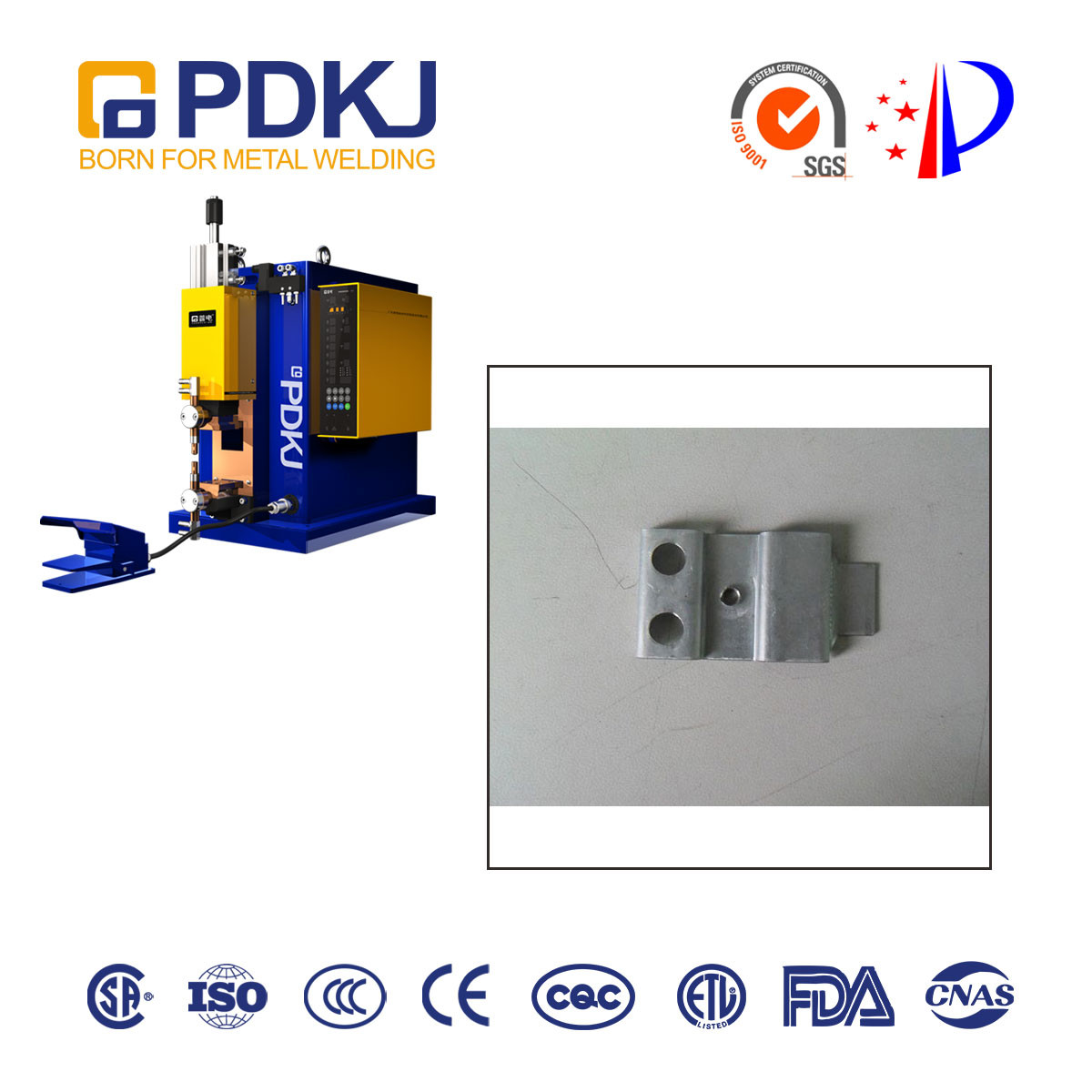

PDKJ DN 25T AC Resistance Spot Welding Machine 50mm Electrode Stroke 3
1. When can you arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days. We always ship by air and sea in the mean time.
2. What does your factory produce?
We produce and export all kinds of automatic welding machine and robots and relative parts. We can design machines according to your requirements.
3. What’ your warranty and after-sales?
We offer 1 year warranty, various forms of online instruction and the spare parts. Professional engineers will solve problem, if necessary.
4. How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

PDKJ DN 25T AC Resistance Spot Welding Machine 50mm Electrode Stroke 4
