| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PDKJ |
| Certification: | CE ISO SGS |
| Model Number: | DB-80T |
| Minimum Order Quantity: | 1 unit |
| Price: | 9200 USD |
| Packaging Details: | Wooden Case |
| Delivery Time: | 5-25 days |
| Supply Ability: | 100 set per month |
| Welding Style: | Resistance Welding | Usage: | Spot Welding |
|---|---|---|---|
| Key Selling Points: | Quick,Seamless | Applicable Industries: | Building Material; Machinery Repair; Sheet Metal |
| After-sales Service: | Field Installation; Site Commissioning And Training | Rated Capacity: | 22000A |
| High Light: | Seamless Dc Spot Welder,Desktop Inverse DC Spot Welding Machine,Inverse DC Spot Welding Machine |
||

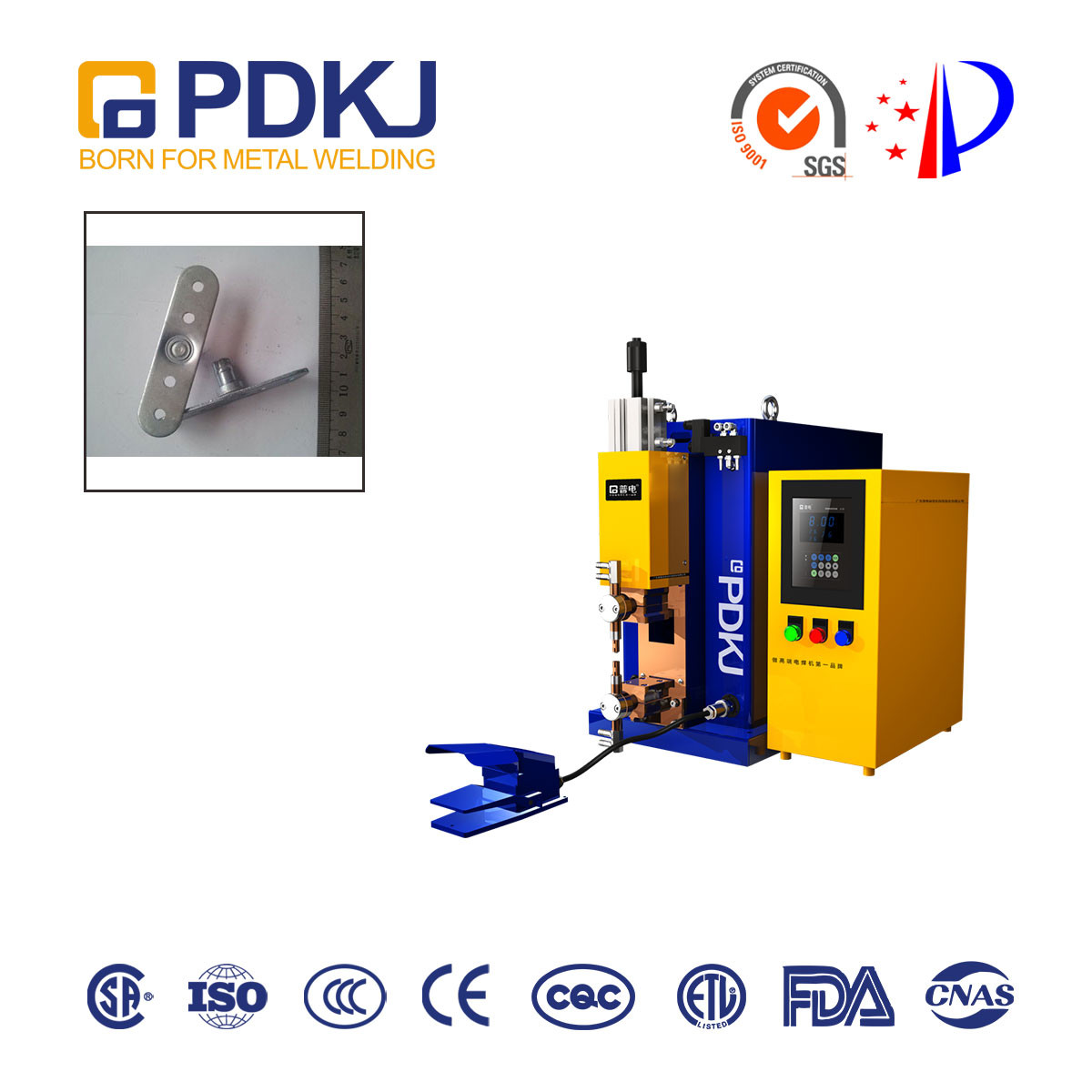

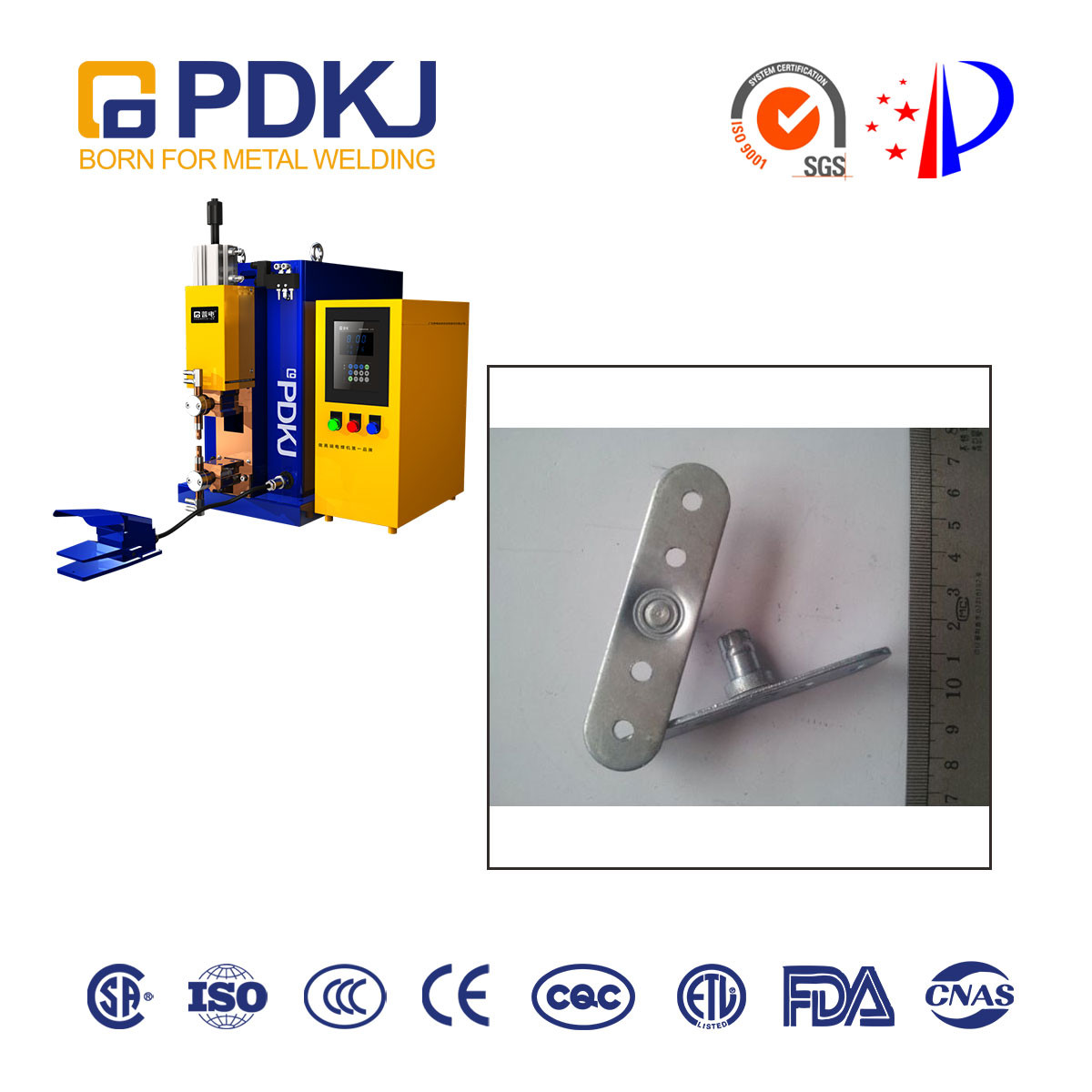

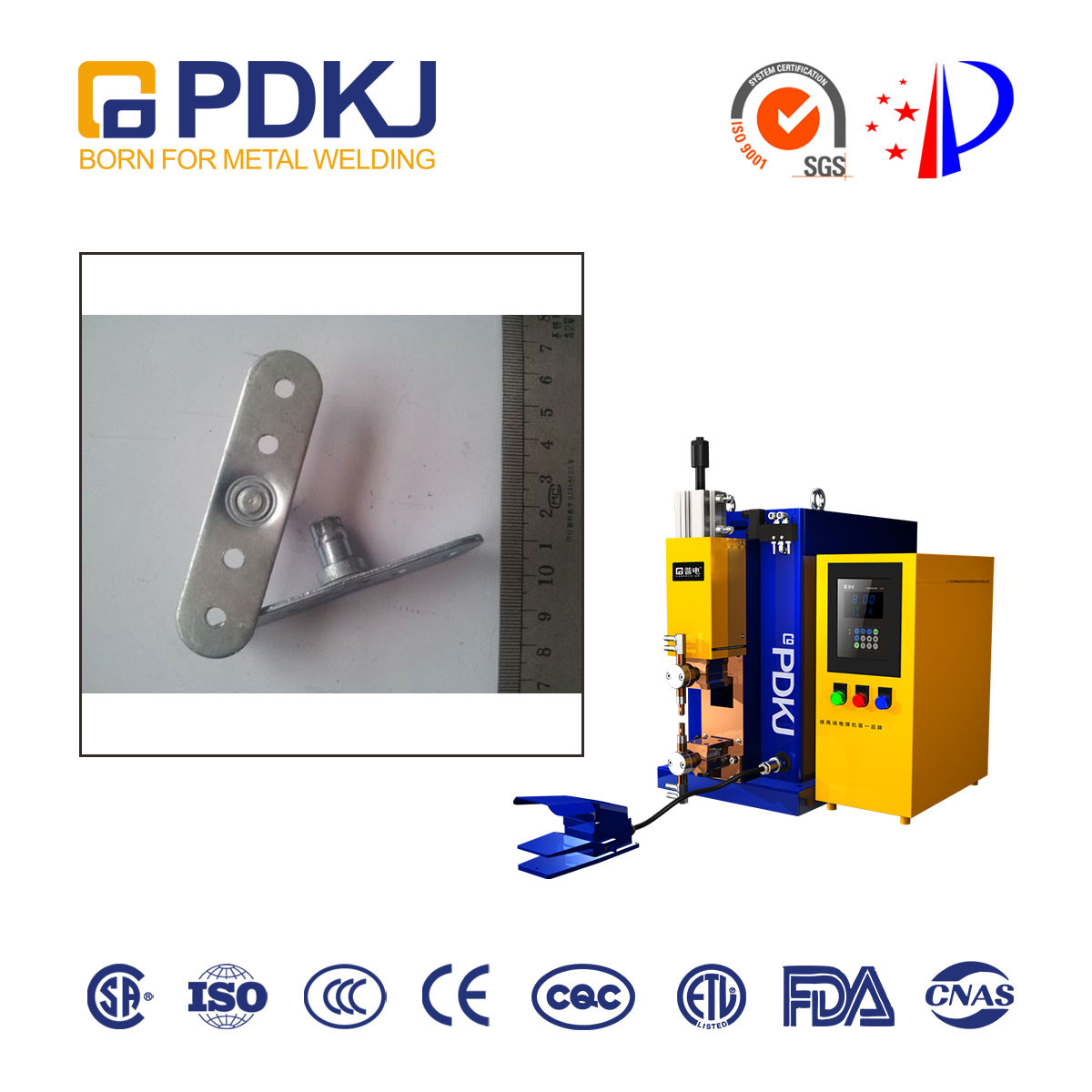

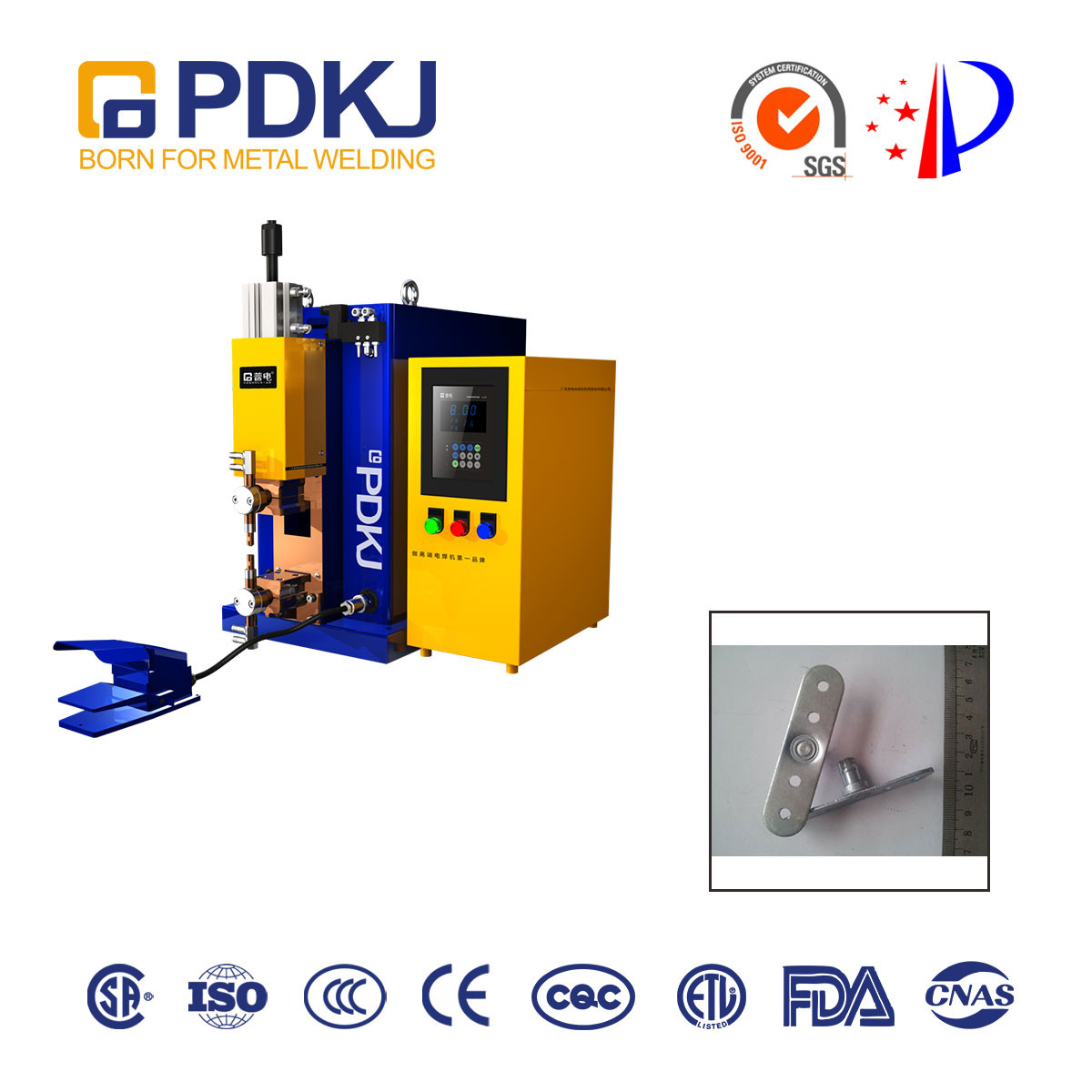

Desktop Intermediate-frequency Inverse DC Spot Welding Machine , Spot Welding Machine projection welding machine with CE/CCC/ISO certificate
Description:

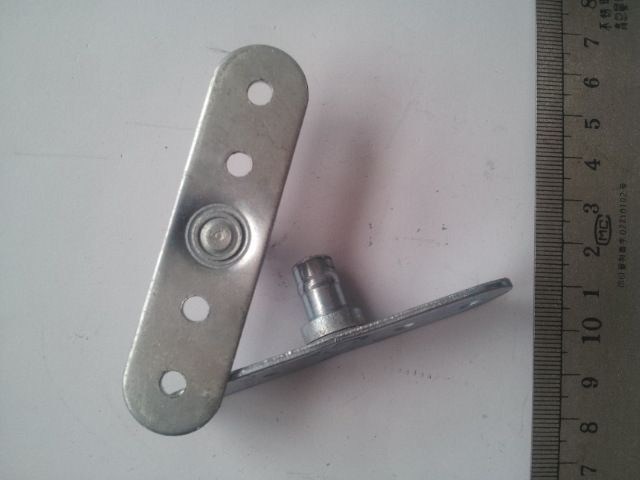

TDesktop medium frequency inverter spot welder is suitable for welding fine workpieces such as electrical switches, purple copper wire joints, terminal wires, silver contacts, chip inductors, coils, fuses and hardware. It is widely used in the welding of precision components such as electronics, electrical appliances, medical devices, instruments and meters.
Specifications
| parameter | DB-80T |
| Rated capacity | 80KVA |
| Input power | three φ 380V |
| short-circuit current | 22000A |
| Load duration | 20% |
| control mode | Primary / secondary constant current |
| Inverter frequency | 1000HZ |
| Arm extension size | 120 mm x115mm |
| press | 750N |
| weight | 150kg |
| Overall dimension (mm) | 800*670*765mm |
Feature
01.Adjustable vertical pressure mechanism, the guide part adopts linear guide rail, with high follow-up.
02.Desktop structure, beautiful and generous, space saving and flexible configuration.
03.The water-saving circulating water cooling system is equipped with fast water cooling connector to facilitate the replacement of water cooling, electrode or fixture.
04.Equipped with medium frequency welding controller and current closed-loop control, it can control the actual welding current at high speed and accurately.
05.The output current is DC, the current is smooth, the inductive reactance is zero, the working frequency is 1000Hz, and the time control accuracy is 1ms.
06.High quality and high efficiency welding capacity, power factor up to 98%, three-phase input load balance.
Application
Especially suitable for aluminum, copper, galvanized sheet, carbon steel, nickel, tungsten and other metal materials and high temperature enameled wire, flexible connection, inductance coil welding. It is widely used in the welding of metal products in the fields of automobile and auto parts manufacturing, new energy power battery, photoelectric communication, electric light source, compressor, hardware, furniture, kitchenware, etc. The product has passed the patent certification of China Intellectual Property Office, China CCC certification and export CE certification
FAQ
1. When can you arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days. We always ship by air and sea in the mean time.
2. What does your factory produce?
We produce and export all kinds of automatic welding machine and robots and relative parts. We can design machines according to your requirements.
3. What’ your warranty and after-sales?
We offer 1 year warranty, various forms of online instruction and the spare parts. Professional engineers will solve problem, if necessary.
4. How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
