CCC FDA Resistance Spot Welding Machine 750N

Basic Information
Place of Origin: CHINA
Brand Name: PDKJ
Certification: CE ISO SGS
Model Number: DN-25T
Minimum Order Quantity: 1 unit
Price: 4604-5410 USD
Packaging Details: Wooden Case
Delivery Time: 5-25 days
Supply Ability: 100 set per month
Detail Information
Welding Style: Resistance Welding Usage: Spot Welding
Key Selling Points: Quick,Seamless Applicable Industries: Building Material; Machinery Repair; Sheet Metal
After-sales Service: Field Installation; Site Commissioning And Training Rated Capacity: 15000A
High Light:

CCC Resistance Spot Welding Machine

,

750N Resistance Spot Welding Machine

,

FDA Resistance Spot Welder


Product Description

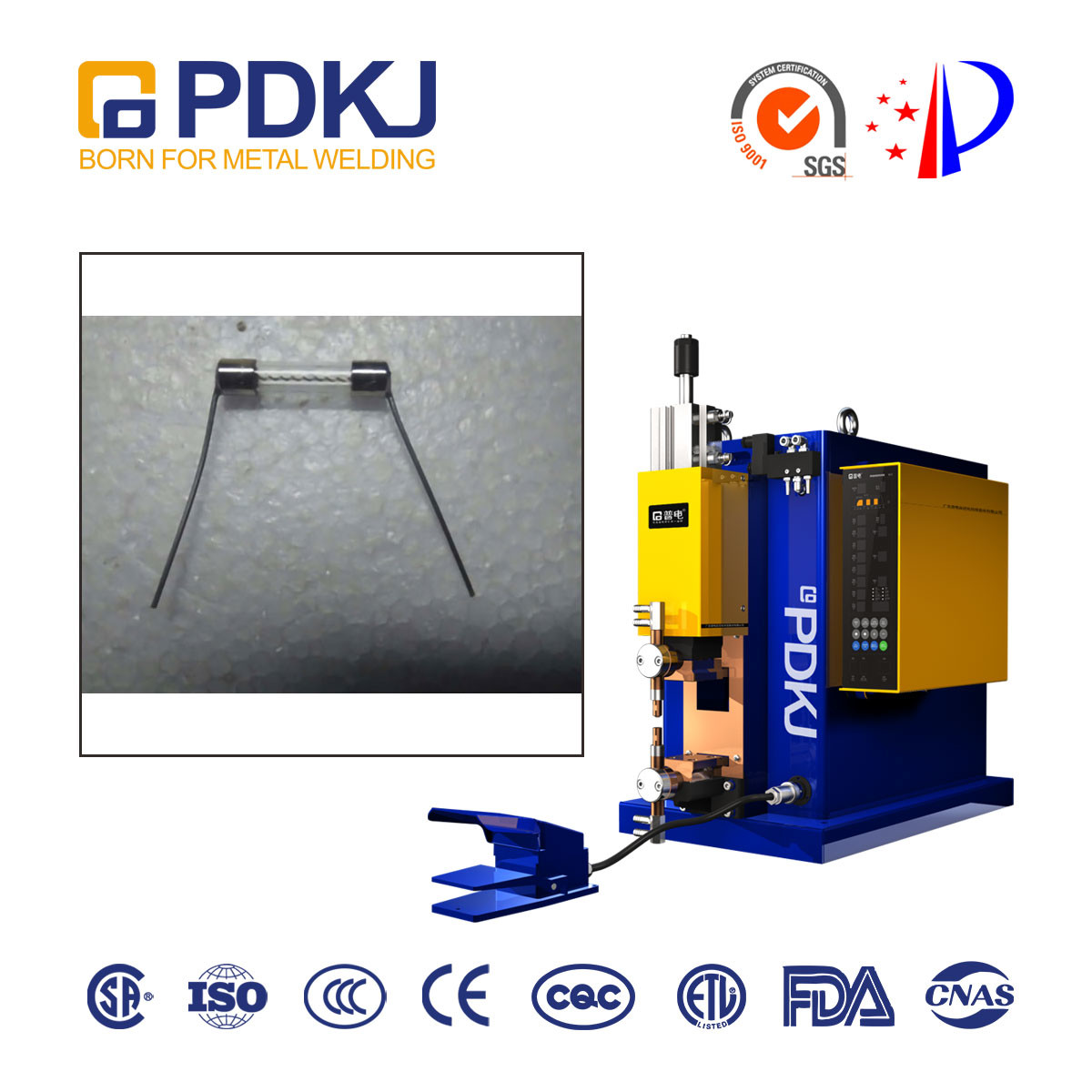

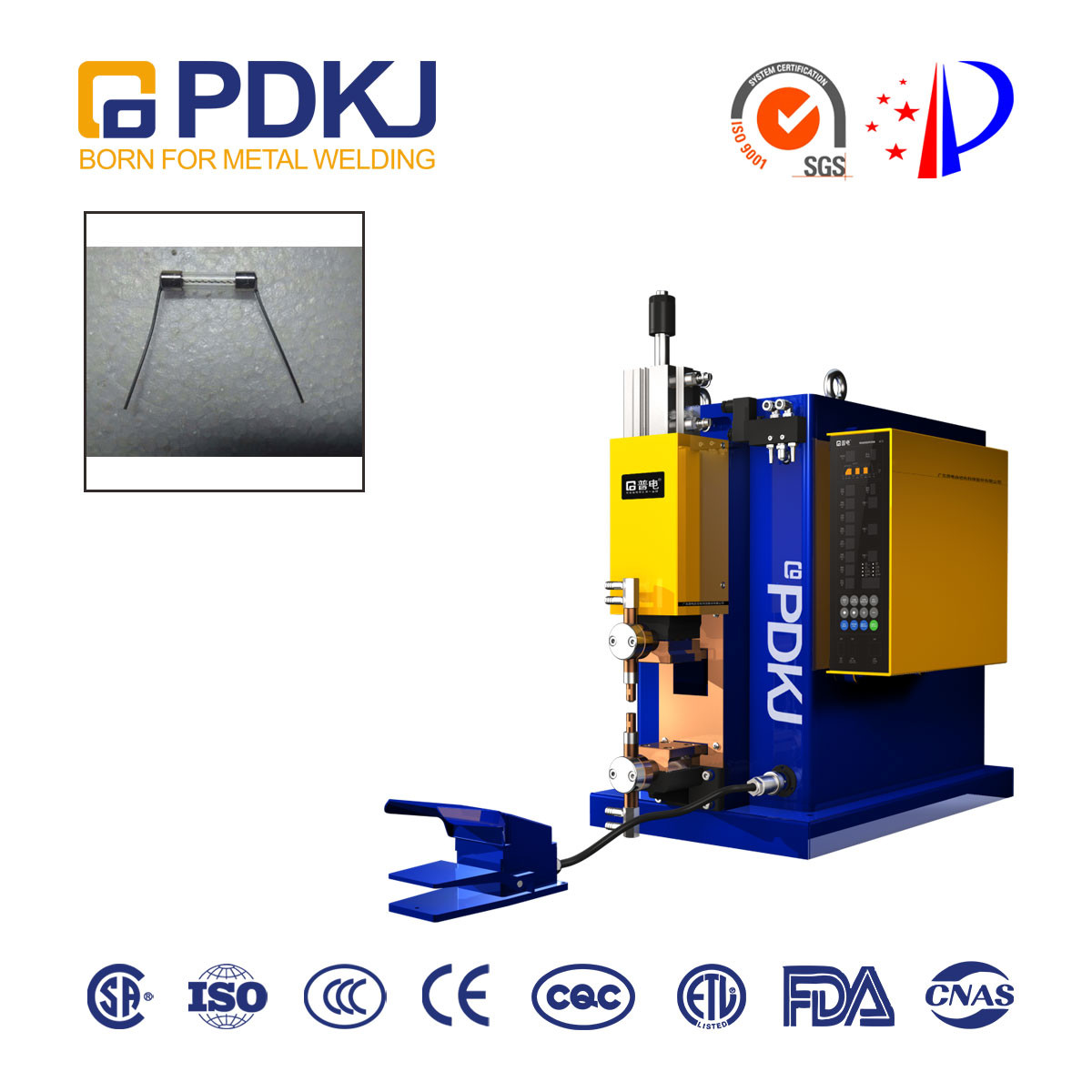

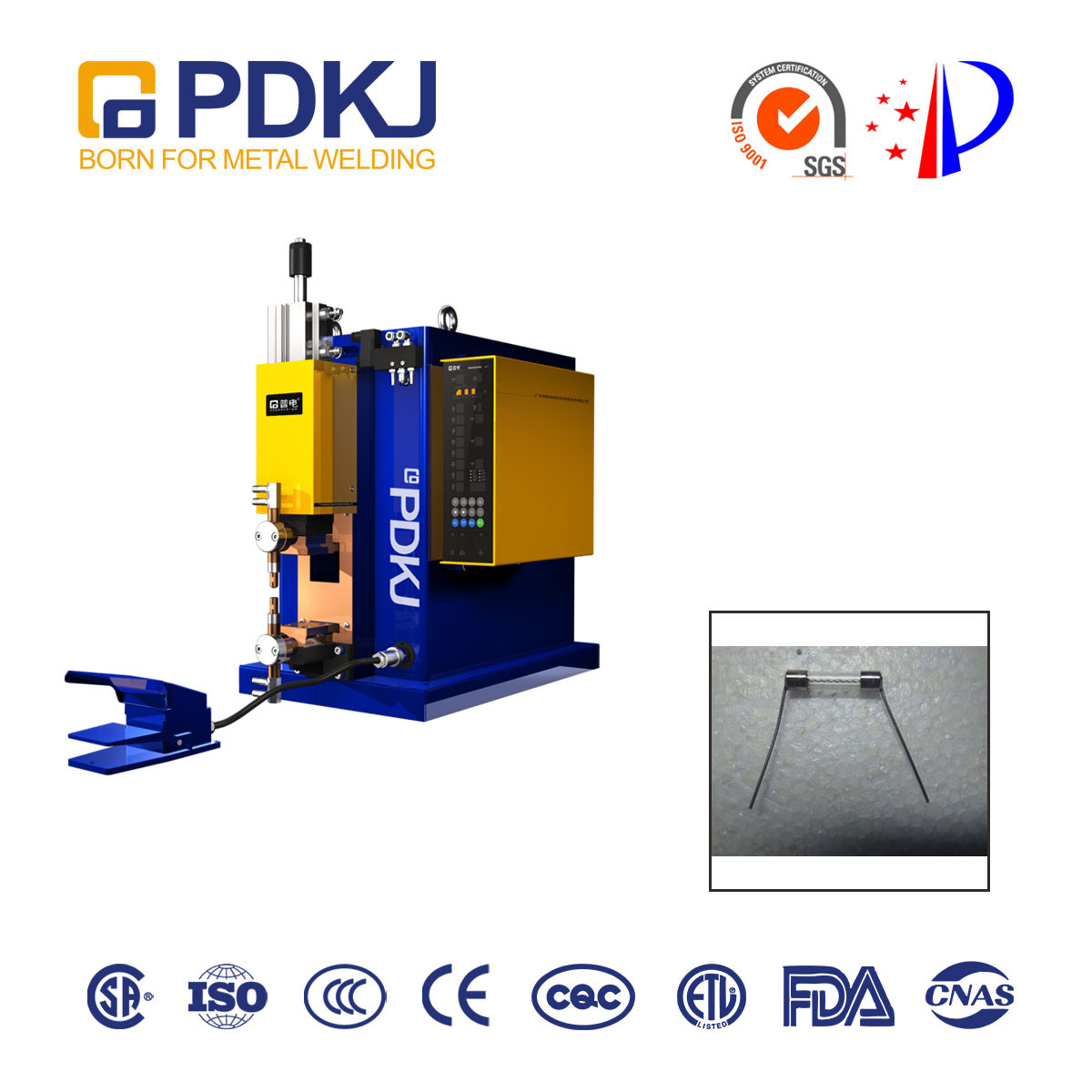

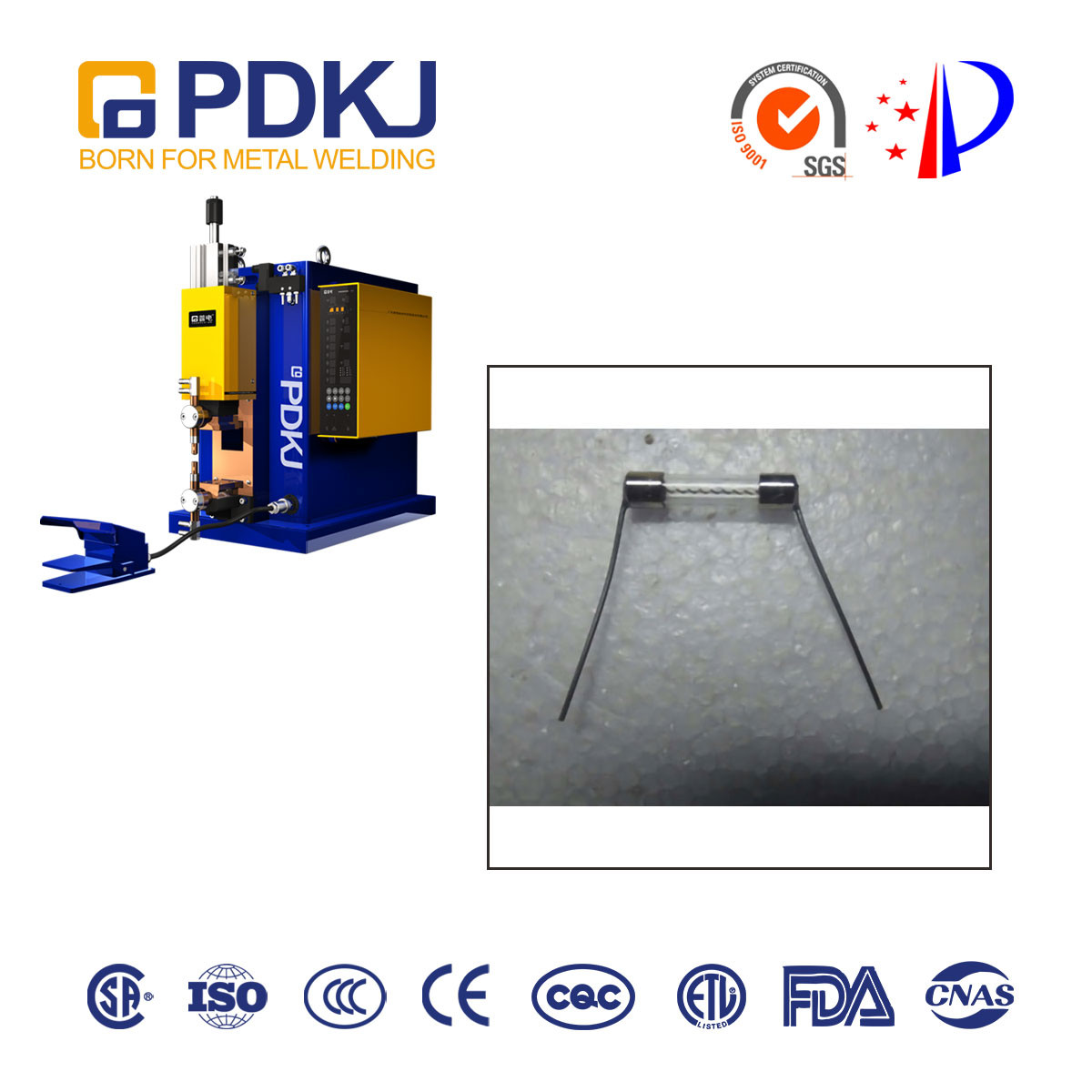

Desktop Intermediate-Frequency Inverse DC Spot Welding Machine For Fuse

Desktop AC Precision Spot Welding Machine , Spot Welding Machine projection welding machine with CE/CCC/ISO certificate
Description:

Desktop medium frequency inverter spot welder is suitable for welding fine workpieces such as electrical switches, purple copper wire joints, terminal wires, silver contacts, chip inductors, coils, fuses and hardware. It is widely used in the welding of precision components such as electronics, electrical appliances, medical devices, instruments and meters.

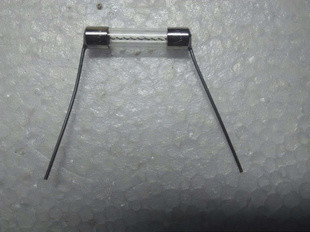

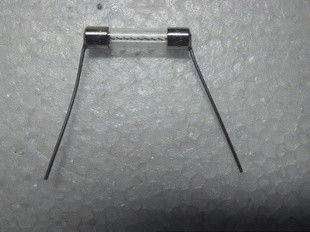

Fuse welding material: Copper

Material thickness: < 1 mm

Associated product name: an electric appliance

Industry: New energy application industry

Process recommendation: spot welding

CCC FDA Resistance Spot Welding Machine 750N 0



Specifications

parameter DN-25T
Rated capacity 25KVA
Rated frequency 50/60HZ
short-circuit current 15000A
Load duration 20%
Arm extension size 120 mm x115mm
press 750N
Electrode stroke 50mm
Cooling water flow 4L/min
weight 130kg

CCC FDA Resistance Spot Welding Machine 750N 1
Feature

01.Direct pressure mechanism,The guide part adopts a new structure with high follow-up.
02.High strength body structure,Good rigidity, which can prevent the electrode head from sliding when pressurized.
03.Desktop structure,Desktop structure, beautiful and generous It is especially suitable for fine workpiece welding and assembly line installation and production
04.Equipped with a new generation of microcomputer controller,Accurate and stable current and good performance

CCC FDA Resistance Spot Welding Machine 750N 2



Application
Especially suitable for aluminum, copper, galvanized sheet, carbon steel, nickel, tungsten and other metal materials and high temperature enameled wire, flexible connection, inductance coil welding. It is widely used in the welding of metal products in the fields of automobile and auto parts manufacturing, new energy power battery, photoelectric communication, electric light source, compressor, hardware, furniture, kitchenware, etc. The product has passed the patent certification of China Intellectual Property Office, China CCC certification and export CE certification


CCC FDA Resistance Spot Welding Machine 750N 3
FAQ
1. When can you arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days. We always ship by air and sea in the mean time.
2. What does your factory produce?
We produce and export all kinds of automatic welding machine and robots and relative parts. We can design machines according to your requirements.
3. What’ your warranty and after-sales?
We offer 1 year warranty, various forms of online instruction and the spare parts. Professional engineers will solve problem, if necessary.
4. How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
