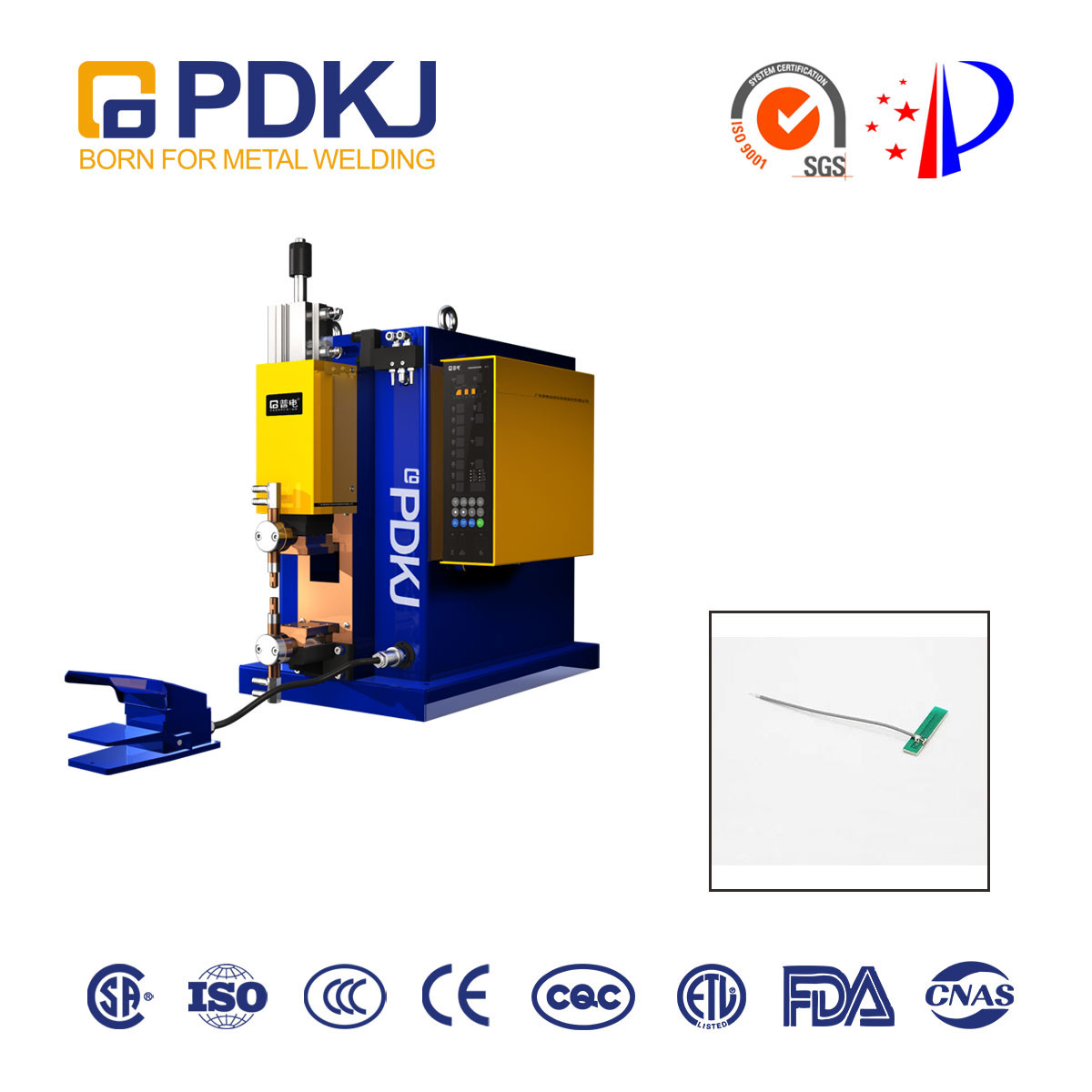

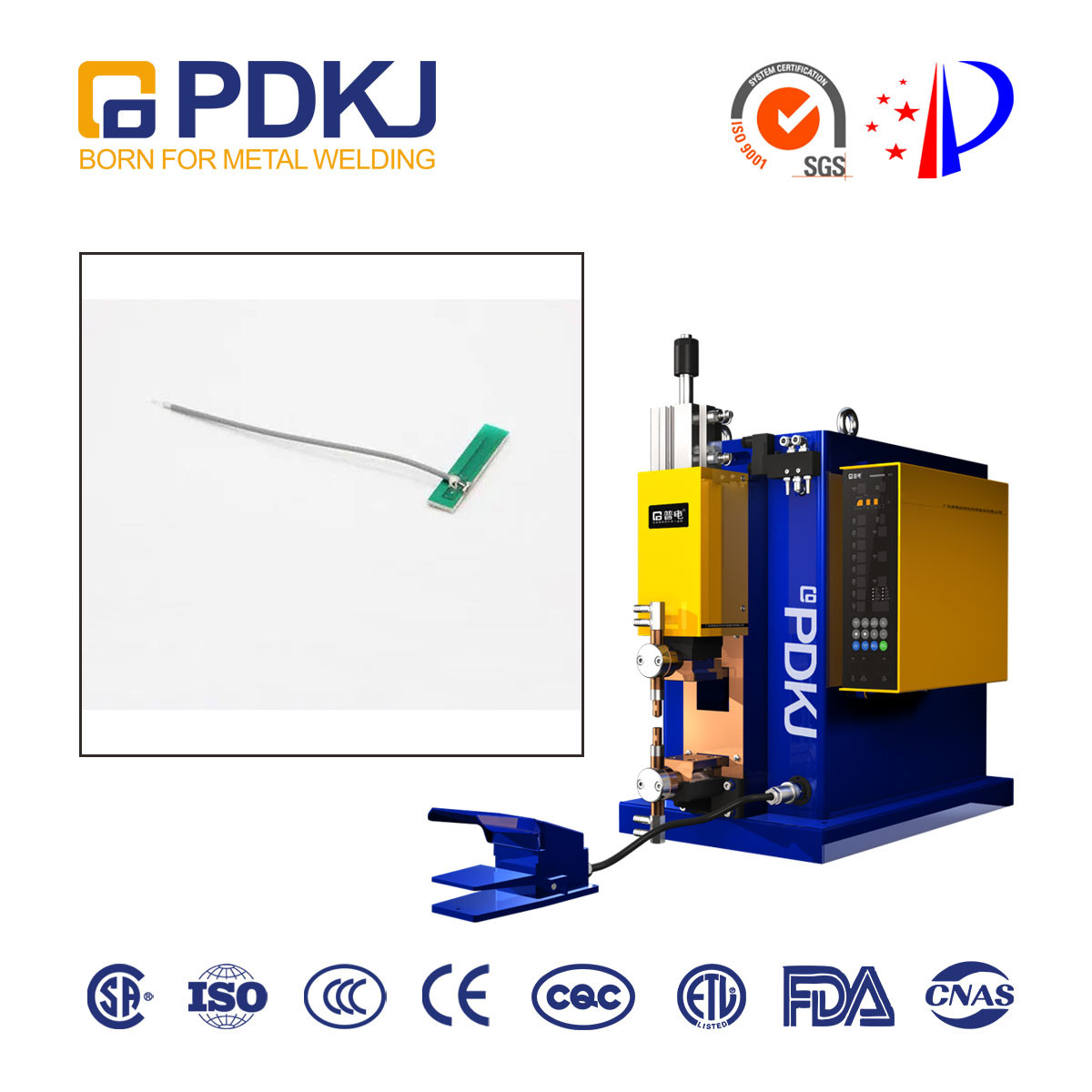

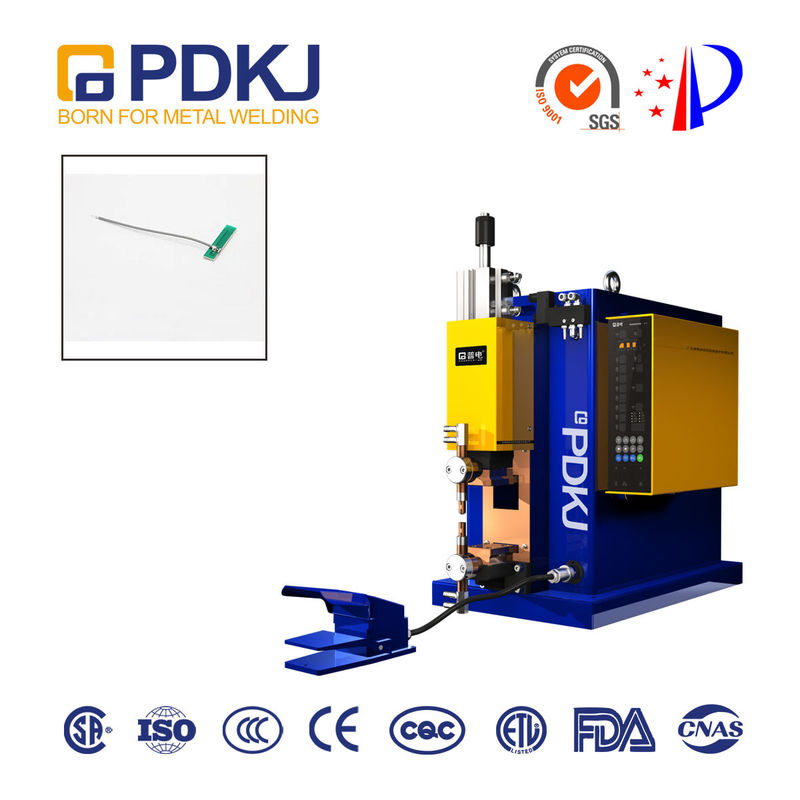

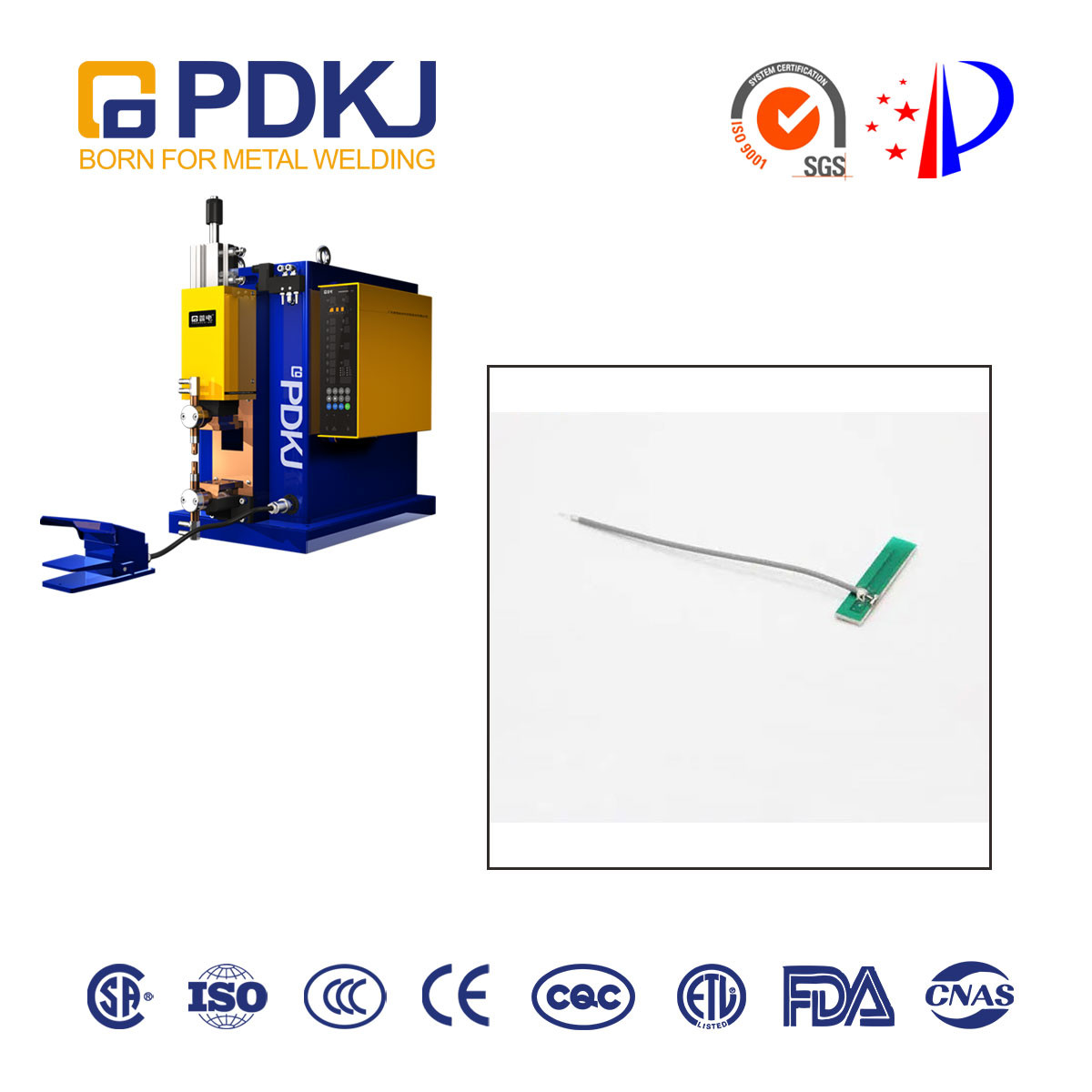

Desktop Spot Resistance Seam Welding Machine 15000A 25KVA For Fuse

Basic Information
Place of Origin: CHINA
Brand Name: PDKJ
Certification: CE ISO SGS
Model Number: DN-25T
Minimum Order Quantity: 1 unit
Price: 4604-5410 USD
Packaging Details: Wooden Case
Delivery Time: 5-25 days
Supply Ability: 100 set per month
Detail Information
Welding Style: Resistance Welding Usage: Spot Welding
Key Selling Points: Quick,Seamless Applicable Industries: Building Material; Machinery Repair; Sheet Metal
After-sales Service: Field Installation; Site Commissioning And Training Rated Capacity: 15000A
High Light:

25KVA resistance seam welding machine

,

desktop resistance seam welding machine

,

Spot Welding Machine 15000A


Product Description

Desktop Intermediate-Frequency Inverse DC Spot Welding Machine For Fuse

Desktop AC Precision Spot Welding Machine , Spot Welding Machine projection welding machine with CE/CCC/ISO certificate
Description:

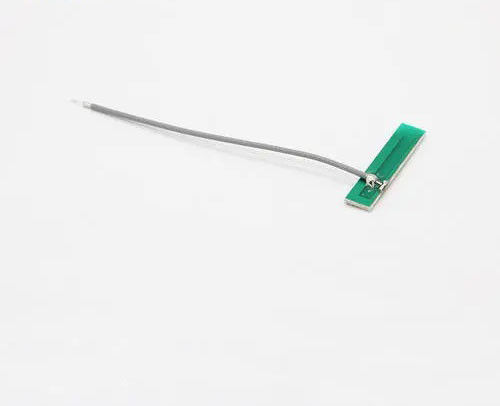

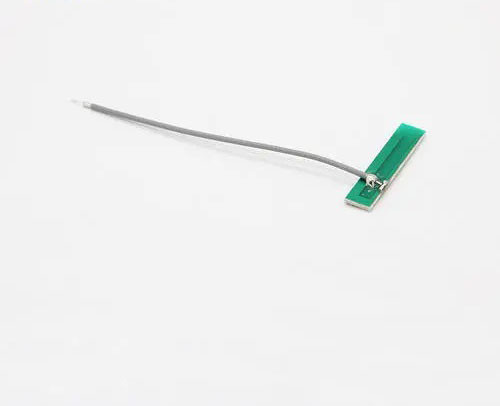

Desktop medium frequency inverter spot welder is suitable for welding fine workpieces such as electrical switches, purple copper wire joints, terminal wires, silver contacts, chip inductors, coils, fuses and hardware. It is widely used in the welding of precision components such as electronics, electrical appliances, medical devices, instruments and meters.



Welding material: Copper

Material thickness: < 1 mm

Associated product name: Instrument list

Industry: Electronic precision manufacturing industry

Process recommendation: spot welding



Desktop Spot Resistance Seam Welding Machine 15000A 25KVA For Fuse 0



Specifications

parameter DN-25T
Rated capacity 25KVA
Input power two φ 380V
Rated frequency 50/60HZ
short-circuit current 15000A
Load duration 20%
Arm extension size 120 mm x115mm
Cooling water flow 4L/min
weight 130kg
Overall dimension 800*500*765mm

Desktop Spot Resistance Seam Welding Machine 15000A 25KVA For Fuse 1
Feature

01.Direct pressure mechanism,The guide part adopts a new structure with high follow-up.
02.Safe and high performance,Safe and high performance pneumatic system The pressurization speed can be adjusted at will.
03.water cooling system,Water saving circulating water cooling system Equipped with quick water-cooling connector to facilitate the replacement of water-cooling electrode or fixture.
04.Equipped with a new generation of microcomputer controller,Accurate and stable current and good performance



Desktop Spot Resistance Seam Welding Machine 15000A 25KVA For Fuse 2

Application
Especially suitable for aluminum, copper, galvanized sheet, carbon steel, nickel, tungsten and other metal materials and high temperature enameled wire, flexible connection, inductance coil welding. It is widely used in the welding of metal products in the fields of automobile and auto parts manufacturing, new energy power battery, photoelectric communication, electric light source, compressor, hardware, furniture, kitchenware, etc. The product has passed the patent certification of China Intellectual Property Office, China CCC certification and export CE certification


Desktop Spot Resistance Seam Welding Machine 15000A 25KVA For Fuse 3
FAQ
1. When can you arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days. We always ship by air and sea in the mean time.
2. Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
3. What’ your warranty and after-sales?
We offer 1 year warranty, various forms of online instruction and the spare parts. Professional engineers will solve problem, if necessary.
4. How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
