Platform Type Intermediate-Frequency Inverter Seamless Spot Welding Machine For Electrical Switch

Basic Information
Place of Origin: CHINA
Brand Name: PDKJ
Certification: CE ISO SGS
Model Number: DB-170W
Minimum Order Quantity: 1 unit
Price: 45000-48000 USD
Packaging Details: Wooden Case
Delivery Time: 5-25 days
Supply Ability: 100 set per month
Detail Information
Welding Style: Resistance Welding Usage: Spot Welding
Key Selling Points: Quick,Seamless Applicable Industries: Large Workpiece Products Such As Sheet Metal Industry, Elevator Metal Door Panels, Kitchenware And Hardware Appliances
After-sales Service: Field Installation; Site Commissioning And Training Electrode Pressure: 2000N
Welding Thickness: 3.0+3.0mm

Product Description

Platform Type Intermediate-Frequency Inverter Seamless Spot Welding Machine , Spot Welding Machine projection welding machine with CE/CCC/ISO certificate
Description:

The product has passed the patent certification of China Intellectual Property Office, obtained China CCC certification and export CE certification. It is mainly used in the welding of metal large workpiece products in sheet metal industry, chassis and cabinet, elevator industry, metal door plate, hardware household appliances and other industries. It is applicable to the welding of metal materials such as aluminum, galvanized sheet, stainless steel and low carbon steel, with good performance and high welding quality.

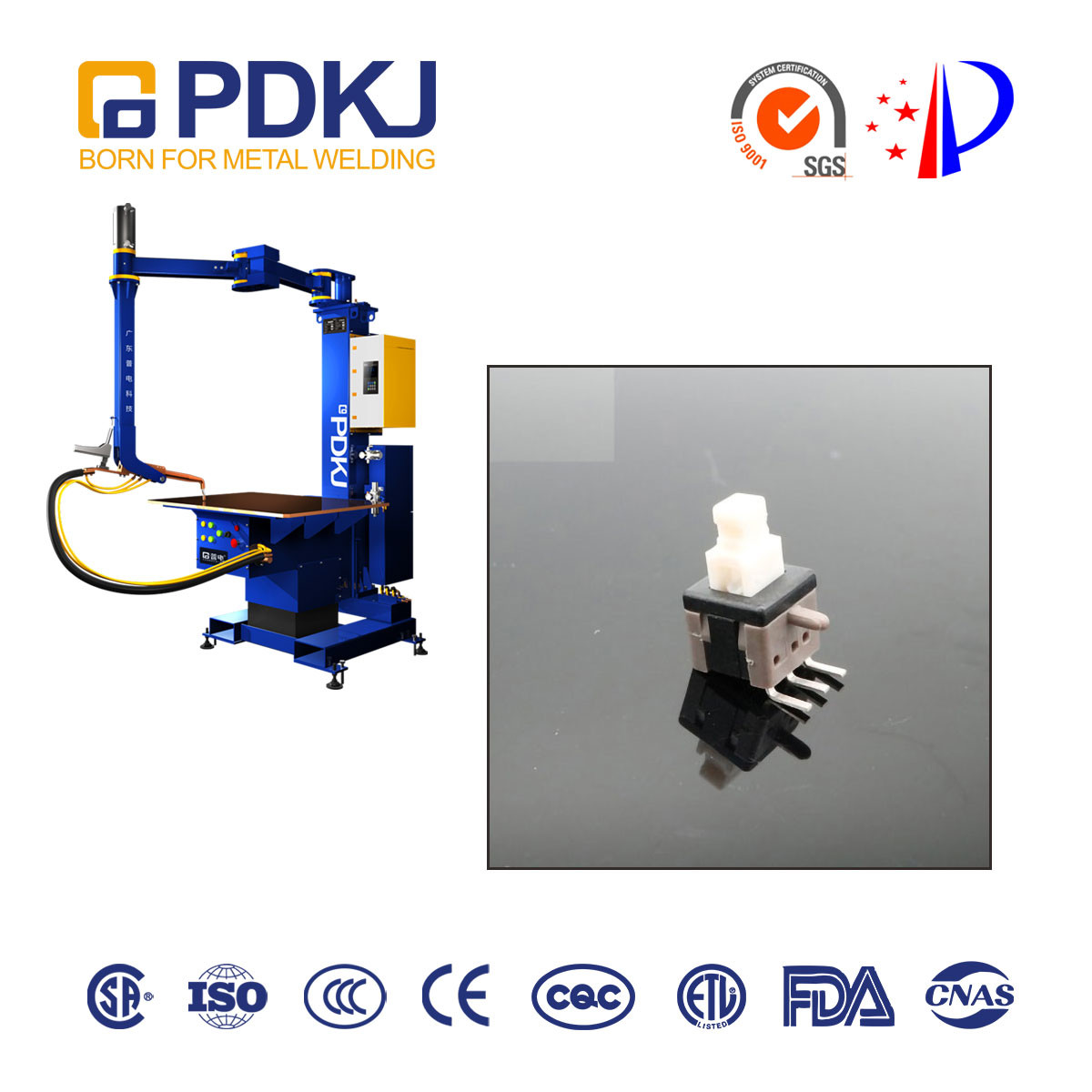

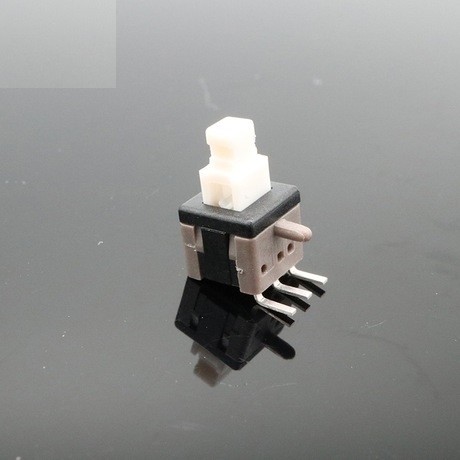

Platform Type Intermediate-Frequency Inverter Seamless Spot Welding Machine For Electrical Switch 0Platform Type Intermediate-Frequency Inverter Seamless Spot Welding Machine For Electrical Switch 1



Welding material: Tungsten
Material thickness: < 3 mm
Associated product name: an electric appliance
Industry: Electronic precision manufacturing industry
Process recommendation: spot welding



Specifications

parameter DB-170W
Rated capacity 170KVA
Input power 3φ380V
Rated frequency 1000HZ
Welding gun type Horizontal welding gun
Torch length 390mm
short-circuit current 22000A
Load duration 20%
Electrode pressure 2000N
Welding capacity / mild steel 3.0+3.0mm
weight 760kg
Overall dimension 1550×1000×2329mm
Table size 1000×800mm(table size can be customized according to user requirements)

Large platform, convenient for supporting, taking and placing workpieces; Multi joint flexible welding arm to meet the welding of products in different directions; Small impression on the back of the welding spot and high quality of the welding surface, eliminating the grinding process; Necessary for welding large metal workpieces.

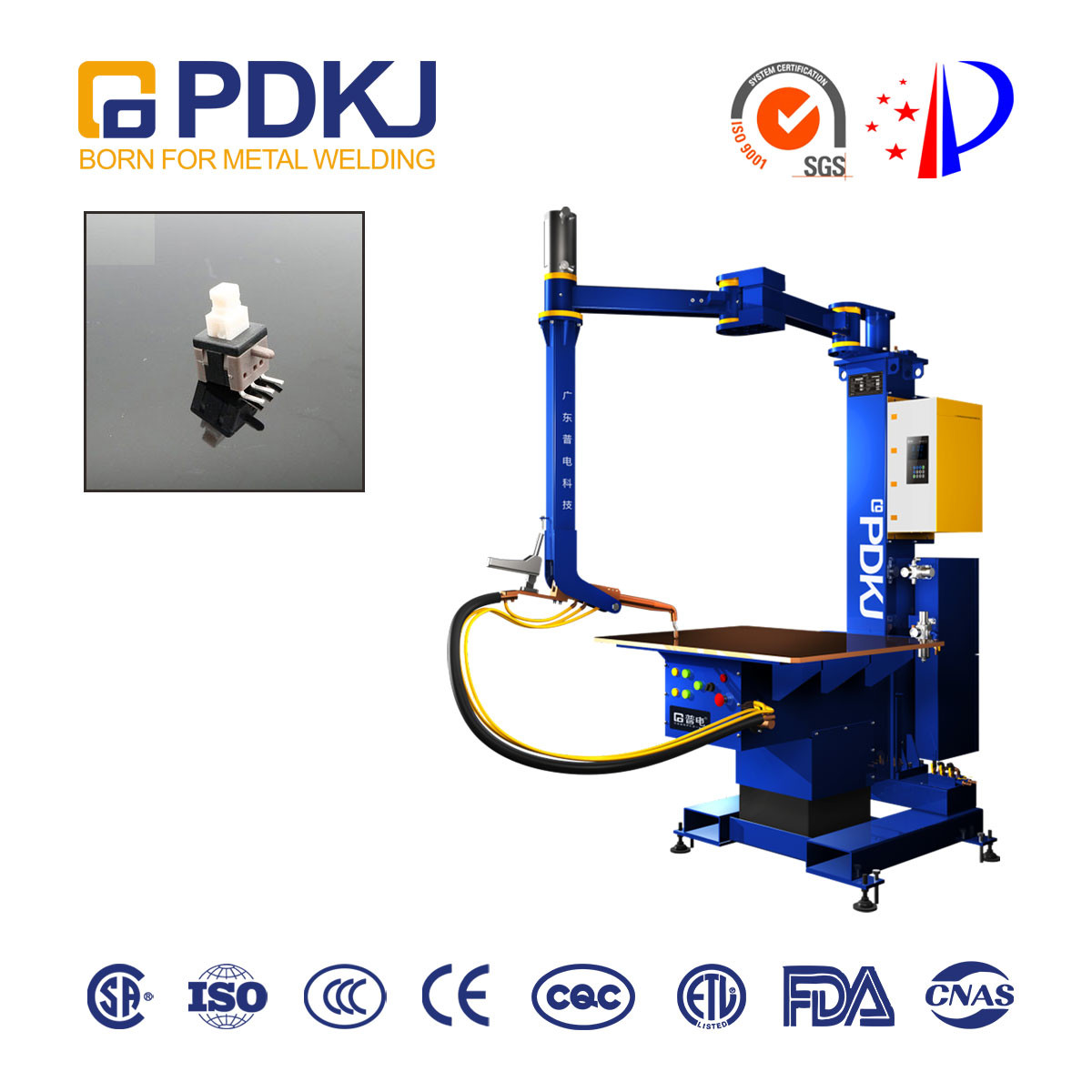

Platform Type Intermediate-Frequency Inverter Seamless Spot Welding Machine For Electrical Switch 2
Feature


01.The welding gun can be designed as a horizontal or vertical structure, which is easy to extend to the depth of the box for welding to meet the welding requirements in different directions.
02.The welding arm is a multi joint arm structure. The unique parallel joint structure makes the operation flexible and the welding range larger, which can easily reach each welding spot on the workbench.
03.It can make your equipment management convenient, improve product quality, improve work efficiency, reduce labor intensity and improve production environment.
04.Using pneumatic pressurization can reduce the labor intensity of workers, obtain constant spot welding pressure and make the welding joints balanced and consistent. When welding iron cabinet, console and other similar parts, there are no welding pits on the outer surface of the parts, which improves the product quality.
05.The lower electrode is a forged chromium zirconium copper horizontal worktable. The workpiece can be directly placed on the worktable. It is simple to operate and easy to use. It can be easily operated without special skills or experience.
06.The wide welding platform can realize electric lifting, which is convenient for taking and placing workpieces.
07.The outer surface of the solder joint is smooth without solder joint, deformation, grinding treatment and secondary processing dust. This not only saves the subsequent treatment process, improves the production efficiency, but also improves the working environment (no noise and dust pollution).



Application
 It is especially suitable for the welding of metal materials such as aluminum, galvanized sheet, stainless steel and carbon steel. It is widely used in the welding of large workpiece products such as chassis and cabinet, elevator metal door plate, Kitchenware and hardware appliances in sheet metal industry.,The product has passed the patent certification of China Intellectual Property Office, China CCC certification and export CE certification

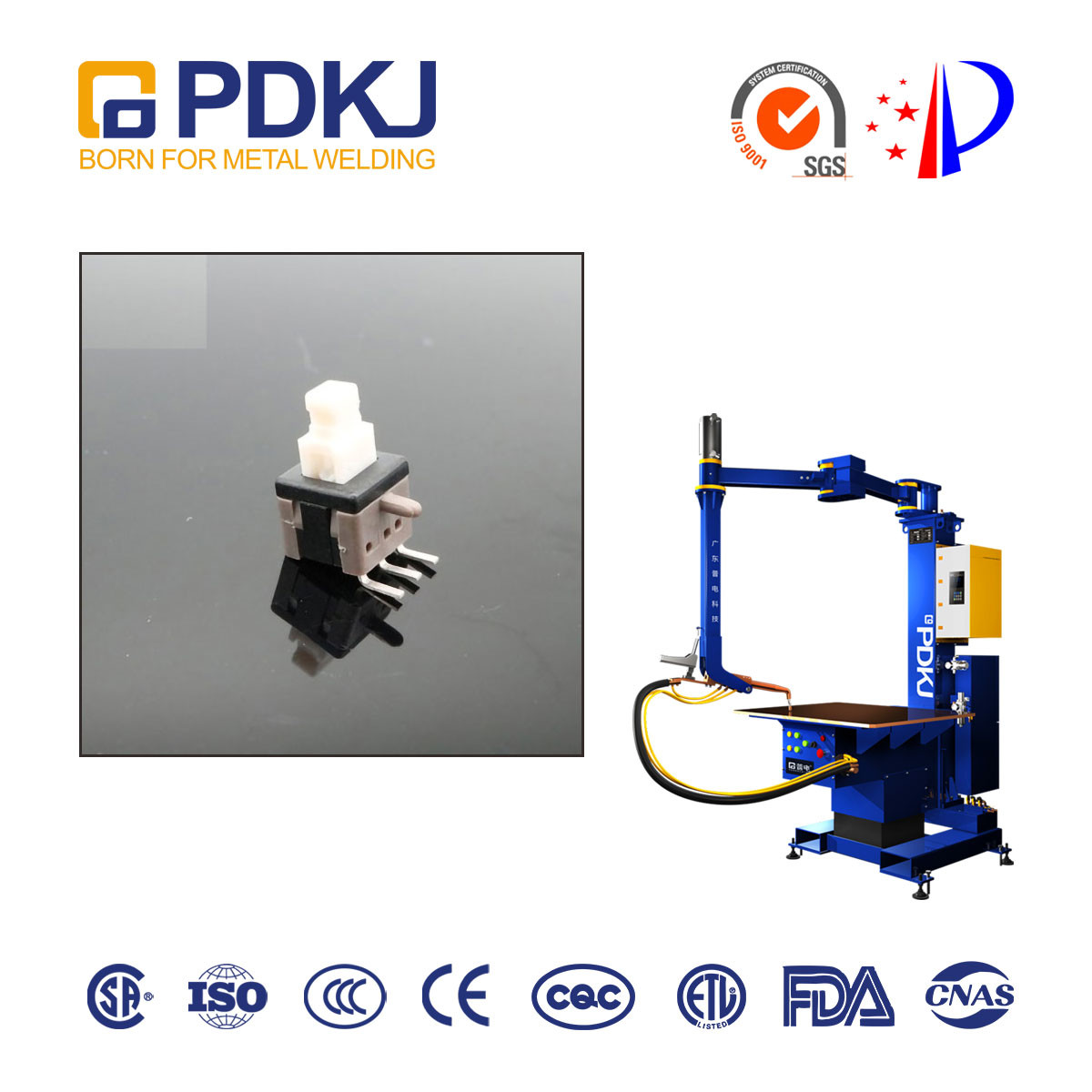

Platform Type Intermediate-Frequency Inverter Seamless Spot Welding Machine For Electrical Switch 3
FAQ
1. When can you arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days. We always ship by air and sea in the mean time.
2. What does your factory produce?
We produce and export all kinds of automatic welding machine and robots and relative parts. We can design machines according to your requirements.
3. What’ your warranty and after-sales?
We offer 1 year warranty, various forms of online instruction and the spare parts. Professional engineers will solve problem, if necessary.
4. How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

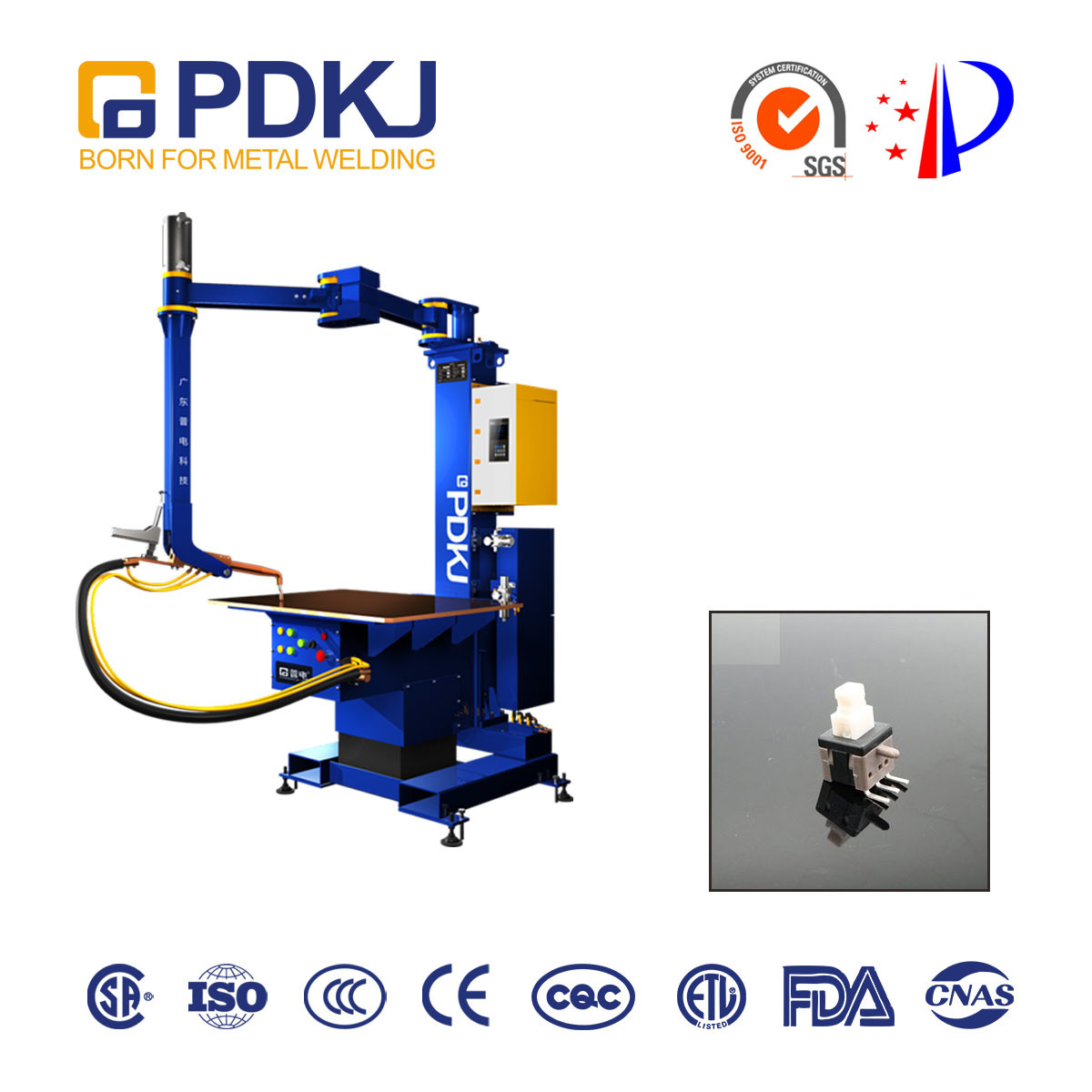

Platform Type Intermediate-Frequency Inverter Seamless Spot Welding Machine For Electrical Switch 4
