| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PDKJ |
| Certification: | CE ISO SGS |
| Model Number: | DB-170W |
| Minimum Order Quantity: | 1 unit |
| Price: | 45000-48000 USD |
| Packaging Details: | Wooden Case |
| Delivery Time: | 5-25 days |
| Supply Ability: | 100 set per month |
| Welding Style: | Resistance Welding | Usage: | Spot Welding |
|---|---|---|---|
| Key Selling Points: | Quick,Seamless | Applicable Industries: | Large Workpiece Products Such As Sheet Metal Industry, Elevator Metal Door Panels, Kitchenware And Hardware Appliances |
| After-sales Service: | Field Installation; Site Commissioning And Training | Electrode Pressure: | 2000N |
| Maximum Short Circuit Current: | 22000A |

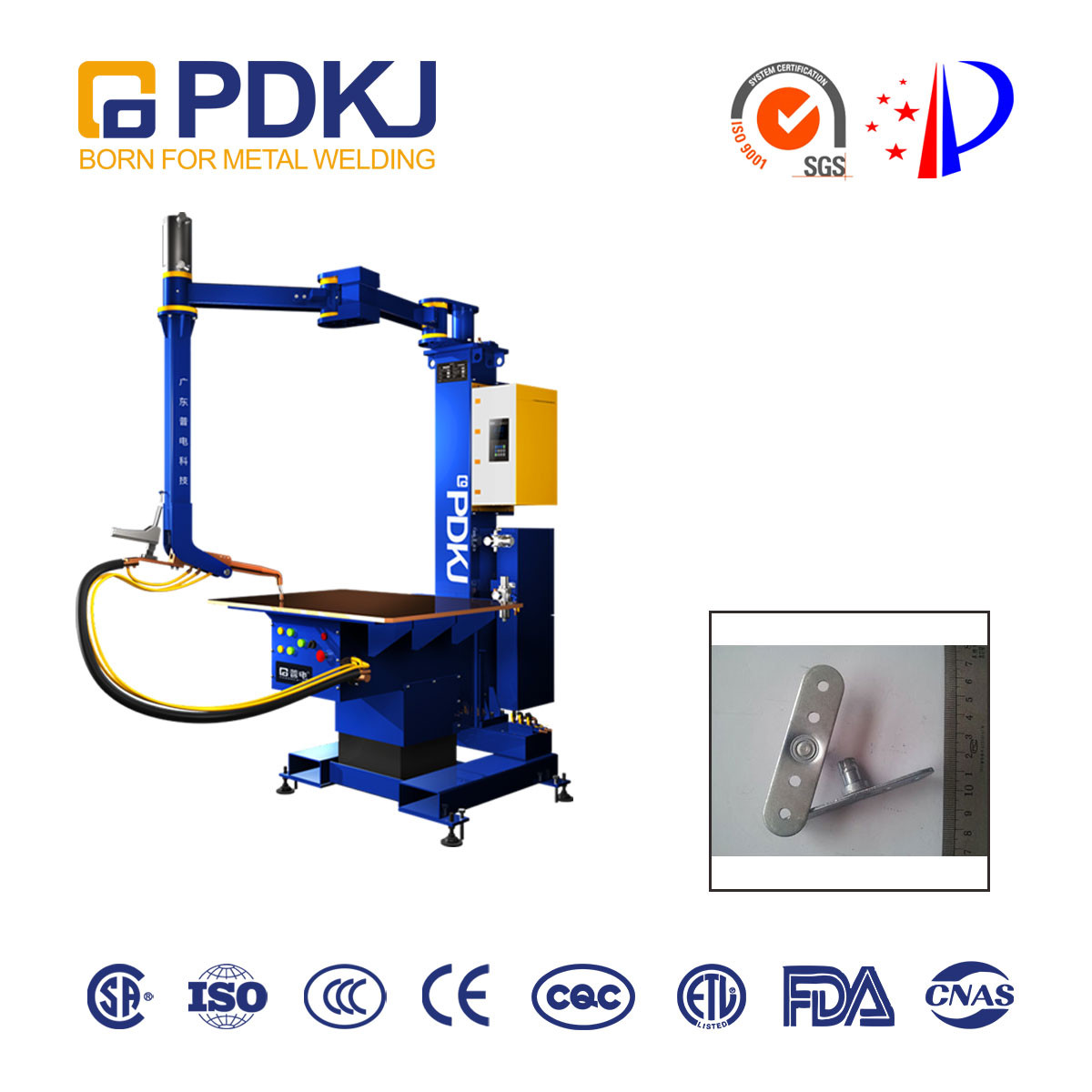

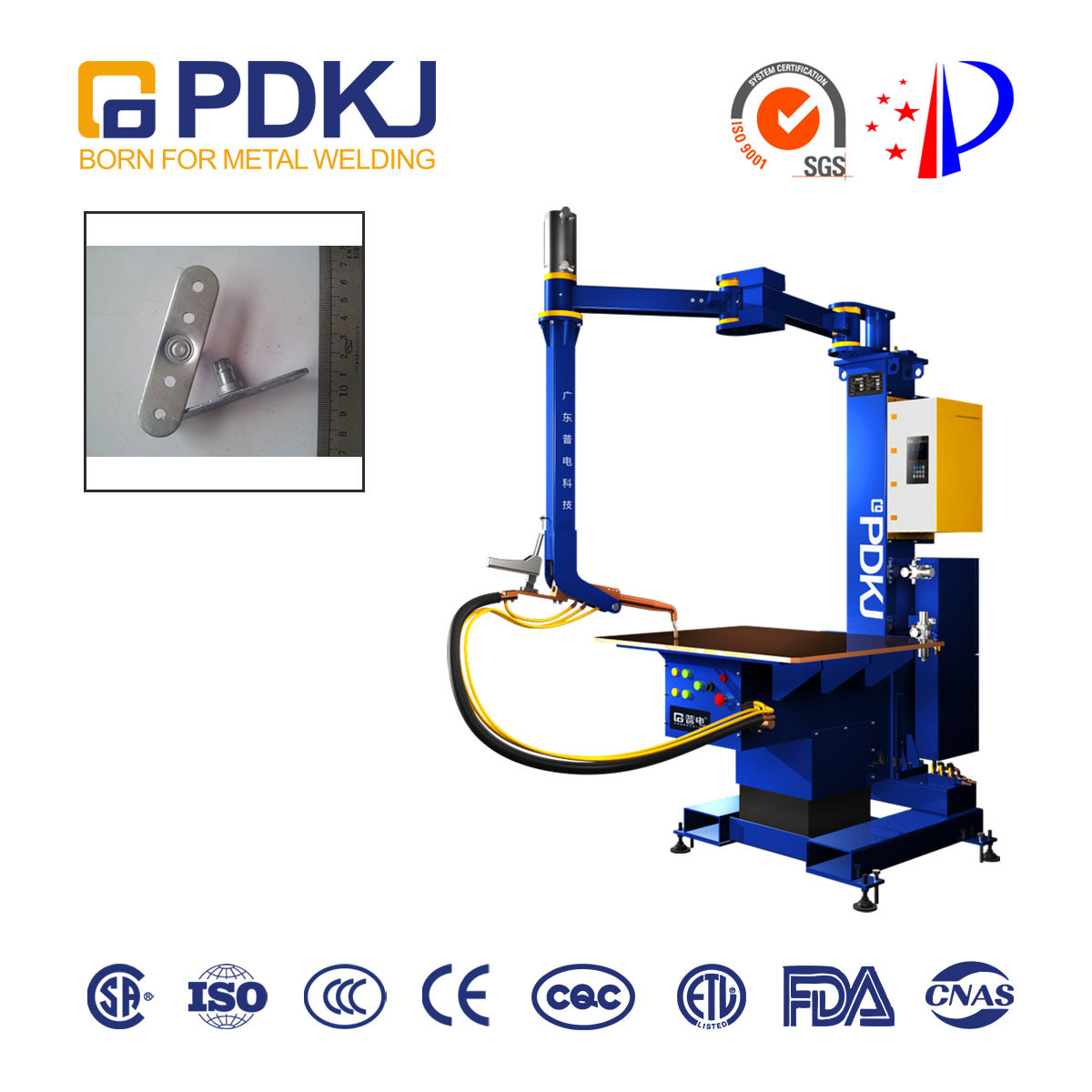

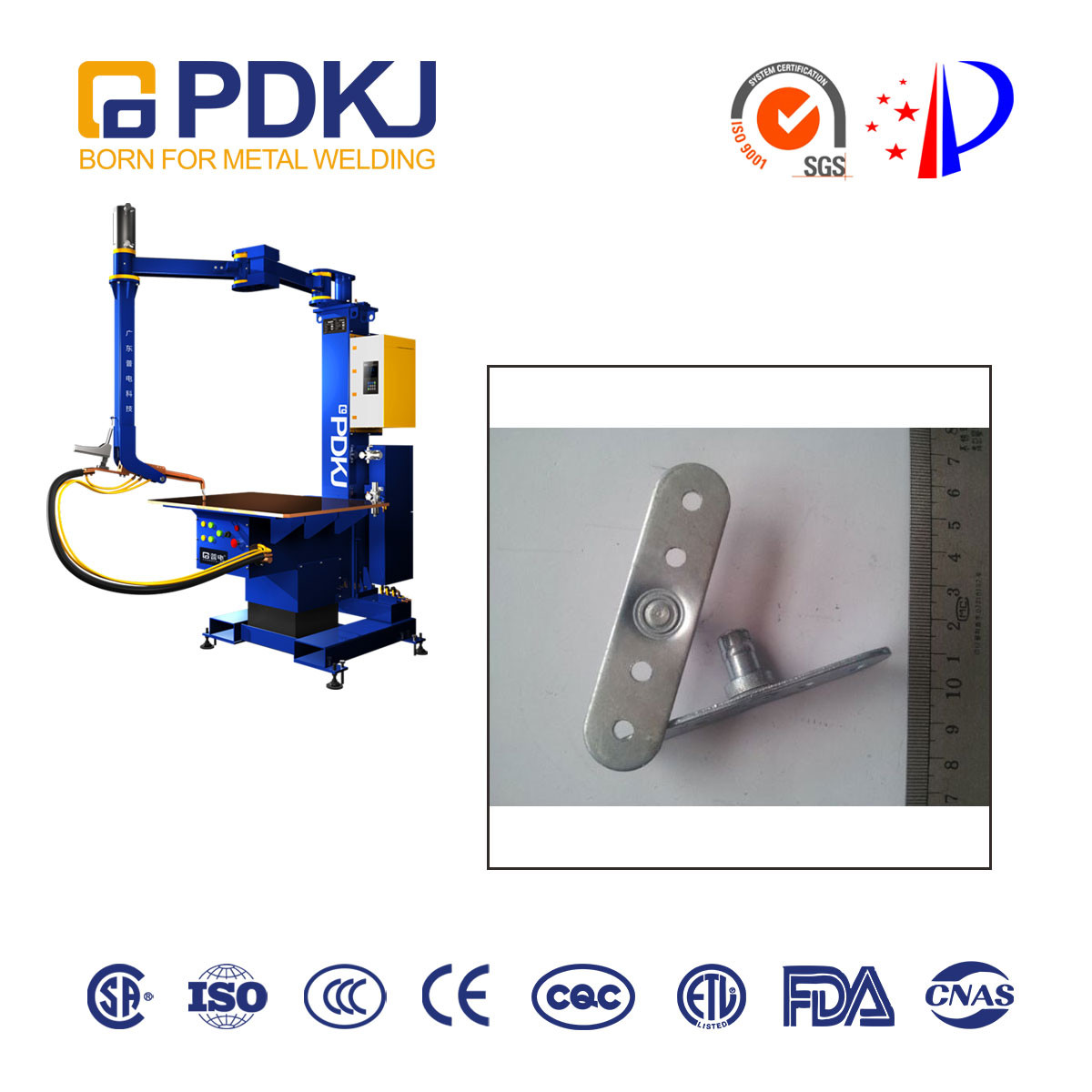

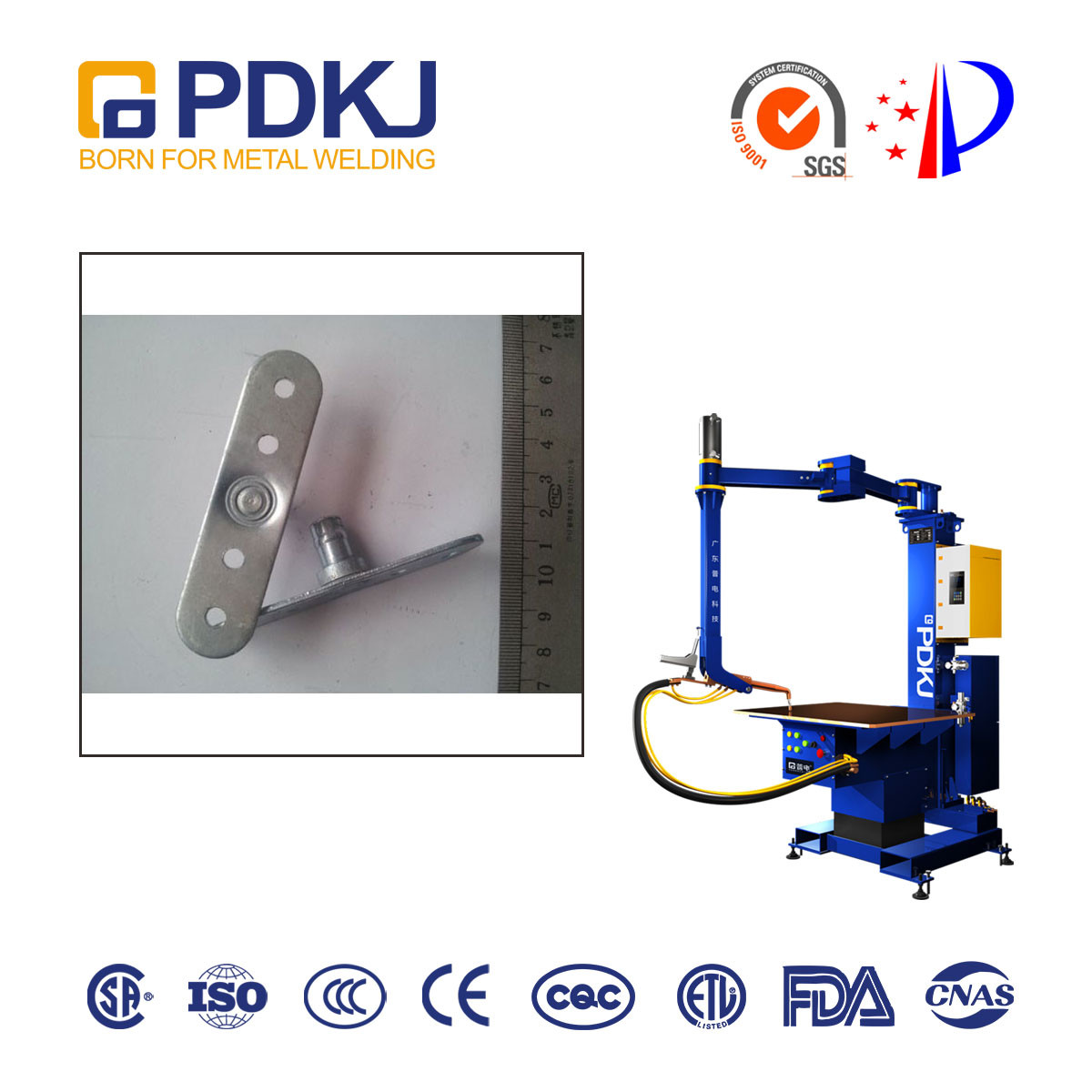

Platform Type Intermediate-Frequency Inverter Seamless Spot Welding Machine , Spot Welding Machine projection welding machine with CE/CCC/ISO certificate
Description:
The product has passed the patent certification of China Intellectual Property Office, obtained China CCC certification and export CE certification. It is mainly used in the welding of metal large workpiece products in sheet metal industry, chassis and cabinet, elevator industry, metal door plate, hardware household appliances and other industries. It is applicable to the welding of metal materials such as aluminum, galvanized sheet, stainless steel and low carbon steel, with good performance and high welding quality.
Specifications
| parameter | DB-170W |
| Input power | 3φ380V |
| Rated frequency | 1000HZ |
| Welding gun type | Horizontal welding gun |
| Torch length | 390mm |
| short-circuit current | 22000A |
| Load duration | 20% |
| Electrode pressure | 2000N |
| Welding capacity / mild steel | 3.0+3.0mm |
| Welding capacity / aluminum plate | 2.0+2.0mm |
| air pressure | 0.6Mpa |
| weight | 760kg |
| Table size | 1000×800mm(table size can be customized according to user requirements) |
Large platform, convenient for supporting, taking and placing workpieces; Multi joint flexible welding arm to meet the welding of products in different directions; Small impression on the back of the welding spot and high quality of the welding surface, eliminating the grinding process; Necessary for welding large metal workpieces.
Feature
01.The medium frequency inverter welding power supply is adopted to effectively reduce power consumption and welding spatter, and the welding quality is stable and reliable.
02.It can make your equipment management convenient, improve product quality, improve work efficiency, reduce labor intensity and improve production environment.
03.Using pneumatic pressurization can reduce the labor intensity of workers, obtain constant spot welding pressure and make the welding joints balanced and consistent. When welding iron cabinet, console and other similar parts, there are no welding pits on the outer surface of the parts, which improves the product quality.
04.The lower electrode is a forged chromium zirconium copper horizontal worktable. The workpiece can be directly placed on the worktable. It is simple to operate and easy to use. It can be easily operated without special skills or experience.
05.The output current is DC, the current is smooth, and the inductive reactance is zero.
06.The wide welding platform can realize electric lifting, which is convenient for taking and placing workpieces.
07.The outer surface of the solder joint is smooth without solder joint, deformation, grinding treatment and secondary processing dust. This not only saves the subsequent treatment process, improves the production efficiency, but also improves the working environment (no noise and dust pollution).
Application
It is especially suitable for the welding of metal materials such as aluminum, galvanized sheet, stainless steel and carbon steel. It is widely used in the welding of large workpiece products such as chassis and cabinet, elevator metal door plate, Kitchenware and hardware appliances in sheet metal industry.,The product has passed the patent certification of China Intellectual Property Office, China CCC certification and export CE certification
FAQ
1. When can you arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days. We always ship by air and sea in the mean time.
2. Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
3. Are you a factory?
Yes, We are a factory, all machine is made by ourselves and we can provide customize service according to your requirement.
4. How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
