Welding Style: | Resistance Welding | Usage: | Spot Welding |
---|---|---|---|
Key Selling Points: | Quick,Seamless | Applicable Industries: | Building Material; Machinery Repair; Sheet Metal |
After-sales Service: | Field Installation; Site Commissioning And Training | Welding Thickness: | 3.0+3.0mm |

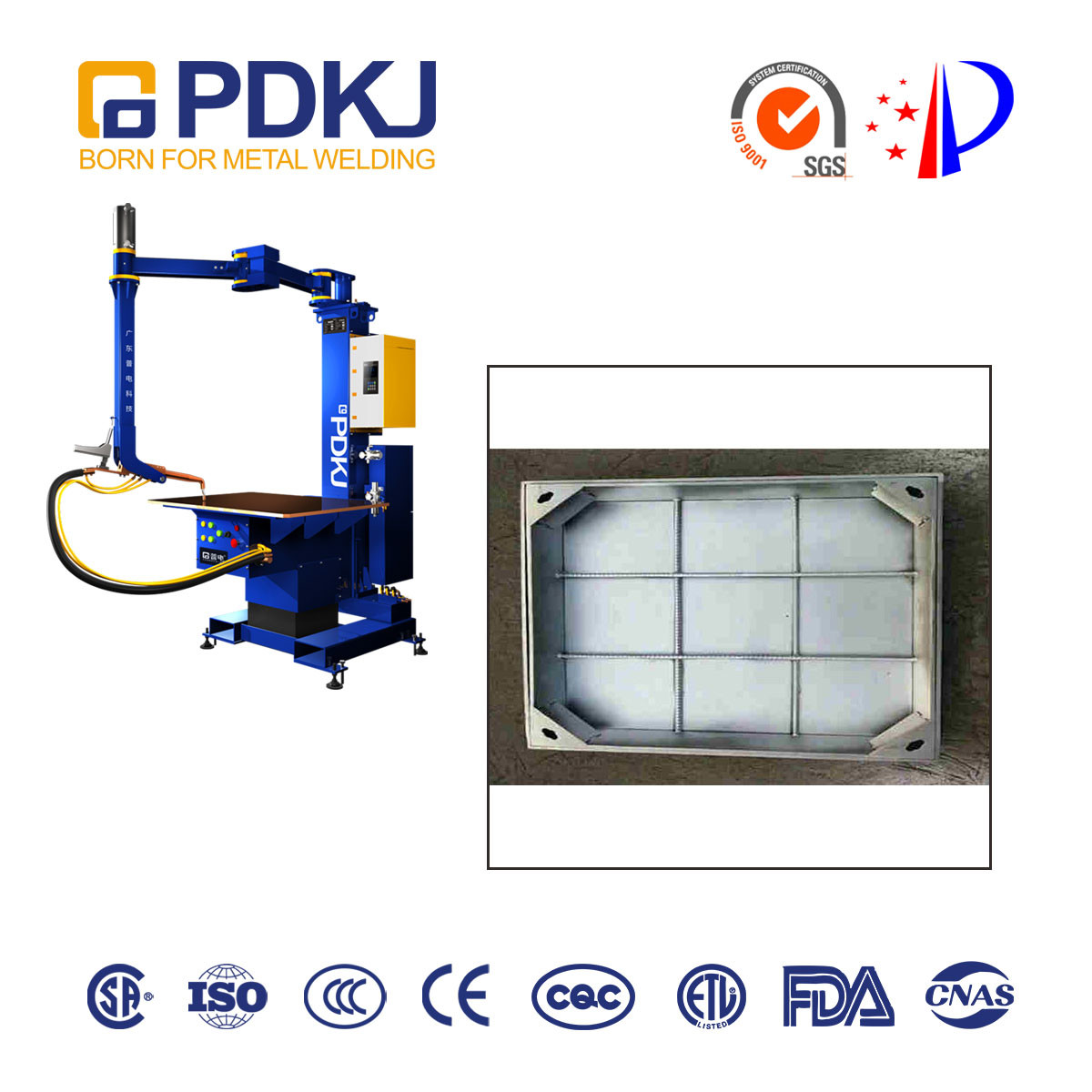

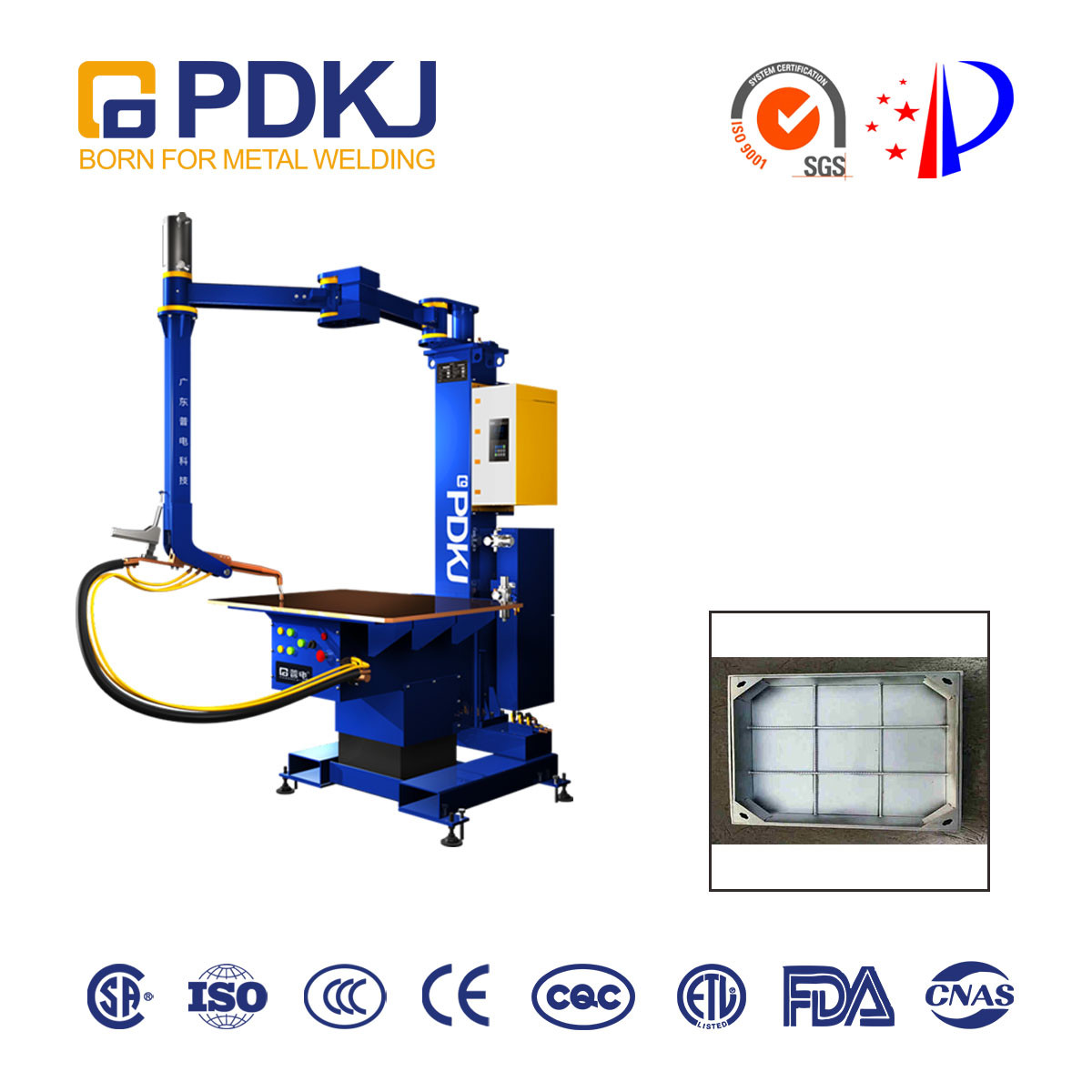

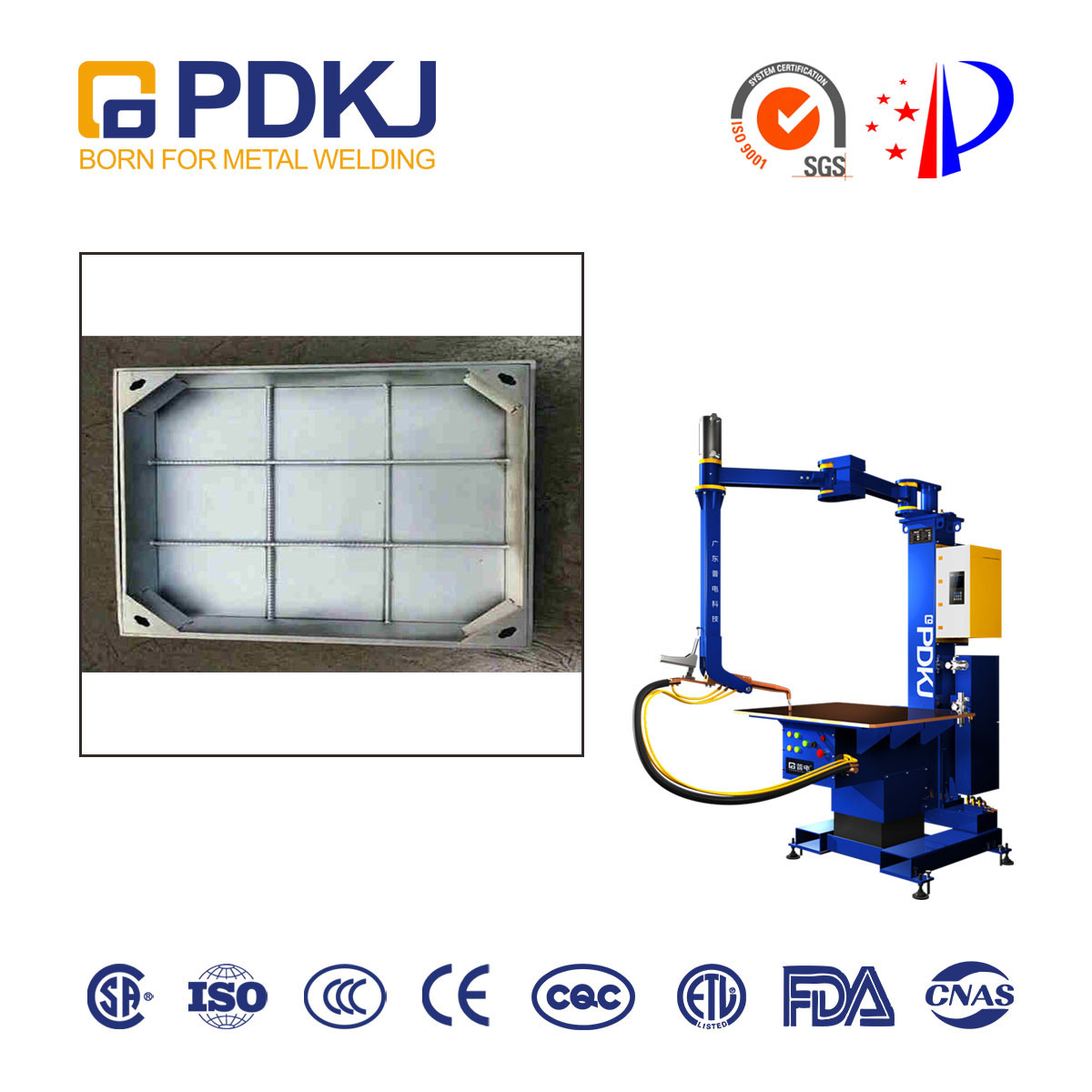

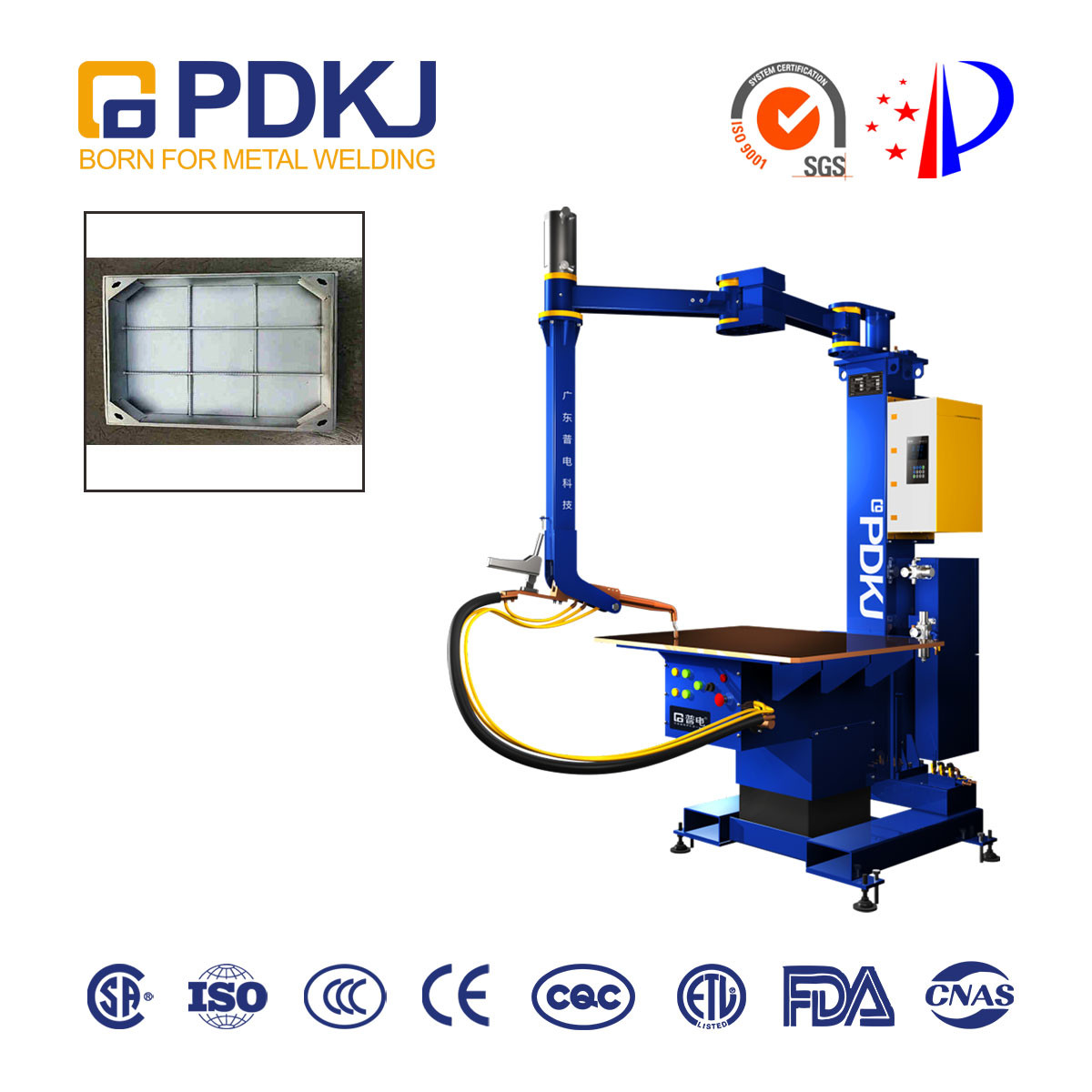

Platform Type Intermediate-frequency Inverter Seamless Spot Welding Machine , Spot Welding Machine projection welding machine with CE/CCC/ISO certificate
Description:
The product has passed the patent certification of China Intellectual Property Office, obtained China CCC certification and export CE certification. It is mainly used in the welding of metal large workpiece products in sheet metal industry, chassis and cabinet, elevator industry, metal door plate, hardware household appliances and other industries. It is applicable to the welding of metal materials such as aluminum, galvanized sheet, stainless steel and low carbon steel, with good performance and high welding quality.
Large platform, convenient for supporting, taking and placing workpieces; Multi joint flexible welding arm to meet the welding of products in different directions; Small impression on the back of the welding spot and high quality of the welding surface, eliminating the grinding process; Necessary for welding large metal workpieces.
Stainless steel welding material: Carbon steel / stainless steel
Material thickness: < 2 mm
Associated product name: Hardware appliances
Industry: Furniture and kitchenware manufacturing industry
Process recommendation: spot welding
Specifications
parameter | DB-170W |
Rated capacity | 170KVA |
Input power | 3φ380V |
Welding gun type | Horizontal welding gun |
Torch length | 390mm |
short-circuit current | 22000A |
Electrode pressure | 2000N |
Welding capacity / mild steel | 3.0+3.0mm |
Welding capacity / aluminum plate | 2.0+2.0mm |
air pressure | 0.6Mpa |
weight | 760kg |
Overall dimension | 1550×1000×2329mm |
Table size | 1000×800mm(table size can be customized according to user requirements) |
Feature
01.The welding gun can be designed as a horizontal or vertical structure, which is easy to extend to the depth of the box for welding to meet the welding requirements in different directions.
02.The welding arm is a multi joint arm structure. The unique parallel joint structure makes the operation flexible and the welding range larger, which can easily reach each welding spot on the workbench.
03.It can make your equipment management convenient, improve product quality, improve work efficiency, reduce labor intensity and improve production environment.
04.The lower electrode is a forged chromium zirconium copper horizontal worktable. The workpiece can be directly placed on the worktable. It is simple to operate and easy to use. It can be easily operated without special skills or experience.
05.The output current is DC, the current is smooth, and the inductive reactance is zero.
06.The wide welding platform can realize electric lifting, which is convenient for taking and placing workpieces.
07.The outer surface of the solder joint is smooth without solder joint, deformation, grinding treatment and secondary processing dust. This not only saves the subsequent treatment process, improves the production efficiency, but also improves the working environment (no noise and dust pollution).
Application
Especially suitable for aluminum, copper, galvanized sheet, carbon steel, nickel, tungsten and other metal materials and high temperature enameled wire, flexible connection, inductance coil welding. It is widely used in the welding of metal products in the fields of automobile and auto parts manufacturing, new energy power battery, photoelectric communication, electric light source, compressor, hardware, furniture, kitchenware, etc. The product has passed the patent certification of China Intellectual Property Office, China CCC certification and export CE certification
FAQ
1. When can you arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days. We always ship by air and sea in the mean time.
2. Are you a factory?
Yes, We are a factory, all machine is made by ourselves and we can provide customize service according to your requirement.
3. What does your factory produce?
We produce and export all kinds of automatic welding machine and robots and relative parts. We can design machines according to your requirements.
4. How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
