| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PDKJ |
| Certification: | ISO CE SGS |
| Model Number: | PDL2000W |
| Minimum Order Quantity: | 1 unit |
| Price: | USD 12500-15000 per unit |
| Packaging Details: | Wooden case or iron box |
| Delivery Time: | 15-25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 set per month |
| Laser Power: | 1000W-2000W | Laser Wavelength: | 1070nm±5% |
|---|---|---|---|
| Welding Speed: | 0-120mm/S | Welding Thickness: | 0.1-5mm |
| Condition: | Brand New | Cooling System: | Dual Water Chiller |
| High Light: | Stainless steel handheld laser welding machine,CNC handheld laser welding machine,PDL auto feed welder |
||

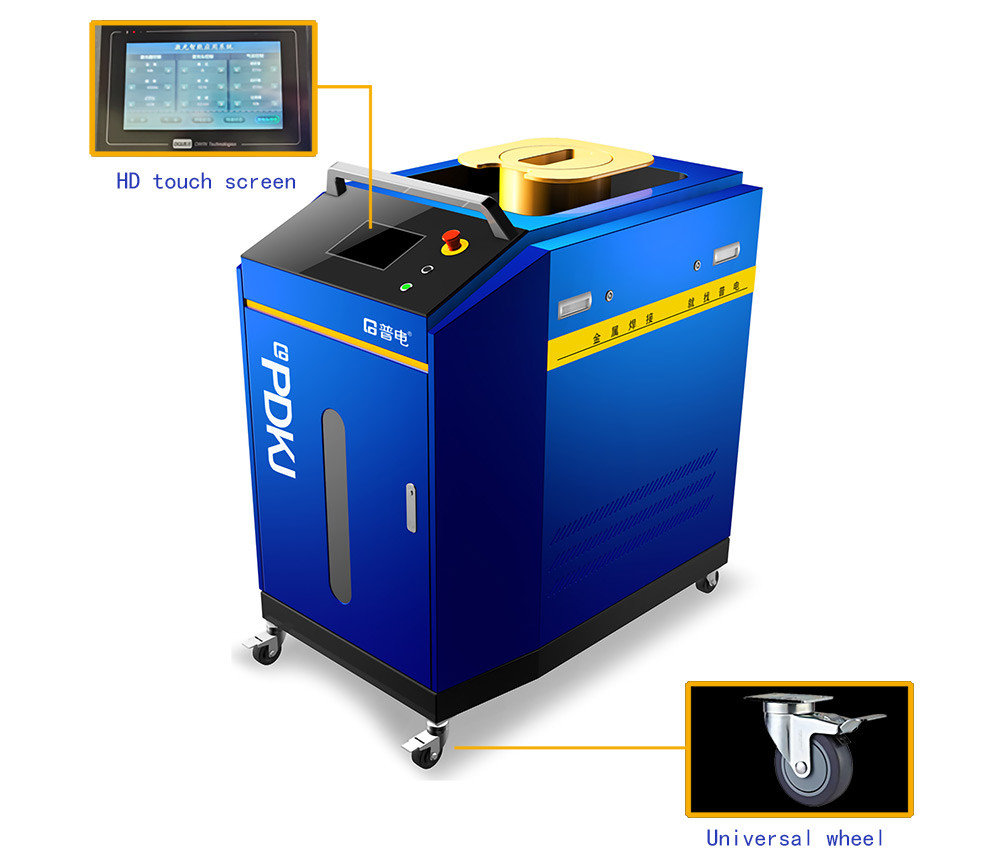

Stainless steel Handheld laser Welding Machine 1000W-2000W Automatic Wire Feeding
Handheld laser welding machine
High precision positioning, fast speed, small heat affected area, no pollution, beautiful weld, flat, no porosity, no need to deal with after welding.
1. Be competent for harsh working environment, with high tolerance for voltage fluctuation, dust, shock and temperature;
2. The equipment has the advantages of low energy consumption, free from maintenance and high stability.
3.It can easily weld stainless steel, aluminum alloy and other high-hardness alloy materials;
Specifications:
| Item | Parameter |
| Equipment name | Hand held optical fiber continuous laser welding machine |
| Output power | 1000W/1500W/2000W |
| Laser wavelength | 1070nm±5% |
| Fiber line length | Standard configuration 10m (customized length up to 15m) |
| Aiming and positioning | Red light indicator + fixture |
| Power consumption | 2.5KW |
| Control model | TTL level/ GUI |
| Welding speed range | 0-120mm/s |
| Cooling system | All in one constant temperature |
| Working environment temperature range | 15-35°C |
| Recommended welding thickness | 0.1-5mm |
| Welding seam requirements | ≤0.2mm |
| Working voltage | AV220V(1000W), AV220V(1500W) |
| Floor area of main motor | 2.5*1.0m |
| Consumables | Protective lenses |
Comparision:
| Item | argon arc welding | Laser welding | PD handheld optical fiber welding |
| Heat input to workpiece | Very high | low | low |
| Deformation and undercut of workpiece | Large | Small | Small |
| Bond strength with base metal | Commonly | good | very nice |
| Follow up treatment | Need grinding | No or little grinding is required | No or little grinding is required |
| welding speed | Commonly | More than 2 times of argon arc welding | More than 2 times of argon arc welding |
| Applicable materials | Stainless steel / carbon steel / galvanized sheet / aluminum alloy / copper | ||
| Consumables | Many | less | less |
| Operation difficulty | Complex | commonly | simple |
| Operator safety | Unsafe | security | security |
| Environmental impact | With pollutions | environment protection | environment protection |
| Welding fault tolerance | Good | commonly | good |
| Put hands on your head | no | no | yes |
| The light spot brightness is adjustable | non | non | yes |
| Welding quality | Low | commonly | very good |
Applicaton recommendation :
Application:
The welding speed is 2-10 times faster than traditional welding speed ,and one machine can save at least two welders a year.
Simple operation, no operating license ,master can also weld beautiful products.
Smooth and beautiful weld seam, reduce the follow-up grinding process,save time and cost.
welding work piece has no distortion,no welding .scar,and very strong
It is suitable for welding stainless steel plate, aluminum alloy plate,iron plate,galvanized plate, carbon steel and other metal
materials.It can replace the traditional argon arc welding, electric arc welding and other processes.
