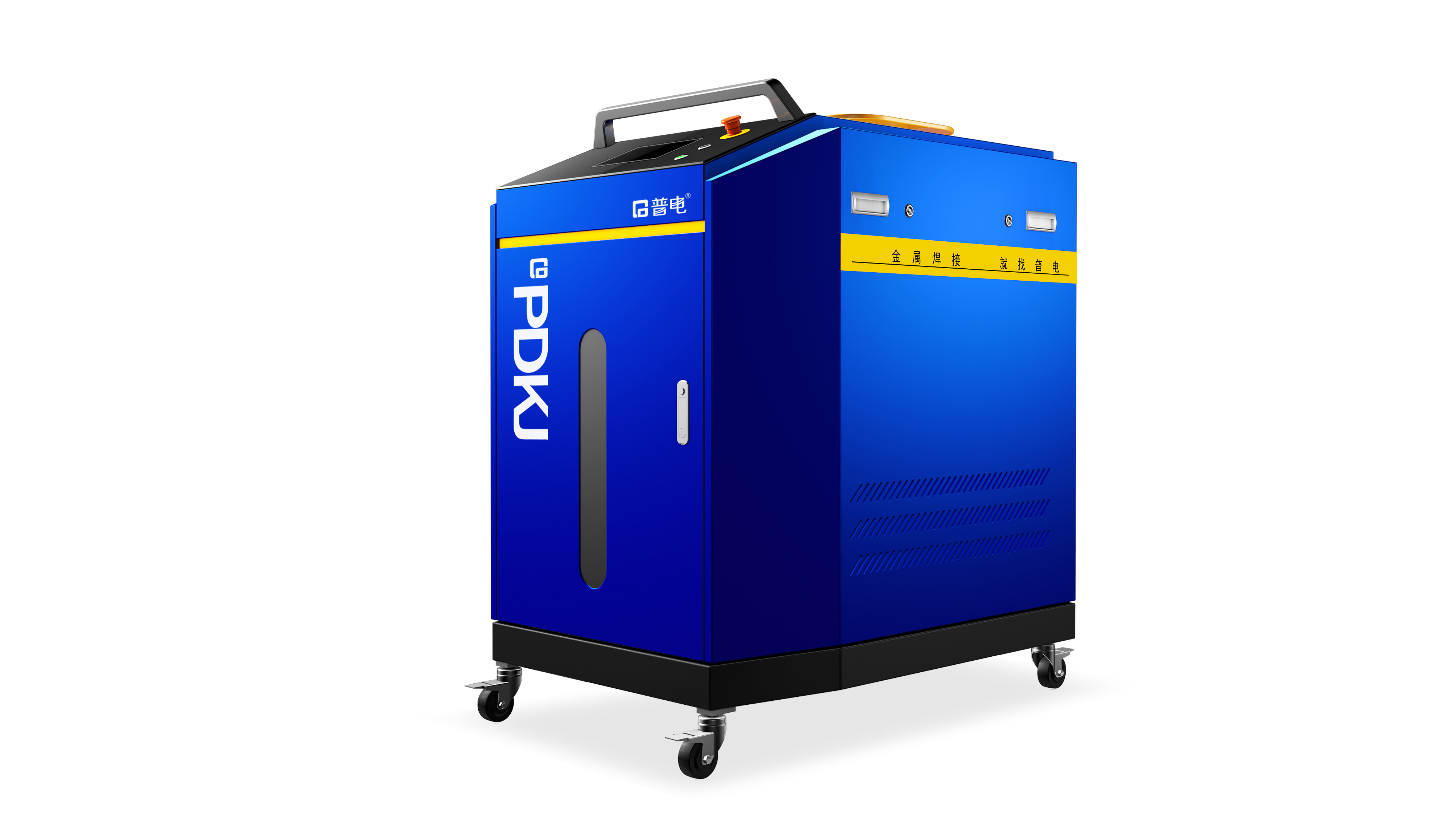

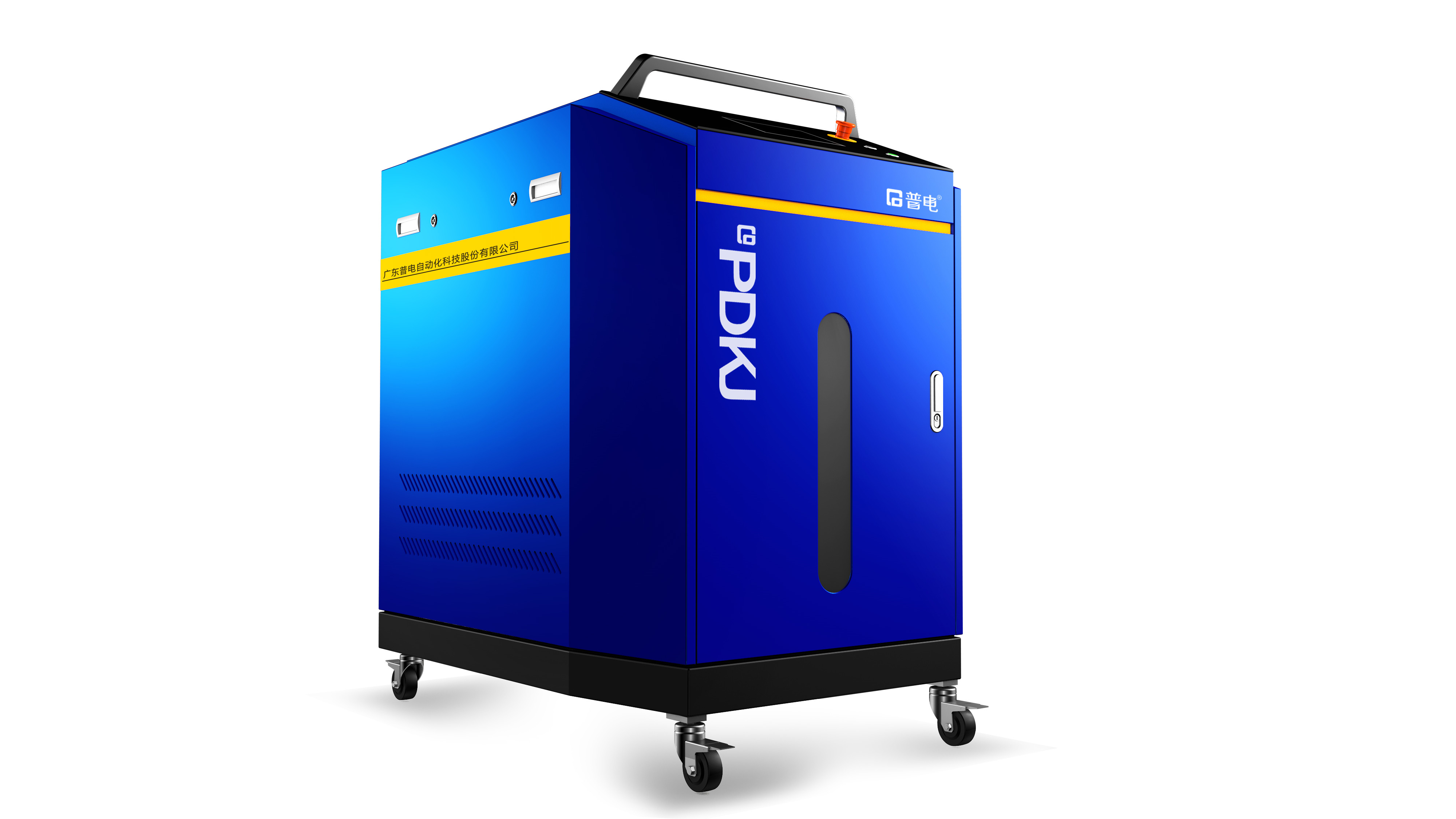

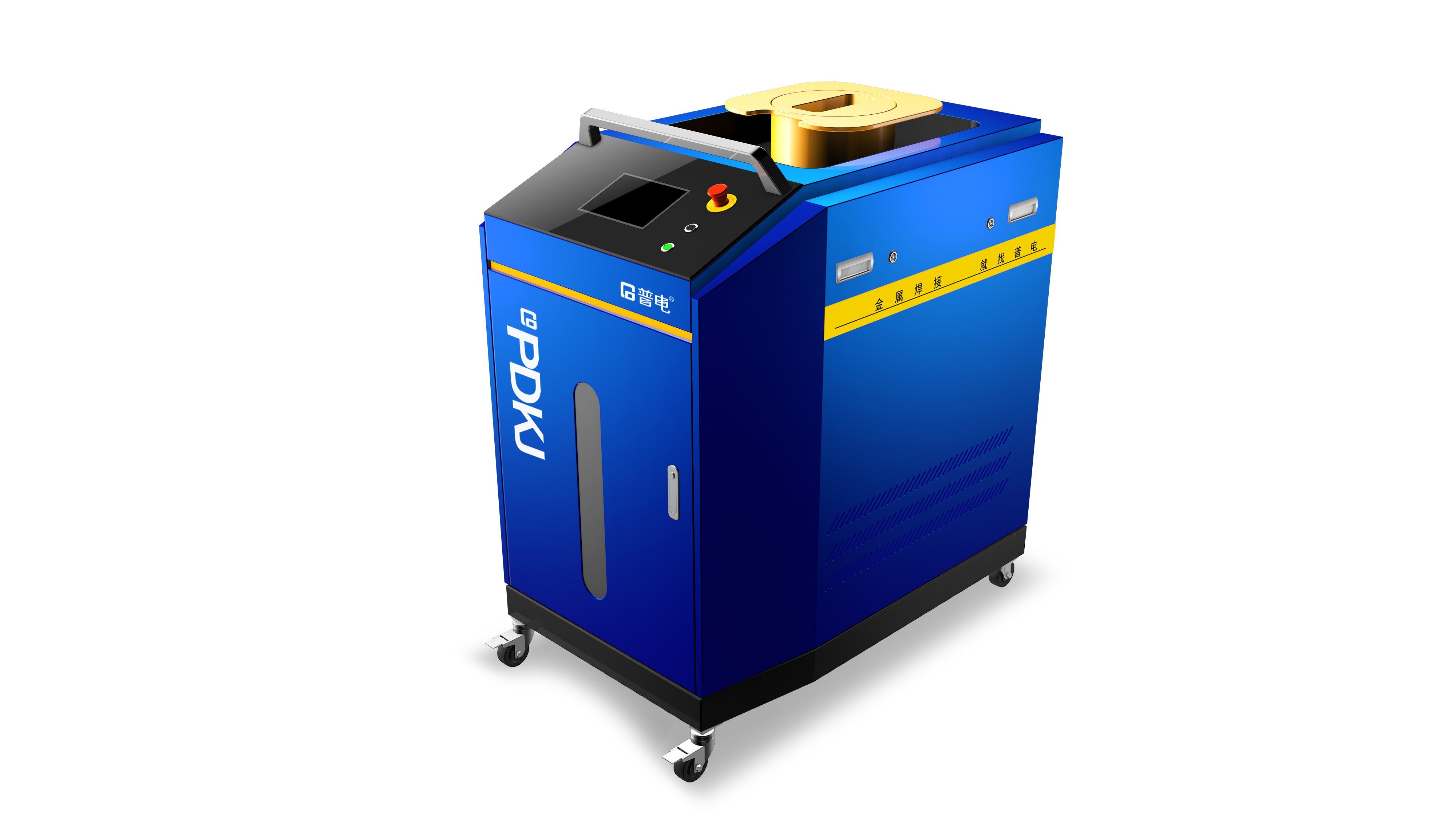

380V Handheld Fiber Laser Welder 2000w Double Swing 10m Auto Wire Feeder

Basic Information
Place of Origin: CHINA
Brand Name: PDKJ
Certification: CE ISO SGS
Model Number: 1000W
Minimum Order Quantity: 1 unit
Price: USD 15000-35000 per unit
Packaging Details: Wooden Case
Delivery Time: 6-26 days
Supply Ability: 100 unit per month
Detail Information
Laser Source Brand: Raycus Application: Metal Welding
Key Selling Points: Easy Operation And High Accuracy Cooling Chiller: Dual Chiller For Laser Source And Welding Head
Applicable Material: Stainless Steel;Galvanized Sheet;Aluminum Plate Low Running Cost: 1-2kw/h
High Light:

10m handheld fiber laser welder


380V handheld fiber laser welder


10m double swing 2000w laser welder

Product Description

Handheld Automatic Wire Feeding Fiber laser Welding Machine for Laser control system

The 8-inch touch screen can adjust the laser control mode and laser power in real time, which is convenient and practical

Optical fiber handheld welding gun

QBH interface mode, simple structure, air blowing function and safety protection function


Handheld Laser Welding Machine For Stainless Steel Annular Cylinder

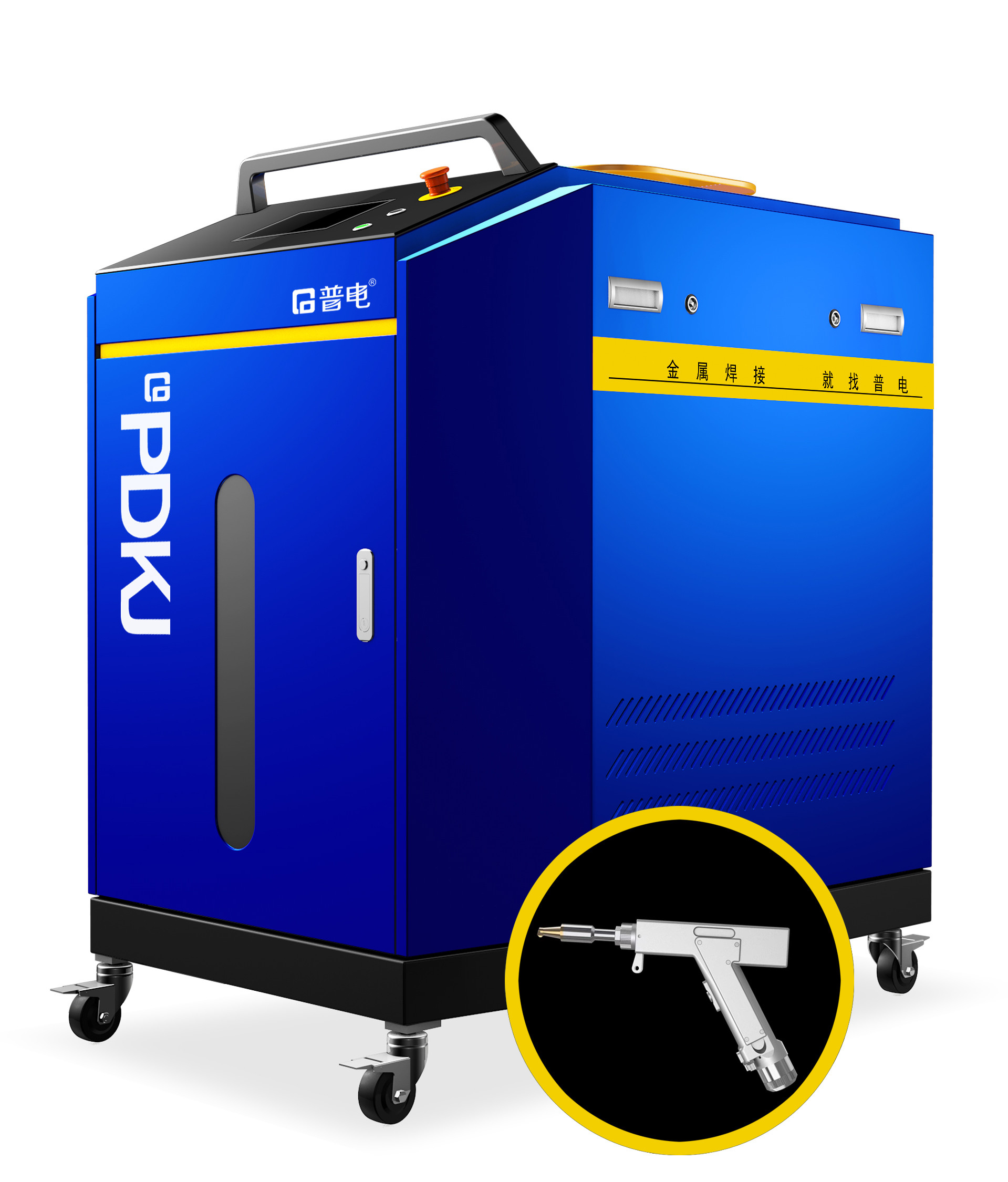

Handheld laser welding machine


The hand-held continuous laser welding machine is an integrated structural design, adopts the latest generation of laser generator, and integrates double drive automatic wire feeding The system is equipped with double swing welding joint independently developed by our company. Flexible and convenient welding, good beam quality and less deformation of welding body, The weld is smooth and beautiful with high reliability. Flexible transmission non-contact hanging welding is applied to the parts that are difficult to be accessed by ordinary argon arc welding gun Connect. It is suitable for spot welding and full welding of complex and irregular inner and outer corners and joints of various metal frame structural parts and sheet metal parts, The utility model has the advantages of simple operation, beautiful weld and fast welding speed. Applicable to aluminum alloy plate, stainless steel plate, iron plate and galvanized steel plate The welding of plate and other metal materials can perfectly replace the traditional argon arc welding, electric arc welding and other processes.


01. The welding speed is 2-3 times faster than the traditional welding speed. It can help you save at least two welders a year


02. Laser welding has the advantages of low material consumption and long service life


03. It is easy to operate without welding license, and the novice can weld beautiful products


04. The welding seam is smooth and beautiful, which reduces the subsequent grinding process and saves time and cost


05. No deformation, no weld mark, firm welding




Project Parameter
Equipment name Hand held continuous laser welding machine
Fiber line length Standard configuration 10m (customized length up to 15m)
control model TTL level/ GUI
Cooling system Water cool/All in one constant temperature
Working environment temperature range 15-35°C
Recommended welding thickness 0.1-5mm
Consumables Protective lenses



Project conventional argon arc welding laser welding PDKJ handheld optical fiber welding
heat input to workpiece very high low low
deformation and undercut of workpiece Large small small
subsequent processing grinding no or little grinding is needed no or little grinding is needed
welding speed General more than 2 times of argon arc welding more than 2 times of argon arc welding
applicable materials stainless steel / carbon steel / galvanized sheet / aluminum alloy / copper stainless steel / carbon steel / galvanized sheet / aluminum alloy / copper stainless steel / carbon steel / galvanized sheet / aluminum alloy / copper
consumables multiple less less
operator safety unsafe Security Security
impact of environmental protection not environmentally friendly environmental protection environmental protection
welding fault tolerance OK General OK
hold hands and head no no Yes
The brightness of light spot is adjustable none none Yes
welding quality poor General very good

Applicaton recommendation :


Parameter name 1000W 1500W 2000W
Input power 220V 220V 380V
Automatic wire feeding Yes Yes Yes
bonding strength with base metal General OK very good

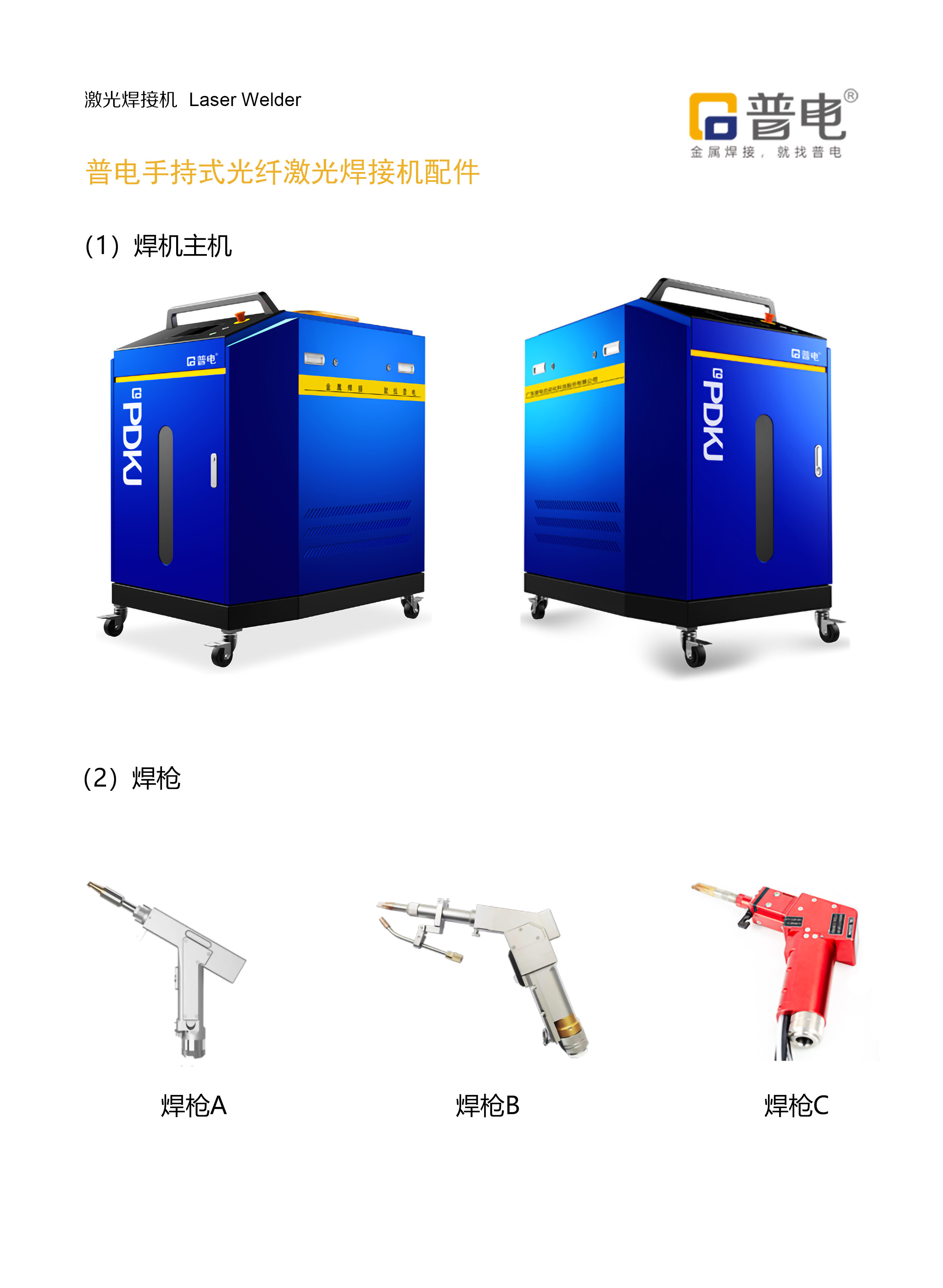

Welding gun model A/B/C Optional A/B/C Optional A/B/C Optional
Laser wavelength 1064nm 1064nm 1064nm
Overall power 2000W 2500W 3000W
welding interval requirements <0.5mm <0.5mm <0.5mm
Aiming and positioning infrared infrared infrared
Welding capacity / carbon steel 0.2-3MM 0.2-4MM 0.2-5MM
Welding capacity / stainless steel 0.2-3MM 0.2-4MM 0.2-5MM
Welding capacity / galvanized sheet 0.2-2.5MM 0.2-3MM 0.2-4MM
Welding speed 0-12MM/S 0-12MM/S 0-12MM/S
Weight 260KG 280KG 300KG
Overall dimension 1000*720*1300MM 1000*720*1300MM 1000*720*1300MM


Advantage: Easy to use, beautiful welded seam, fast welding speed
Suitable for welding stainless steel plate, aluminum alloy plate, carbon steel, galvanized plate and other metal materials; Widely used in cabinets, kitchens, stairs, elevators, racks, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel home and other industries

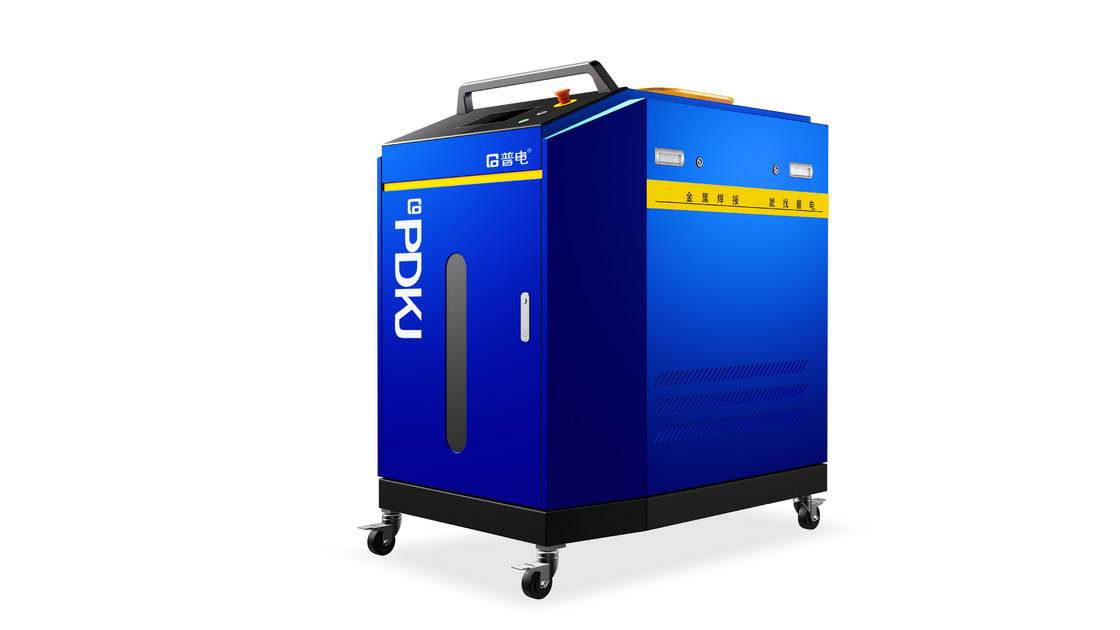

380V Handheld Fiber Laser Welder 2000w Double Swing 10m Auto Wire Feeder 0

Serial number name Specifications quantity Company remarks
1 Laser welding host Integrated one set Standard configuration
2 CW fiber laser 1000W one platform Standard configuration
3 cooling-water machine constant temperature one platform Standard configuration
4 Laser control system Touch screen one set Standard configuration
5 Double pendulum multifunctional handheld welding gun T-type one individual Standard configuration
6 Double drive multifunctional wire feeder 0.8-1.6mm one platform Standard configuration
7 Stainless steel welding wire 1mm one disc Standard configuration
8 IO robot connection supporting control system PDKJ-PW353 one disc Standard configuration

1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2. What can you buy from us?
Spot welding machine, projection welding machine, resistance welding machine, laser welding machine, Auto welding robot and welding machine spare parts like transformer, controller and electrode etc.

3. Why should you buy from us not from other suppliers?
In order to meet the special requirements of customers for products, PDKJ is willing to customize personalized products for you, so that customers can understand the professional services brought by sophisticated equipment.
