Welding Style: | Resistance Welding | Usage: | Spot Welding ;projection Welding |
---|---|---|---|
Control Model: | PLC Control | Applicable Industries: | Building Material; Sheet Metal |
After-sales Service: | Field Installation; Site Commissioning And Training | Welding Thickness: | <2 Mm |
High Light: | 1000Hz AC Spot Welding Machine,CCC AC Spot Welding Machine,MF spot welding machine voltage and current |

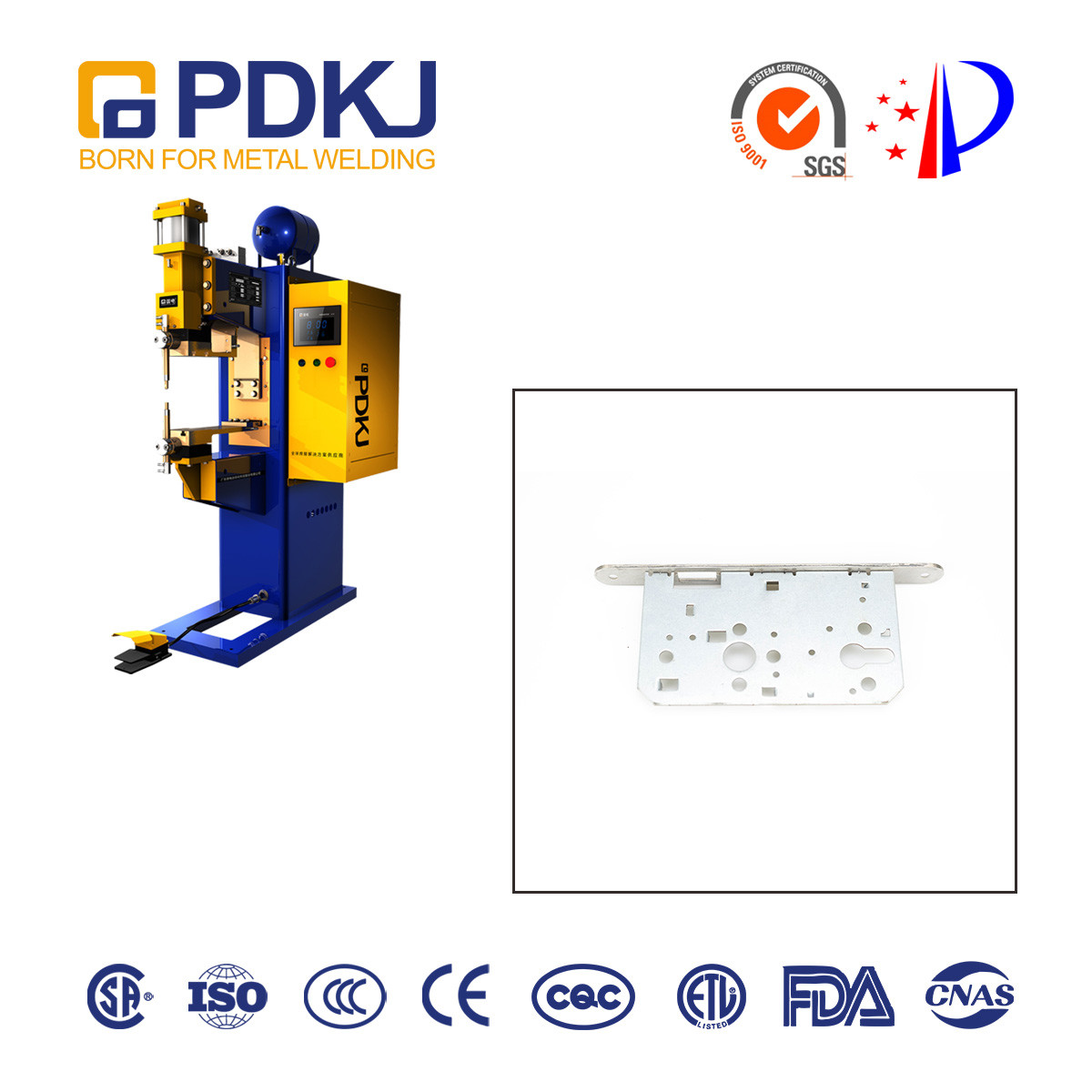

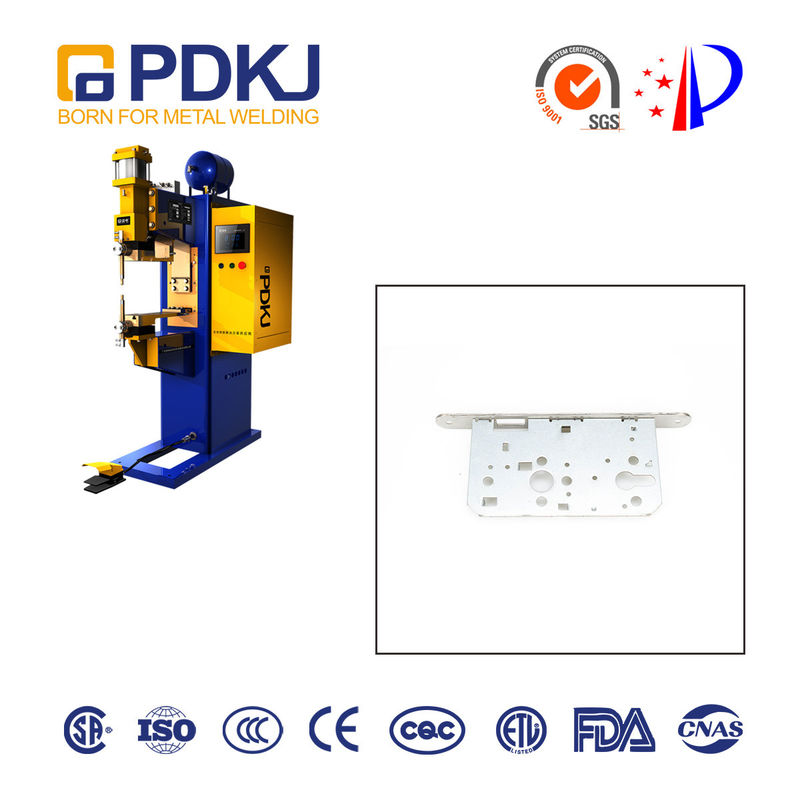

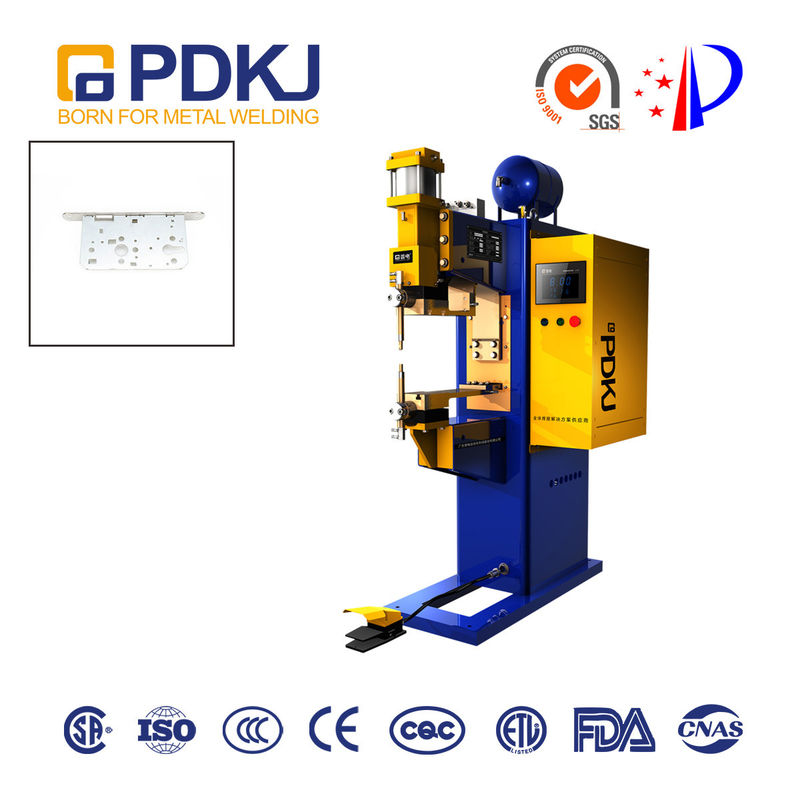

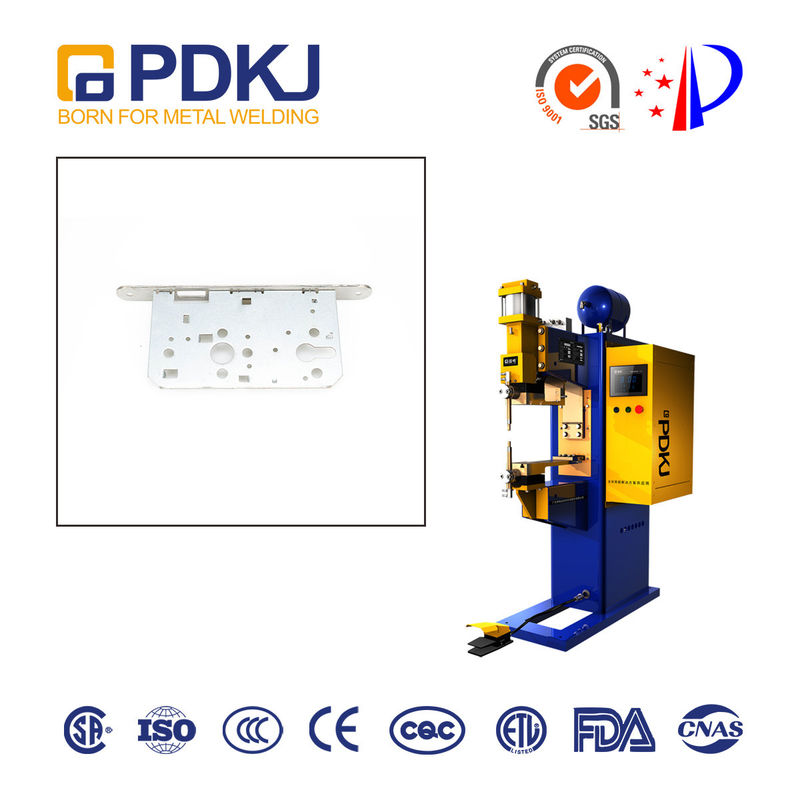

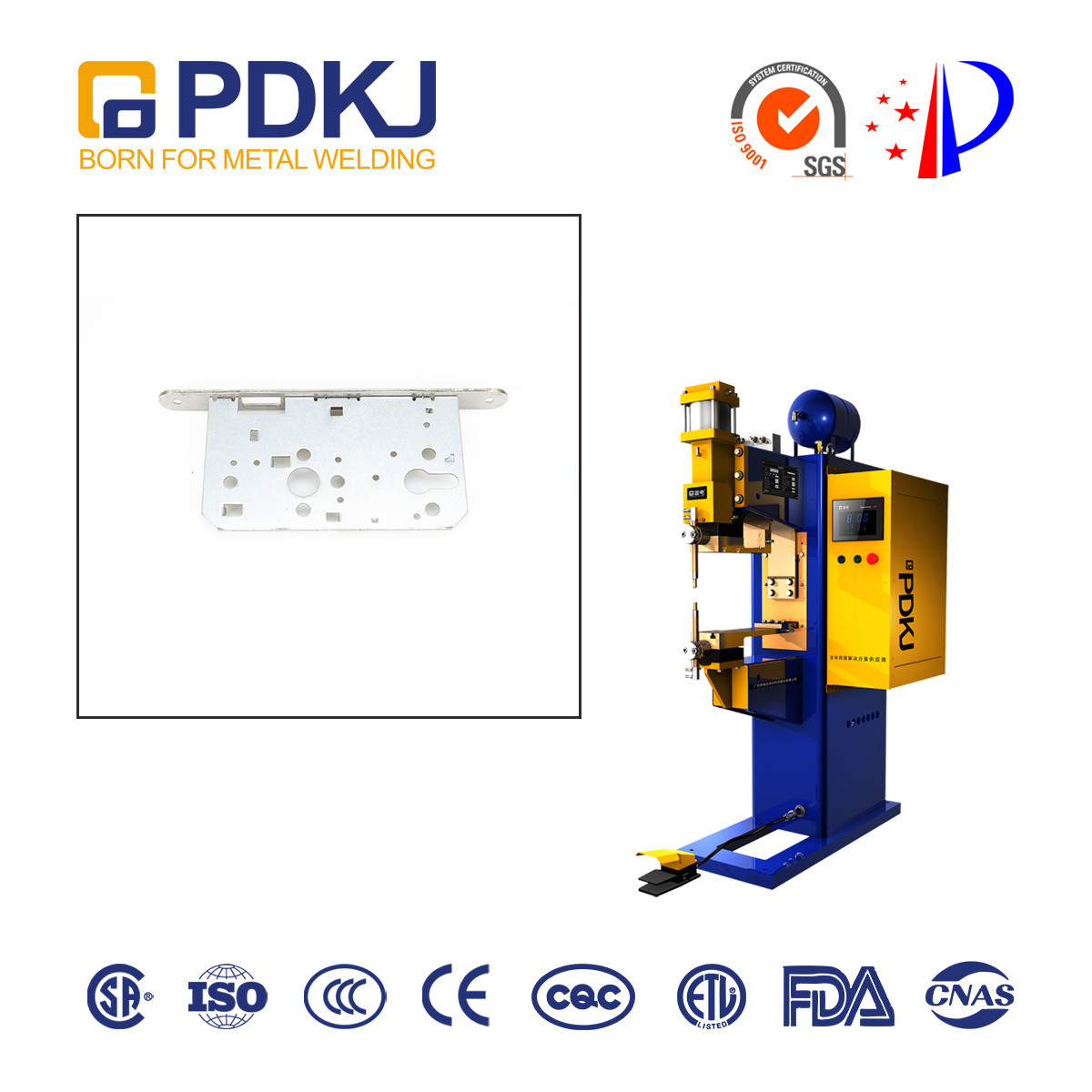

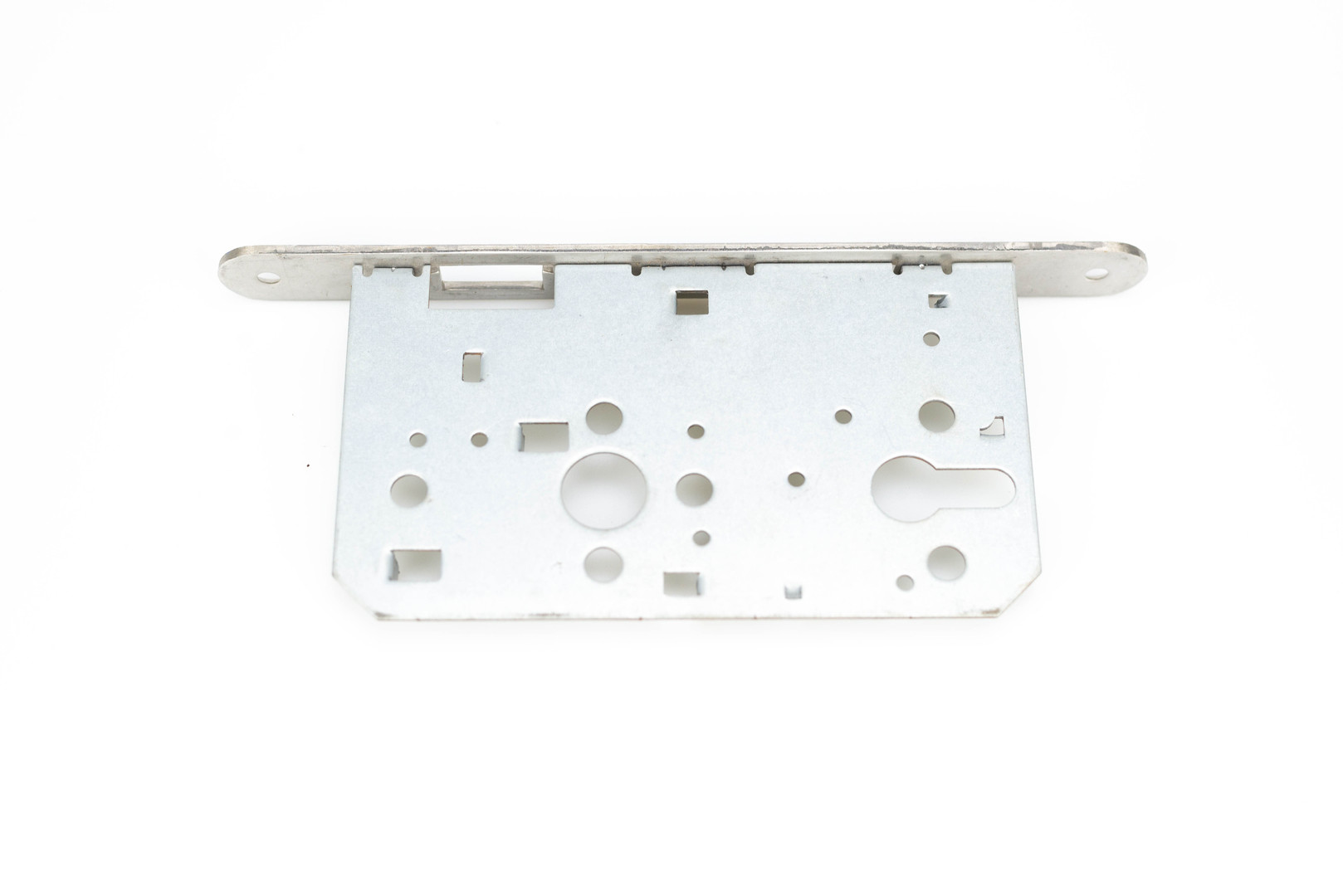

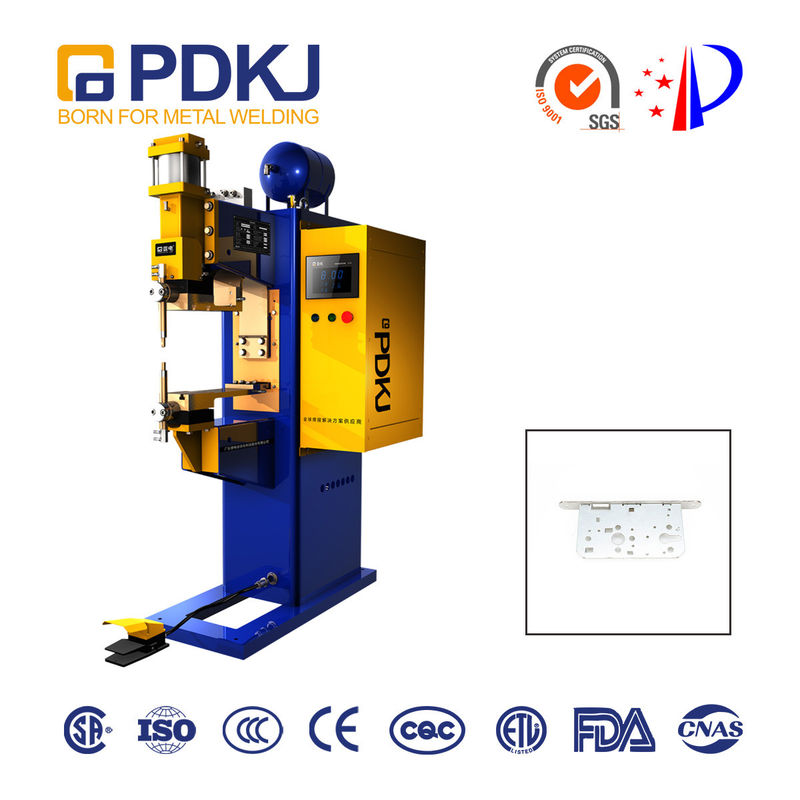

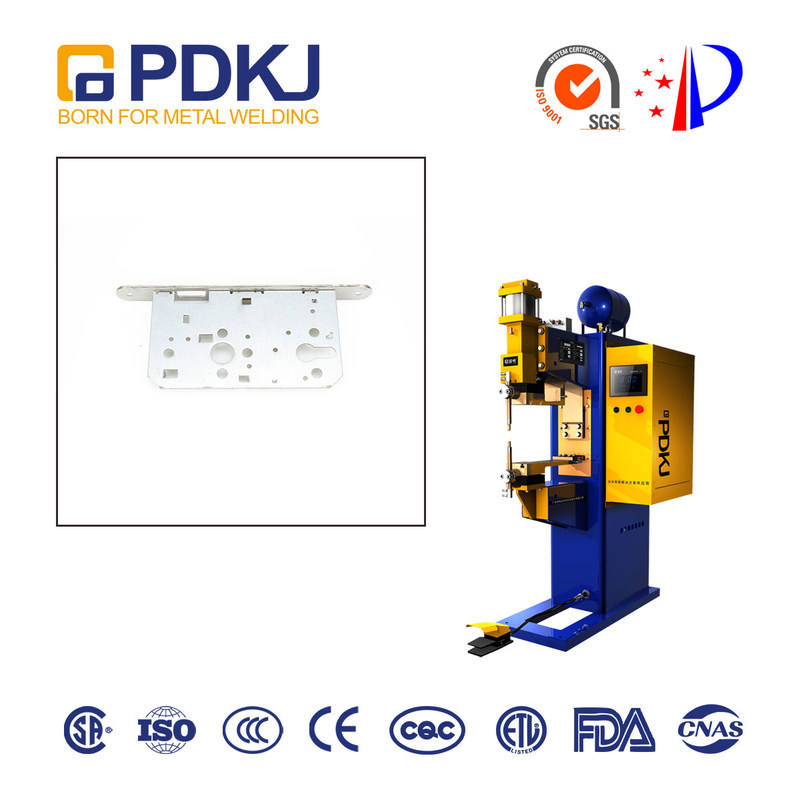

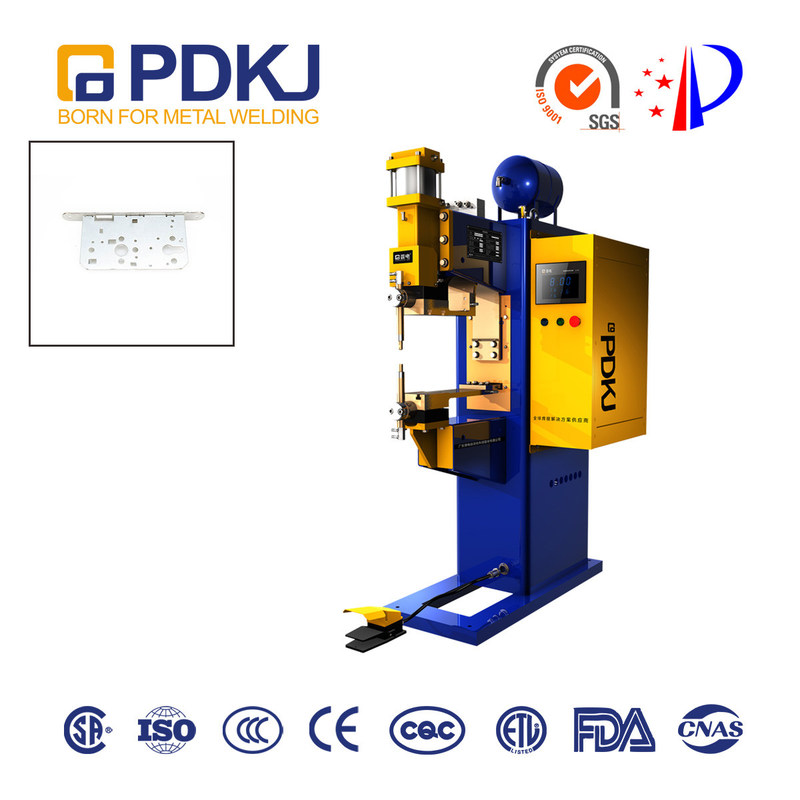

Intermediate-Frequency Inverse Dc Spot Welding Machine For Stainless Steel Case Shell
Medium Frequency DC Welding Machine , Spot Welding Machine projection welding machine with CE/CCC/ISO certificate
Description:
Product highlights: energy saving, power saving, high efficiency, low operating cost, high welding quality.
Product overview: the Medium frequency inverter DC spot ( projection ) welding machine converts the power frequency (50 Hz) AC to the intermediate frequency (1000 Hz) DC output, the time resolution is higher than the power frequency, the control accuracy is also improved, and the output current is not affected by the secondary output circuit change, the thermal efficiency is higher, the output power is great, and the welding quality is better. Compared with the traditional power frequency welding machine, inverse medium frequency DC welding will be highly efficient and energy-saving, which is a technological revolution breakthrough in the field of resistance welding.
Welding material: carbon steel/stainless steel
Material thickness: < 2mm
Related product name: spot welder
Industry: Metal Sheet Metal Manufacturing Industry Communication Electrical Manufacturing Industry
Process recommendation: spot welding
Specifications
parameter | DTB-80 |
Rated capacity | 80KVA |
Input power | three φ 380V |
Maximum short circuit current | 25KA |
Load duration | 20% |
control mode | Primary / secondary constant current |
Inverter frequency | 1000HZ |
Maximum pressure | 6000N |
Electrode stroke | 60mm |
Cooling water flow | 12L/min |
Welding capacity / aluminum plate | 2.0+2.0mm |
Welding capacity / carbon steel | 2.5+2.5mm |
Arm extension size | five hundred × 250mm |
Electrode arm size | ¢59 × 173mm |
Electrode holder size | ¢24.6 × 180 mm |
Overall dimension | 1100×700×1730mm |
Feature
1. Improve the power factor, reduce the production cost.
2. Reduce interference in secondary circuit which is in the large open area: the welding current is direct current. When there is induction or magnetic material in secondary winding, the welding will not be affected.
3. To make the power supply unit load balance: MF inverter projection welder adopts the three-phase sources which can store energy.
4. More adaptable to the fluctuation of power grid and voltage drop: a part of the energy has been stored by inverter and been supplied to load. It replaces the way of power supply to load directly from the power grid.
5. More precise and fast control of current: Compare with low frequency system, it is able to analyze more parameters in a more precise way.
6. More reliable process: For most of the applied resistance welding metals, to use DC to weld will help to achieve better effect.
7. The technology of MF system is more traditional and reliable which can prevent the damage results from the breakdown of silicon controlled.
8. Reduce operation cost, including saving the energy of each spot welding and reducing the cycle of welding.
Application
Especially suitable for aluminum, copper, galvanized sheet, carbon steel, nickel, tungsten and other metal materials and high temperature enameled wire, flexible connection, inductance coil welding. It is widely used in the welding of metal products in the fields of automobile and auto parts manufacturing, new energy power battery, photoelectric communication, electric light source, compressor, hardware, furniture, kitchenware, etc. The product has passed the patent certification of China Intellectual Property Office, China CCC certification and export CE certification
