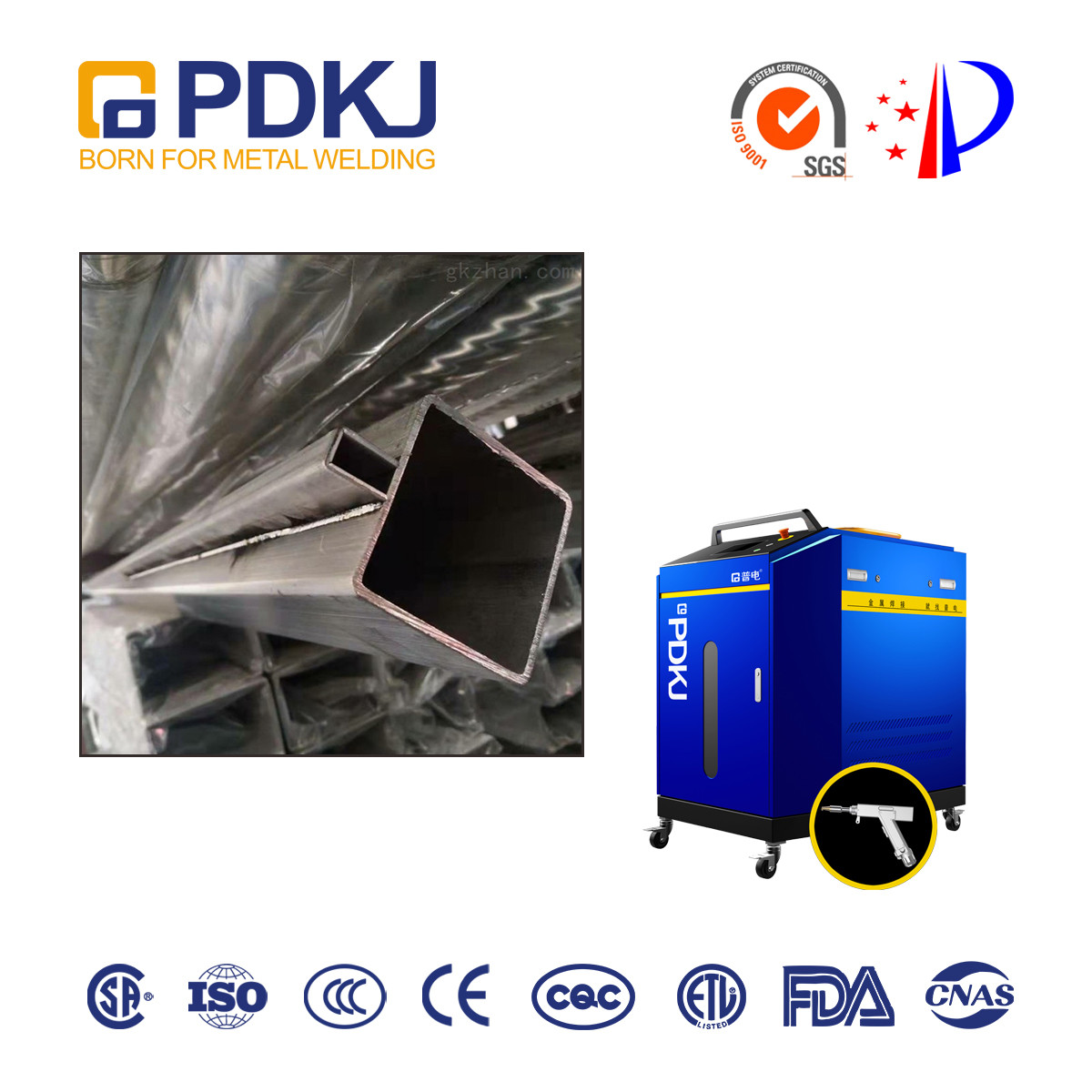

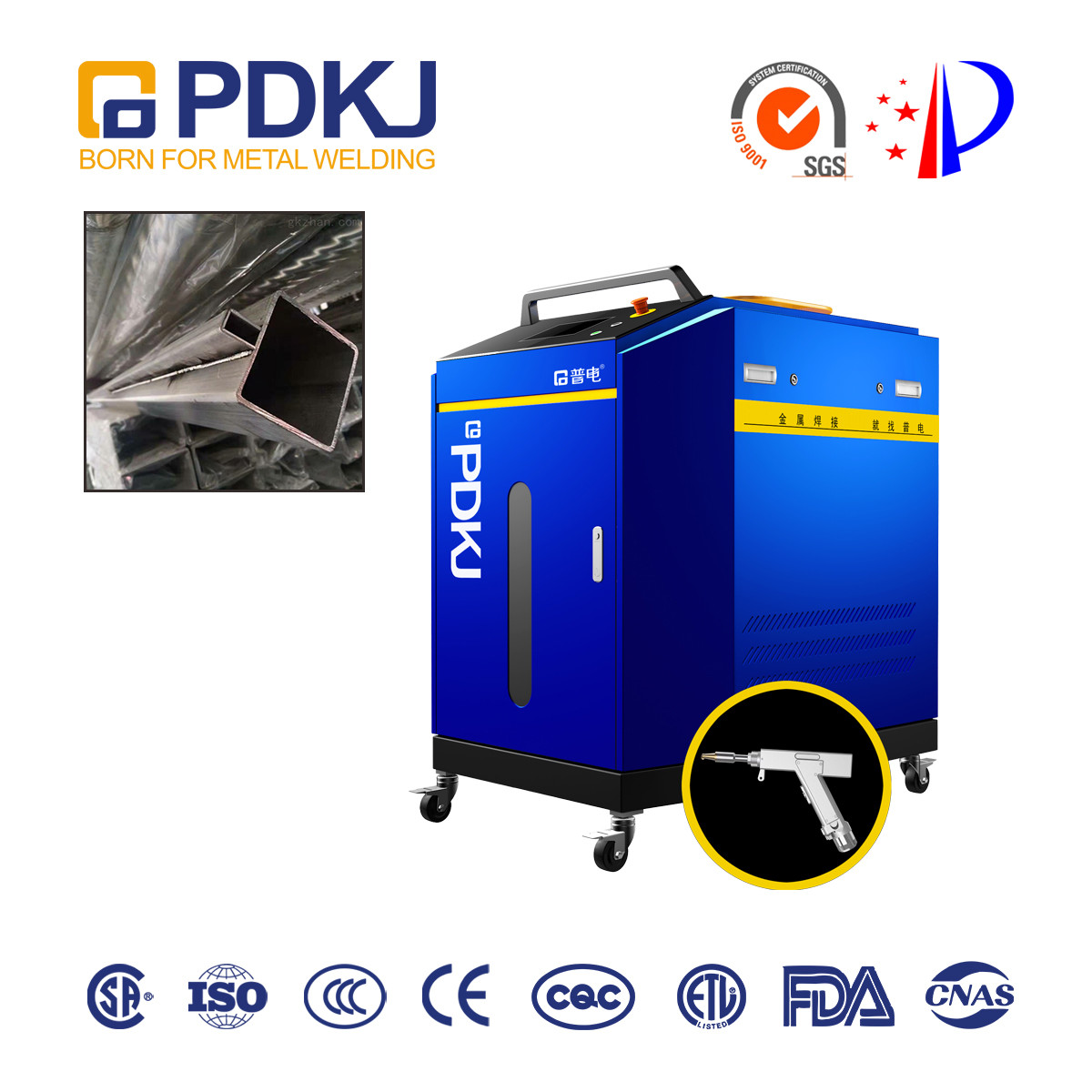

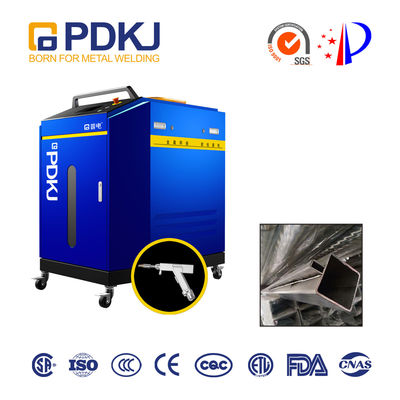

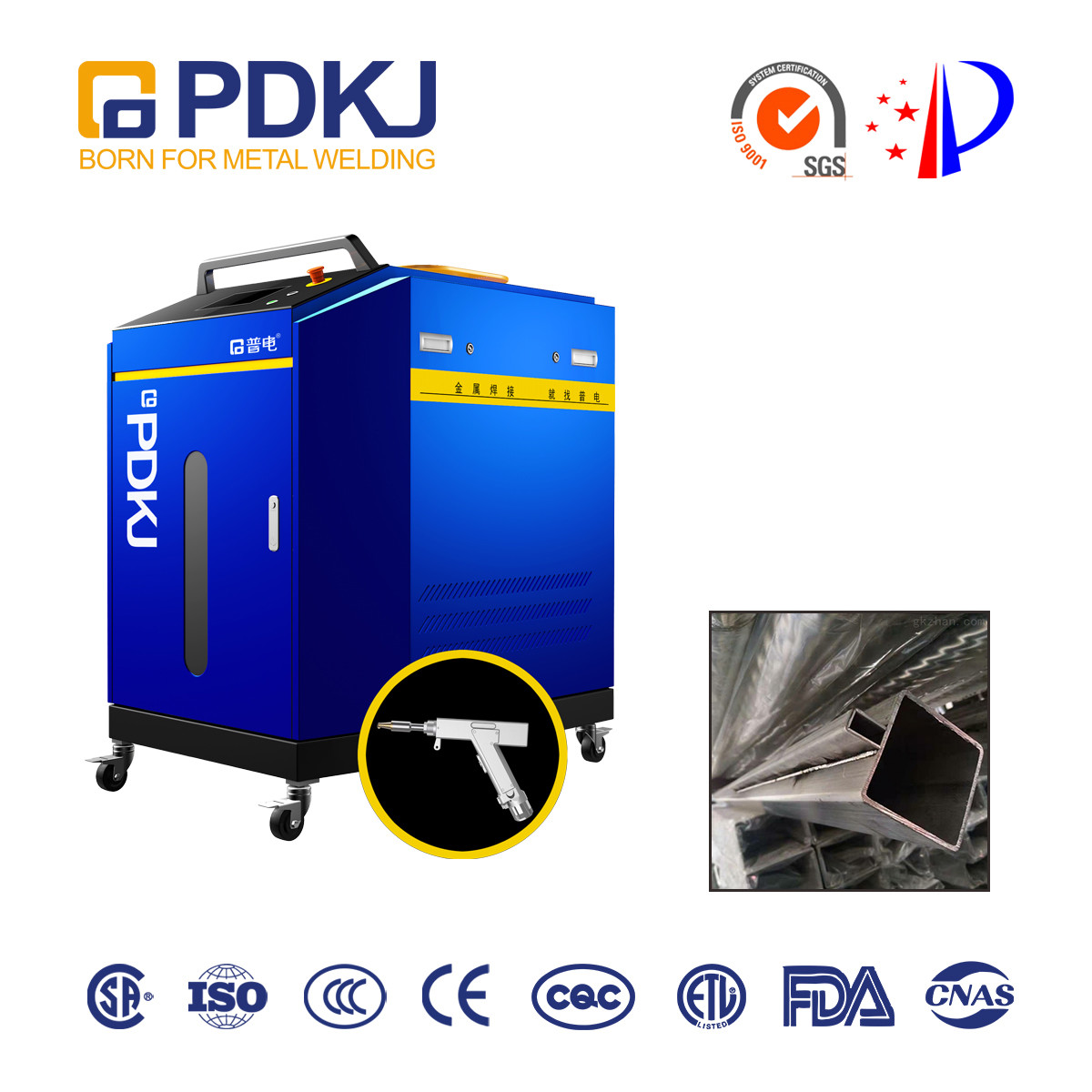

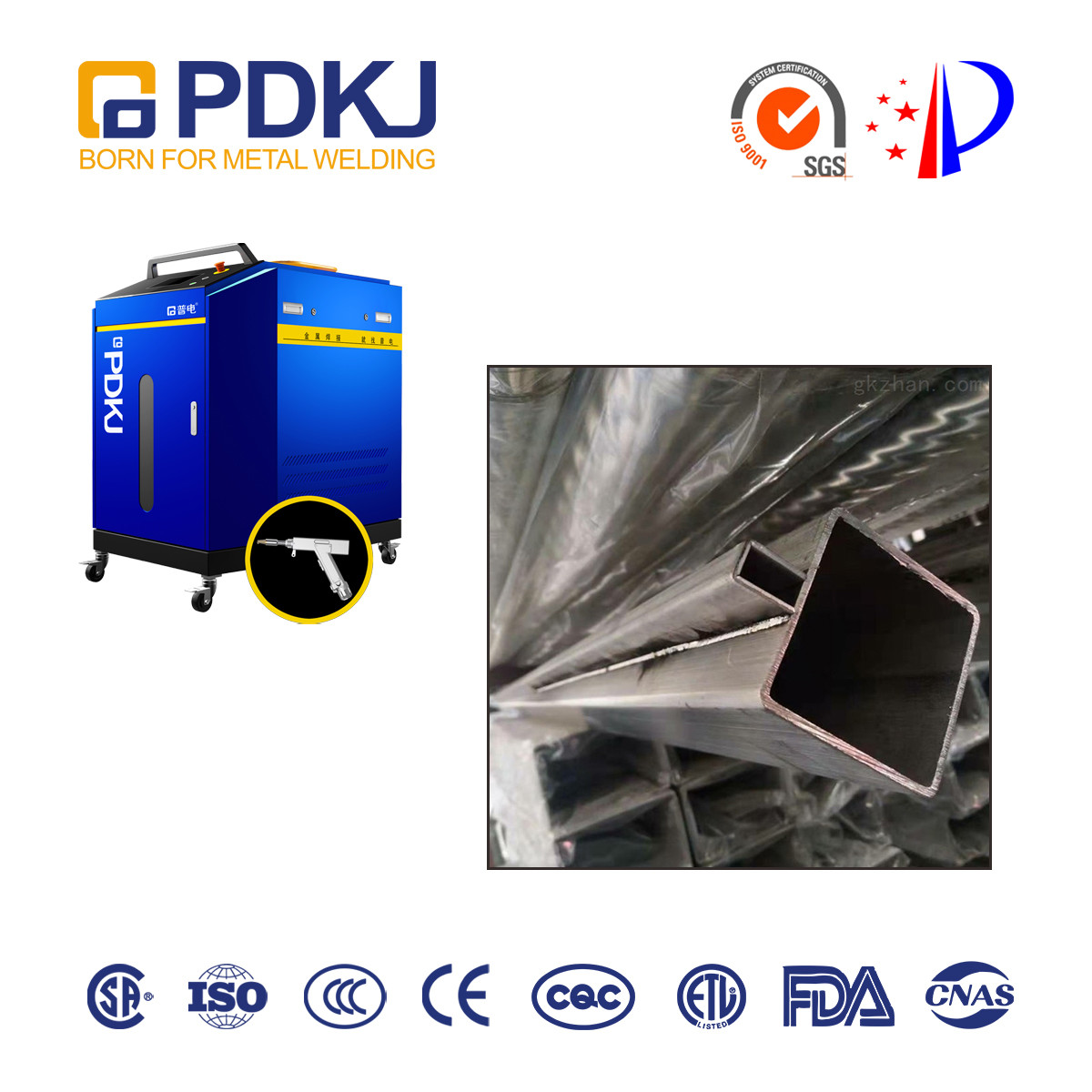

2.5mm SS Fiber Laser Welding Machine 1064nm

Basic Information
Place of Origin: CHINA
Brand Name: PDKJ
Certification: CE ISO SGS
Model Number: 1000W
Minimum Order Quantity: 1 unit
Price: USD 15000-35000 per unit
Packaging Details: Wooden Case
Delivery Time: 7-27 days
Supply Ability: 100 unit per month
Detail Information
Laser Source Brand: Raycus Application: Metal Welding
Key Selling Points: Easy Operation And High Accuracy Cooling Chiller: Dual Chiller For Laser Source And Welding Head
Applicable Material: Stainless Steel;Carbon Steel;Galvanized Sheet;Aluminum Plate Low Running Cost: 1-2kw/h
High Light:

1064nm Fiber Laser Welding Machine

,

Fiber Laser Welding Machine 2.5mm

,

ss laser welding machine


Product Description

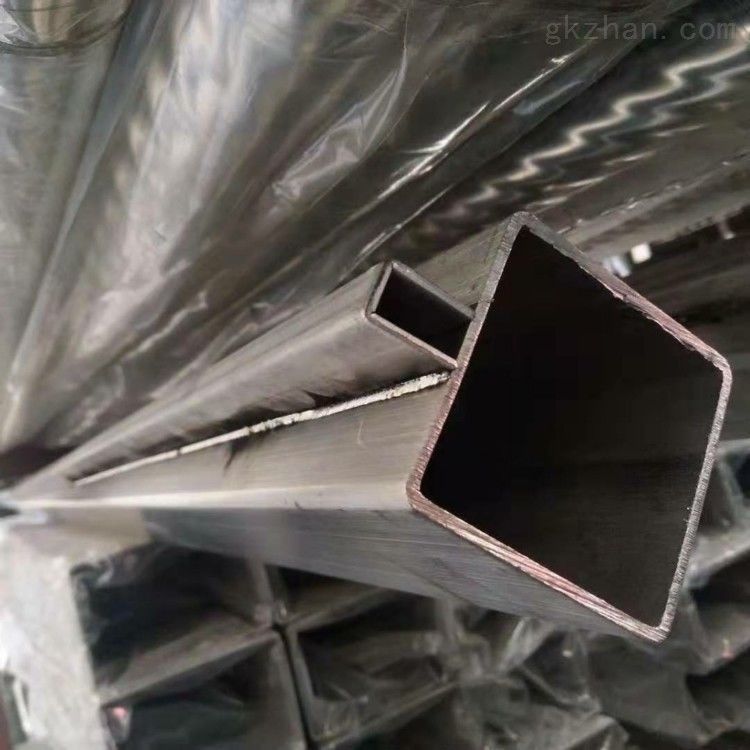

Handheld Automatic Wire Feeding Fiber Laser Welding Machine For Stainless Steel Tube

Fiber laser

High photoelectric conversion efficiency, good beam quality, suitable for flexible processing and maintenance free

Optical fiber handheld welding gun

QBH interface mode, simple structure, air blowing function and safety protection function



Handheld Laser Welding Machine For Stainless Steel Annular Cylinder

Handheld laser welding machine



The hand-held continuous laser welding machine is an integrated structural design, adopts the latest generation of laser generator, and integrates double drive automatic wire feeding The system is equipped with double swing welding joint independently developed by our company. Flexible and convenient welding, good beam quality and less deformation of welding body, The weld is smooth and beautiful with high reliability. Flexible transmission non-contact hanging welding is applied to the parts that are difficult to be accessed by ordinary argon arc welding gun Connect. It is suitable for spot welding and full welding of complex and irregular inner and outer corners and joints of various metal frame structural parts and sheet metal parts, The utility model has the advantages of simple operation, beautiful weld and fast welding speed. Applicable to aluminum alloy plate, stainless steel plate, iron plate and galvanized steel plate The welding of plate and other metal materials can perfectly replace the traditional argon arc welding, electric arc welding and other processes.



01.The welding speed is 2-3 times faster than the traditional welding speed. It can help you save at least two welders a year



02.The welding seam is smooth and beautiful, which reduces the subsequent grinding process and saves time and cost



03.No deformation, no weld mark, firm welding



04.Safer and more environmentally friendly



05.The self-developed swing welding head makes up for the disadvantage of small laser spot, expands the tolerance range and weld width of the workpiece, and achieves good weld forming effect.



Welding material: carbon steel/stainless steel
Material thickness: < 3mm
Related product name: Hardware
Industry: metal sheet metal manufacturing industry
Process recommendation: laser welding





2.5mm SS Fiber Laser Welding Machine 1064nm 02.5mm SS Fiber Laser Welding Machine 1064nm 1





Specifications:



Project Parameter
Equipment name Hand held continuous laser welding machine
Fiber line length Standard configuration 10m (customized length up to 15m)
control model TTL level/ GUI
Cooling system Water cool/All in one constant temperature
Working environment temperature range 15-35°C
Recommended welding thickness 0.1-5mm
Consumables Protective lenses



Comparision:


Project conventional argon arc welding laser welding PDKJ handheld optical fiber welding
heat input to workpiece very high low low
deformation and undercut of workpiece Large small small
subsequent processing grinding no or little grinding is needed no or little grinding is needed
welding speed General more than 2 times of argon arc welding more than 2 times of argon arc welding
applicable materials stainless steel / carbon steel / galvanized sheet / aluminum alloy / copper stainless steel / carbon steel / galvanized sheet / aluminum alloy / copper stainless steel / carbon steel / galvanized sheet / aluminum alloy / copper
consumables multiple less less
operation difficulty complex General Simple
operator safety unsafe Security Security
impact of environmental protection not environmentally friendly environmental protection environmental protection
hold hands and head no no Yes
The brightness of light spot is adjustable none none Yes
welding quality poor General very good


Applicaton recommendation :



Parameter name 1000W
Input power 220V
Automatic wire feeding Yes
bonding strength with base metal General
Welding gun model A/B/C Optional
Laser wavelength 1064nm
Overall power 2000W
welding interval requirements <0.5mm
Aiming and positioning infrared
Robot automatic welding interface Yes
Welding capacity / aluminum 0.2-2MM
Welding capacity / galvanized sheet 0.2-2.5MM
Welding speed 0-12MM/S
Weight 260KG
Overall dimension 1000*720*1300MM

Application:

Advantage: Easy to use, beautiful welded seam, fast welding speed
Suitable for welding stainless steel plate, aluminum alloy plate, carbon steel, galvanized plate and other metal materials; Widely used in cabinets, kitchens, stairs, elevators, racks, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel home and other industries



2.5mm SS Fiber Laser Welding Machine 1064nm 2

Serial number name Specifications quantity Company remarks
1 Laser welding host Integrated one set Standard configuration
2 CW fiber laser 1000W one platform Standard configuration
3 cooling-water machine constant temperature one platform Standard configuration
4 Laser control system Touch screen one set Standard configuration
5 Double pendulum multifunctional handheld welding gun T-type one individual Standard configuration
6 Double drive multifunctional wire feeder 0.8-1.6mm one platform Standard configuration
7 Stainless steel welding wire 1mm one disc Standard configuration
8 IO robot connection supporting control system PDKJ-PW353 one disc Standard configuration
FAQ

1.How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.What can you buy from us?
Spot welding machine, projection welding machine, resistance welding machine, laser welding machine, Auto welding robot and welding machine spare parts like transformer, controller and electrode etc.








2.5mm SS Fiber Laser Welding Machine 1064nm 3
