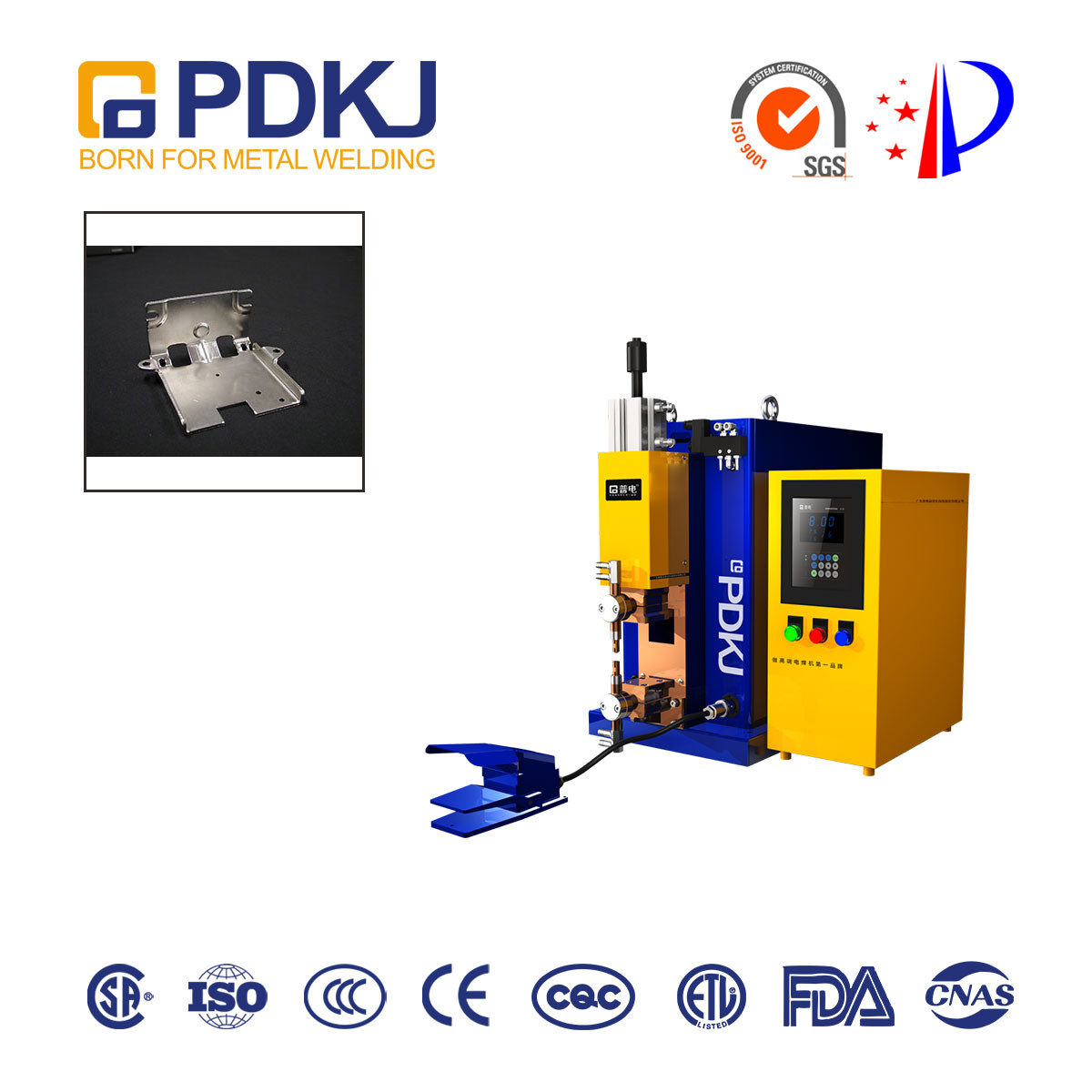

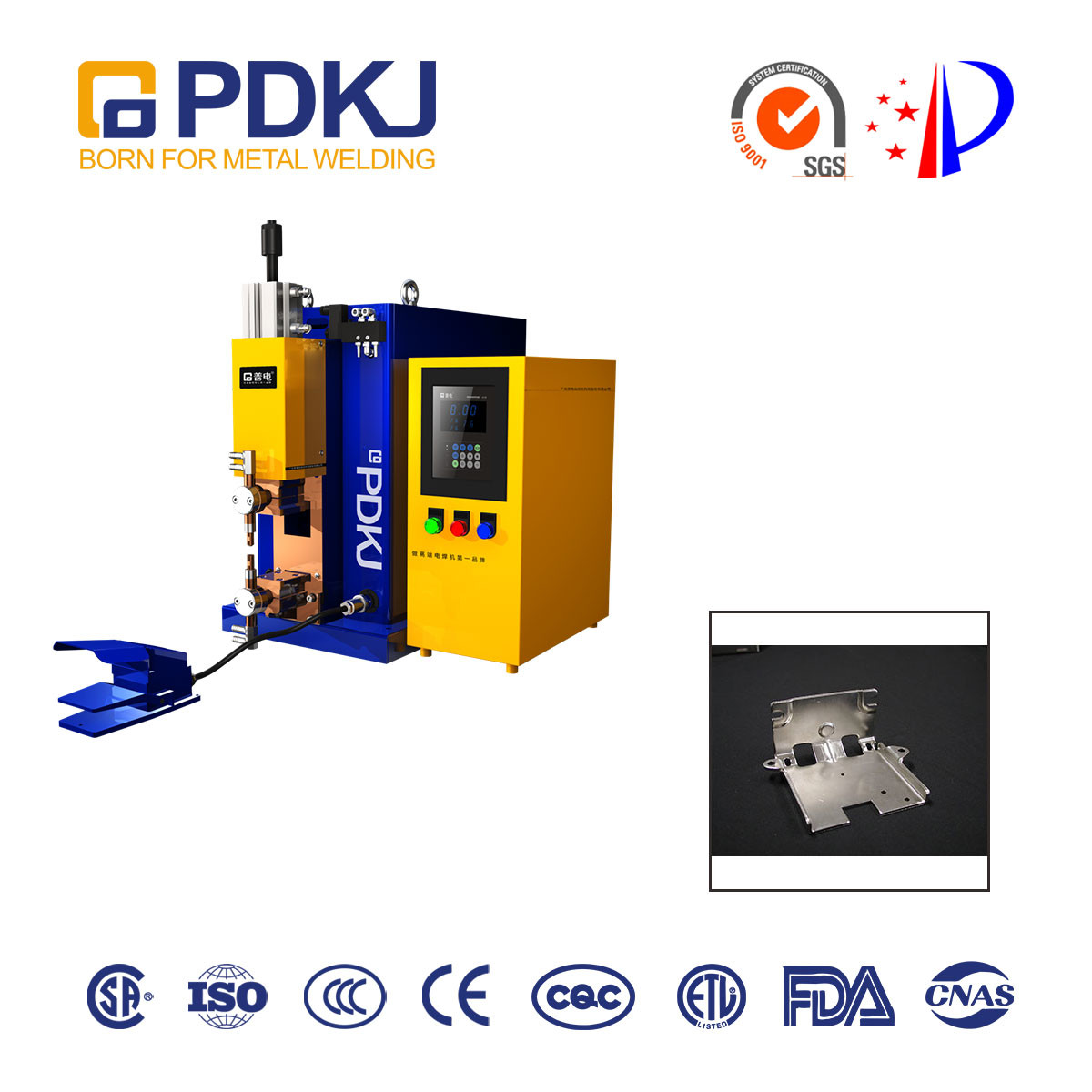

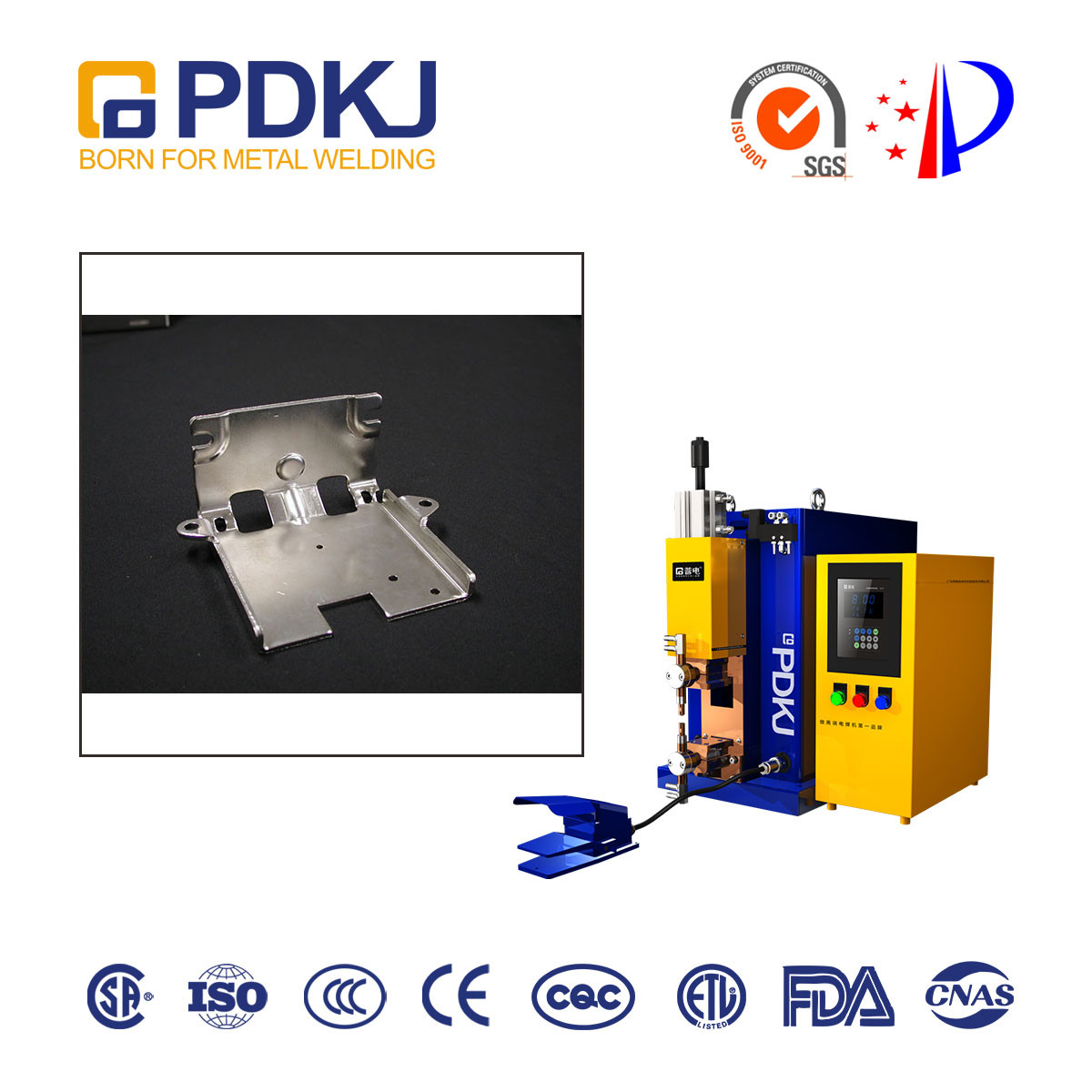

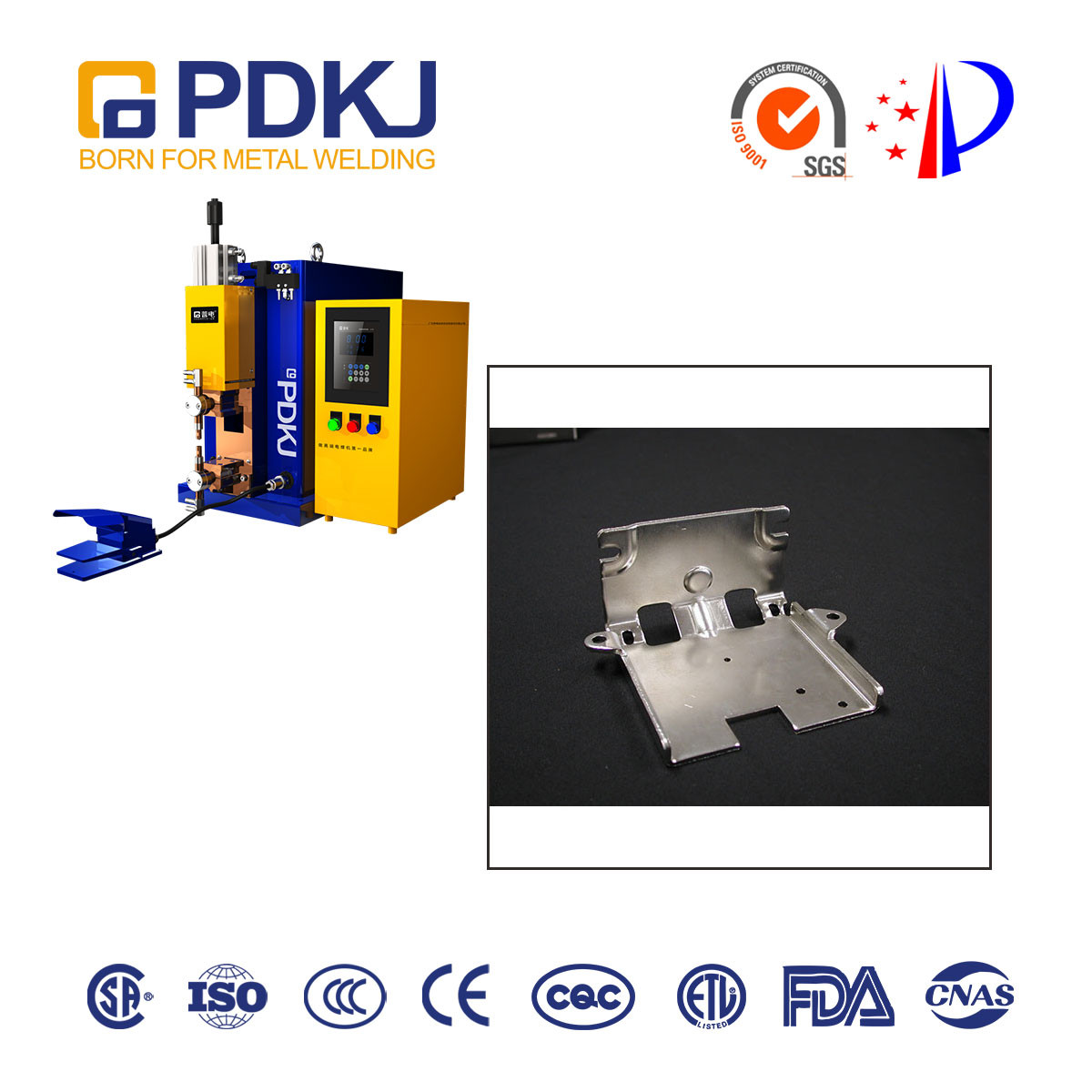

Hardware Dc Spot Welding Machine 750N Press For Carbon Steel

Basic Information
Place of Origin: CHINA
Brand Name: PDKJ
Certification: CE ISO SGS
Model Number: DB-80T
Minimum Order Quantity: 1 unit
Price: 9200 USD
Packaging Details: Wooden Case
Delivery Time: 5-25 days
Supply Ability: 100 set per month
Detail Information
Welding Style: Resistance Welding Usage: Spot Welding
Key Selling Points: Quick,Seamless Applicable Industries: Building Material; Machinery Repair; Sheet Metal
After-sales Service: Field Installation; Site Commissioning And Training Rated Capacity: 22000A
High Light:

Hardware Dc Spot Welding Machine


Carbon steel Dc Spot Welding Machine


750N Table Spot Welding Machine

Product Description

Desktop Intermediate-frequency Inverse DC Spot Welding Machine , Spot Welding Machine projection welding machine with CE/CCC/ISO certificate

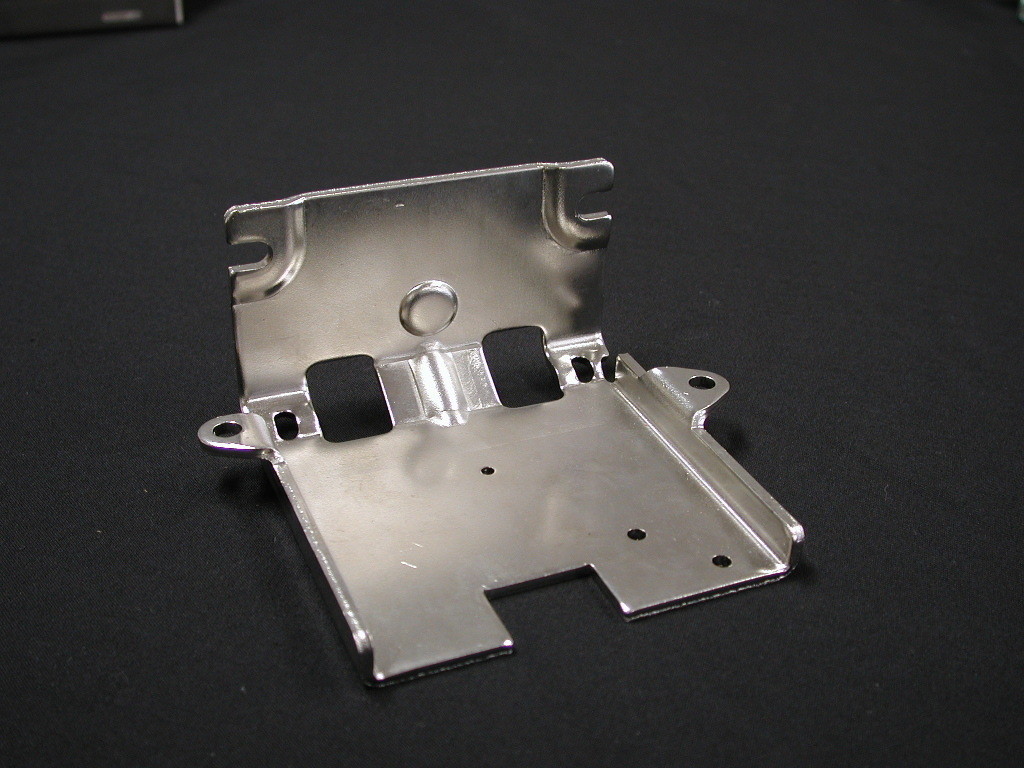

TDesktop medium frequency inverter spot welder is suitable for welding fine workpieces such as electrical switches, purple copper wire joints, terminal wires, silver contacts, chip inductors, coils, fuses and hardware. It is widely used in the welding of precision components such as electronics, electrical appliances, medical devices, instruments and meters.

Hardware Dc Spot Welding Machine 750N Press For Carbon Steel 0Hardware Dc Spot Welding Machine 750N Press For Carbon Steel 1


Welding material: Carbon steel / stainless steel
Material thickness: < 1 mm
Associated product name: an electric appliance
Industry: Metal sheet metal manufacturing industry
Process recommendation: spot welding



parameter DB-80T
Rated capacity 80KVA
Input power three φ 380V
short-circuit current 22000A
Load duration 20%
control mode Primary / secondary constant current
Inverter frequency 1000HZ
Arm extension size 120 mm x115mm
press 750N
Electrode stroke 50mm
Overall dimension (mm) 800*670*765mm

Hardware Dc Spot Welding Machine 750N Press For Carbon Steel 2

01.Adjustable vertical pressure mechanism, the guide part adopts linear guide rail, with high follow-up.

02.High strength body structure and good rigidity can prevent the electrode head from sliding when pressurized.

03.Desktop structure, beautiful and generous, space saving and flexible configuration.

04.Equipped with medium frequency welding controller and current closed-loop control, it can control the actual welding current at high speed and accurately.

05.The output current is DC, the current is smooth, the inductive reactance is zero, the working frequency is 1000Hz, and the time control accuracy is 1ms.

06.High quality and high efficiency welding capacity, power factor up to 98%, three-phase input load balance.

Hardware Dc Spot Welding Machine 750N Press For Carbon Steel 3
Especially suitable for aluminum, copper, galvanized sheet, carbon steel, nickel, tungsten and other metal materials and high temperature enameled wire, flexible connection, inductance coil welding. It is widely used in the welding of metal products in the fields of automobile and auto parts manufacturing, new energy power battery, photoelectric communication, electric light source, compressor, hardware, furniture, kitchenware, etc. The product has passed the patent certification of China Intellectual Property Office, China CCC certification and export CE certification

Hardware Dc Spot Welding Machine 750N Press For Carbon Steel 4
1. When can you arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days. We always ship by air and sea in the mean time.
2. What does your factory produce?
We produce and export all kinds of automatic welding machine and robots and relative parts. We can design machines according to your requirements.
3. What’ your warranty and after-sales?
We offer 1 year warranty, various forms of online instruction and the spare parts. Professional engineers will solve problem, if necessary.
4. How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

Hardware Dc Spot Welding Machine 750N Press For Carbon Steel 5
