| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PDKJ |
| Certification: | CE ISO SGS |
| Model Number: | DN-25T |
| Minimum Order Quantity: | 1 unit |
| Price: | 4604-5410 USD |
| Packaging Details: | Wooden Case |
| Delivery Time: | 5-25 days |
| Supply Ability: | 100 set per month |
| Welding Style: | Resistance Welding | Usage: | Spot Welding |
|---|---|---|---|
| Key Selling Points: | Quick,Seamless | Applicable Industries: | Building Material; Machinery Repair; Sheet Metal |
| After-sales Service: | Field Installation; Site Commissioning And Training | Rated Capacity: | 15000A |
| High Light: | Desktop DC Spot Welding Machine,Seamless Resistance Spot Welding Machine,Silver Contact Resistance Spot Welding Machine |
||

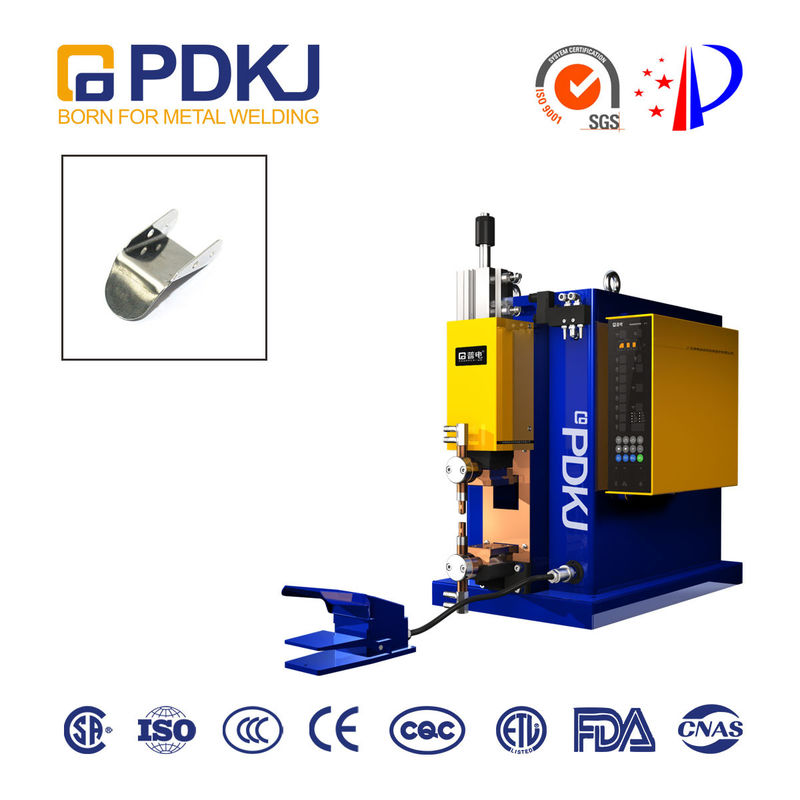

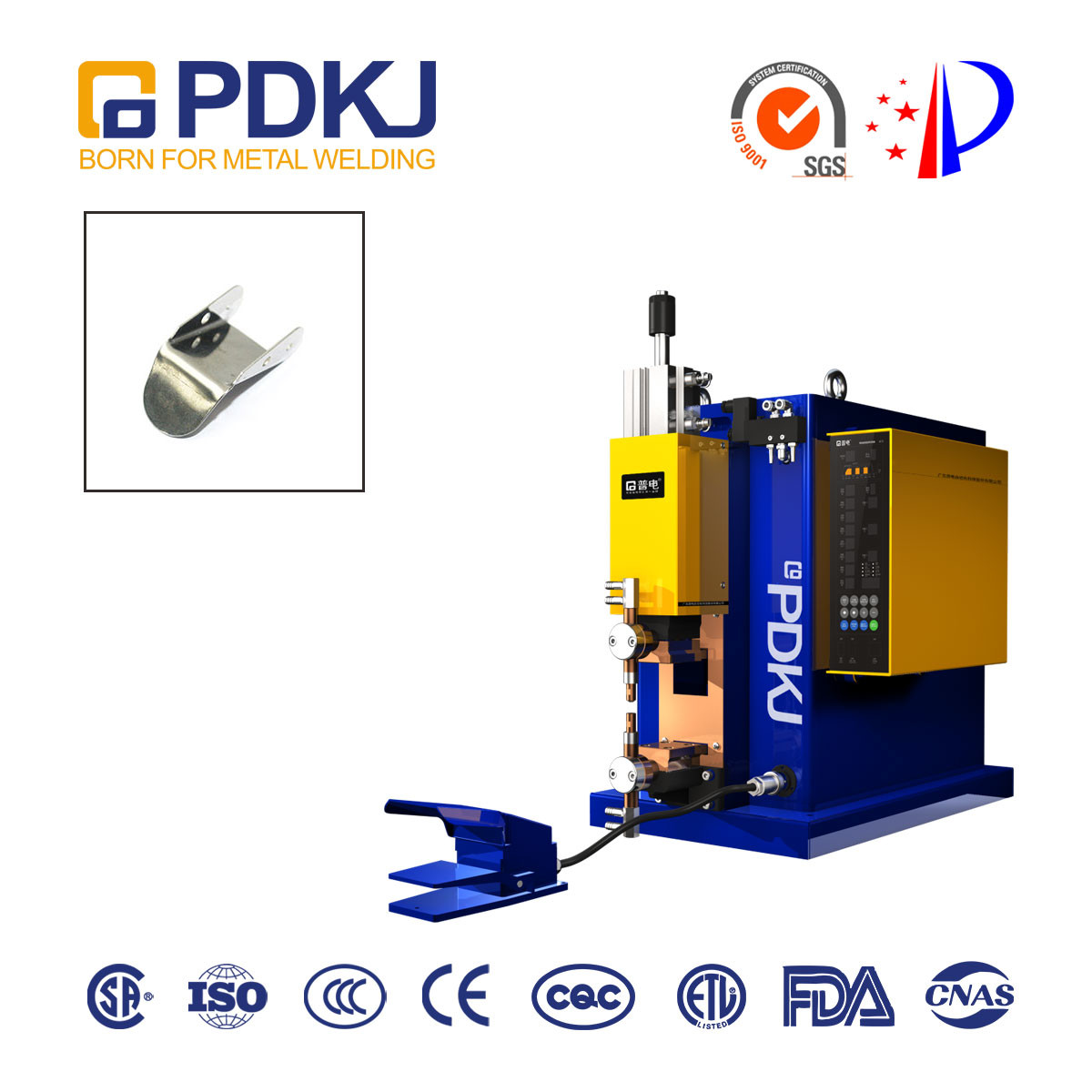

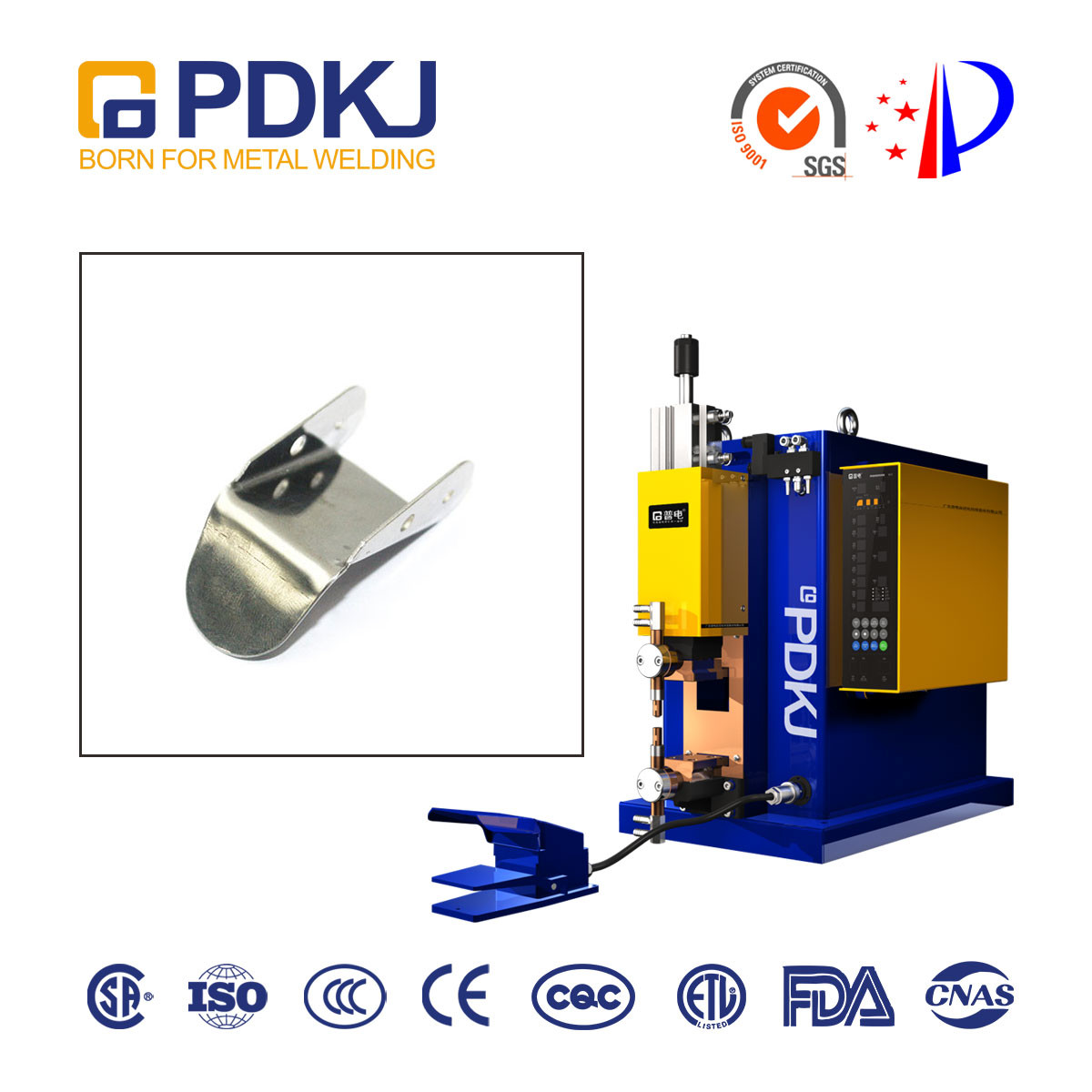

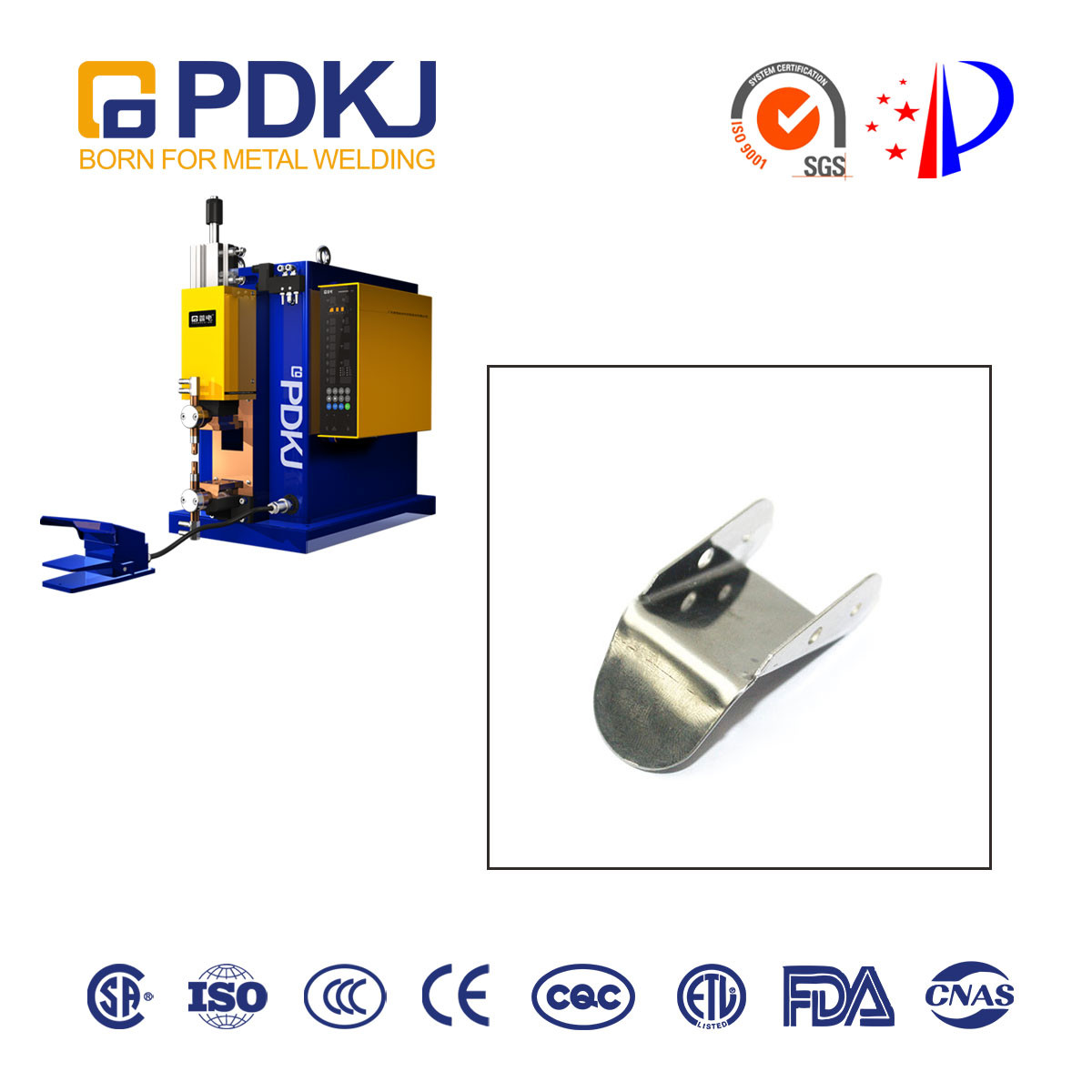

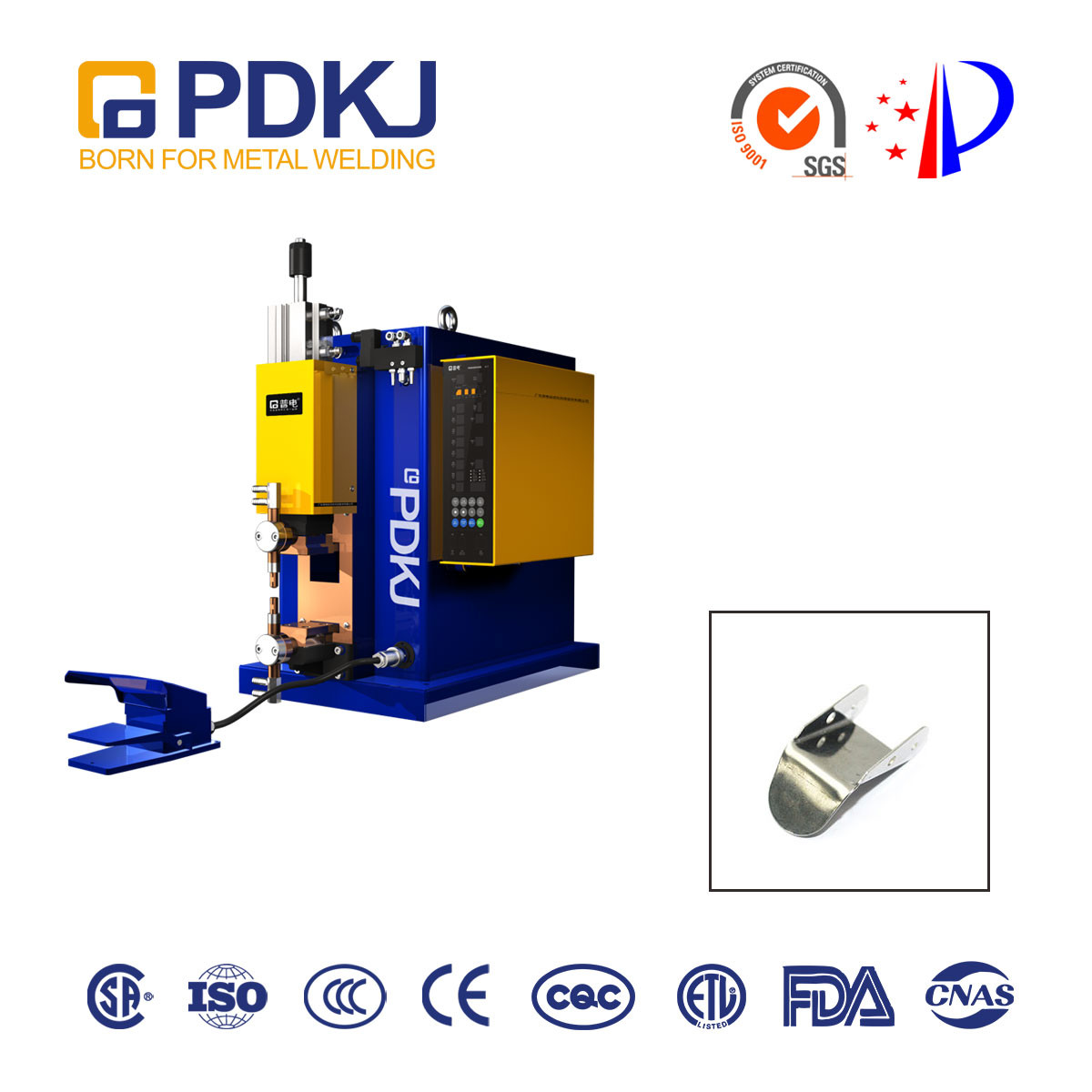

Desktop AC Precision Spot Welding Machine , Spot Welding Machine projection welding machine with CE/CCC/ISO certificate
Description:
Desktop medium frequency inverter spot welder is suitable for welding fine workpieces such as electrical switches, purple copper wire joints, terminal wires, silver contacts, chip inductors, coils, fuses and hardware. It is widely used in the welding of precision components such as electronics, electrical appliances, medical devices, instruments and meters.

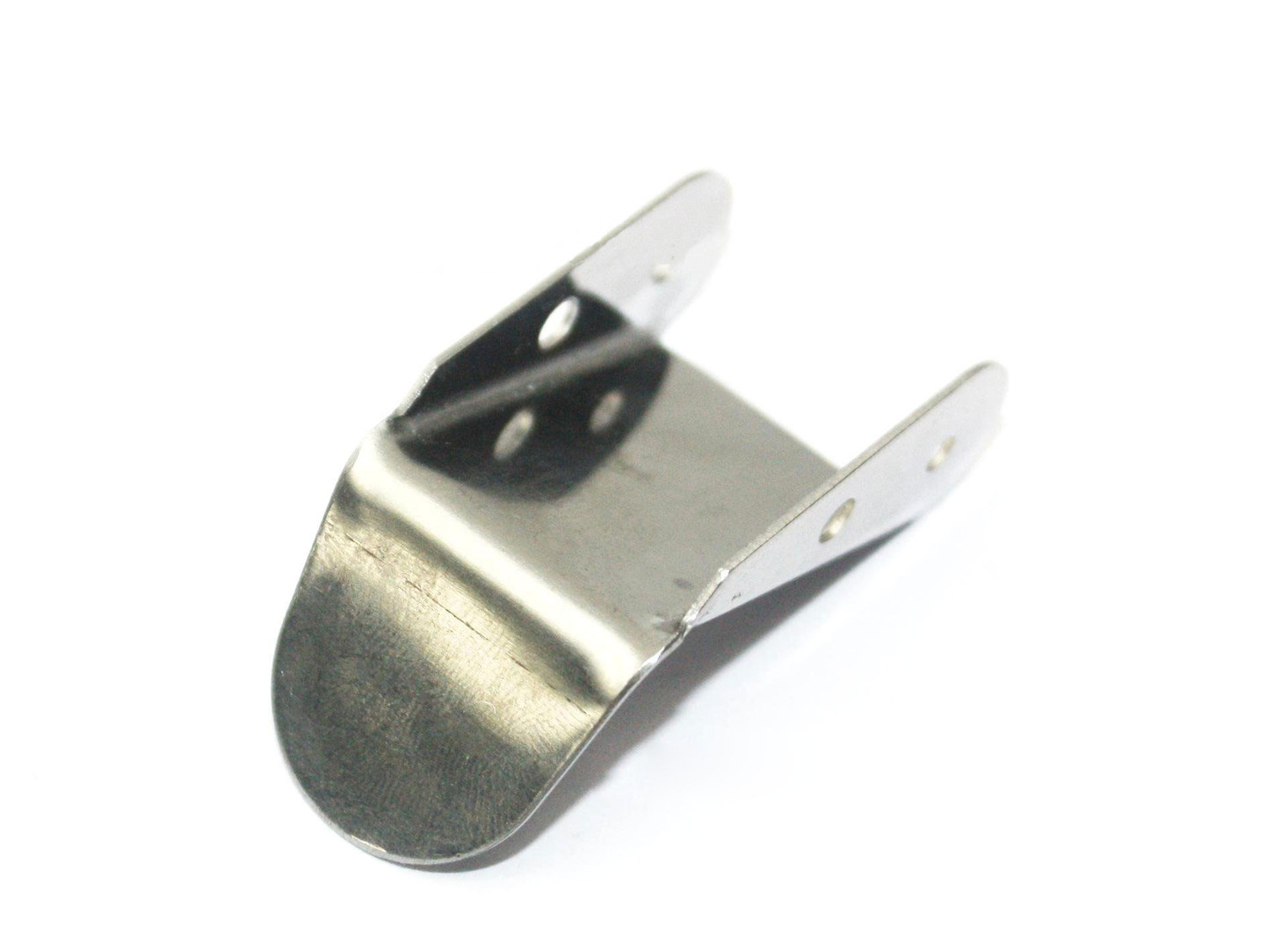

Silver contact welding material: Copper
Material thickness: < 1 mm
Associated product name: Instrument list
Industry: Electronic precision manufacturing industry
Process recommendation: spot welding
Specifications
| parameter | DN-25T |
| Rated capacity | 25KVA |
| Input power | two φ 380V |
| Load duration | 20% |
| Arm extension size | 120 mm x115mm |
| press | 750N |
| Electrode stroke | 50mm |
| Cooling water flow | 4L/min |
| weight | 130kg |
| Overall dimension | 800*500*765mm |
Feature
01.Desktop structure,Desktop structure, beautiful and generous It is especially suitable for fine workpiece welding and assembly line installation and production
02.Safe and high performance,Safe and high performance pneumatic system The pressurization speed can be adjusted at will.
03.water cooling system,Water saving circulating water cooling system Equipped with quick water-cooling connector to facilitate the replacement of water-cooling electrode or fixture.
04.Equipped with a new generation of microcomputer controller,Accurate and stable current and good performance
Application
Especially suitable for aluminum, copper, galvanized sheet, carbon steel, nickel, tungsten and other metal materials and high temperature enameled wire, flexible connection, inductance coil welding. It is widely used in the welding of metal products in the fields of automobile and auto parts manufacturing, new energy power battery, photoelectric communication, electric light source, compressor, hardware, furniture, kitchenware, etc. The product has passed the patent certification of China Intellectual Property Office, China CCC certification and export CE certification
FAQ
1. When can you arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days. We always ship by air and sea in the mean time.
2. Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
3. What’ your warranty and after-sales?
We offer 1 year warranty, various forms of online instruction and the spare parts. Professional engineers will solve problem, if necessary.
4. How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
