| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PDKJ |
| Certification: | ISO CE SGS |
| Model Number: | DB170W |
| Minimum Order Quantity: | 1 unit |
| Price: | USD 45000-48000 |
| Packaging Details: | Woonen case or iron box |
| Delivery Time: | 7-25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 set per month |
| Welding Style: | Resistance Welding | Usage: | Spot Welding |
|---|---|---|---|
| Key Selling Points: | Quick,Seamless | Applicable Industries: | Building Material; Machinery Repair; Sheet Metal |
| After-sales Service: | Field Installation; Site Commissioning And Training | Rated Capacity: | 170KVA |
| High Light: | table spot welder 0.6Mpa,CNC table spot welder,desk cnc spot welding machine |
||

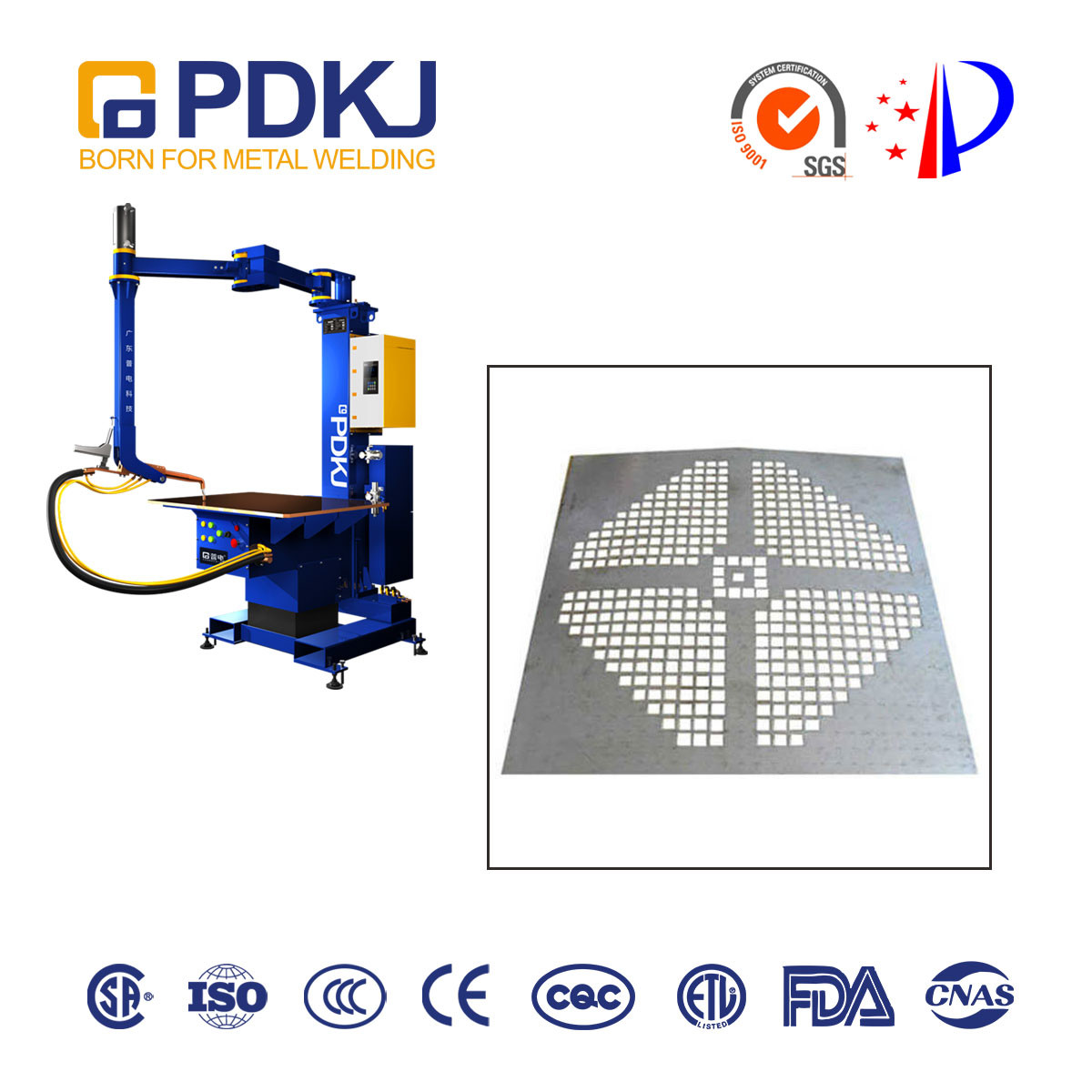

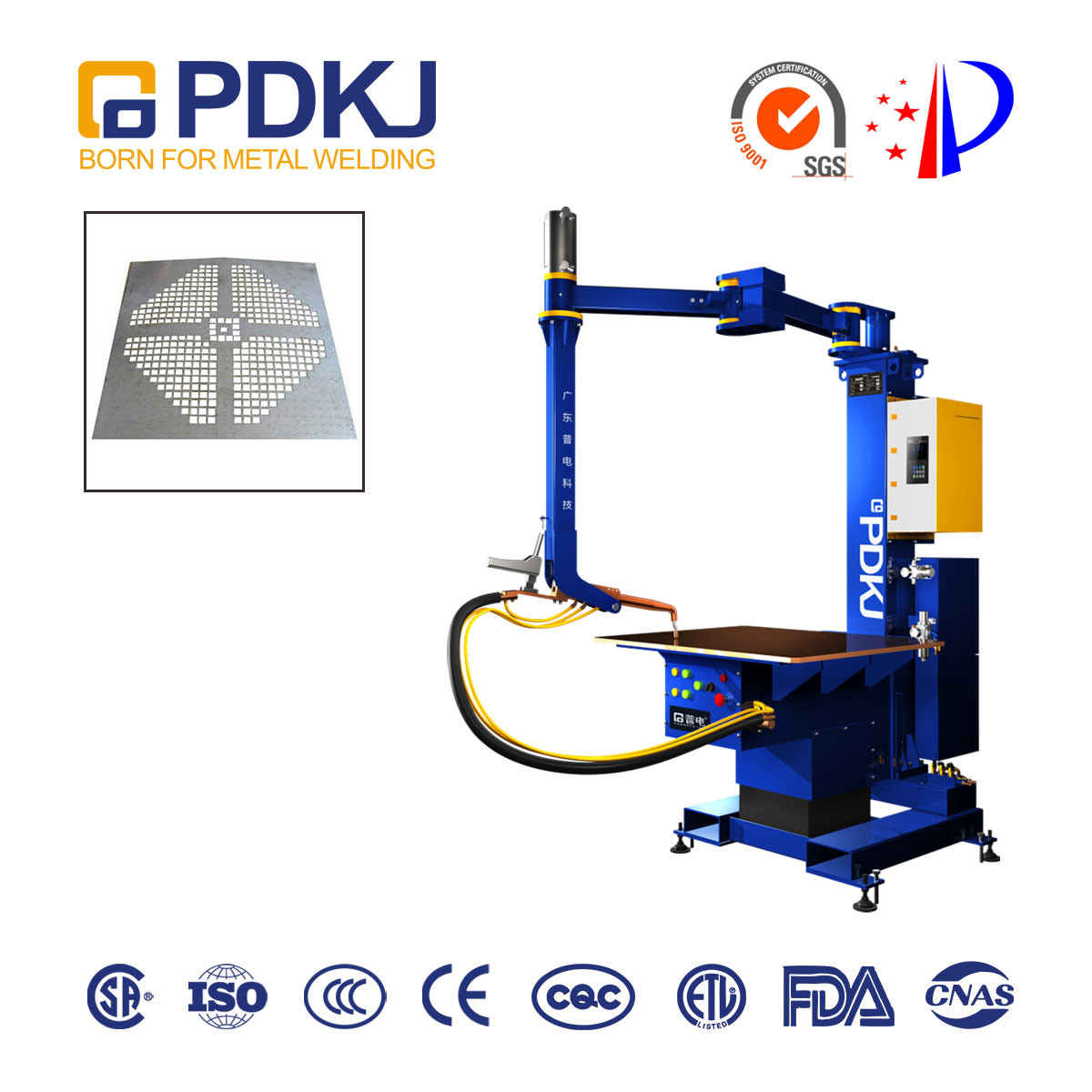

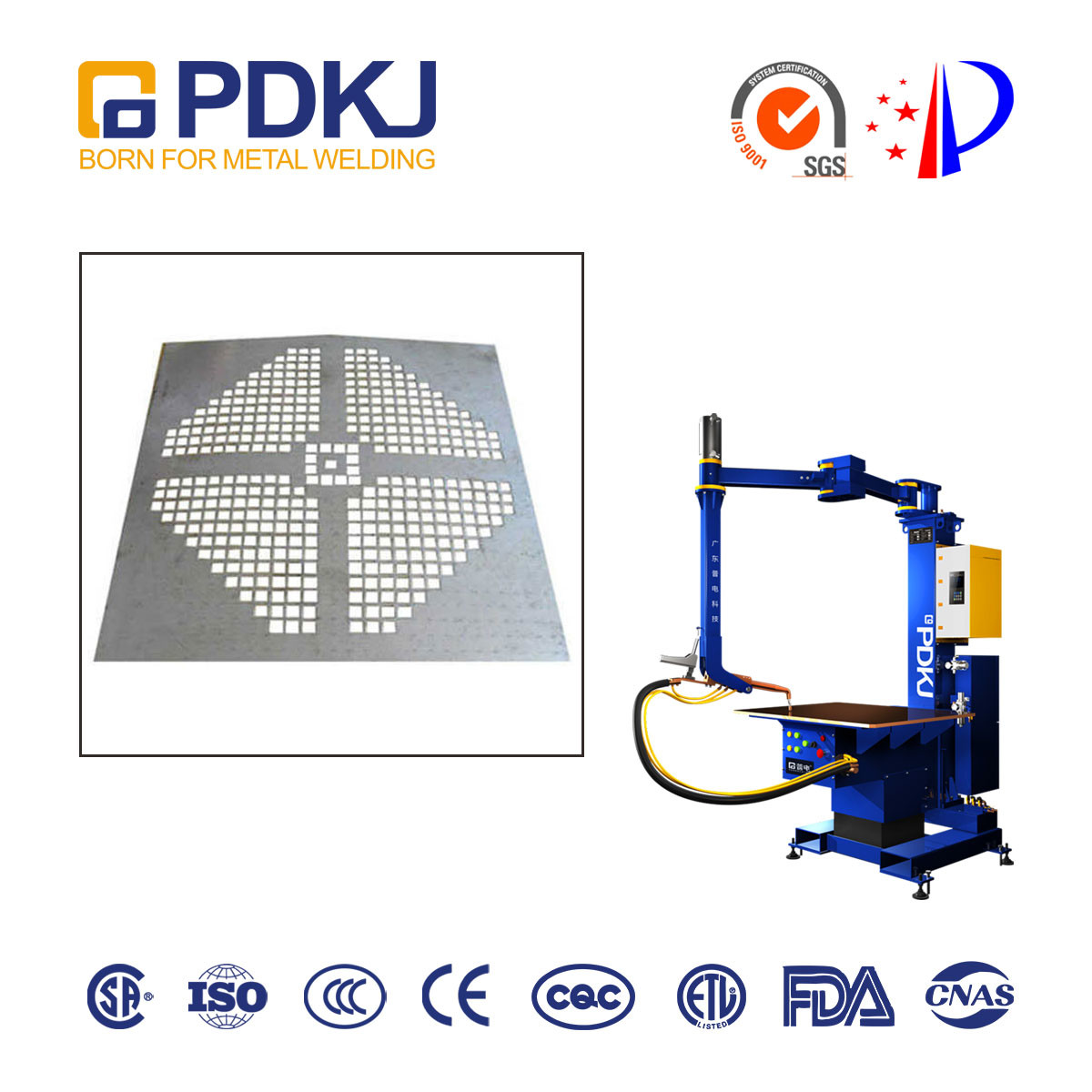

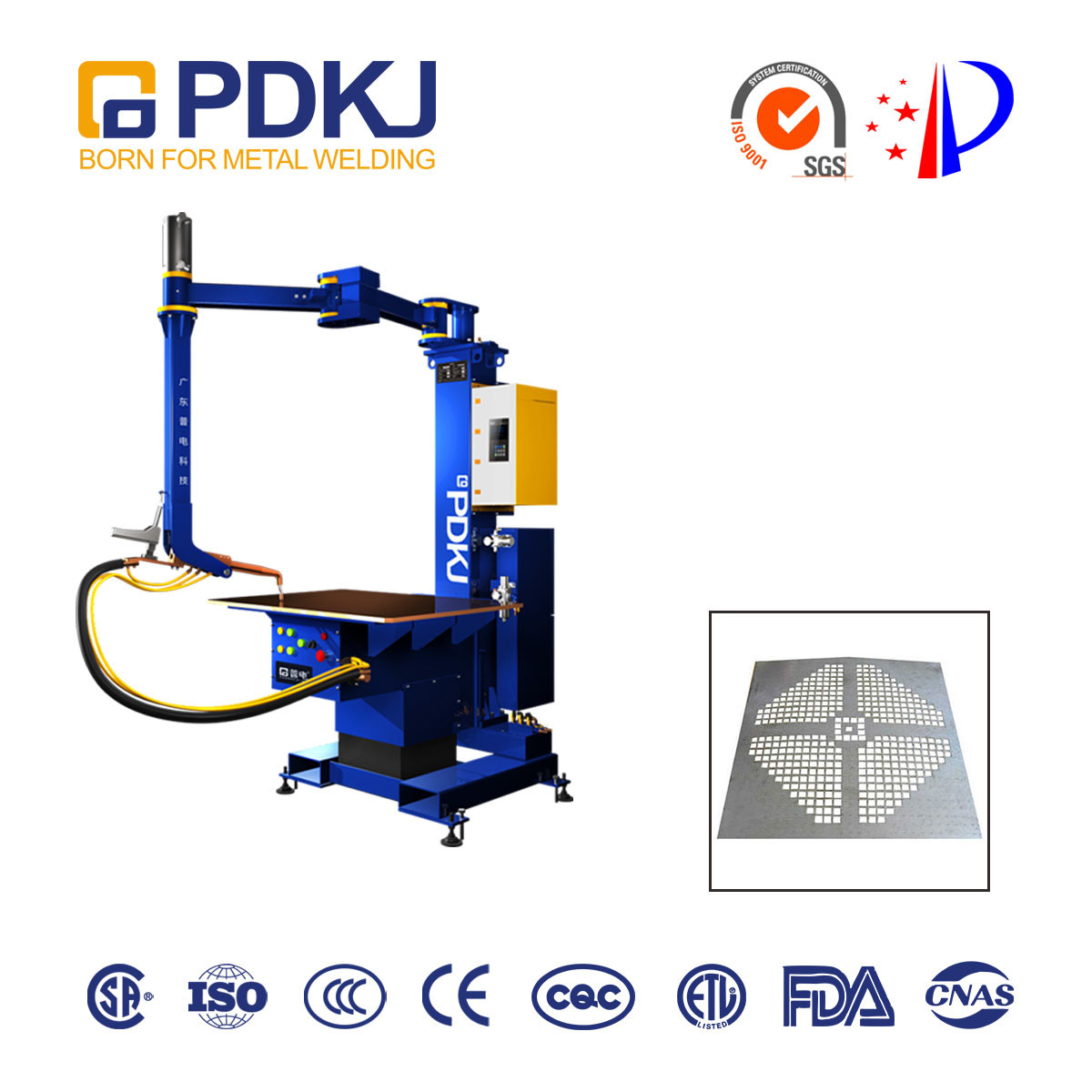

Platform Type Intermediate-Frequency Inverter Seamless Spot Welding Machine For Galvanized Sheet
Platform Type Intermediate-frequency Inverter Seamless Spot Welding Machine , Spot Welding Machine projection welding machine with CE/CCC/ISO certificate
Description:
The product has passed the patent certification of China Intellectual Property Office, obtained China CCC certification and export CE certification. It is mainly used in the welding of metal large workpiece products in sheet metal industry, chassis and cabinet, elevator industry, metal door plate, hardware household appliances and other industries. It is applicable to the welding of metal materials such as aluminum, galvanized sheet, stainless steel and low carbon steel, with good performance and high welding quality.
Large platform, convenient for supporting, taking and placing workpieces; Multi joint flexible welding arm to meet the welding of products in different directions; Small impression on the back of the welding spot and high quality of the welding surface, eliminating the grinding process; Necessary for welding large metal workpieces.

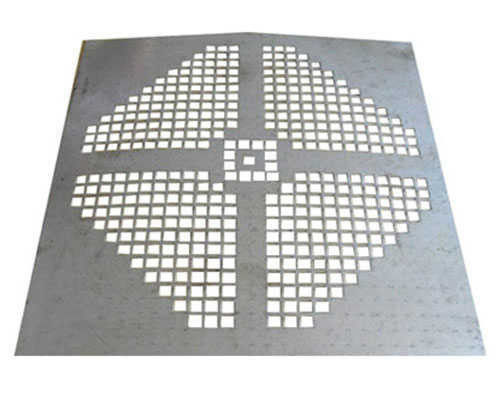

Welding material: Galvanized sheet
Material thickness: < 2 mm
Associated product name: Kitchenware
Industry: Furniture and kitchenware manufacturing industry
Process recommendation: spot welding
Specifications
| parameter | DB-170W |
| Rated capacity | 170KVA |
| Input power | 3φ380V |
| Rated frequency | 1000HZ |
| Welding gun type | Horizontal welding gun |
| short-circuit current | 22000A |
| Load duration | 20% |
| Electrode pressure | 2000N |
| Welding capacity / aluminum plate | 2.0+2.0mm |
| air pressure | 0.6Mpa |
| weight | 760kg |
| Overall dimension | 1550×1000×2329mm |
| Table size | 1000×800mm(table size can be customized according to user requirements) |
Feature
01. The medium frequency inverter welding power supply is adopted to effectively reduce power consumption and welding spatter, and the welding quality is stable and reliable.
02. The welding gun can be designed as a horizontal or vertical structure, which is easy to extend to the depth of the box for welding to meet the welding requirements in different directions.
03. The welding arm is a multi joint arm structure. The unique parallel joint structure makes the operation flexible and the welding range larger, which can easily reach each welding spot on the workbench.
04. It can make your equipment management convenient, improve product quality, improve work efficiency, reduce labor intensity and improve production environment.
05. Using pneumatic pressurization can reduce the labor intensity of workers, obtain constant spot welding pressure and make the welding joints balanced and consistent. When welding iron cabinet, console and other similar parts, there are no welding pits on the outer surface of the parts, which improves the product quality.
06. The wide welding platform can realize electric lifting, which is convenient for taking and placing workpieces.
07. The outer surface of the solder joint is smooth without solder joint, deformation, grinding treatment and secondary processing dust. This not only saves the subsequent treatment process, improves the production efficiency, but also improves the working environment (no noise and dust pollution).
Application
Especially suitable for aluminum, copper, galvanized sheet, carbon steel, nickel, tungsten and other metal materials and high temperature enameled wire, flexible connection, inductance coil welding. It is widely used in the welding of metal products in the fields of automobile and auto parts manufacturing, new energy power battery, photoelectric communication, electric light source, compressor, hardware, furniture, kitchenware, etc. The product has passed the patent certification of China Intellectual Property Office, China CCC certification and export CE certification
FAQ
1. When can you arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days. We always ship by air and sea in the mean time.
2. What does your factory produce?
We produce and export all kinds of automatic welding machine and robots and relative parts. We can design machines according to your requirements.
3. What’ your warranty and after-sales?
We offer 1 year warranty, various forms of online instruction and the spare parts. Professional engineers will solve problem, if necessary.
4. How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
