| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PDKJ |
| Certification: | CE ISO SGS |
| Model Number: | DN-25T |
| Minimum Order Quantity: | 1 unit |
| Price: | 4604-5410 USD |
| Packaging Details: | Wooden Case |
| Delivery Time: | 5-25 days |
| Supply Ability: | 100 set per month |
| Welding Style: | Resistance Welding | Usage: | Spot Welding |
|---|---|---|---|
| Key Selling Points: | Quick,Seamless | Applicable Industries: | Building Material; Machinery Repair; Sheet Metal |
| After-sales Service: | Field Installation; Site Commissioning And Training | Welding Thickness: | 1.0+1.0mm |
| High Light: | 750N Resistance Spot Welding Machine,AC Resistance Spot Welding Machine,ISO9001 precision spot welder |
||

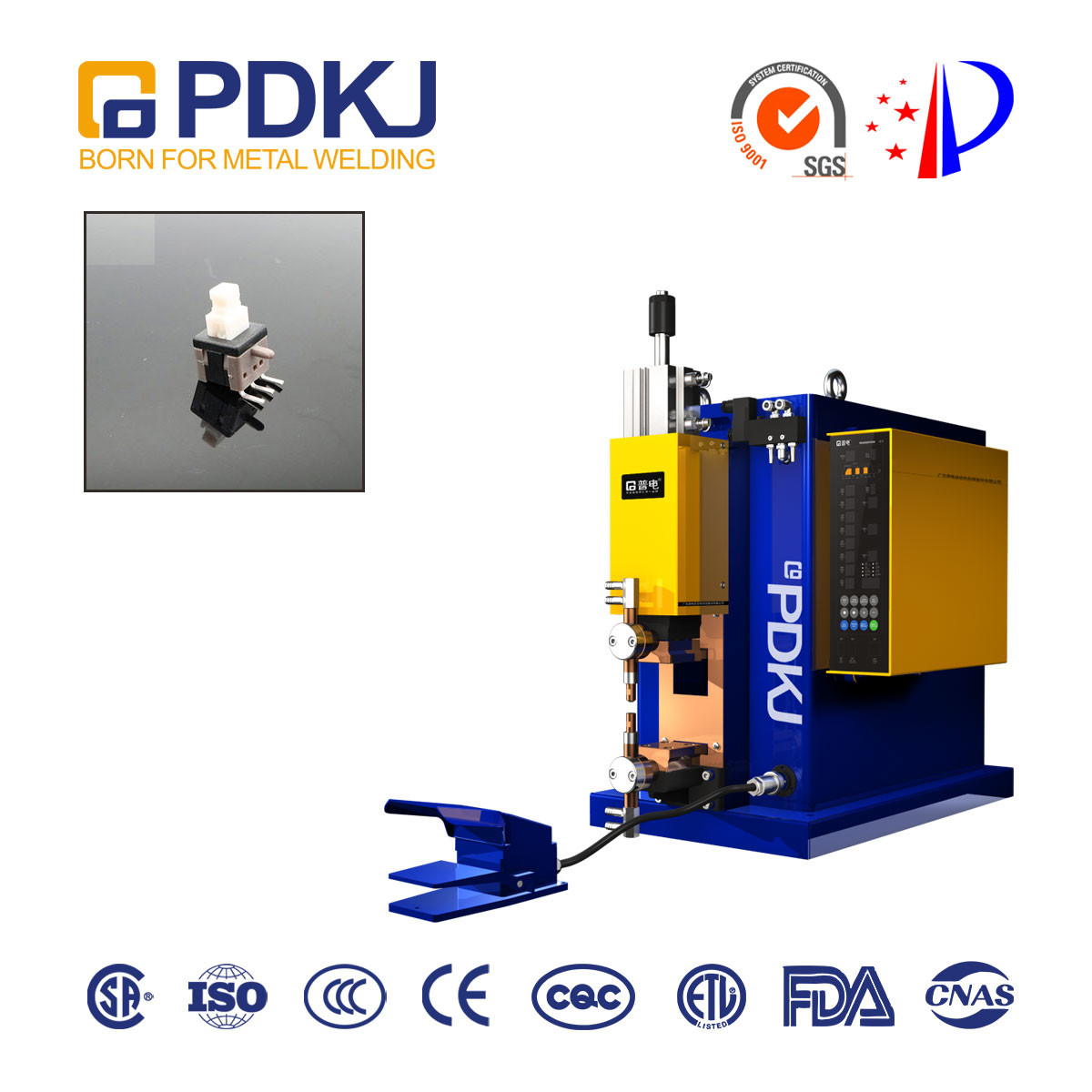

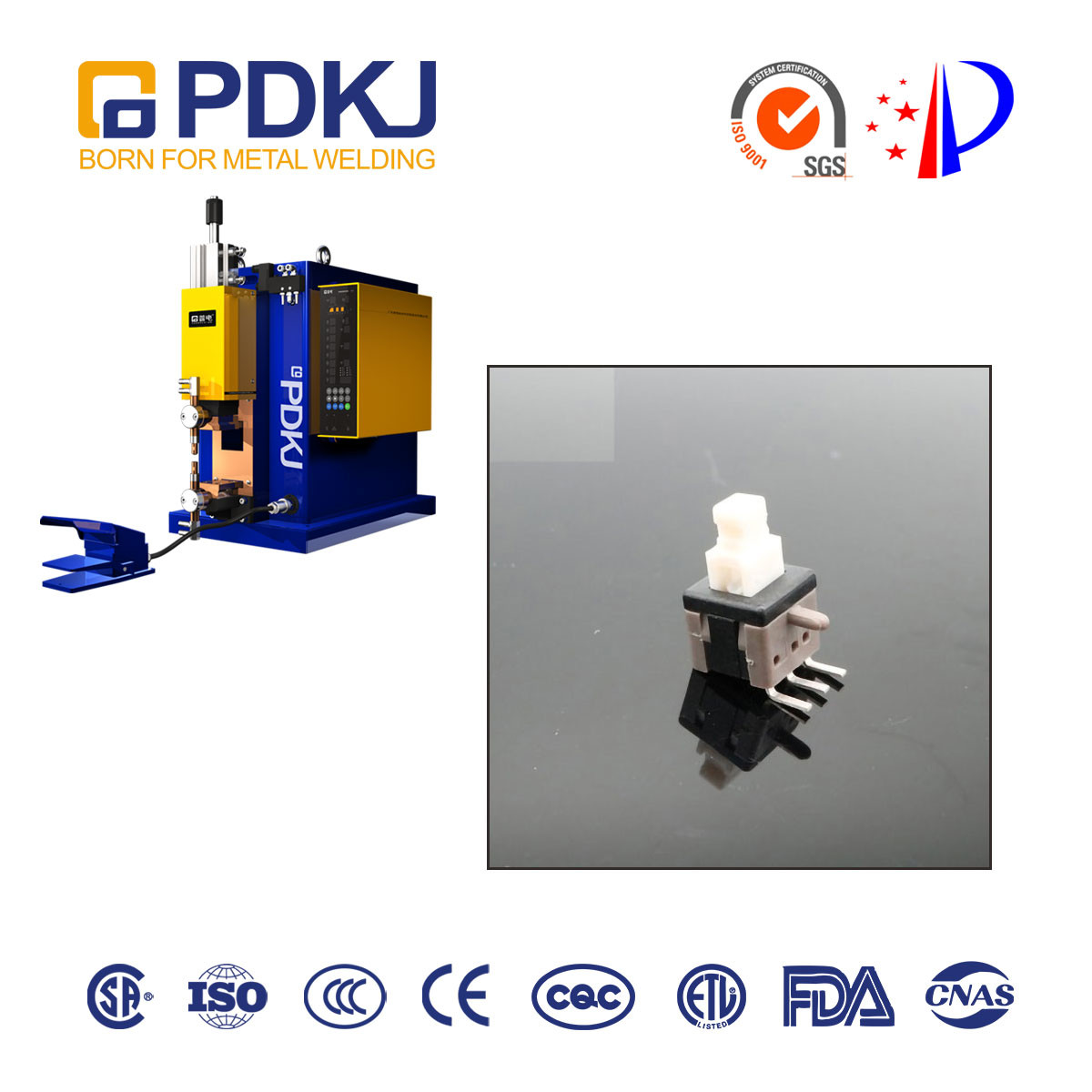

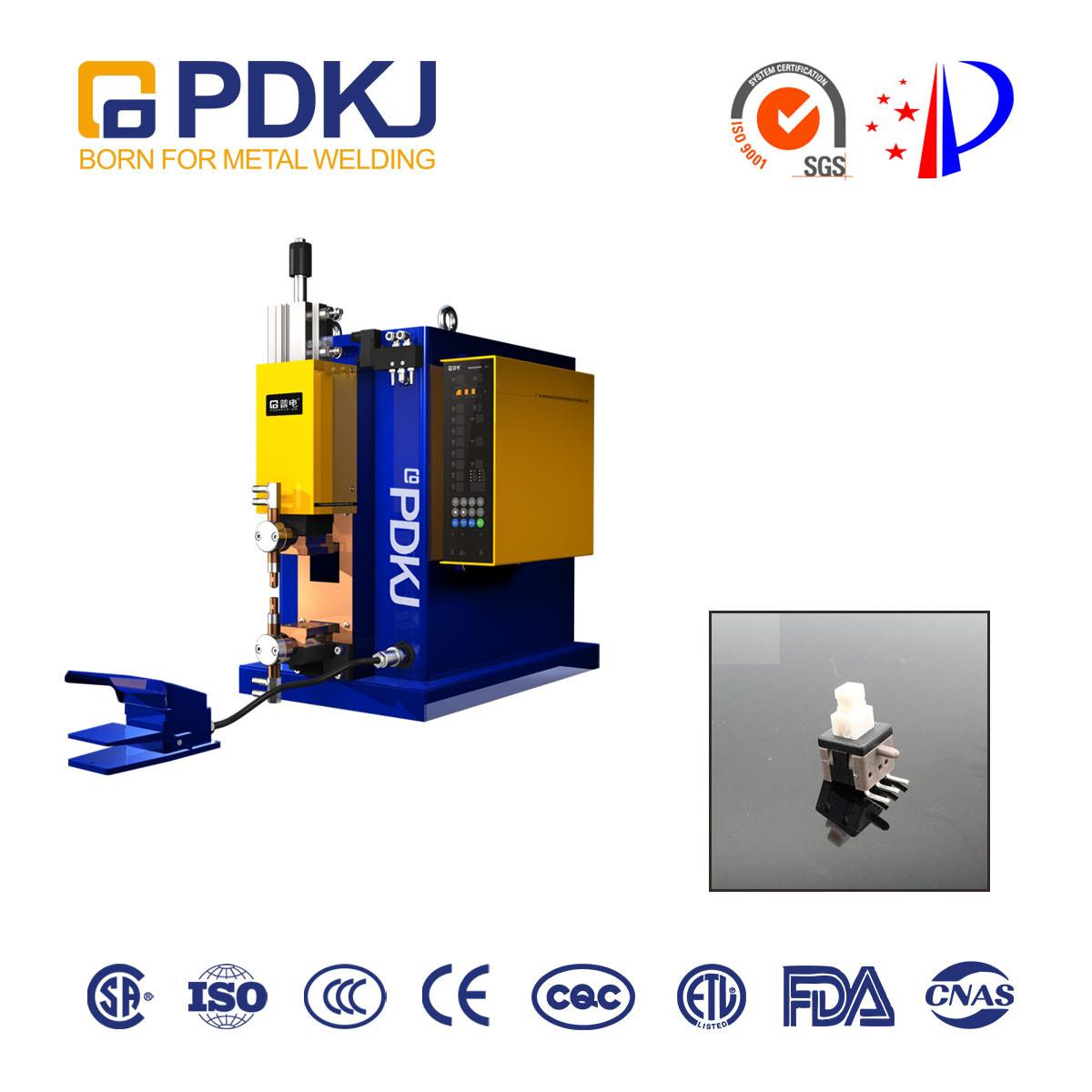

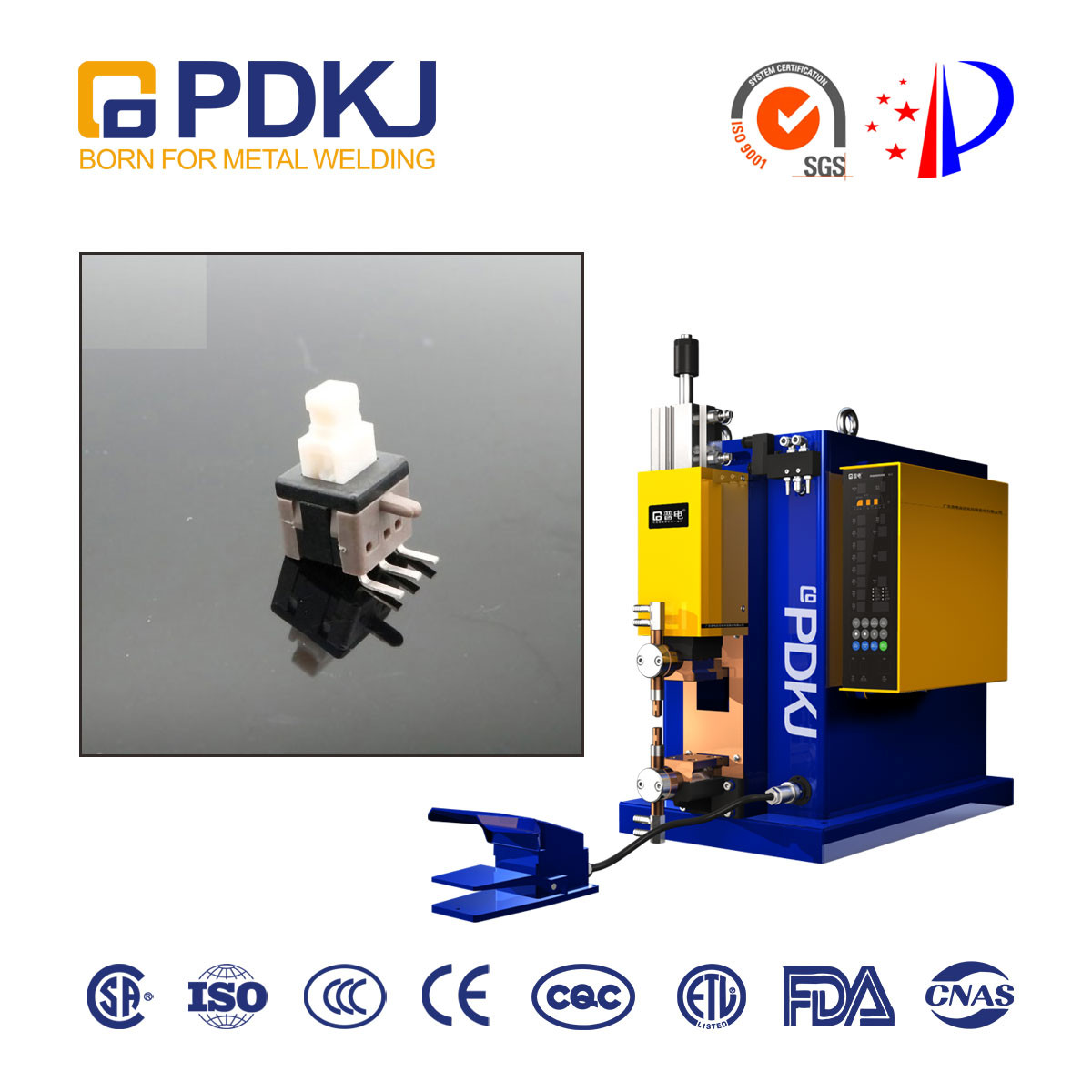

Desktop Intermediate-Frequency Inverse DC Spot Welding Machine For Electrical Switch
Desktop AC Precision Spot Welding Machine , Spot Welding Machine projection welding machine with CE/CCC/ISO certificate
Description:

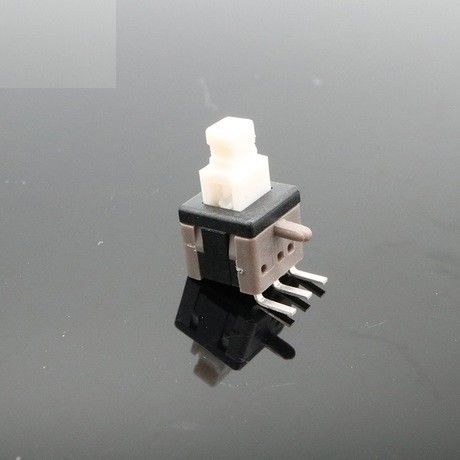

Desktop medium frequency inverter spot welder is suitable for welding fine workpieces such as electrical switches, purple copper wire joints, terminal wires, silver contacts, chip inductors, coils, fuses and hardware. It is widely used in the welding of precision components such as electronics, electrical appliances, medical devices, instruments and meters.
Welding material: Tungsten
Material thickness: < 3 mm
Associated product name: an electric appliance
Industry: Electronic precision manufacturing industry
Process recommendation: spot welding
Specifications
| parameter | DN-25T |
| Input power | two φ 380V |
| Rated frequency | 50/60HZ |
| short-circuit current | 15000A |
| Load duration | 20% |
| Arm extension size | 120 mm x115mm |
| press | 750N |
| Electrode stroke | 50mm |
| weight | 130kg |
| Overall dimension | 800*500*765mm |
Feature
01. Direct pressure mechanism,The guide part adopts a new structure with high follow-up.
02. Desktop structure,Desktop structure, beautiful and generous It is especially suitable for fine workpiece welding and assembly line installation and production
03. Safe and high performance,Safe and high performance pneumatic system The pressurization speed can be adjusted at will.
04. Water cooling system,Water saving circulating water cooling system Equipped with quick water-cooling connector to facilitate the replacement of water-cooling electrode or fixture.
Application
Especially suitable for aluminum, copper, galvanized sheet, carbon steel, nickel, tungsten and other metal materials and high temperature enameled wire, flexible connection, inductance coil welding. It is widely used in the welding of metal products in the fields of automobile and auto parts manufacturing, new energy power battery, photoelectric communication, electric light source, compressor, hardware, furniture, kitchenware, etc. The product has passed the patent certification of China Intellectual Property Office, China CCC certification and export CE certification
FAQ
1. When can you arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days. We always ship by air and sea in the mean time.
2. Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
3. Are you a factory?
Yes, We are a factory, all machine is made by ourselves and we can provide customize service according to your requirement.
4. How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
