SGS 750N Aluminium Resistance Spot Welding Machine 115mm Arm

Basic Information
Place of Origin: CHINA
Brand Name: PDKJ
Certification: CE ISO SGS
Model Number: DB-80T
Minimum Order Quantity: 1 unit
Price: 9200 USD
Packaging Details: Wooden Case
Delivery Time: 5-25 days
Supply Ability: 100 set per month
Detail Information
Welding Style: Resistance Welding Usage: Spot Welding
Key Selling Points: Quick,Seamless Applicable Industries: Building Material; Machinery Repair; Sheet Metal
After-sales Service: Field Installation; Site Commissioning And Training Welding Thickness: 1.0+1.0mm
High Light:

SGS Resistance Spot Welding Machine


Resistance Spot Welding Machine 115mm


750N aluminium spot welding machine

Product Description

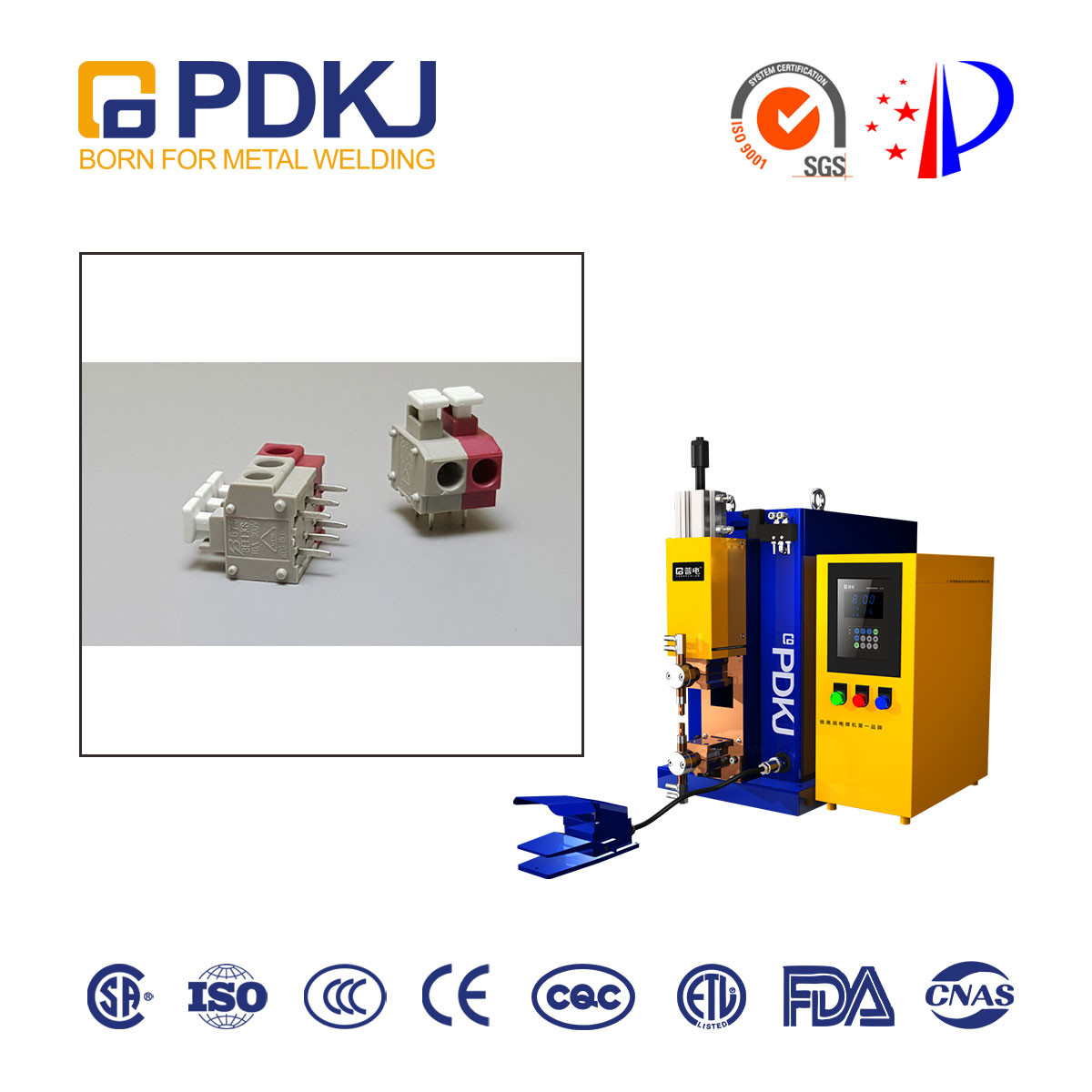

SGS 750N Aluminium Resistance Spot Welding Machine 115mm Arm 0

Desktop Intermediate-Frequency Inverse DC Spot Welding Machine For Electrical Switch

Desktop Intermediate-frequency Inverse DC Spot Welding Machine , Spot Welding Machine projection welding machine with CE/CCC/ISO certificate

TDesktop medium frequency inverter spot welder is suitable for welding fine workpieces such as electrical switches, purple copper wire joints, terminal wires, silver contacts, chip inductors, coils, fuses and hardware. It is widely used in the welding of precision components such as electronics, electrical appliances, medical devices, instruments and meters.

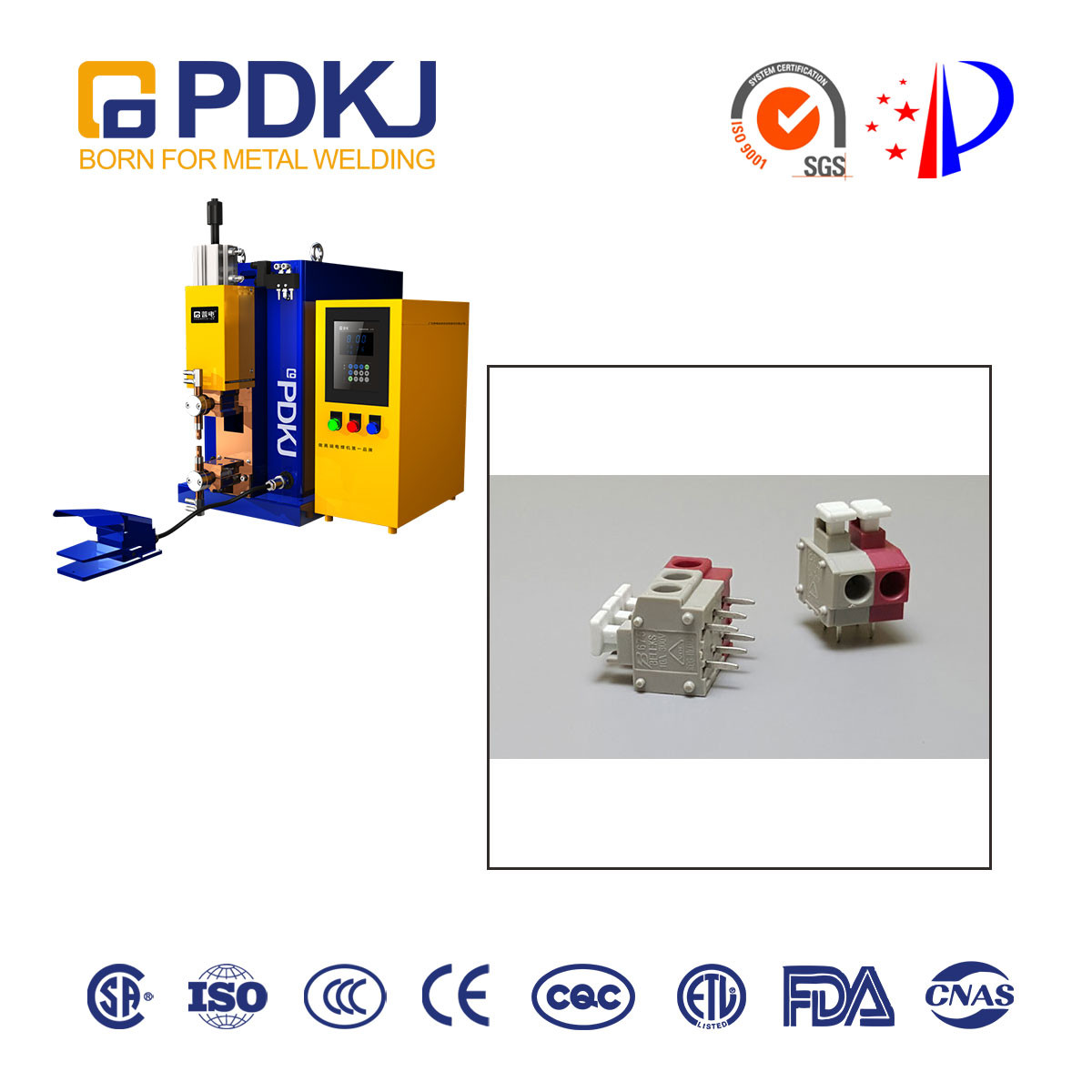

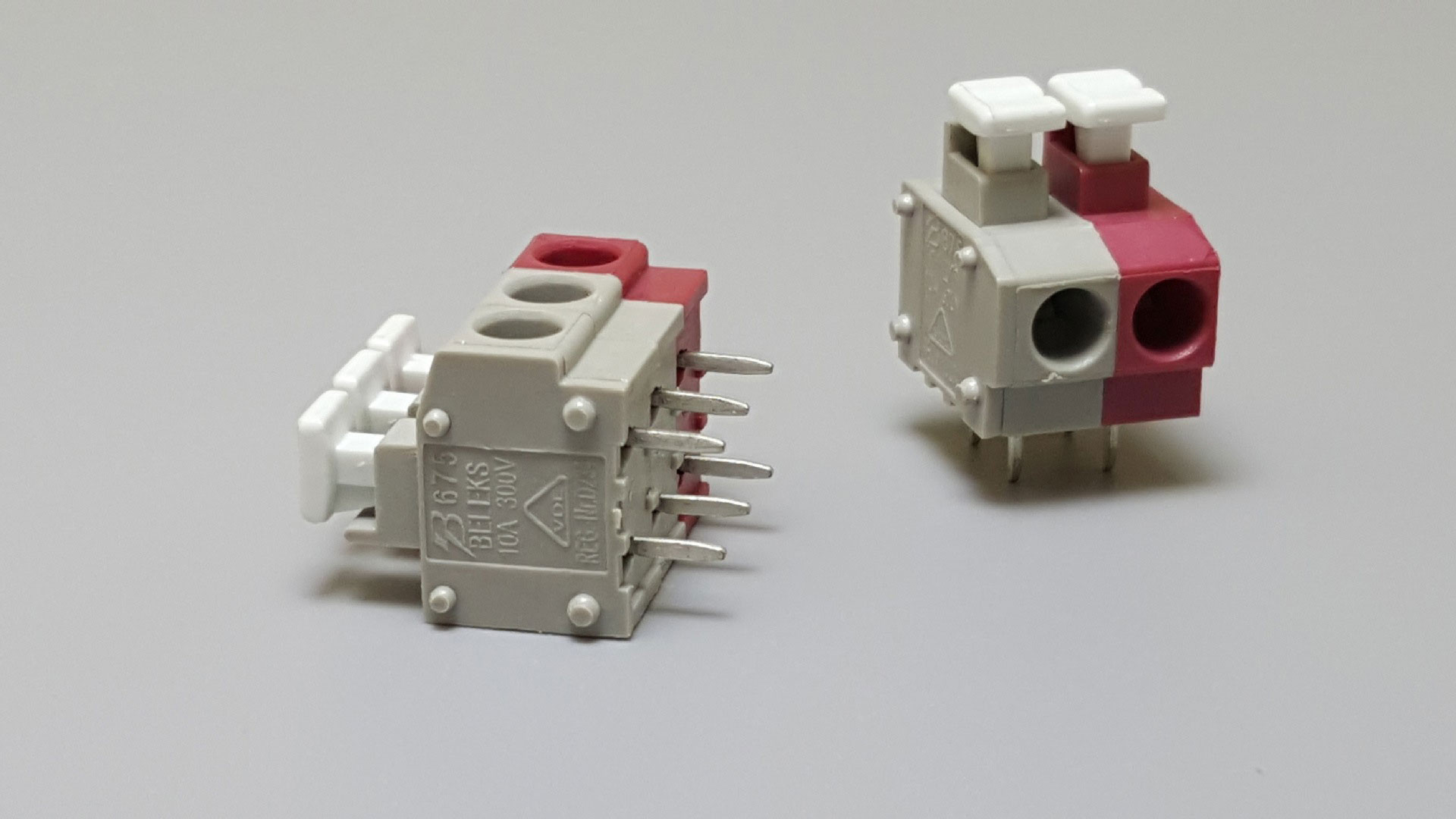

SGS 750N Aluminium Resistance Spot Welding Machine 115mm Arm 1SGS 750N Aluminium Resistance Spot Welding Machine 115mm Arm 2

Welding material: Copper
Material thickness: < 3 mm
Associated product name: an electric appliance
Industry: Electronic precision manufacturing industry
Process recommendation: spot welding


parameter DB-80T
short-circuit current 22000A
Load duration 20%
control mode Primary / secondary constant current
Inverter frequency 1000HZ
Arm extension size 120 mm x115mm
press 750N
Electrode stroke 50mm
Cooling water flow 4L/min
weight 150kg
Overall dimension (mm) 800*670*765mm

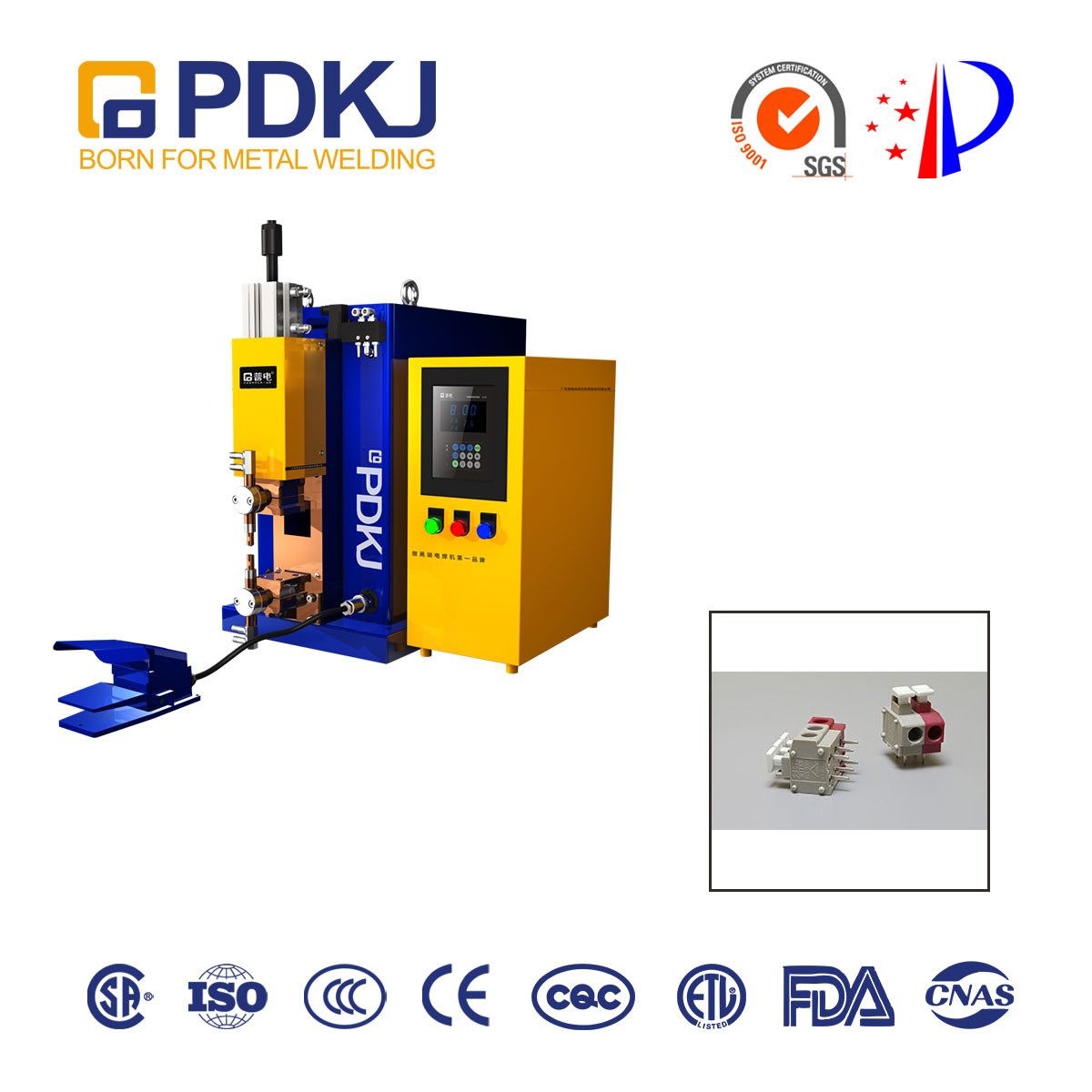

SGS 750N Aluminium Resistance Spot Welding Machine 115mm Arm 3


01. High strength body structure and good rigidity can prevent the electrode head from sliding when pressurized.

02. Desktop structure, beautiful and generous, space saving and flexible configuration.

03. Safe and high-performance pneumatic system, the pressurization speed can be adjusted at will.

04. The water-saving circulating water cooling system is equipped with fast water cooling connector to facilitate the replacement of water cooling, electrode or fixture.

05. Equipped with medium frequency welding controller and current closed-loop control, it can control the actual welding current at high speed and accurately.

06. High quality and high efficiency welding capacity, power factor up to 98%, three-phase input load balance.

Especially suitable for aluminum, copper, galvanized sheet, carbon steel, nickel, tungsten and other metal materials and high temperature enameled wire, flexible connection, inductance coil welding. It is widely used in the welding of metal products in the fields of automobile and auto parts manufacturing, new energy power battery, photoelectric communication, electric light source, compressor, hardware, furniture, kitchenware, etc. The product has passed the patent certification of China Intellectual Property Office, China CCC certification and export CE certification

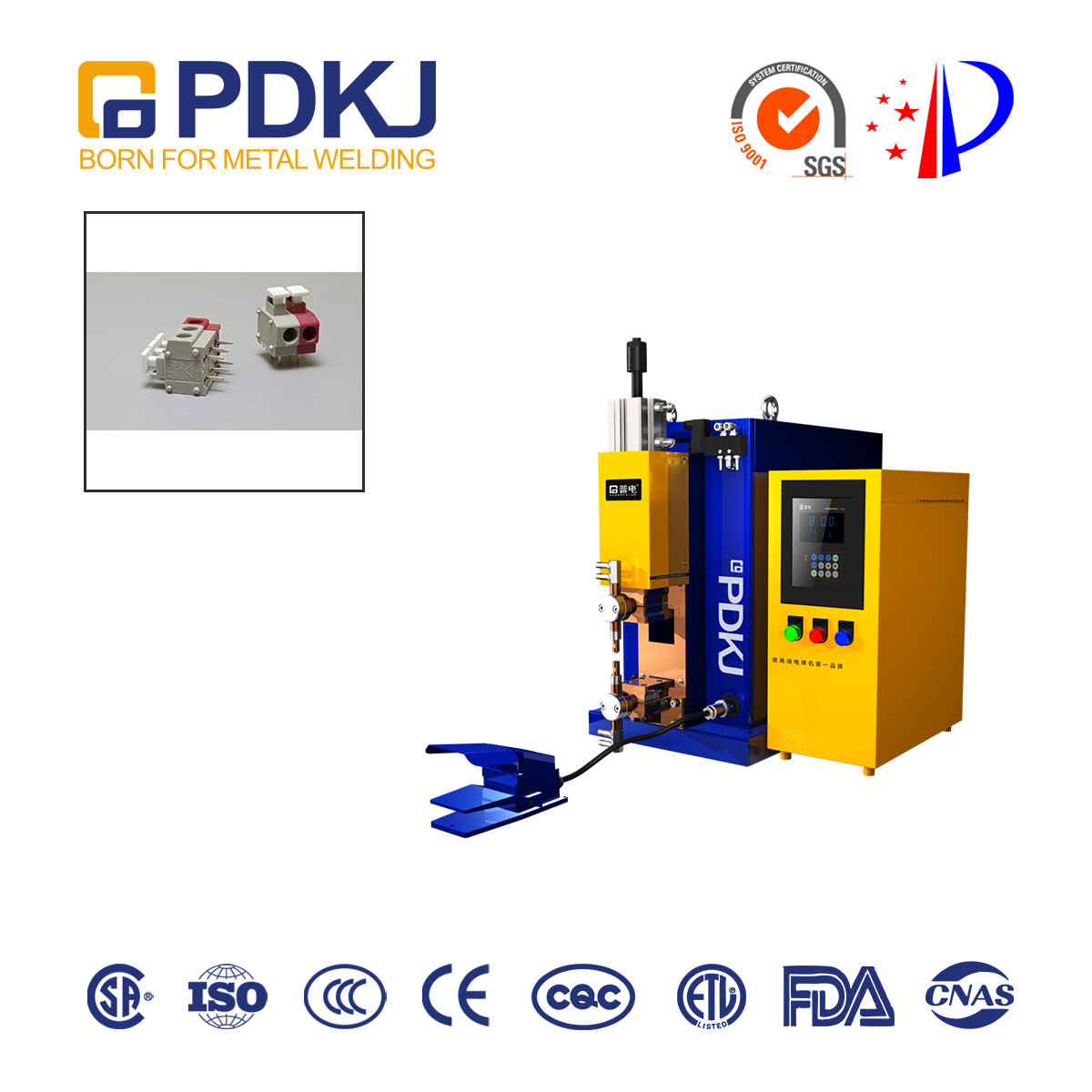

SGS 750N Aluminium Resistance Spot Welding Machine 115mm Arm 4
1. When can you arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days. We always ship by air and sea in the mean time.
2. What does your factory produce?
We produce and export all kinds of automatic welding machine and robots and relative parts. We can design machines according to your requirements.
3. What’ your warranty and after-sales?
We offer 1 year warranty, various forms of online instruction and the spare parts. Professional engineers will solve problem, if necessary.
4. How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

SGS 750N Aluminium Resistance Spot Welding Machine 115mm Arm 5
